M5Stack 4-Channel Relay Module (STM32)

Sale price £15
incl. VAT
excl. VAT
In stock

Awesome Extras

M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
Sale price £44.70 incl. VAT excl. VAT
M5StackM5Stack Mini 3A Relay Unit
Sale price £3 incl. VAT excl. VAT

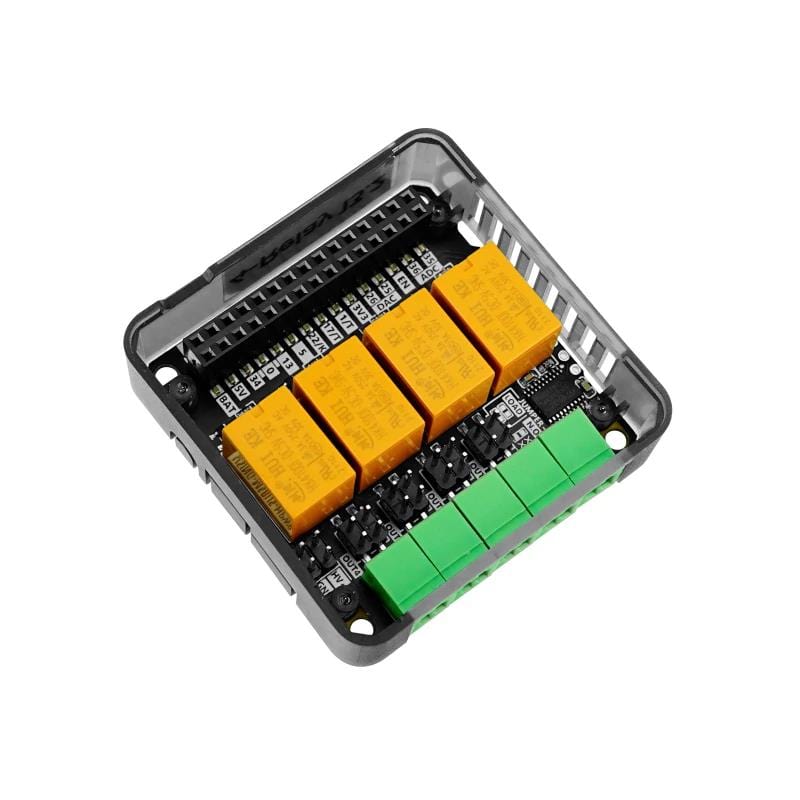

The M5Stack 4-Relay Module is a 4-Channel Relay module compatible with the M5Stack Core and Core2 series, with 4-channel mechanical relays (NO, COM).

The module supports the I2C protocol and can be set by a jumper into active/passive modes. This relay module supports DC control only, and the Maximum load is 24W (DC 24V@1A). It is suitable for small load circuit control.

Product Features

  • Embedded with STM32F030F4:
    • I2C communication (Addr: 0x26)

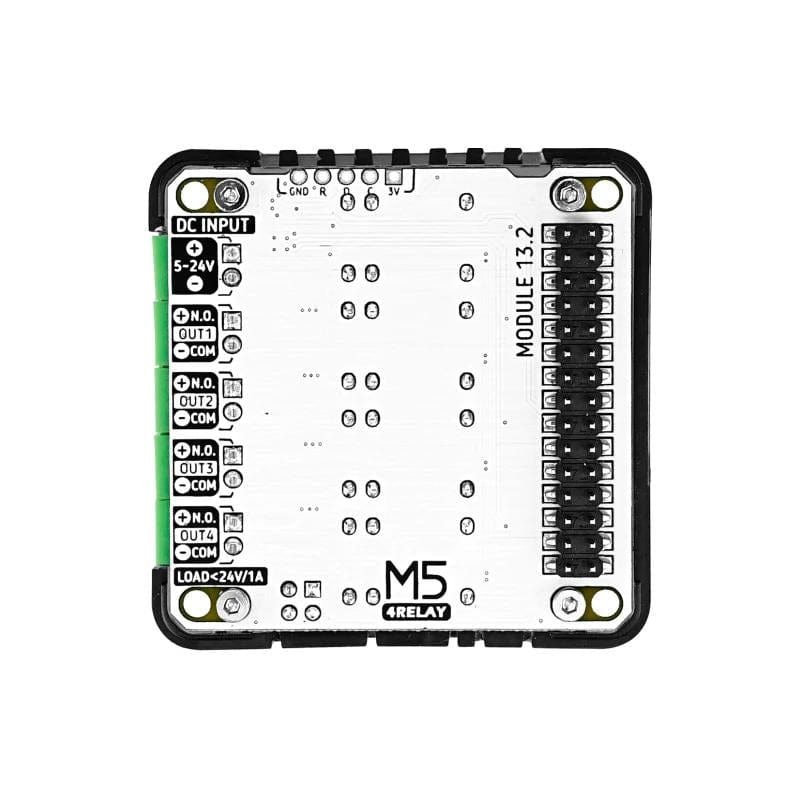

  • Relay:
    • 4x relay module (COM, NO interface)
    • Maximum load 24W (DC 24V @ 1A)

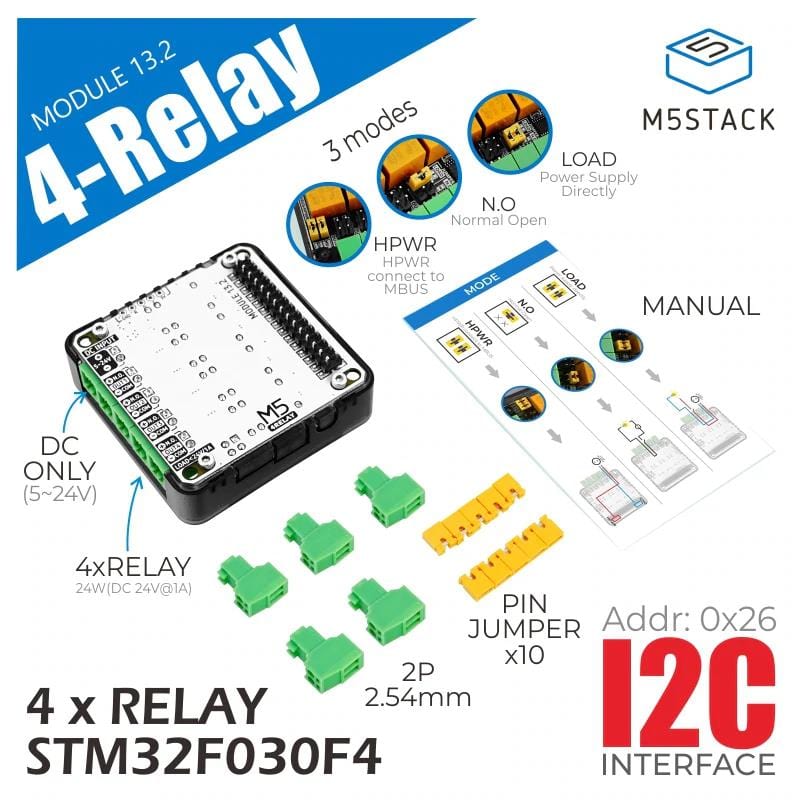

  • Supports two operation modes (selected by jumper).
    • Active mode.
      • Power input connects with relay NO port, to supply load directly.
    • Passive mode.
      • Power input does not connect to the relay port. The user's circuit needs an individual power supply.
  • Power input (Support DC input only).
  • DC 5-24V INPUT -> M5 BUS HPWR Bus (Controlled by jumper. When stacking with several different M5 modules, HPWR Bus can supply power to other modules that need 24V power, such as SERVO2 module, etc.)
  • Development platform: Arduino, UIFlow(coming soon)

Package Contents

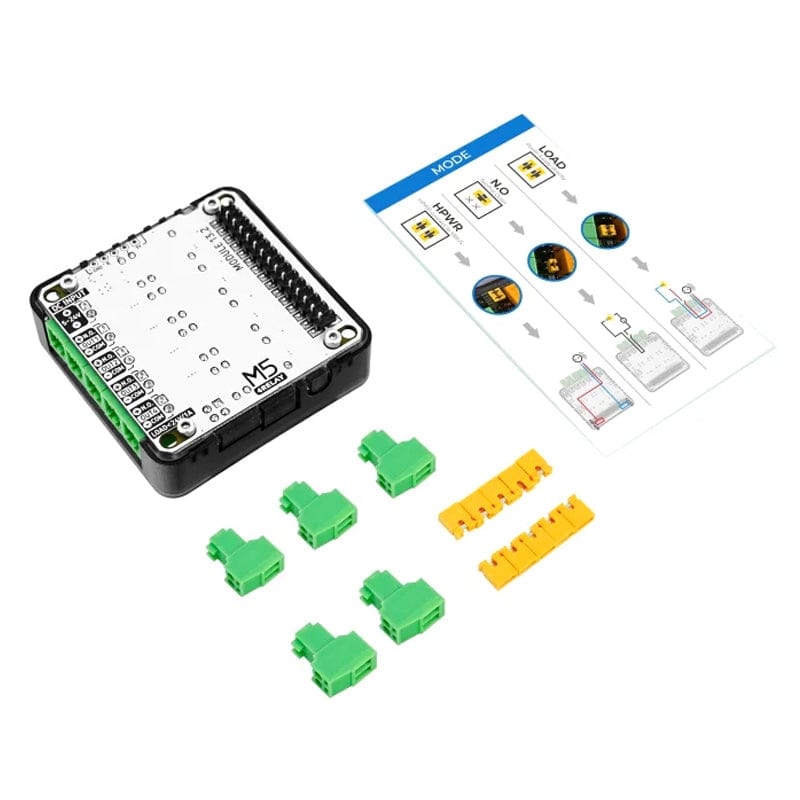

  • 1x 4-Relay Module
  • 5x Wiring Terminal 2.54mm-2P (green)
  • 10x Pin Jumpers
    1x Wiring Instructions


Specifications Parameters
Main Control Chip STM32F030F4
Communication interface I2C communication interface (addr: 0x26)
Support operating mode Active control / Passive control
Relay channels 4x(COM, NO interface)
Power input interface DC 5-24V
Load capacity 4 channels max. 24W (DC 24V@1A)

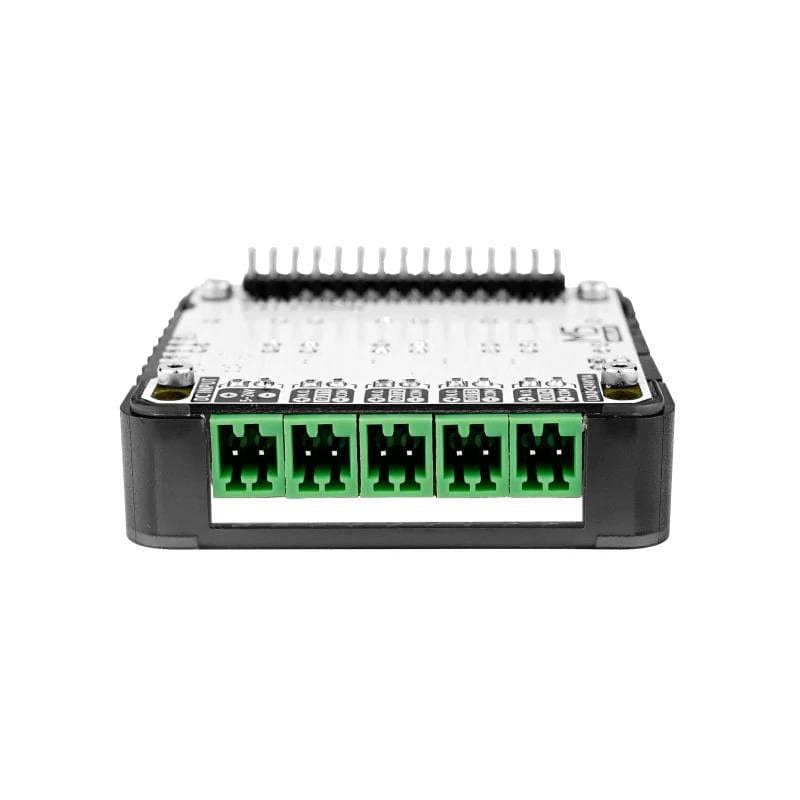

Relay terminal specifications 2.54-2P
Net Weight 37.2g
Gross Weight 37.6g
Product size 54.2*54.2*13.2mm
Package size 95*65*25mm



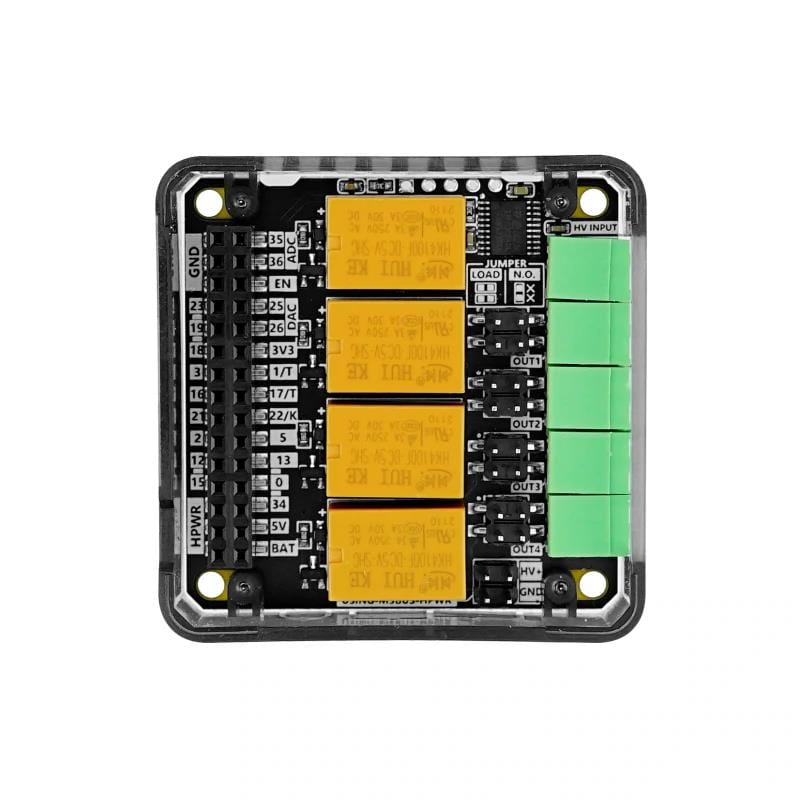

4Relay Module SCL SDA 5V GND
