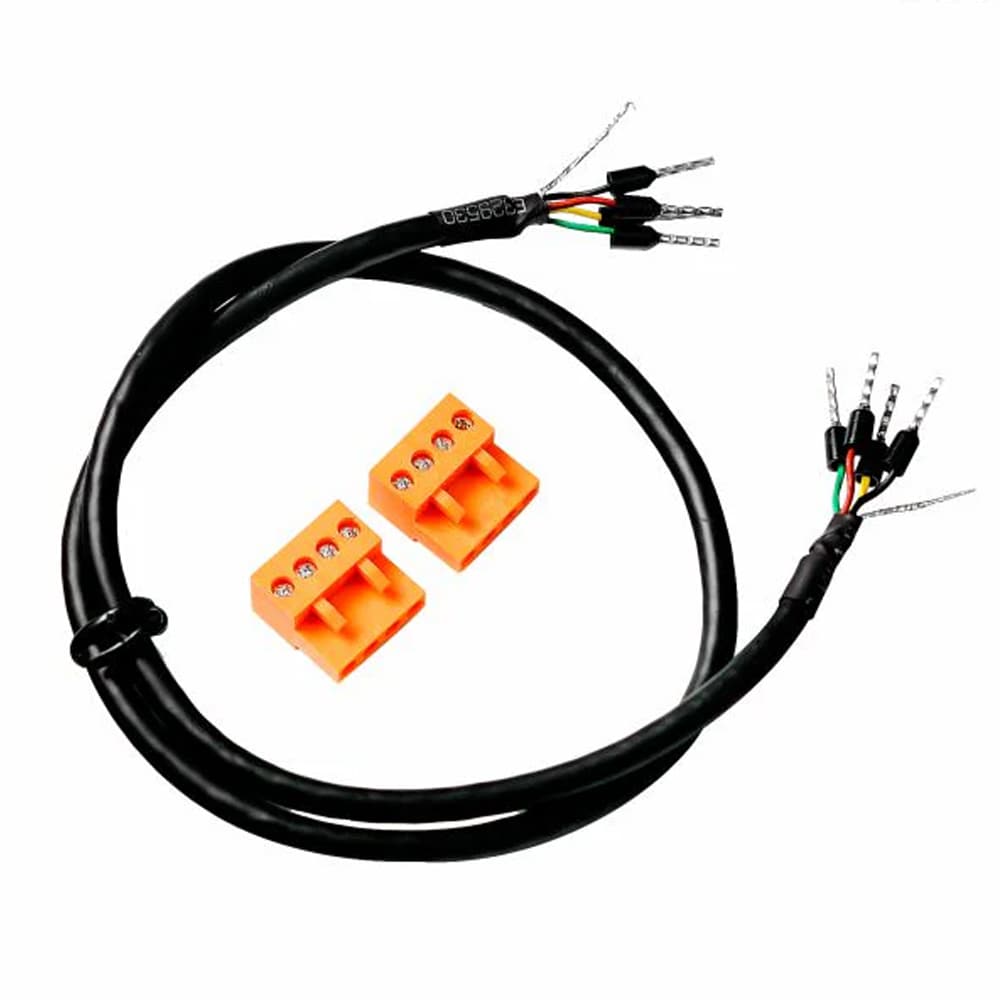

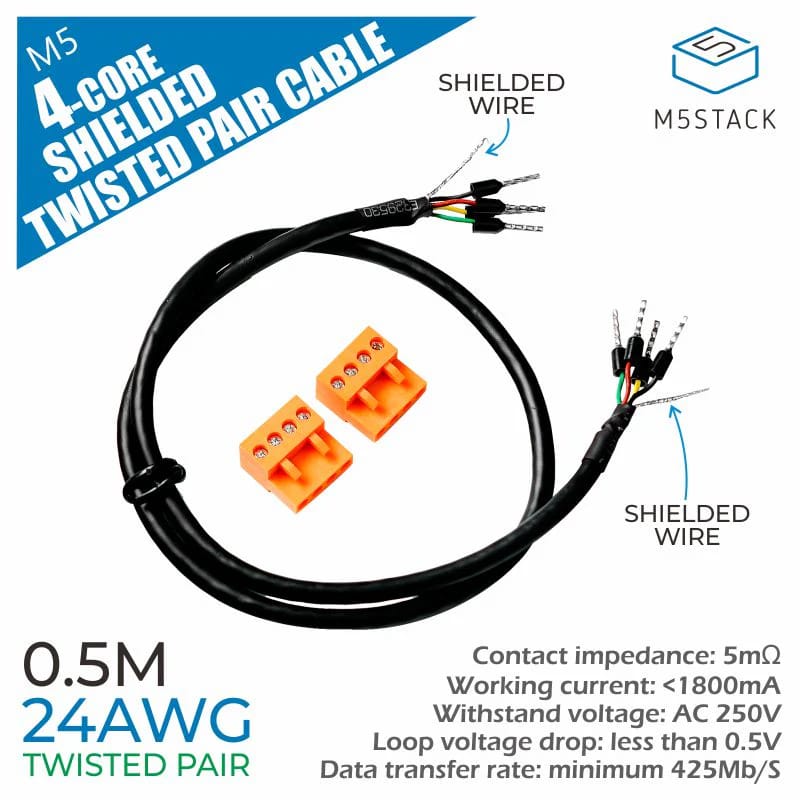

M5Stack 24AWG 4-Core Shielded Twisted Pair Cable

The M5Stack Shielded Twisted Pair Cable provides reliable, noise-resistant data transmission with twisted pair conductors and dual-layer shielding, making it ideal for RS485, RS232, CAN bus, and other communication applications.

The M5Stack Shielded Twisted Pair Cable is designed for building reliable data communication lines across a wide range of electronic and industrial applications.

Its twisted pair construction helps minimise electromagnetic interference, while the additional internal aluminium foil and braided shielding layers further reduce external signal noise and improve communication stability.

Suitable for both general serial communication and industrial communication standards, the cable can be used with RS485, RS232, CAN bus, and other common communication protocols where stable and interference-resistant data transmission is important.

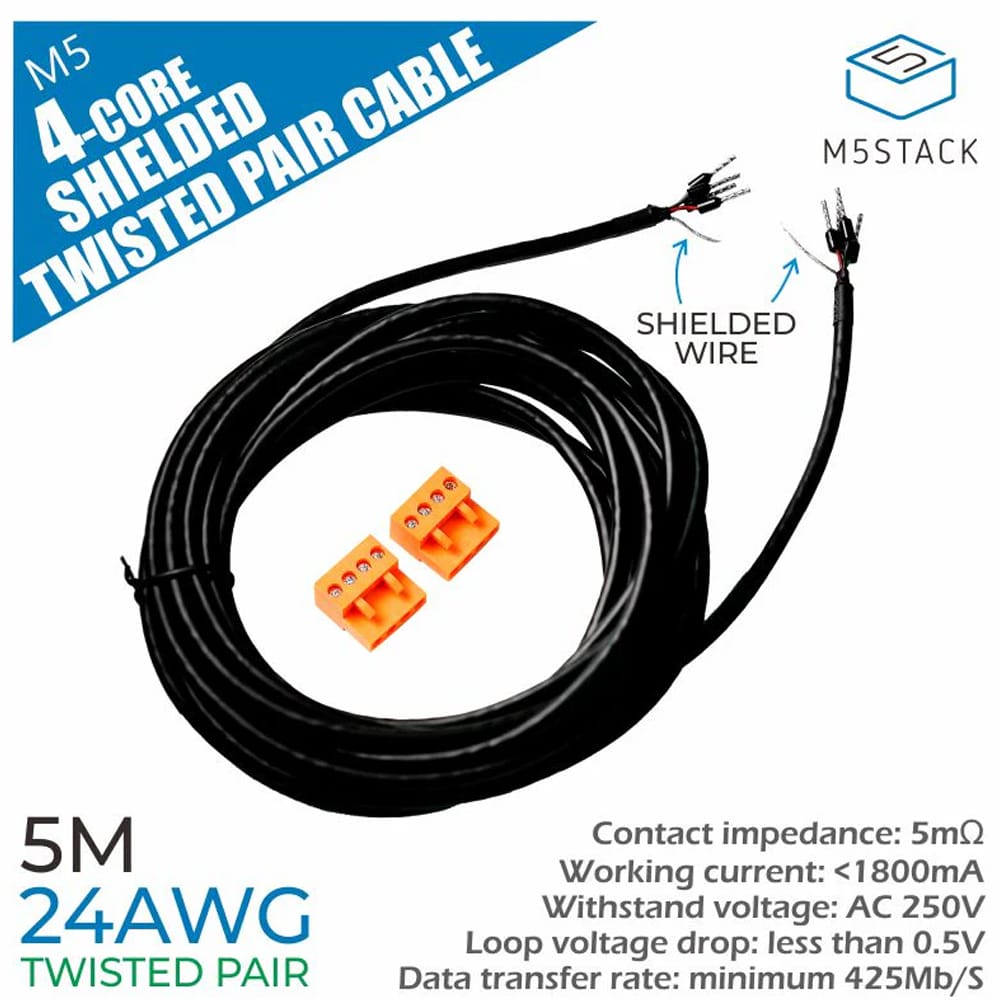

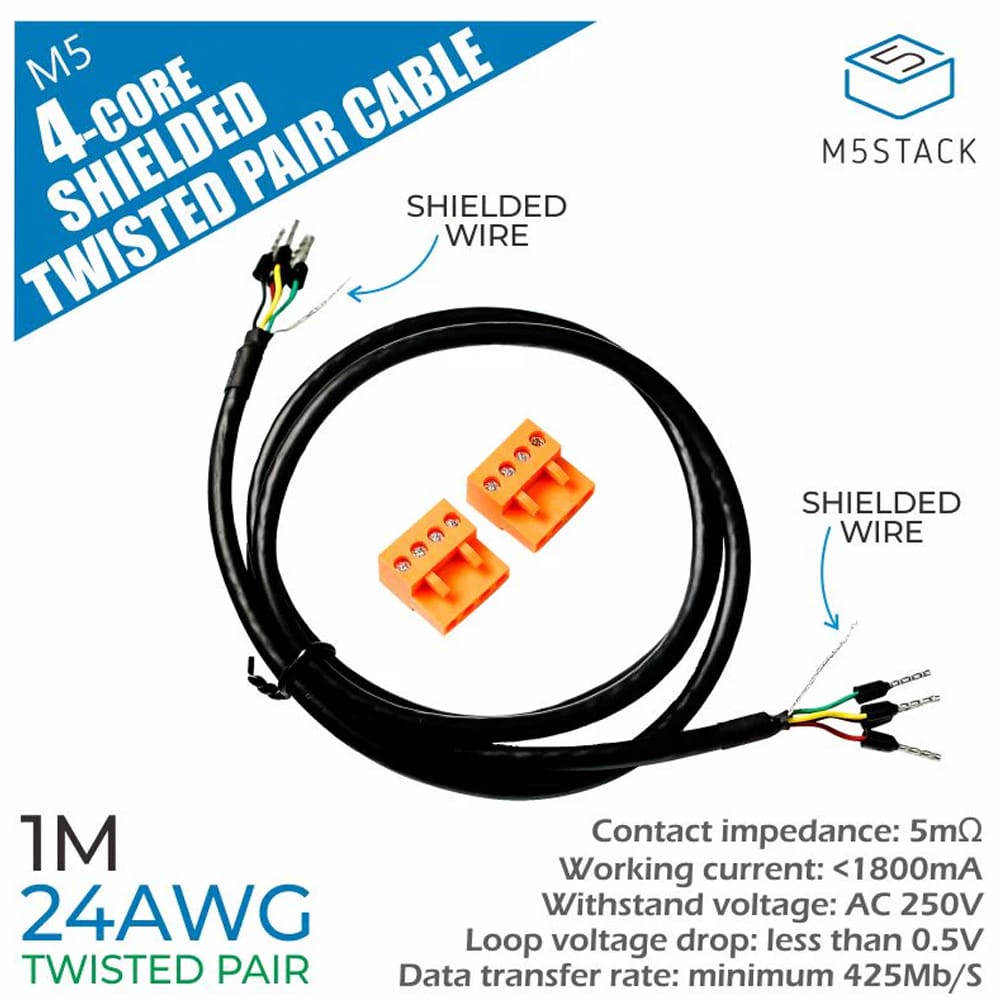

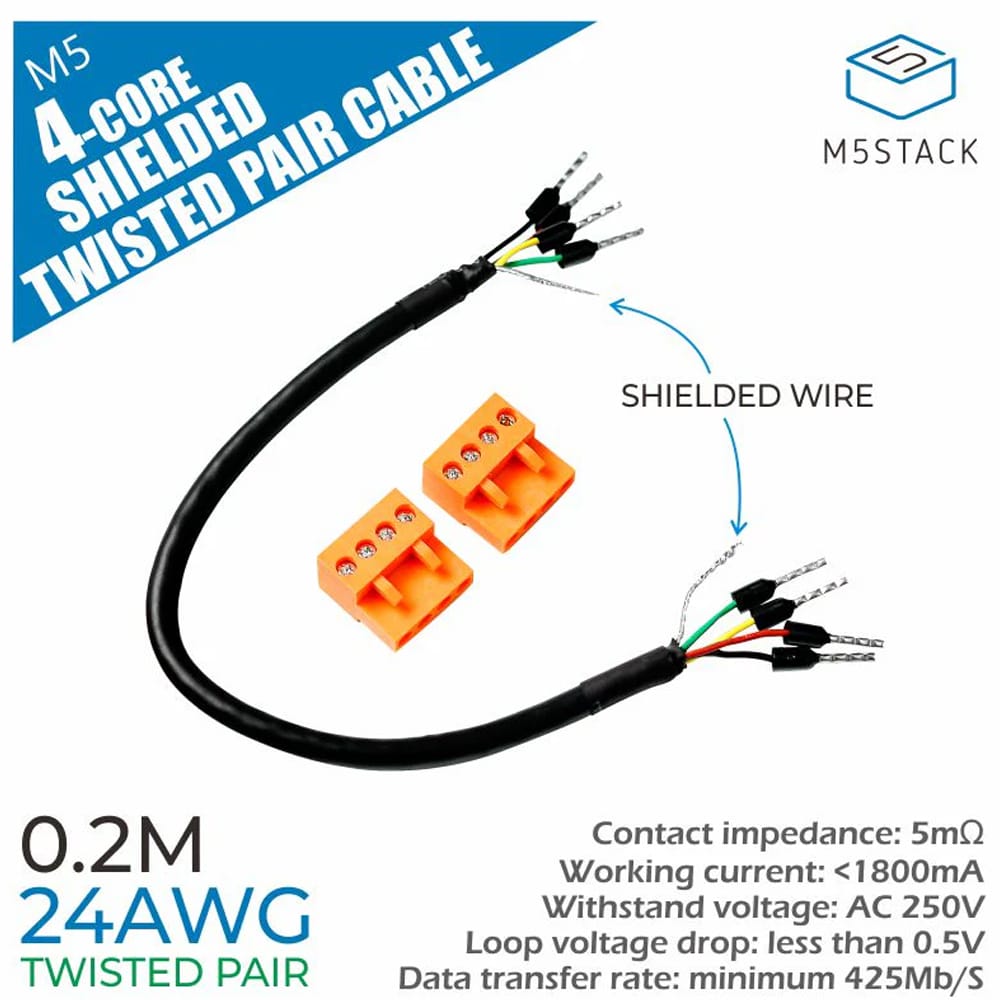

Please note: These are available in various lengths. Please select desired length at checkout.

Features

• Electrical Characteristics
  • Operating Voltage: 2.5 ~ 9V
  • Operating Current: <1800mA
  • Loop Voltage Drop: <0.5V
  • Contact Resistance: 5mΩ
  • Rated Contact Current: 1.8A
  • Dielectric Withstanding Voltage: AC 250V
  • Data Transfer Rate: ≥ 425 Mb/s
• Environmental Requirements
  • Operating Temperature: -10 ℃ ~ +50 ℃
  • Storage Temperature: -10 ℃ ~ +35 ℃
  • Operating Humidity: <55 %
  • Humidity Range: 25 % R.H ~ 90 % R.H
• Cable Description
  • 24 AWG
  • Conductor: (11/0.16 + 4C), bare copper + aluminium foil + braid

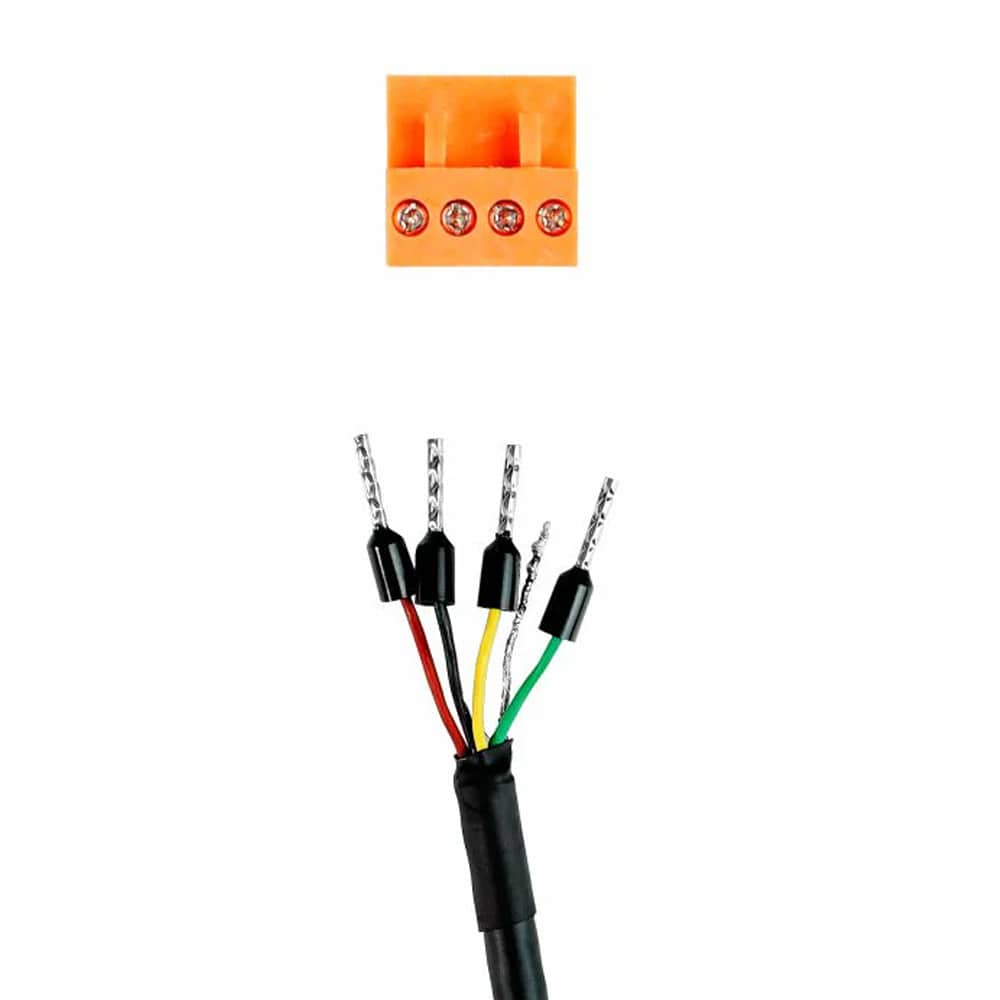

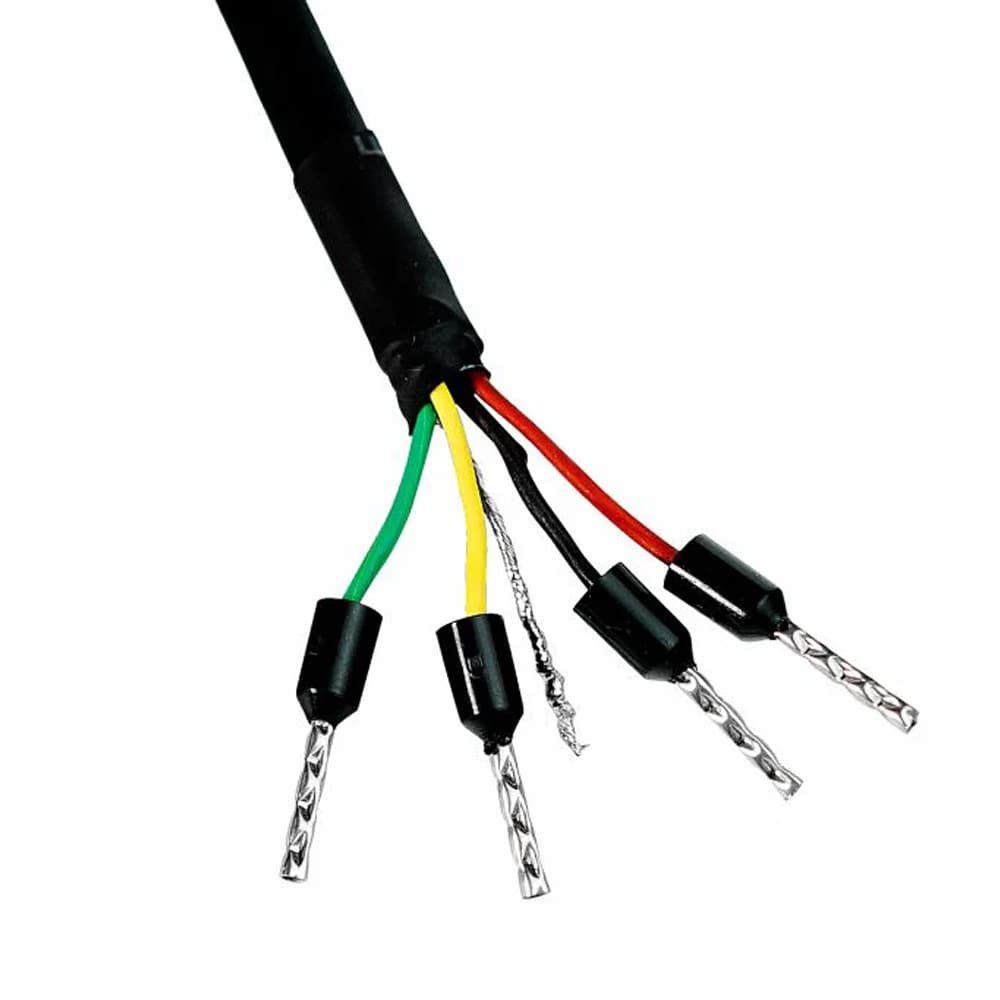

  • Insulation: TPE OD = 0.90 ± 0.05 mm, core colours: black, yellow, green, red
  • Cable Outer Diameter: 5.0 mm
  • Each core made of bare copper strands
  • Jacket: TPE, black, OD: 5.0 mm
  • Cable, plug and mechanical requirements: MAX; Contact Pull-out Force: ≥ 50 g

Specifications

Resources

• Product documents

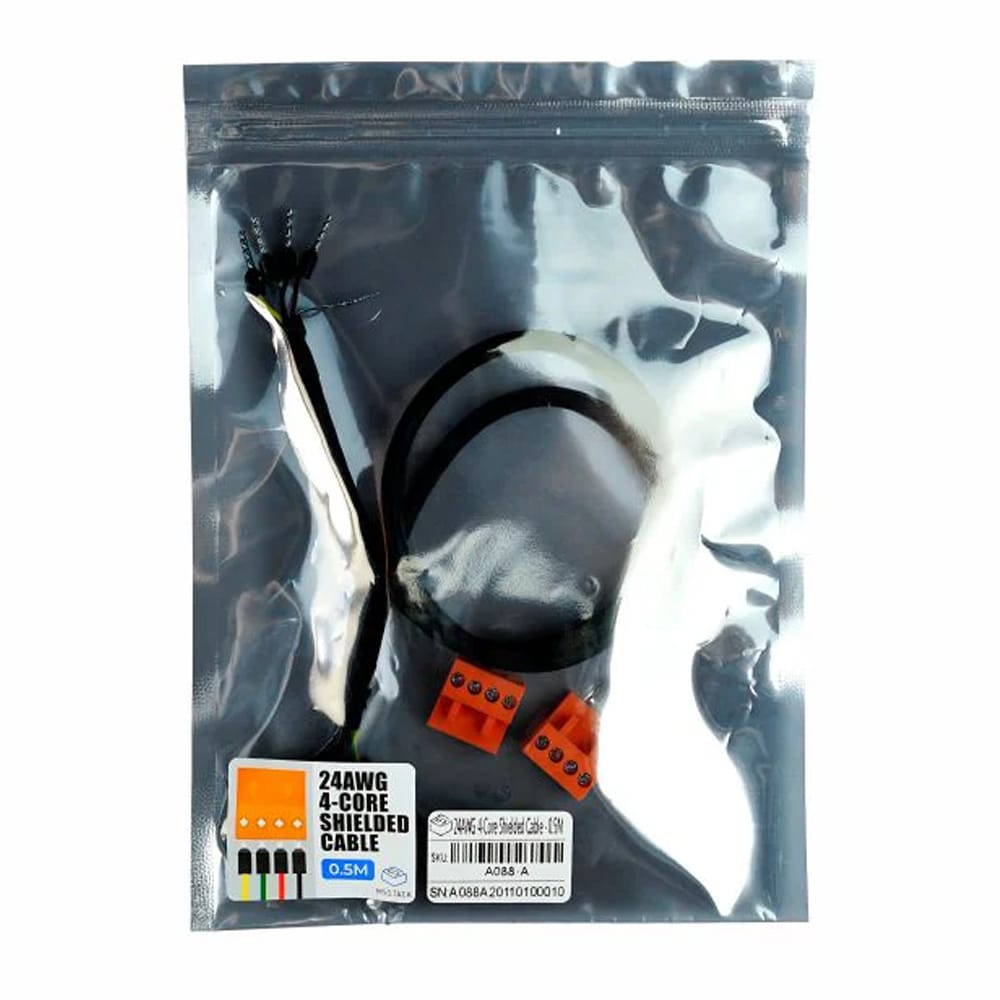

Package Contents

• 1x M5Stack 24AWG 4-Core Shielded Twisted Pair Cable

These are available in various lengths. Please select desired length at checkout.
