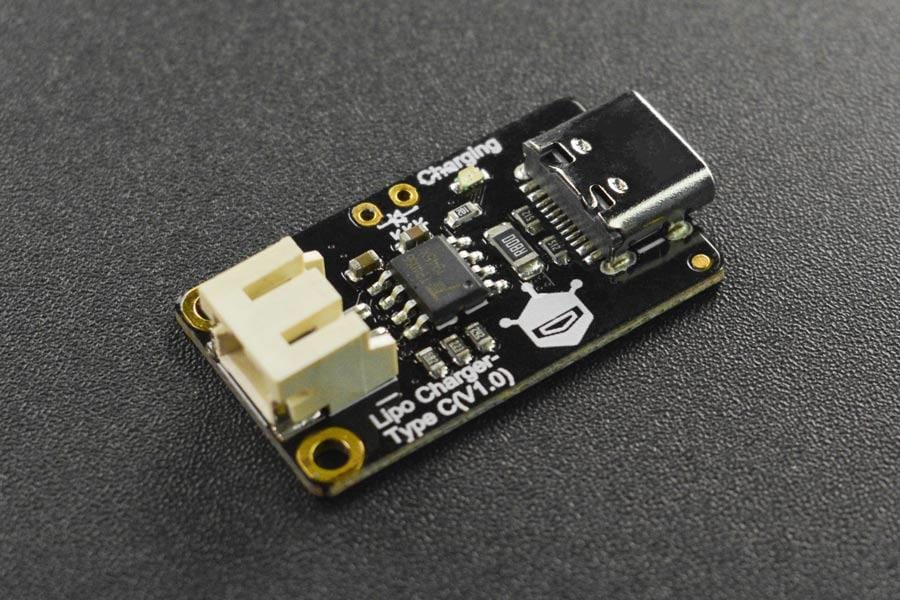

This is a USB Type-C Lipo charger designed for single-cell 3.7V lithium batteries. The compact size makes it easy to integrate into your applications.

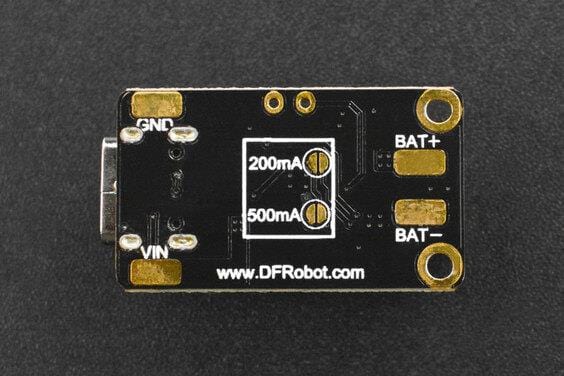

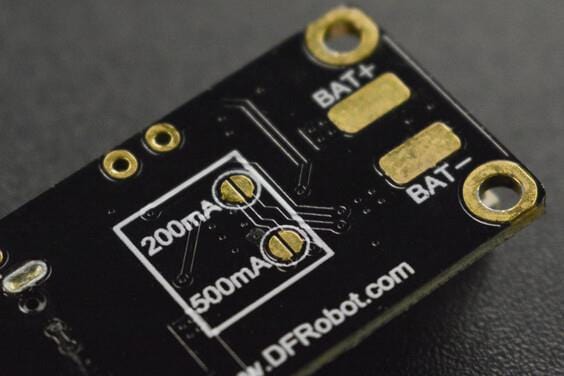

The charger adopts TP4056X lithium battery charging IC, which guarantees you quick and safe charging, and allows you to easily switch between 3 output currents (the default output current is 50mA) by selecting different bonding pads on the back. The thermal feedback inside the TP4056X can automatically adjust the charging current to limit the chip temperature under high-power operation or high ambient temperature conditions.

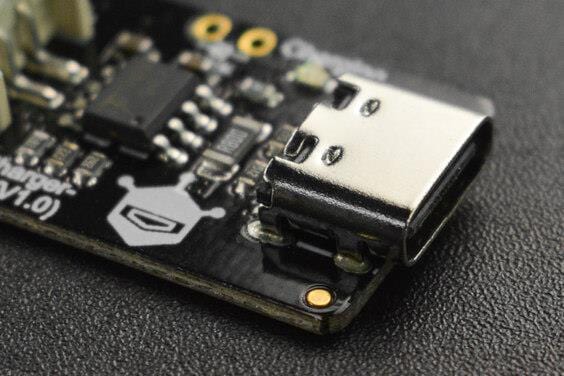

Plug this charger into a power source via its USB Type-C port and the onboard LED will let you know what's going on - the LED will flash when no battery is connected, stay on when charging and go off when the battery is fully charged. You can also connect an external indicator which allows you to easily check the charging status when this module is integrated into your projects.
There are 3 charging stages provided: trickle charge, constant current charge, and constant voltage charge, which guarantee the safety and save the charging time.
Note: The low-current mode can charge large-capacity batteries, but the high-current mode cannot charge small-capacity batteries. If the charging current is too high for the battery, it may cause battery damage or even explosion.
Always check your batteries C-rating and match to the charge rate!
Recommended Charging Mode
- Multiple current output modes (50/200/500mA）
- Mini size
- External indicator available
- Safe and quick charging
- Input Voltage: 5V
- Charging Current: 50mA, 200mA, 500mA
- Limited Charging Voltage: 4.2V±1%
- Working Temperature: -40℃~85℃

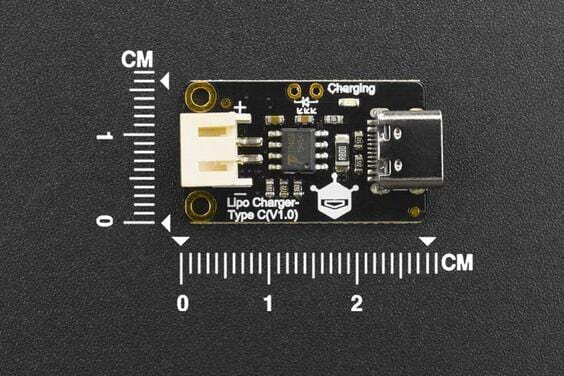

- Dimension: 16.5 x 28mm/0.65x1.10”
- 1x Lipo Charger-Type C
