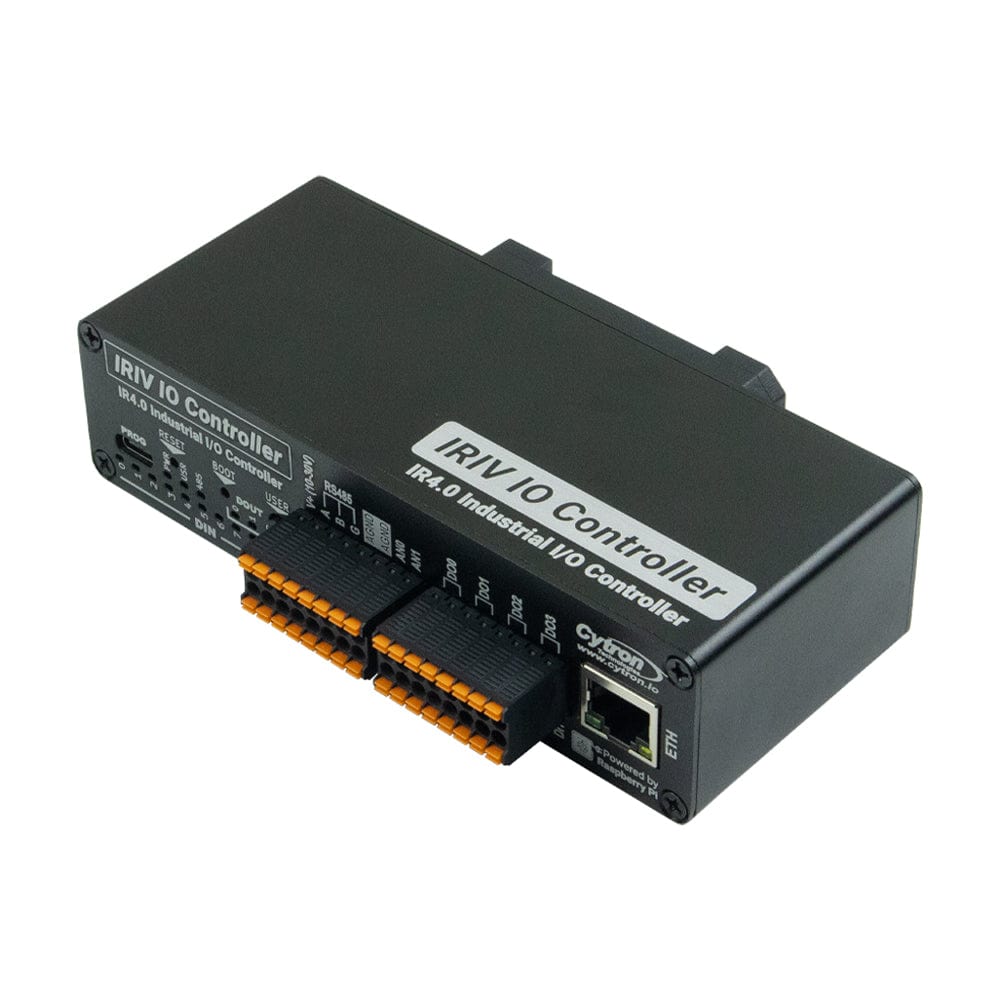

The IRIV IO Controller is an industrial-grade device designed to make automation tasks a lot easier. Powered by the Raspberry Pi RP2350 microcontroller, it is faster, safer and more efficient than its older versions. This controller can be an I/O expander, data gatherer, network gateway, or automation controller.
It has 11 isolated digital inputs, 4 isolated digital outputs, and 2 analogue inputs, including a USB-C port for programming and configuration and an RJ45 Ethernet port powered by the W5500 Ethernet controller, giving you many different options for a variety of industrial projects.

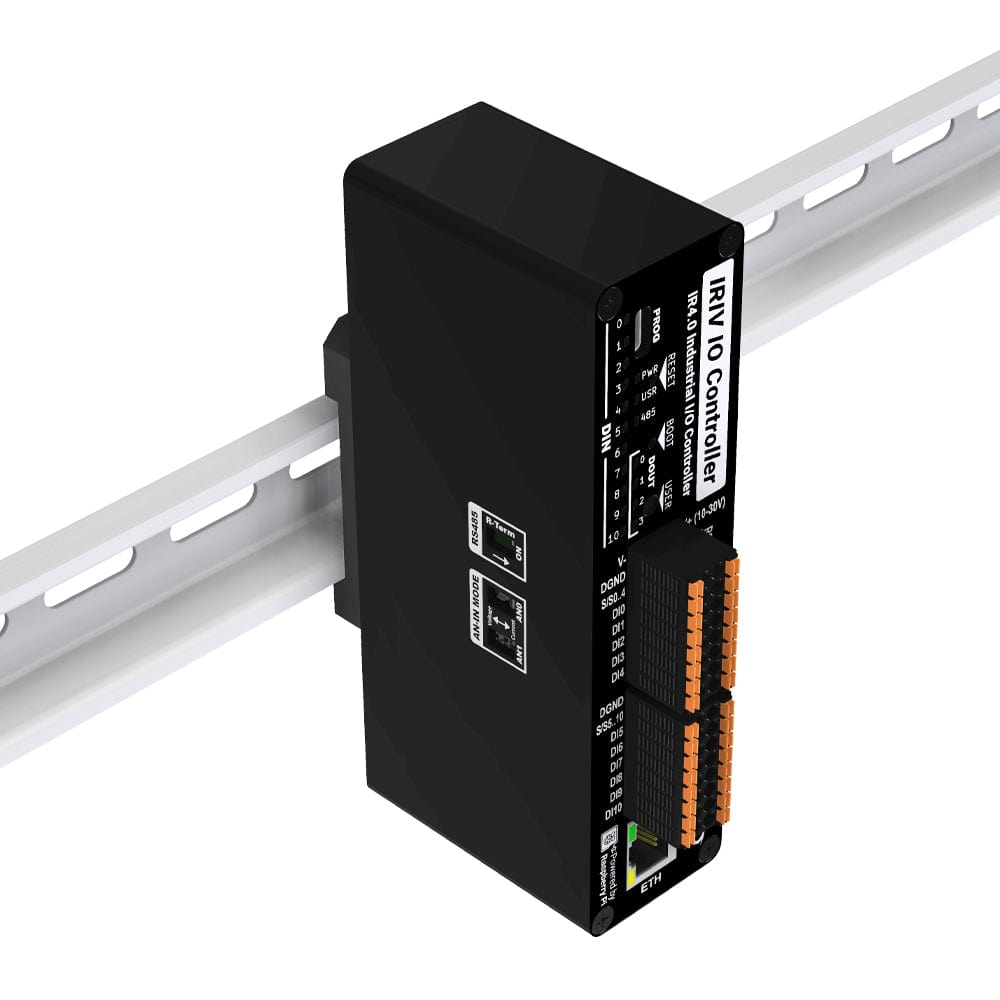

The metal casing with a fanless design is DIN rail mountable, providing easy installation. The IRIV IO Controller integrates easily with the IRIV PiControl. You can use IRIV PiControl as your main system controller while using IRIV IOC to gather your data or monitor your machinery and automation.
Features
|
Microcontroller |
Raspberry Pi RP2350A, Dual Cortex-M33 @ 150MHz |
| RAM | 520KB on-chip SRAM |
| Storage | 2MB Flash Memory |

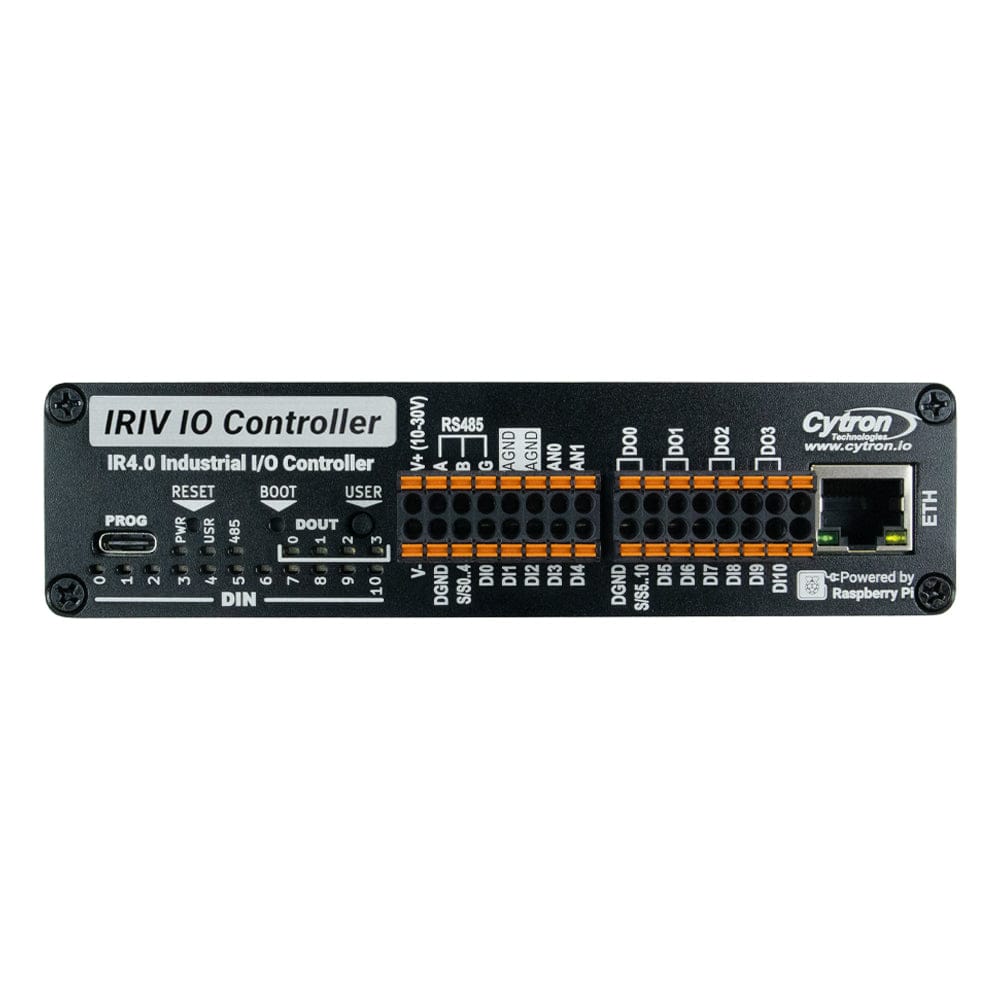

| Connectors | 1x USB-C (For programming and configuration) |
| 1x RJ45 Ethernet (via W5500 Ethernet controller) | |
| 1x Isolated RS485 | |
| 11x Isolated digital input (up to 50V) | |
| 4x Isolated digital output (up to 50V) | |
| 2x 12-bit analogue input (0 - 10.56V / 0 - 42.58mA) | |
| Power Supply | DC 10-30V surge-protected |
| Additional Features | PCF85063A Real Time Clock |
| 1x Reset button 1x boot button & 1x programmable button | |
| 1x Programmable LED | |
| Status LED for Power, RS485, DIN & DOUT | |
| 1x Passive Buzzer | |

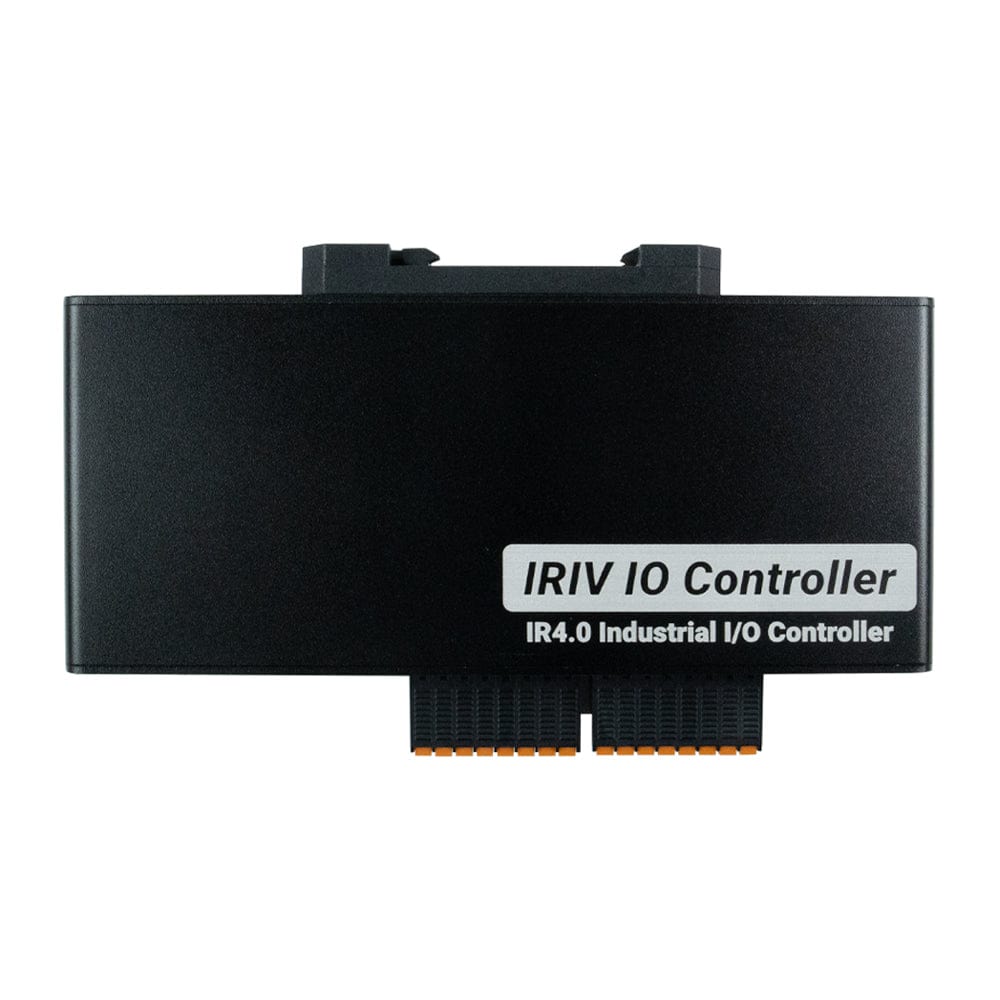

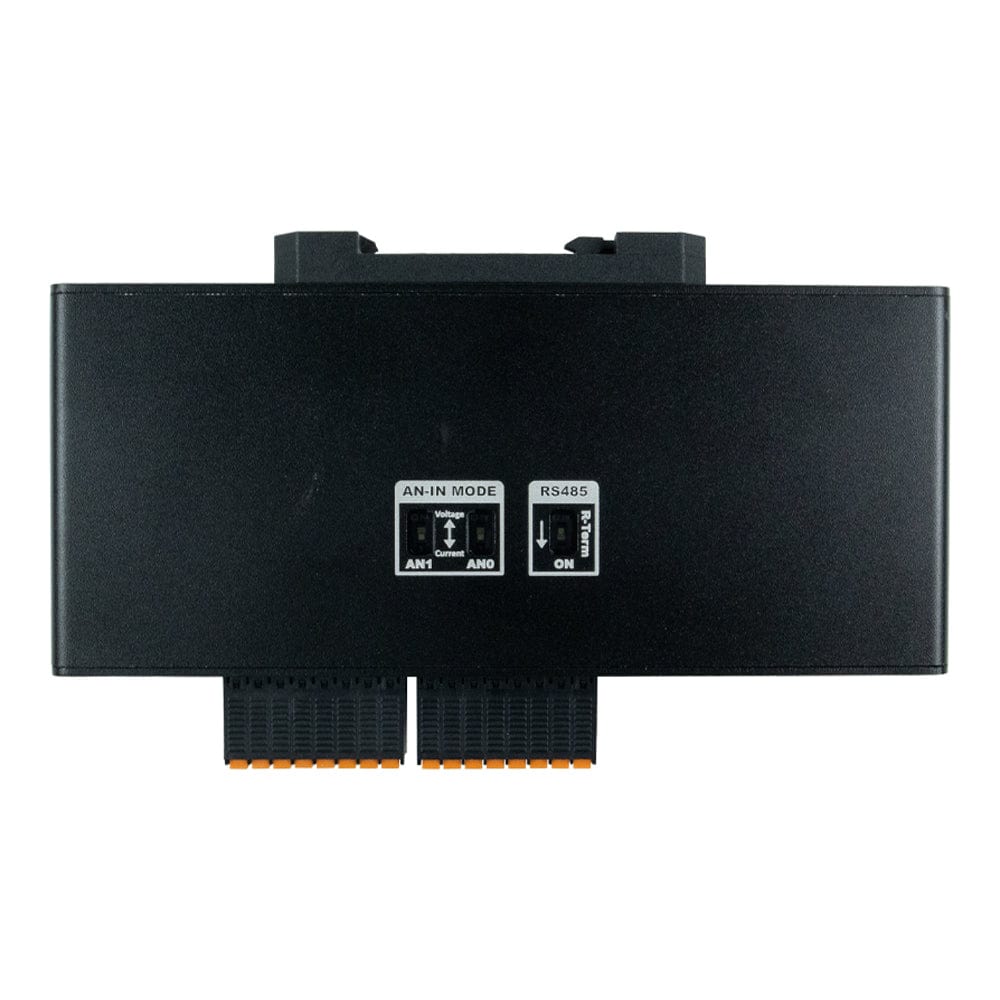

| Case | Metal Case, fanless design, DIN rail mountable |
| Dimensions | (L)140mm x (W)60mm x (H)36mm (metal case only, excluding DIN socket & connectors) |
What's on Board
PCBA Diagram
Specifications
| Parameters | Min | Max | Unit | |
| Power Input Voltage | Terminal 1 (Surge Protected up to 60V 20ms) |
10 | 30 | VDC |
| USB-C | 4.9 | 5.2 | VDC | |
| Power Consumption | - | 0.7 | W | |
| Isolated Digital Input | Low Level (VIL) | - | ±0.8 | V |
| High Level (VIH) | ±3 | ±50 | V | |
| Maximum Pulse Frequency (50% Duty Cycle) |
- | 5000 | Hz | |
| Isolation Voltage | 3750 | Vrms | ||
| Analogue Input | Resolution | 12 | bit | |
| Voltage Mode | 0 | 10.56 | V | |
| Current Mode | 0 | 42.58 | mA | |
| Input Impedance (Voltage Mode) | 32K | Ω | ||
| Input Impedance (Current Mode) | 248 | Ω | ||
| Isolated Digital Output | Voltage | - | 50 | V |
| Current | - | 500 | mA | |
| Isolation Voltage | 1500 | Vrms | ||
| Isolated RS485 | Maximum Baud Rate | 500 | kbps | |
| Isolation Voltage | 5000 | Vrms | ||
| Operating Temperature | -20 | 70 | ℃ | |
