IR - Infrared Receiver (TSOP38238)

The Pi HutSKU: MMP-0266
£1
incl. VAT
excl. VAT
Only 17 units left

Awesome Extras

Full-Size Breadboard - Transparent by The Pi Hut - The Pi HutFull-Size Breadboard - Transparent by The Pi Hut - The Pi Hut
The Pi HutFull-Size Breadboard - Transparent
£5 incl. VAT excl. VAT
120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT

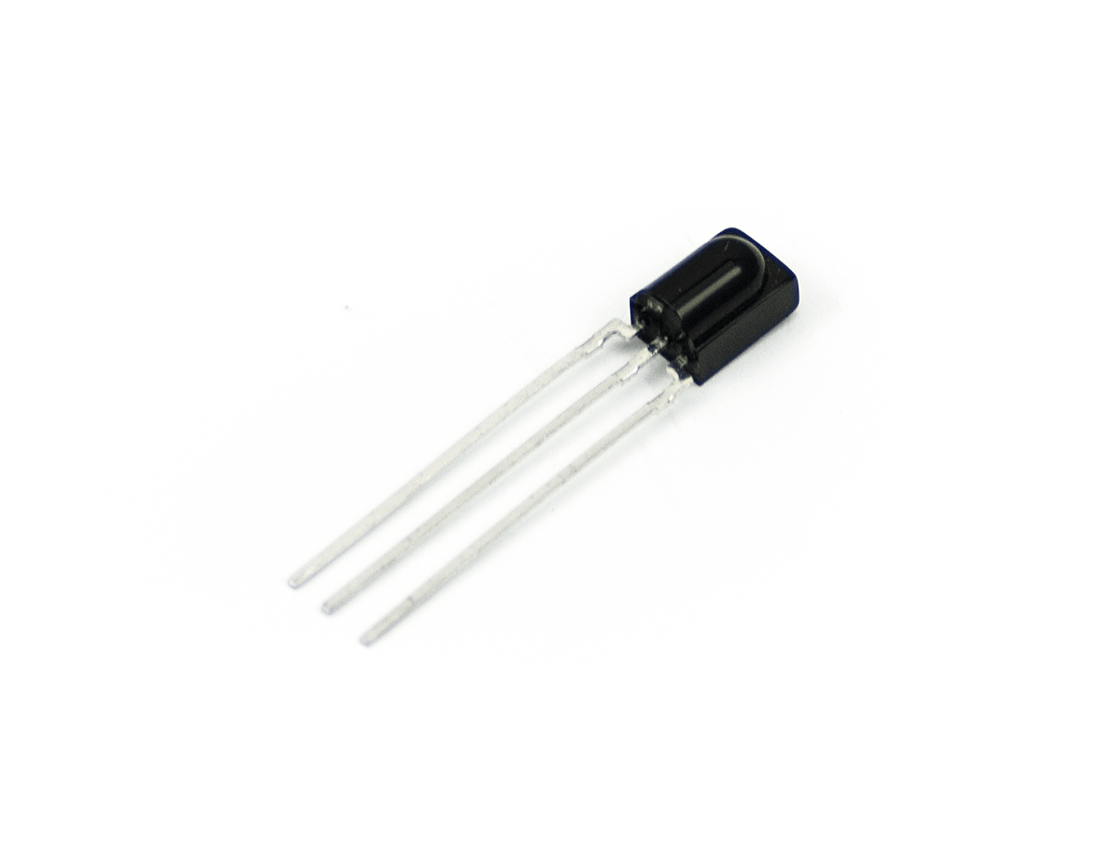

IR - Infrared Sensor (TSOP58238) by The Pi Hut - The Pi HutIR - Infrared Sensor (TSOP58238) by The Pi Hut - The Pi Hut
The Pi HutIR - Infrared Sensor (TSOP58238)
£1 incl. VAT excl. VAT

IR (Infrared) sensor tuned to 38KHz, perfect for receiving commands from a TV remote control. Runs at 3V to 5V so it's great for use on the Raspberry Pi!

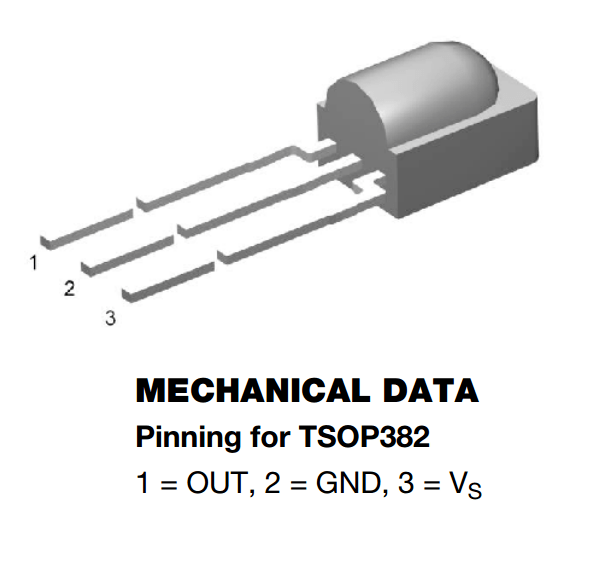

To use, connect pin 3 (all the way to the right) to 5V power, pin 2 (middle) to ground and listen on pin 1. It doesn't do any decoding of the signal, just passes the 'raw data' along.

TSOP38238 Technical Features:

  • Carrier Frequency: 38kHz
  • Transmission Range: 45m
  • Directivity: 45°
  • Supply Voltage Min: 2.5V
  • Supply Voltage Max: 5.5V
  • Supply Current: 350µA
  • Opto Case Style: Through Hole
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 85°C
  • Manufacturer: VISHAY TSOP38238
