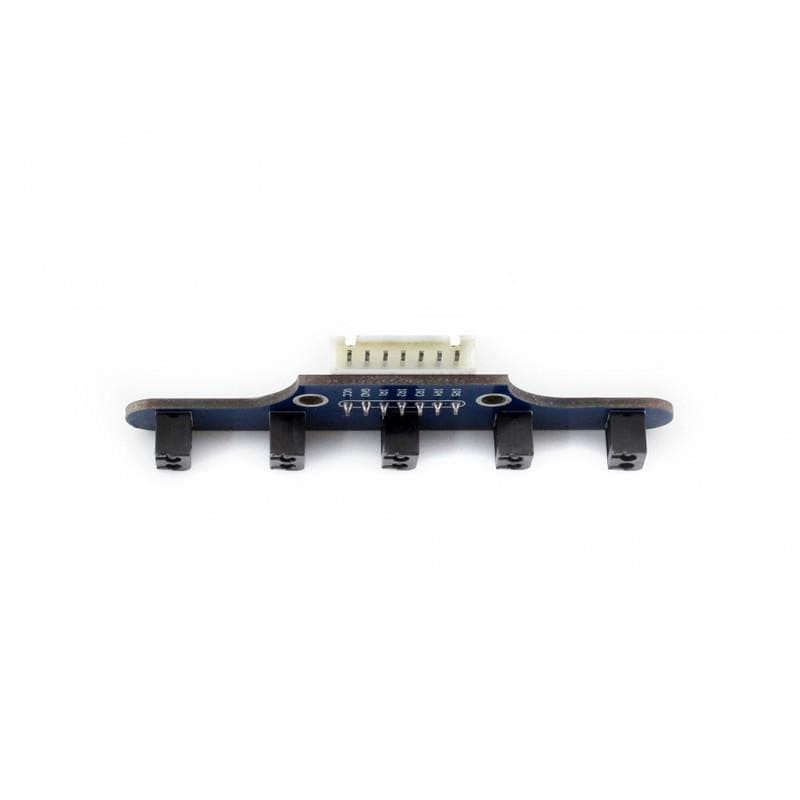

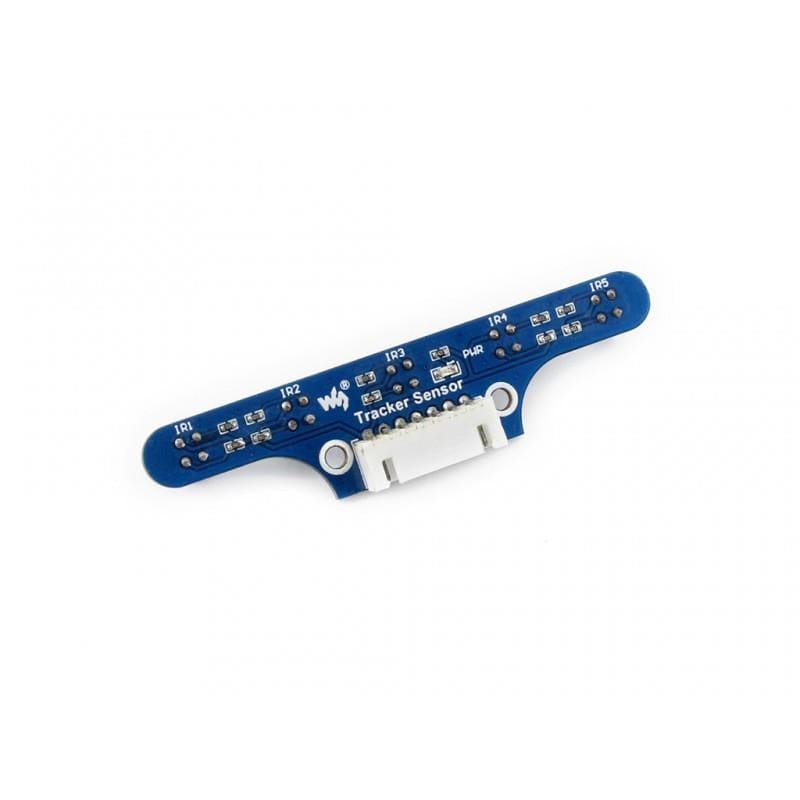

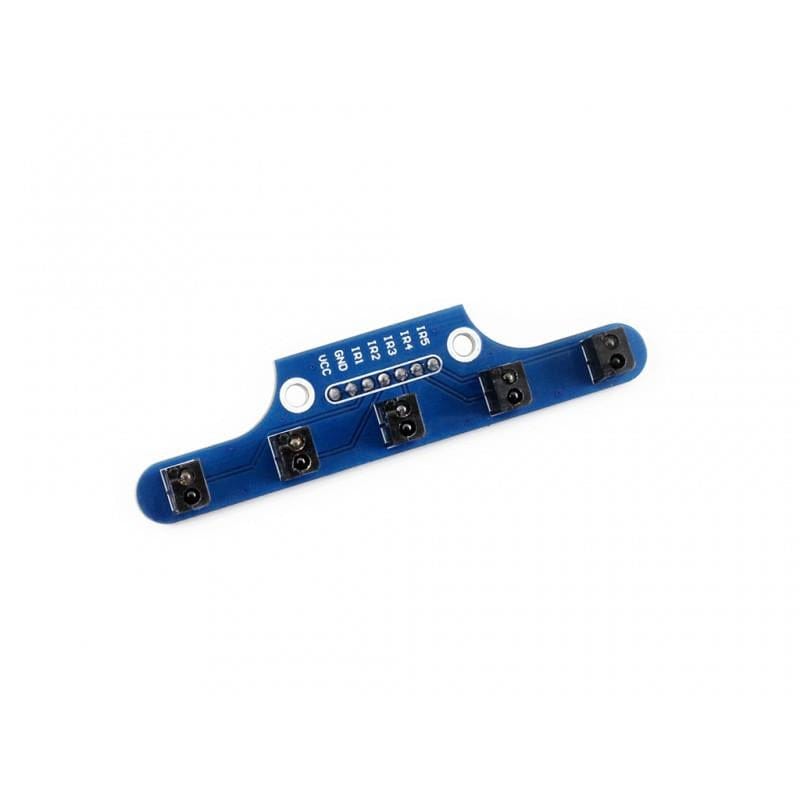

Infrared Line Tracking Sensor

WaveshareSKU: WAV-12223
Price:
Sale price £5.90
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

The Pi HutUltrasonic Distance Sensor (HC-SR04)
Sale price £2 incl. VAT excl. VAT
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

This line tracking sensor from Waveshare is a great option if you're building a line-following robot. The sensor has no less than FIVE infrared detection channels, allowing you to program your robot to stay within a line (and tell it what to do if you detect that the line has crossed the outer channels!).

This is a high-sensitivity line tracker with a high-precision analogue output and anti-jamming for stable line tracking performance.

The sensor has five analogue outputs, and the output data is affected by the distance and the colour of the detected object. The detected object with higher infrared reflectance (white) will produce a larger output value, whilst lower infrared reflectance (black) will produce a smaller output value. When the sensor is getting close to a black line, the output value will come to smaller and smaller.

Compared to other modules which only offer a logical HIGH/LOW output, we can get a more precise result for a much more controlled and stable robot.

Resources

Package Contents

  • 1x Tracker Sensor
  • 1x XH2.54 7-pin wire

Specifications

  • Power: 3.3V ~ 5V
  • Dimension: 78mm × 18mm
  • Detector spacing: 16mm
  • Mounting holes size: 3mm
  • Detection range: 1cm ~ 5cm
