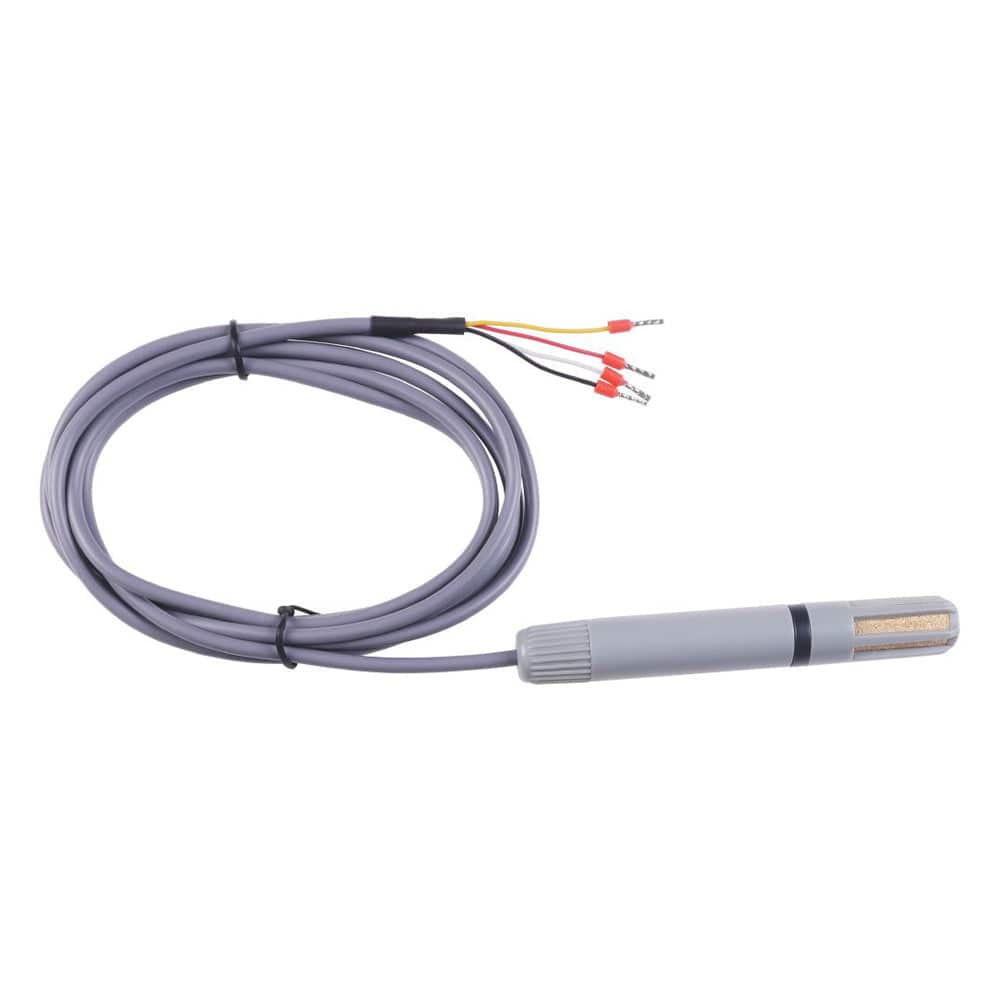

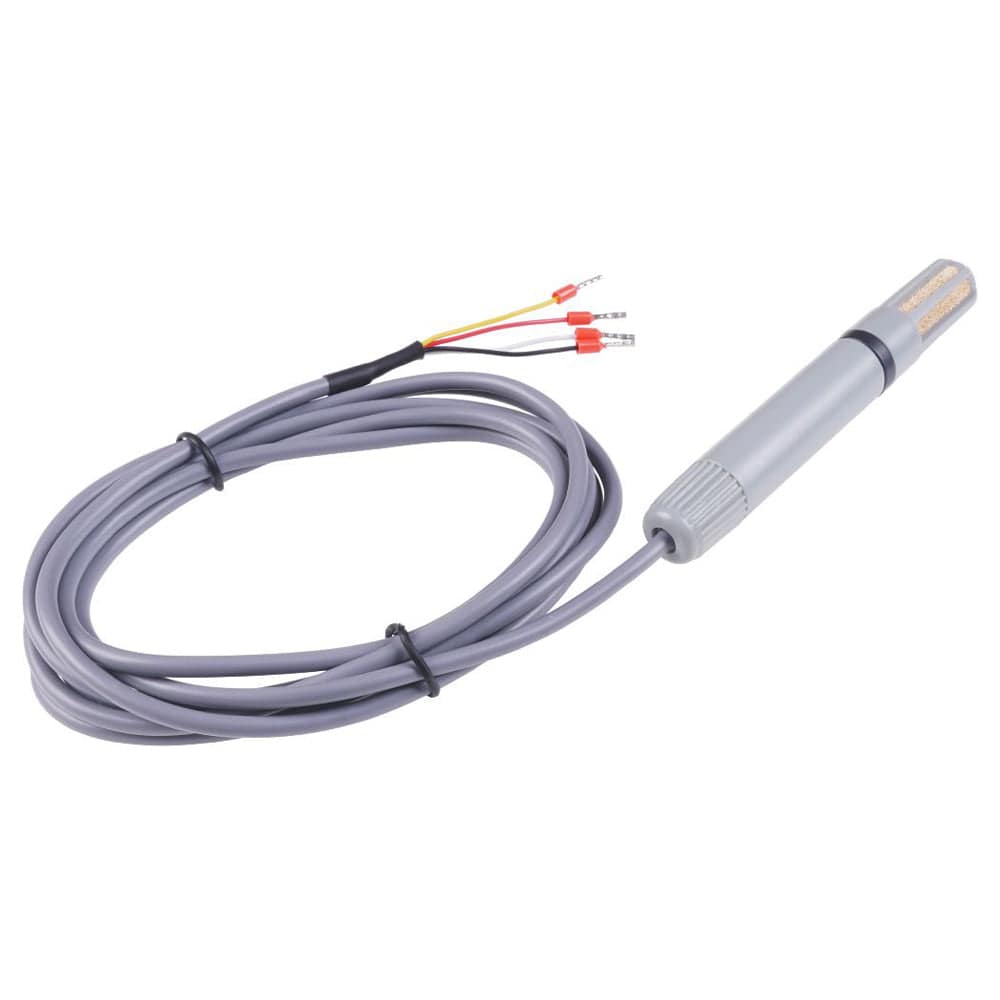

Industrial MODBUS RS485 Air Temperature and Humidity Sensor

SeeedSKU: 106418
Price:
Sale price £47.60
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

SenseCAP S2100 - LoRaWAN Data Logger by Seeed - The Pi HutSenseCAP S2100 - LoRaWAN Data Logger by Seeed - The Pi Hut
SeeedSenseCAP S2100 - LoRaWAN Data Logger
Sale price £66.30 incl. VAT excl. VAT
Waterproof Junction Box Kit for S2100 Data Logger by Seeed - The Pi HutWaterproof Junction Box Kit for S2100 Data Logger by Seeed - The Pi Hut
SeeedWaterproof Junction Box Kit for S2100 Data Logger
Sale price £8.60 incl. VAT excl. VAT
Seeed Modbus RS485 Vision AI Camera by Seeed - The Pi HutSeeed Modbus RS485 Vision AI Camera by Seeed - The Pi Hut
SeeedSeeed Modbus RS485 Vision AI Camera
Sale price £37.50 incl. VAT excl. VAT

The air temperature and humidity sensor provides accurate readings from -40–80°C and 0–100%RH, with low power use and long life — ideal for industrial and environmental monitoring applications.


This air temperature and humidity sensor is designed to provide accurate readings across a wide range of conditions.

It uses a built-in algorithm for reliable data collection while keeping power use low. With a high tolerance for tough environments and long operating life, it’s well suited for continuous use with minimal maintenance. Measuring humidity from 0–100%RH and temperature from -40–80°C, it’s a great choice for industrial and environmental monitoring.

It is compatible with SenseCAP LoRaWAN® Data Logger to connect with the LoRaWAN® network, enjoying the benefits of low-power and long-range communication.

Features

  • High Performance: High accuracy, fast response, and stability
  • Temperature Measurement Range: Can be used in -40~80℃

Specifications

Signal Output RS485 Modbus Protocol
Power Supply 3.6-30V/DC
Current Consumption 4mA@24V DC
Humidity Measurement Range 0-100%RH, Resolution 0.01% Accuracy: ±3%RH
Temperature Measurement Range -40~80℃, Resolution: 0.01℃, Accuracy ±0.3℃
IP Rating IP54
Operating Temperature -40~85℃
Installation Methods Wall-mounted Installation and Tube installation
Cable Length 2M
Connection Methods Aviation connector and Hook-up wire
Supplier Code 101990881

Resources

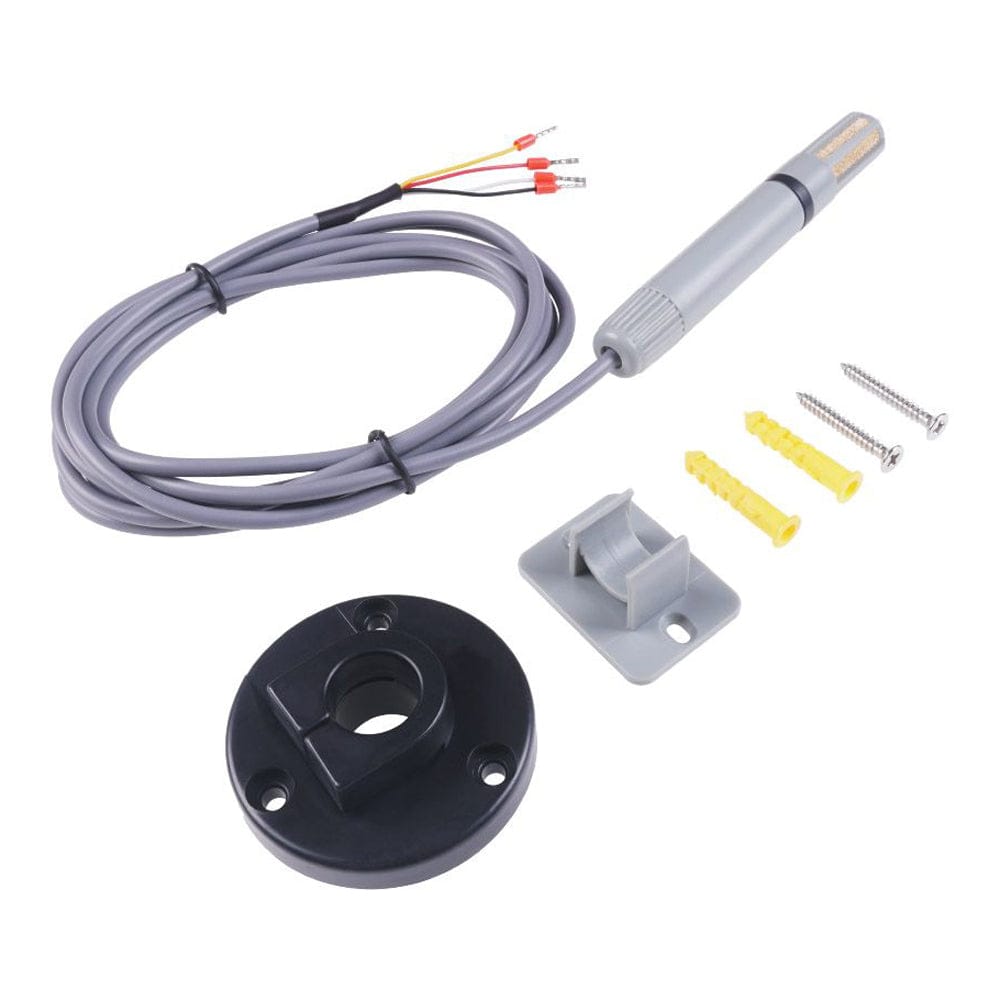

Package Contents

  • 1x Tube Installation Equipment
  • 1x Wall-mounted Installation Equipment
  • 2x Plastic Screw
  • 2x Metal Screw
