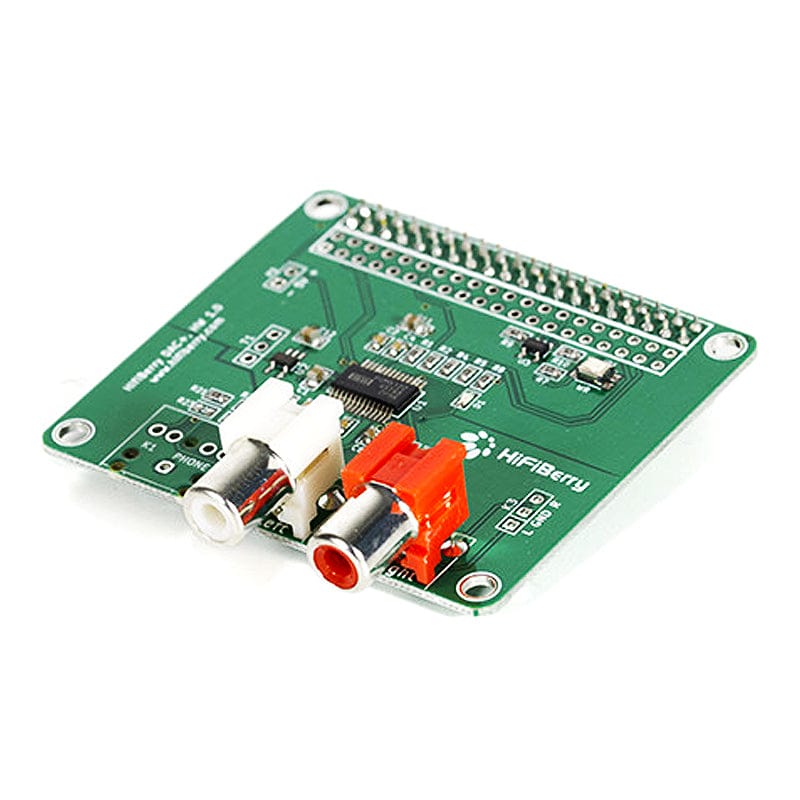

HiFiBerry DAC+ Standard

The HiFiBerry DAC+ Standard is a high-resolution digital-to-analogue converter for any Raspberry Pi with a 40-pin connector.

This is a special sound card for the Raspberry Pi that is optimised for one specific use case: the best audio playback quality.

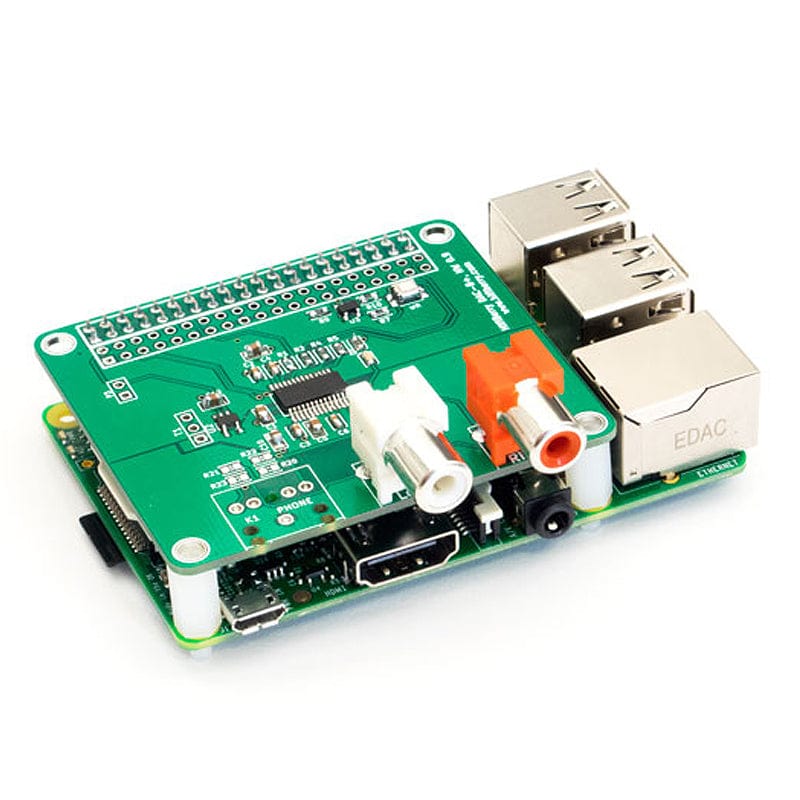

This is the Standard RCA version which uses RCA connectors that you know from your normal stereo equipment. The HiFiBerry, like all Pi HATs, sits right on top of your Pi's GPIO pins with no additional cables needed and integrated EEPROM for automatic configuration.

We also stock a DAC+ Pro version with gold-plated connectors and an ultra-low-jitter clock generator, and an affordable DAC+ Light version.

Raspberry Pi not included

Features

• High-resolution DAC for Raspberry Pi with 40-pin connector
• Equipped with a 192kHz / 24-bit Burr-Brown digital-to-analogue converter
• Standard RCA output connectors for easy connection to stereo systems
• No soldering required – plugs directly onto Raspberry Pi GPIO header
• Optimised for high-quality audio playback
• Integrated EEPROM for automatic configuration

Specifications
