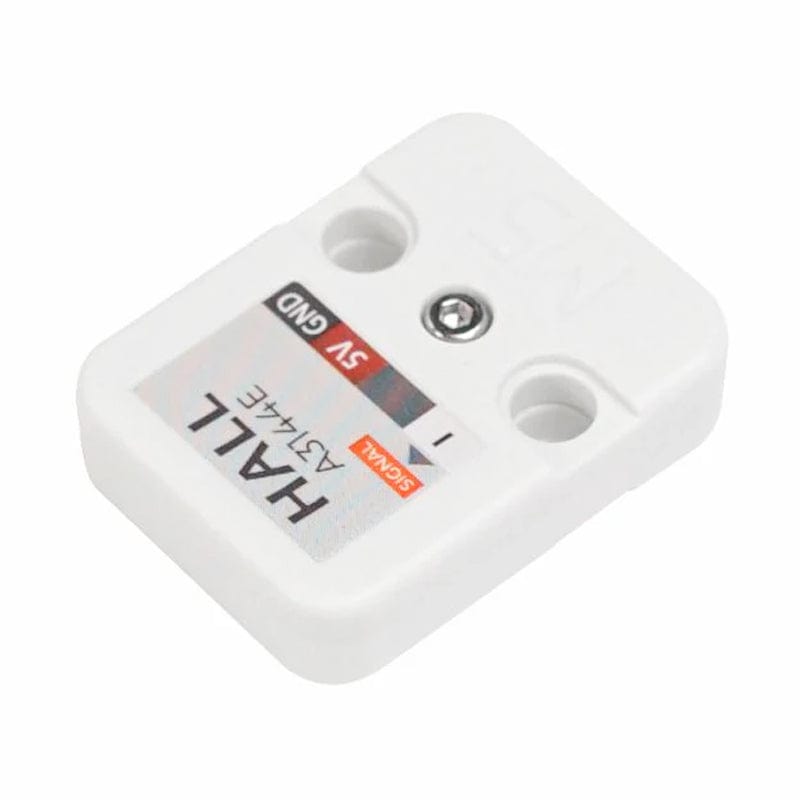

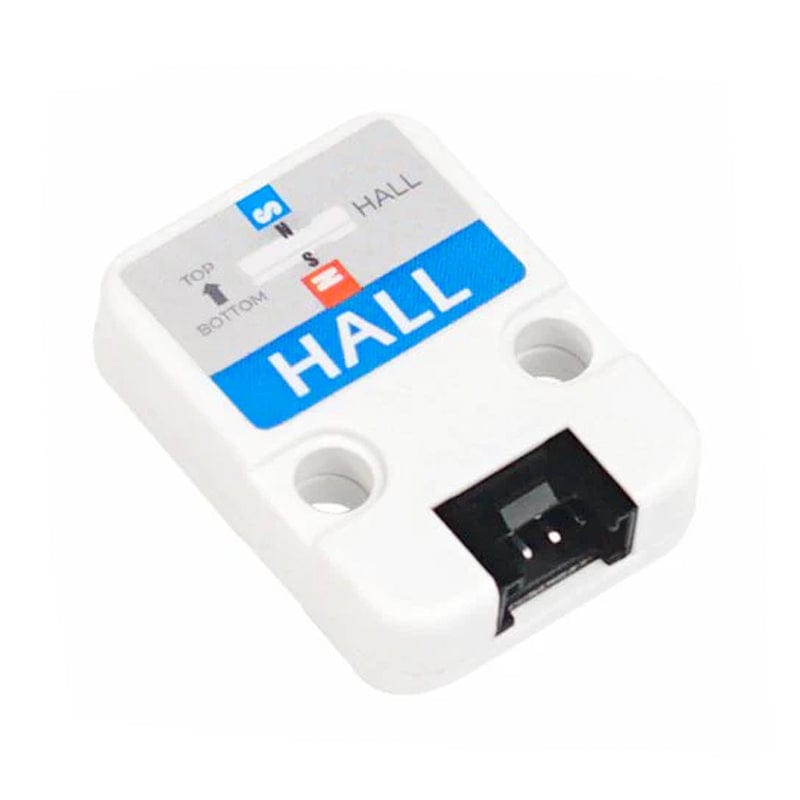

Hall Effect Unit (A3144E Hall Sensor)

Price:
Sale price £5.50
incl. VAT
excl. VAT
Stock:
Coming Soon
Notify me

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3
Sale price £57.90 incl. VAT excl. VAT
M5Stack Passive Buzzer Unit - The Pi HutM5Stack Passive Buzzer Unit - The Pi Hut
M5StackM5Stack Passive Buzzer Unit
Sale price £4.20 incl. VAT excl. VAT
M5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW) - The Pi HutM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW) - The Pi Hut
M5StackM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW)
Sale price £7.30 incl. VAT excl. VAT

This hall effect unit has three A3144E hall sensor switches, improved by 74HC series gate integrated circuits for reliable signal processing. This unit provides a low-level signal when the south pole of a magnet is near the front of the sensor or the north pole is close to the back, lighting up the internal LED indicator for visual feedback.

It is ideal for various uses, including door sensor alarms, proximity detection, and rotation speed measurement. With the front side designed to detect the north pole and output a low level when sensing the south pole of a magnetic field, it provides easy magnetic sensing for a range of projects.

Features

  • Unipolar Hall switch sensor
  • Fast response and high sensitivity
  • Status indicator
  • Low-level output
  • Lego compatible

Specifications

Hall Sensor 3x A3144E
Logic IC 74HC08D
Status Indication Red LED
Output Level Active Low
Net weight 4g
Gross Weight 17g

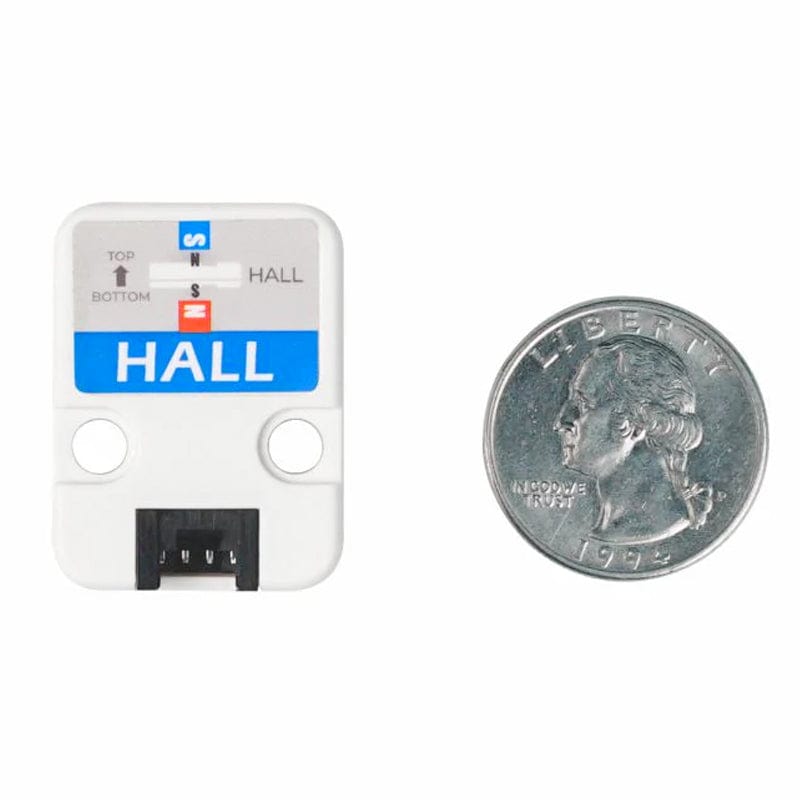

Product Size 24 x 32 x 8mm
Package Size 67 x 52 x 11mm

Resources

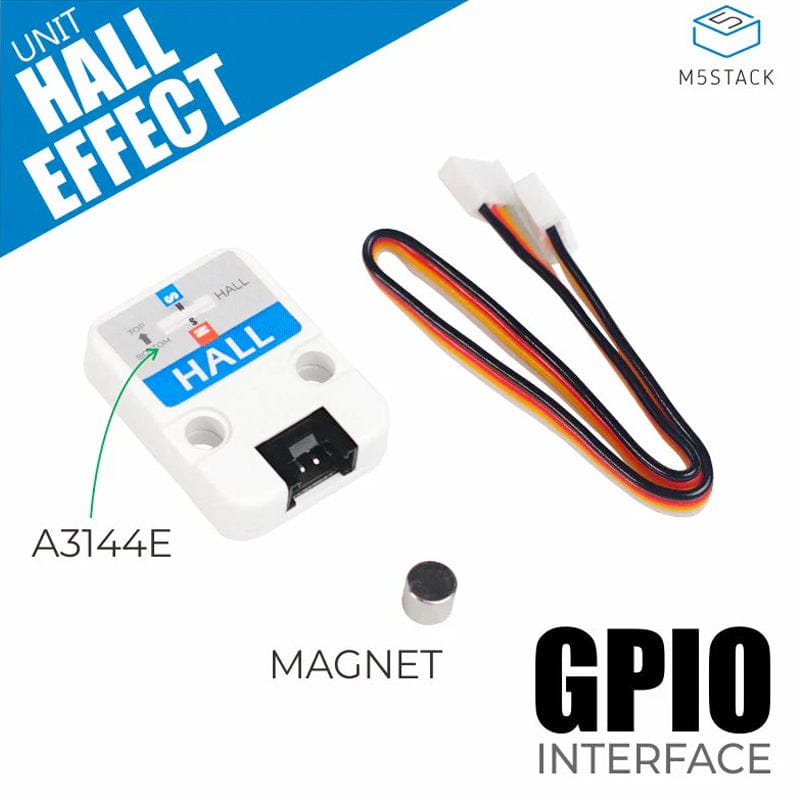

Package Contents

  • 1x Hall Effect Unit
  • 1x GROVE Cable (20cm)
  • 1x Magnet
