Grove - Touch Sensor

SeeedSKU: 103326
Price:
Sale price £3.80
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

Grove Base HAT for Raspberry Pi Zero - The Pi HutGrove Base HAT for Raspberry Pi Zero - The Pi Hut
SeeedGrove - Base HAT for Raspberry Pi Zero
Sale price £8.50 incl. VAT excl. VAT
Grove - Base HAT for Raspberry Pi - The Pi HutGrove - Base HAT for Raspberry Pi - The Pi Hut
SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.70 incl. VAT excl. VAT
Grove Base Shield V2.0 for Arduino - The Pi HutGrove Base Shield V2.0 for Arduino - The Pi Hut
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

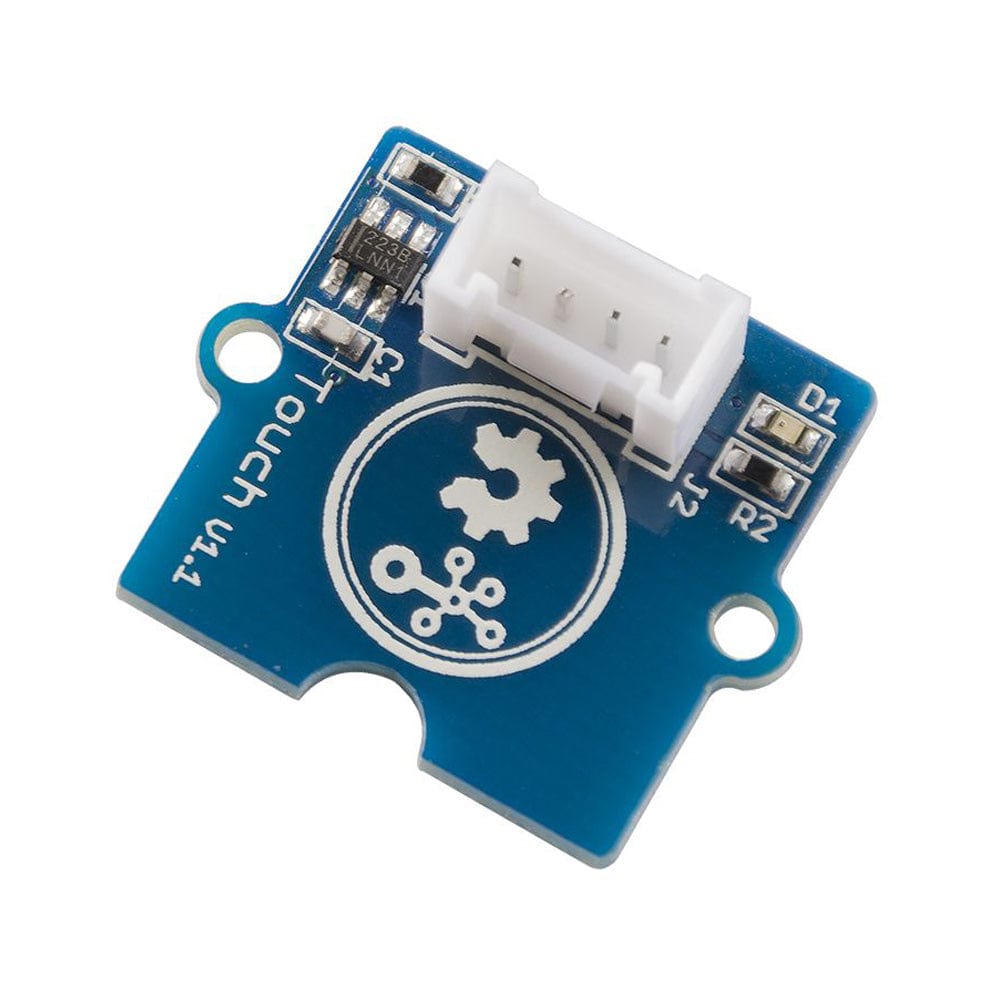

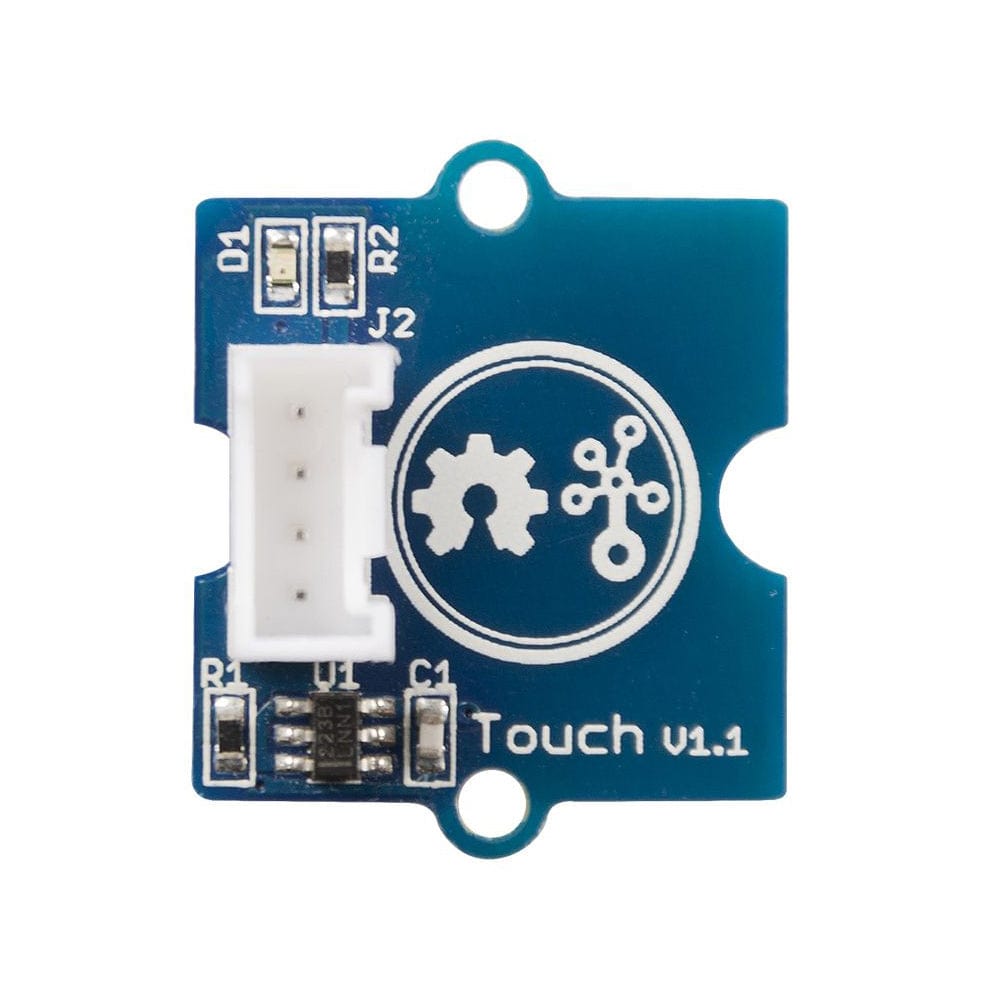

The Grove Touch Sensor enables you to replace the press with touch! The sensor measures the capacitance of a metallic pad and detects the change in capacitance when a finger is nearby. The module is based on the TTP223-B touch detector IC.

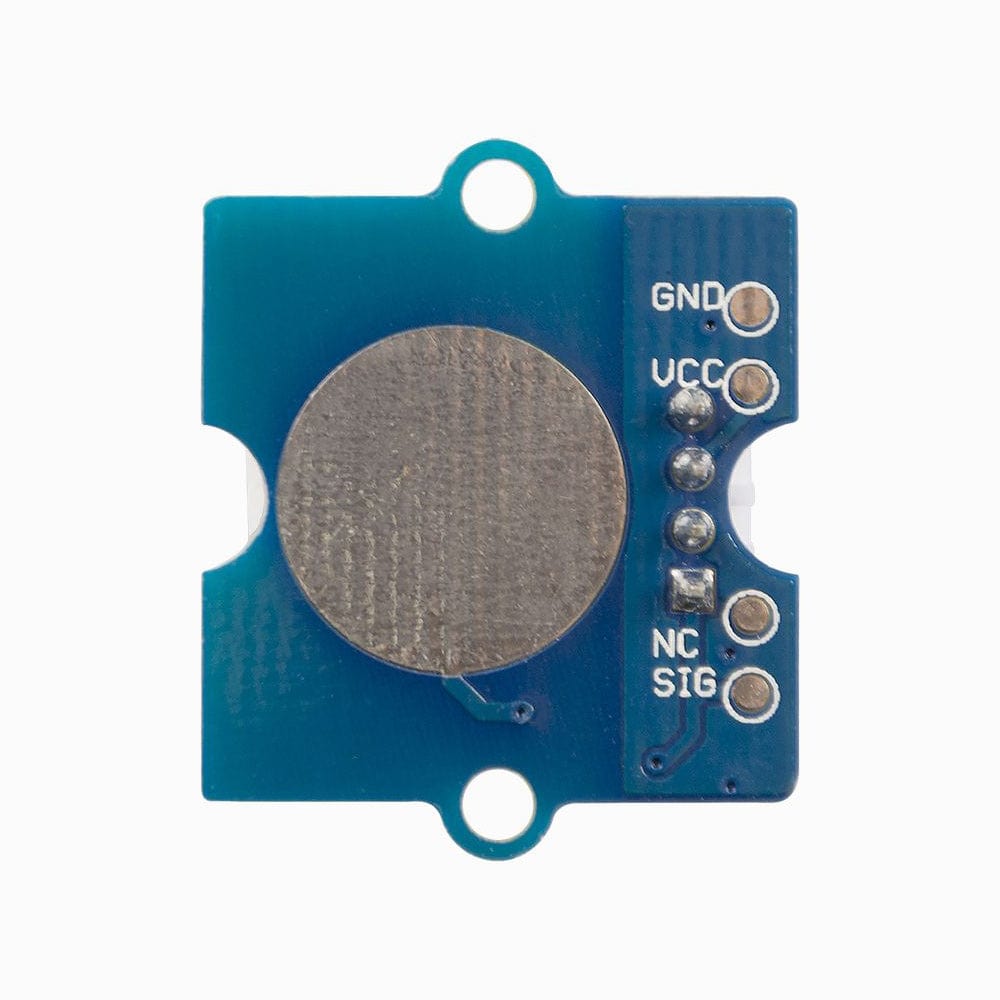

This is the same technology used in the iPhone touch screen. You can place the metallic pad under a non-metallic surface such as a plastic or glass sheet and it will still work as a button, which is useful for projects that have to be waterproof.

With the help of the touch sensor, you can also make a secret button by placing it inconspicuously behind a smooth surface. For instance, you could place them under a nonmetallic card table and by casually pressing the right location on a tabletop surface you could mysteriously control your DIY project!

Features

  • Grove compatible interface
  • 2.0-5.5V DC supply
  • Response time max ~60mS at fast mode, 220mS at low power mode @VDD=3V
  • Low power consumption

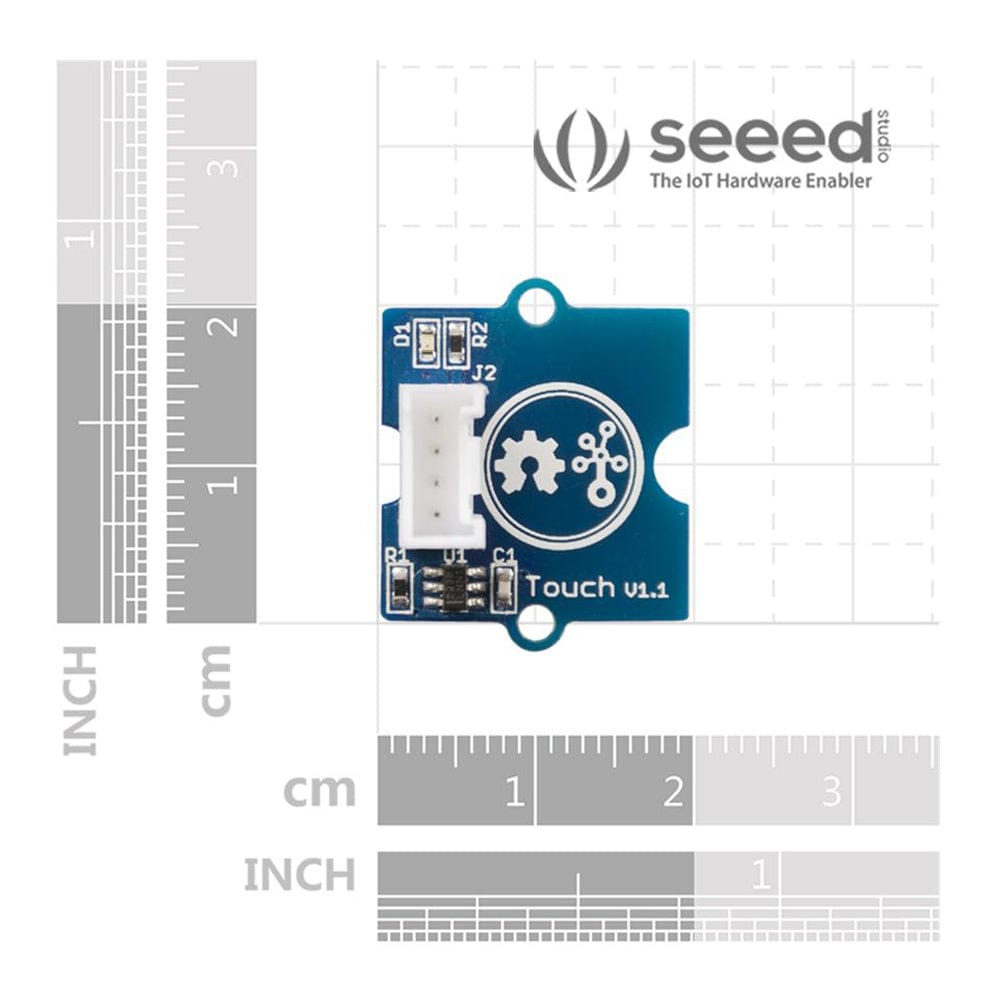

  • 2.0cm x 2.0cm twig module
  • Power indicator led
  • Weight: 8g
  • Dimensions: 60mm x 60mm x 11mm
  • Product number: Seeed 101020037

Resources

Package Contents

  • 1x Grove touch sensor
  • 1x Grove cable
