Grove - Mini PIR Motion Sensor

Name: Grove - Mini PIR Motion Sensor
Brand: Seeed
SKU: 105140
Price: 5.10 GBP
Availability: InStock

SeeedSKU: 105140

£5.10

incl. VAT

excl. VAT

Only 6 units left

Awesome Extras

Grove - Base HAT for Raspberry Pi - The Pi Hut

Seeed Grove - Base HAT for Raspberry Pi

£9.70 incl. VAT excl. VAT

Grove Shield for Raspberry Pi Pico v1.0 - The Pi Hut

Seeed Grove Shield for Raspberry Pi Pico v1.0

£3.90 incl. VAT excl. VAT

Notify me

Seeed Grove - Buzzer

£1.50 incl. VAT excl. VAT

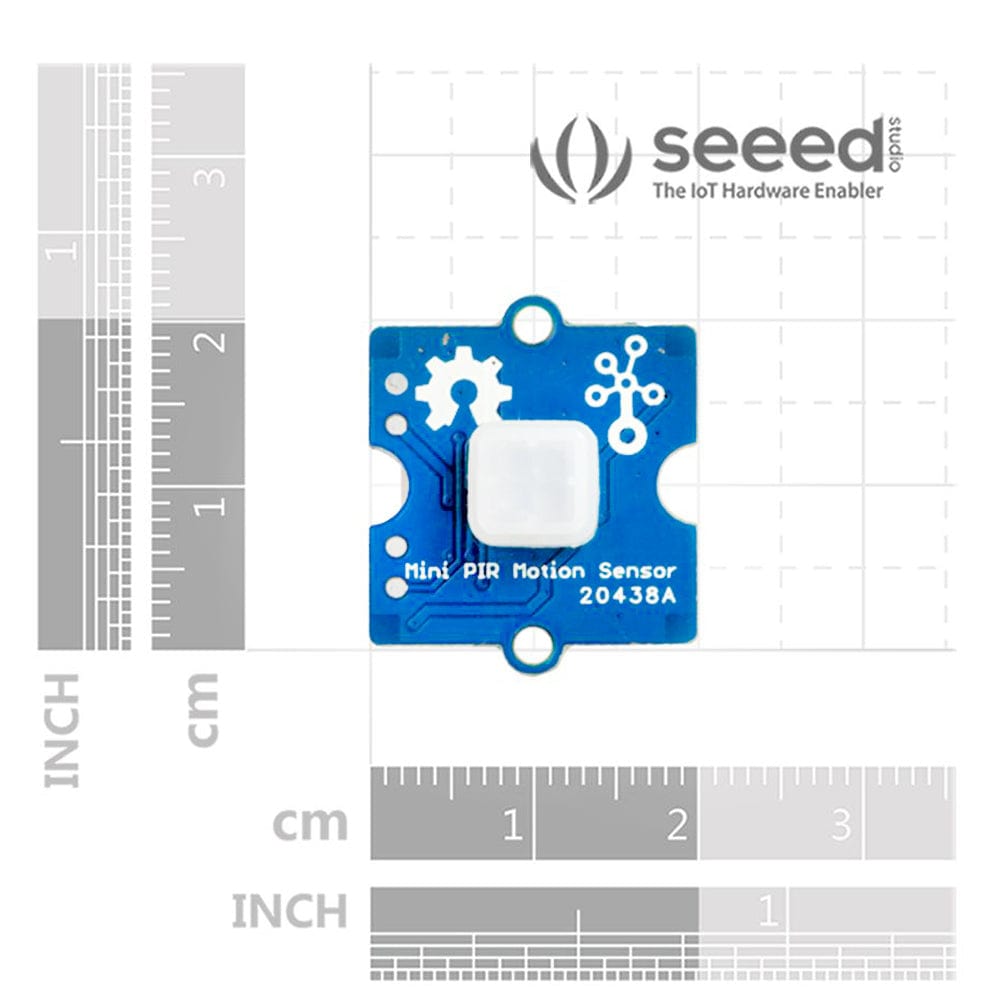

This PIR motion sensor is a small, low-power consumption, and cost-effective sensor ideal for projects requiring short detection distances. Measuring just 20mm x 20mm x 12mm, it has a detection range of 2-5 meters, with 2 meters being the optimal range.

This sensor is compatible with Arduino and Raspberry Pi platforms and has an adjustable sensitivity via a reserved pin for a slide rheostat. Its ease of use and small size make it perfect for motion detection in security systems and automated lighting.

Features

Adjustable sensitivity: a reserved pin out on board to solder a slide rheostat to adjust the sensitivity
Grove-compatible interface and supports both Arduino and Raspberry Pi platforms
Product Number: Seeed 101020353

Specifications

Dimensions	20mm x 20mm x 12mm
Weight	G.W 8g
Sensor Chip	S16-L221D
Supply Voltage	3.3 – 5V
Working Current	12 – 20 μA
Sensitivity	120 – 530 μV
Max Detecting Range	2m (25℃)

Resources

Package Contents

1x Grove - mini PIR motion sensor
1x 4-pin Grove Cable
