Grove - Magnetic Switch

SeeedSKU: 103342
£2.90
incl. VAT
excl. VAT
Only 8 units left

Awesome Extras

Grove Base HAT for Raspberry Pi Zero - The Pi HutGrove Base HAT for Raspberry Pi Zero - The Pi Hut
SeeedGrove - Base HAT for Raspberry Pi Zero
£8.50 incl. VAT excl. VAT
Notify me
Grove - Base HAT for Raspberry Pi - The Pi HutGrove - Base HAT for Raspberry Pi - The Pi Hut
SeeedGrove - Base HAT for Raspberry Pi
£9.70 incl. VAT excl. VAT
Grove Base Shield V2.0 for Arduino - The Pi HutGrove Base Shield V2.0 for Arduino - The Pi Hut
SeeedGrove - Base Shield V2.0 for Arduino
£4.50 incl. VAT excl. VAT

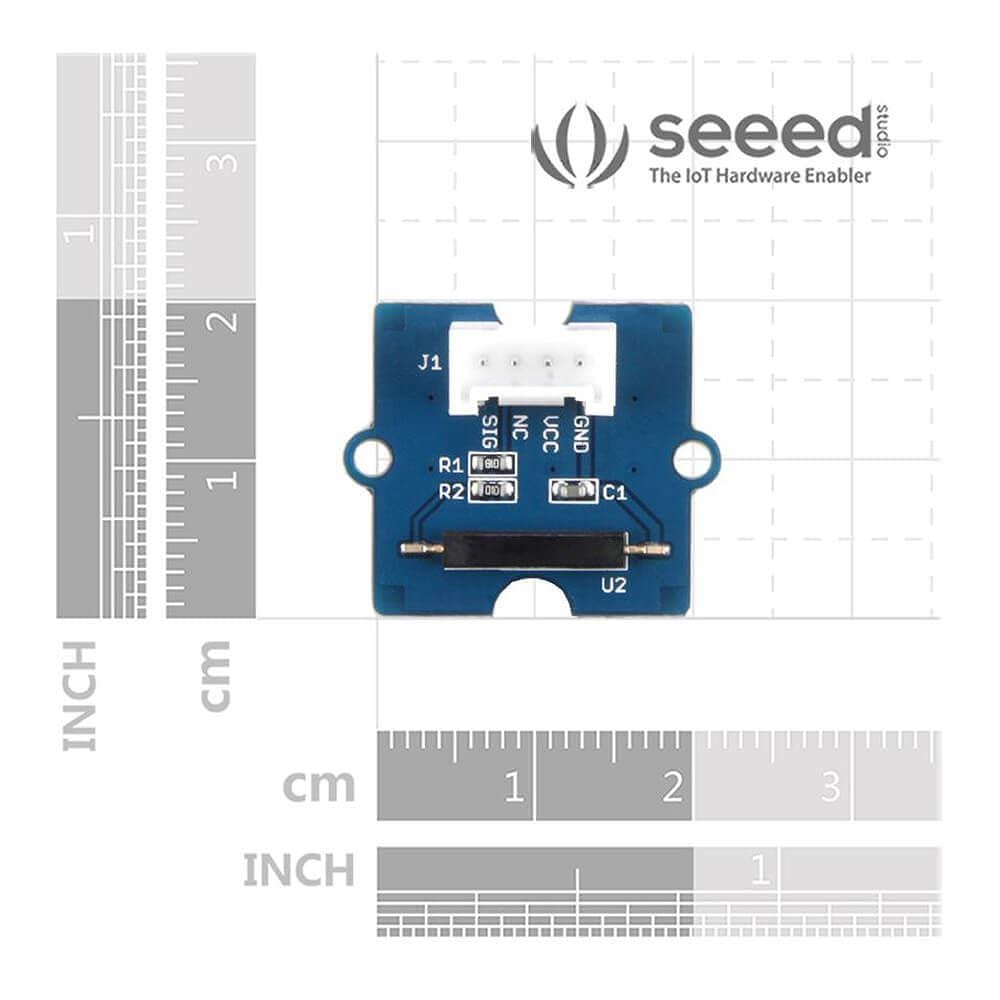

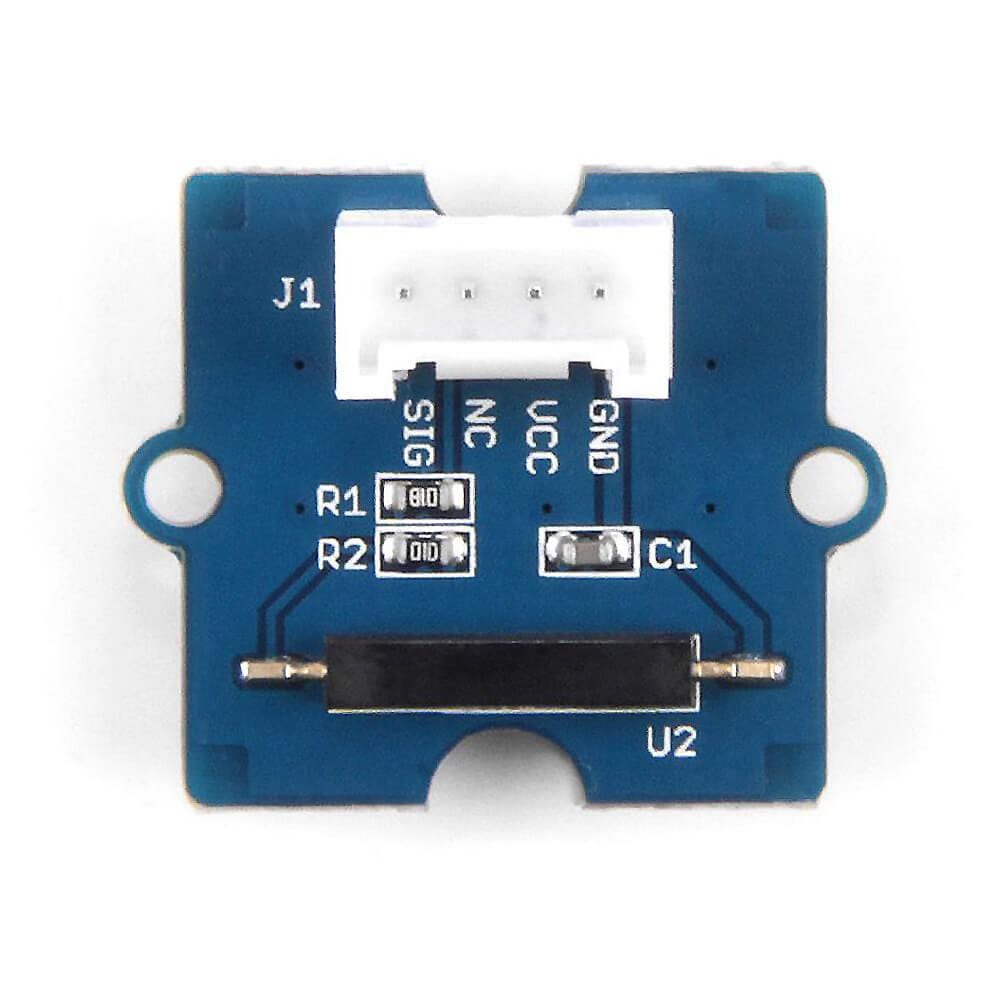

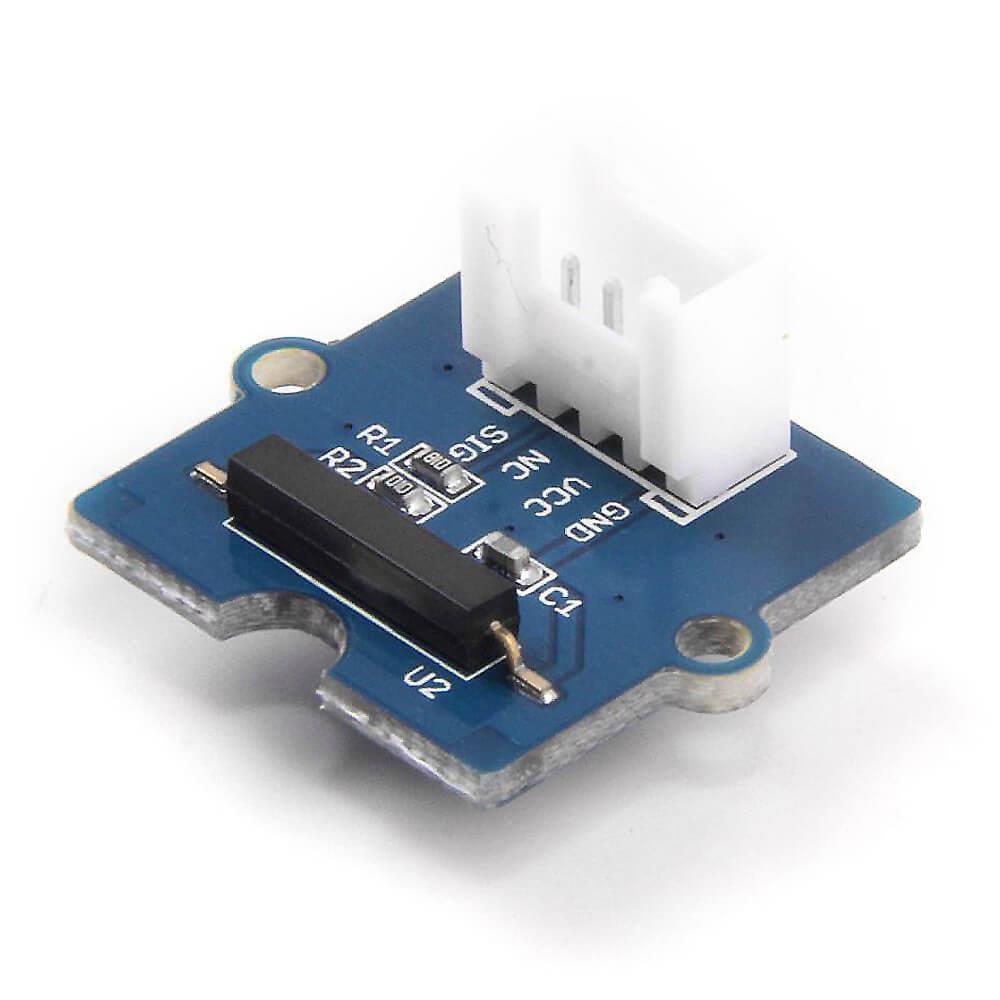

This is a Grove-compatible Magnetic switch module. It is based on an encapsulated dry reed switch CT10.

The CT10 is a single-pole, single-throw (SPST) type, having normally open ruthenium contacts. The sensor is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both. The magnetic switch is a wonder tool for designers who would like to turn a circuit on and off based on proximity.

Features

  • Grove compatible interface
  • 2.0cm x 2.0cm twig module
  • Minimum external parts
  • 10W rating
  • Rugged encapsulation
  • Weight: 8g
  • Product number: Seeed 101020038

    Resources

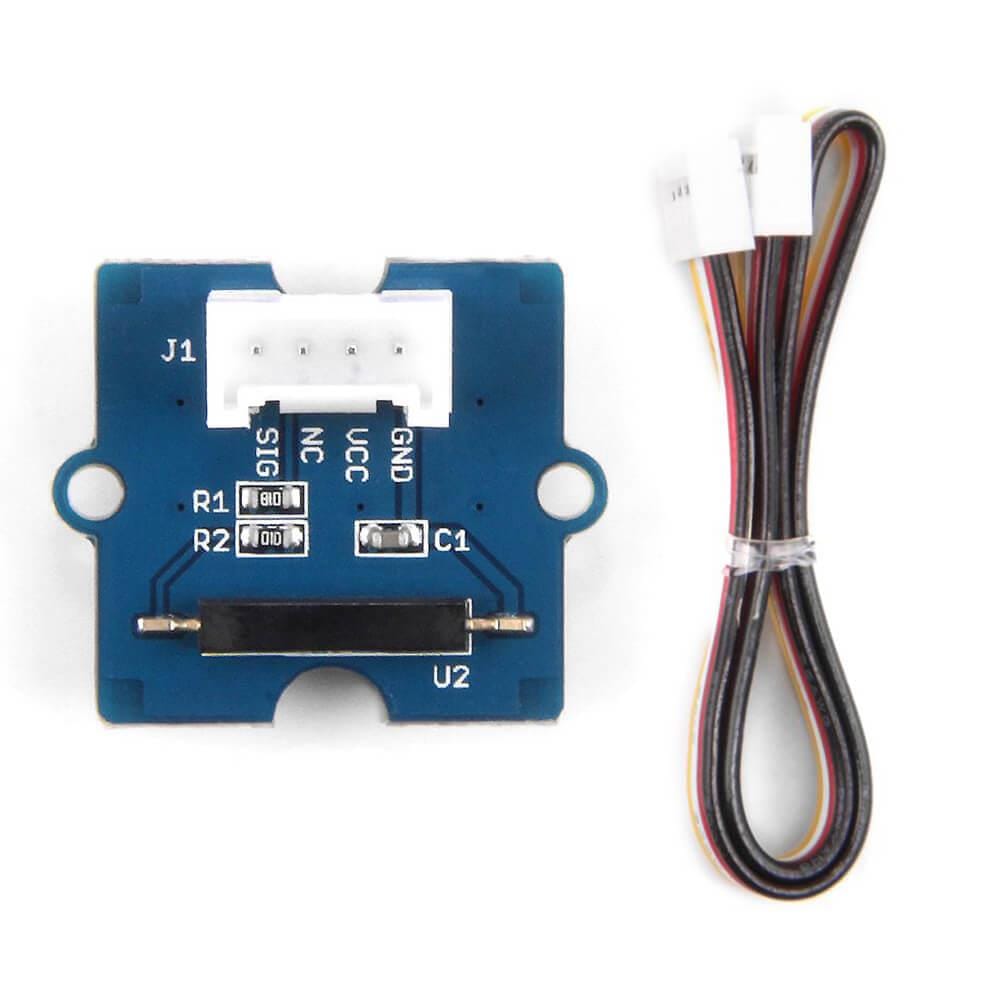

    Package Contents

    • 1x Grove Magnetic Switch
    • 1x Grove cable
