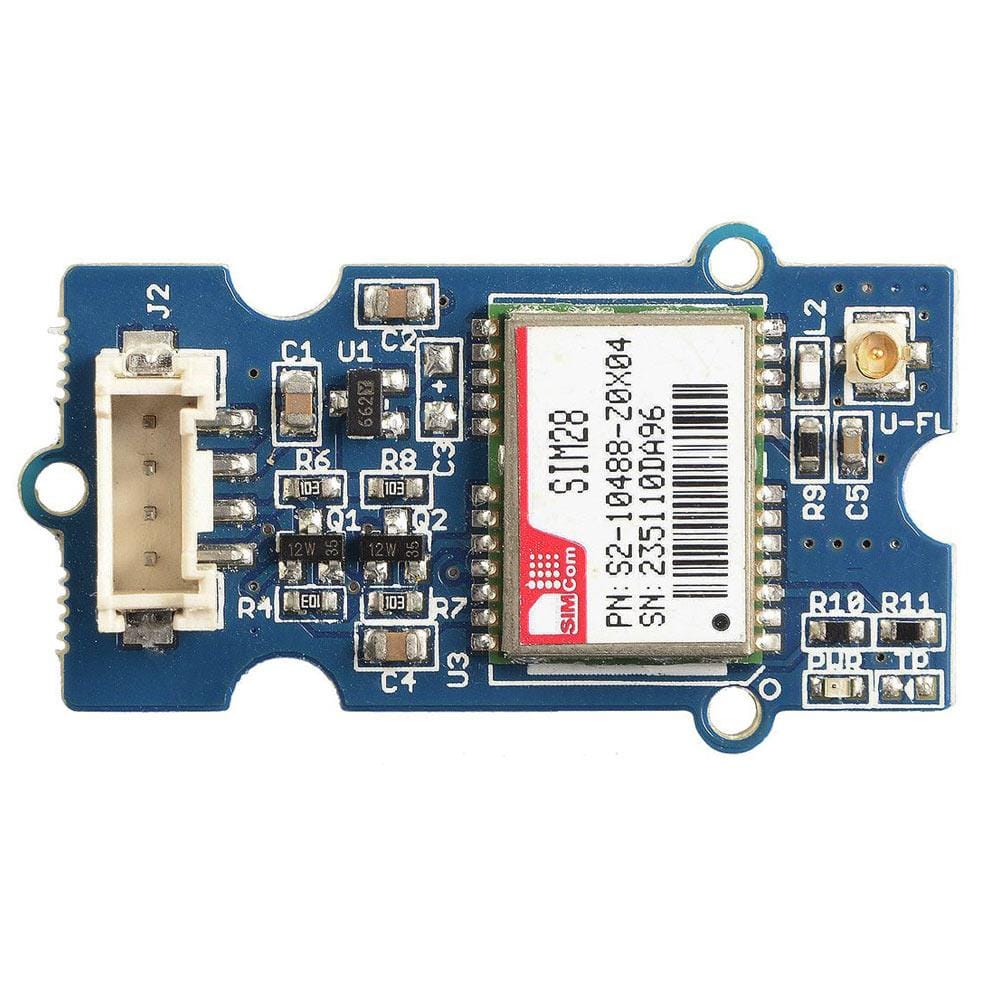

The Grove - GPS module is a cost-efficient and field-programmable gadget armed with a SIM28 module and serial communication configuration, providing a precise, sensitive, low power GPS module for position recognition anywhere in the world.
If you put your Raspberry Pi or Arduino in the wild, can you track its location? If you had this GPS module you could!
The module features a 22 tracking / 66 acquisition channels GPS receiver. The sensitivity of tracking and acquisition both reach up to -160dBm, making it a great choice for personal navigation projects and location services.
The module comes complete with an antenna and Grove cable.
How do GPS modules work?
GPS modules contain tiny processors and antennas that directly receive data sent by satellites through dedicated RF frequencies. From there, it’ll receive timestamps from each visible satellite, along with other pieces of data. If the module’s antenna can spot 4 or more satellites, it’s able to accurately calculate its position and time.
Features
- Supports NMEA and U-Blox 6 protocols
- Low power consumption
- Baud rates configurable
- Grove UART interface
- Compatible with Arduino and Raspberry Pi
- Input Voltage: 3.3/5V
- BaudRate: 9600 - 115200
- Default BaudRate: 9600

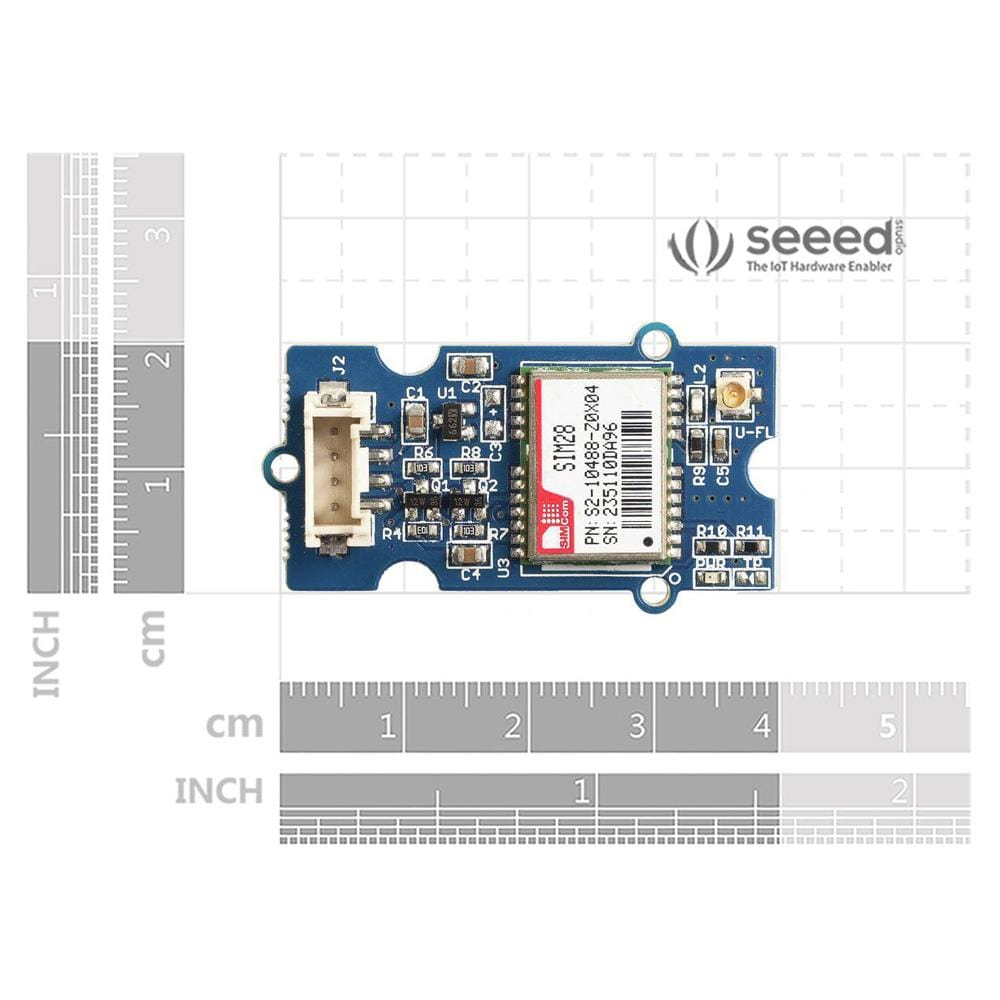

- Dimensions 40mm x20mm x13mm
- Weight: 17g
- Product number: 113020003
Specification
| Specs |
Grove – GPS Module |
| Size |
40mm x 20mm x 13mm |
| Update Rate |
1Hz, max 10Hz |
| Baud Rate |
9,600 – 115,200 |
| Navigation Sensitivity |
-160dBm |
| Power Requirements |
3.3/5V |
| Number of Channels |
22 tracking, 66 channels |
| Time to first start |
Cold start: 13s |
| Warm start: 1-2s |
| Hot start: <1s |
| Antennas |
Antenna included |
| Accuracy |
2.5m GPS Horizontal Position Accuracy |
Resources
Package Contents
- 1x Grove GPS
- 1x Grove cable
- 1x Antenna
