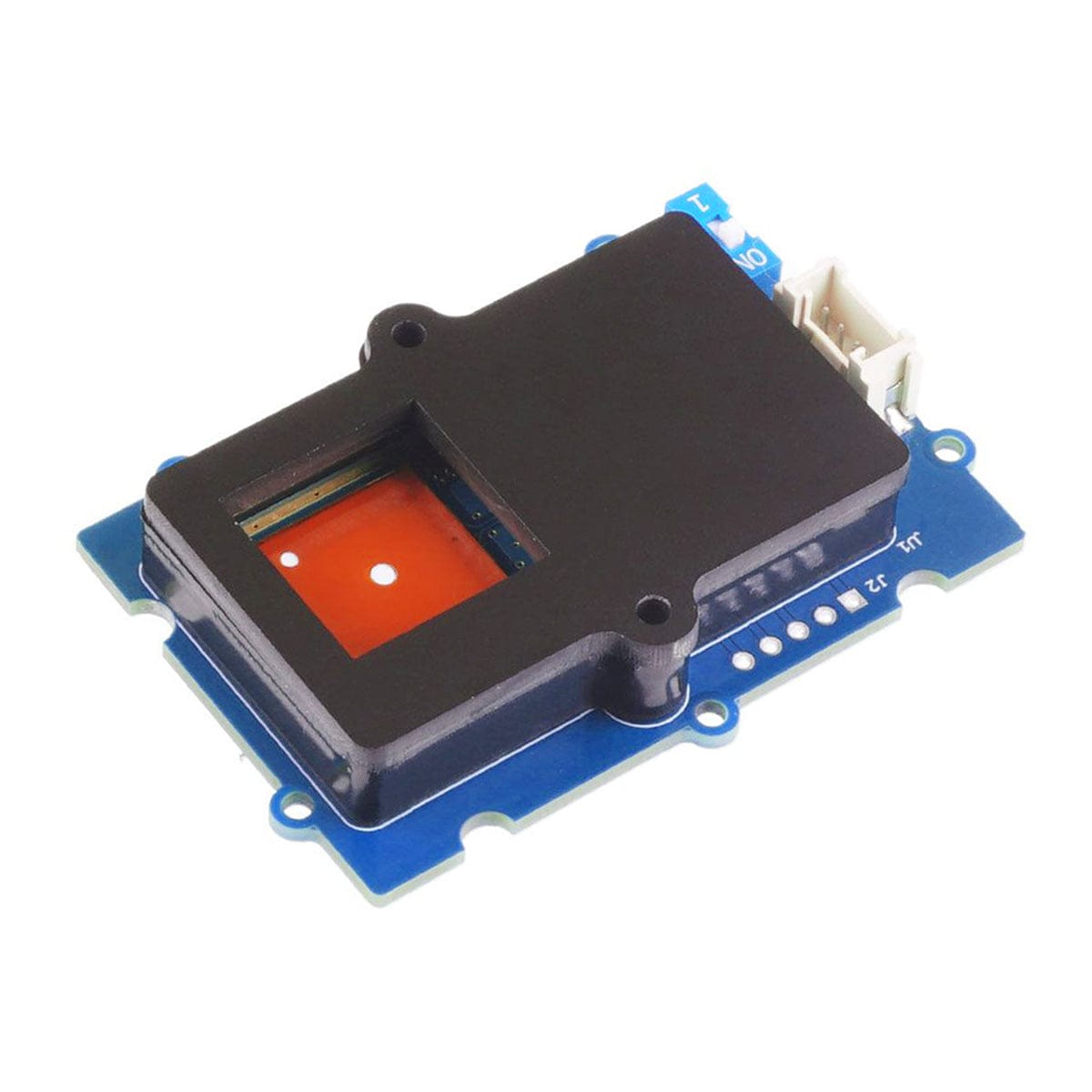

Grove - Formaldehyde Sensor (SFA30)

SeeedSKU: 106115
Price:
Sale price £50
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

Grove Base Shield V2.0 for Arduino - The Pi HutGrove Base Shield V2.0 for Arduino - The Pi Hut
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT
Grove - Base HAT for Raspberry Pi - The Pi HutGrove - Base HAT for Raspberry Pi - The Pi Hut
SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.70 incl. VAT excl. VAT
M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm - The Pi HutM5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm - The Pi Hut
M5StackM5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm
Sale priceFrom £2 incl. VAT excl. VAT
Grove - OLED Display 0.96" (SSD1315) - The Pi HutGrove - OLED Display 0.96" (SSD1315) - The Pi Hut
SeeedGrove - OLED Display 0.96" (SSD1315)
Sale price £5.80 incl. VAT excl. VAT
Grove - Buzzer - The Pi HutGrove - Buzzer - The Pi Hut
SeeedGrove - Buzzer
Sale price £1.50 incl. VAT excl. VAT

This sensor is based on Sensirion's SFA30 and has formaldehyde sensing with minimal interference from other VOCs, like ethanol. This sensor is ideal for use in air conditioners, air purifiers, and smart ventilation systems, especially in new homes where air quality is important. An onboard SHT sensor also provides accurate humidity and temperature readings, making it a comprehensive choice for indoor air monitoring. It is compatible with Arduino (With a Grove - Base Shield) or Raspberry Pi (Only with the Grove-Base HAT)

The sensor has a wide detection range for formaldehyde (0 to 1000 ppb) and is built to maintain consistent accuracy over time. Its patented electrochemical cell and anti-dry technology give it a six-year service life, so it performs reliably in various conditions. Thanks to advanced algorithms, the built-in Sensirion RHT sensor adjusts for changes in temperature and humidity, which enhances the sensor's stability and accuracy in different indoor settings.

With a Grove-compatible port, the sensor is easy to set up and integrates easily with other Grove modules, allowing for a straightforward "Plug and Play" experience. Designed with a modular approach, the sensor standardizes connectors and uses electrochemical sensing technology from SENSIRION, optimized to reduce false alarms and provide precise readings. It operates on low power, making it suitable for battery-powered setups, and is factory-calibrated for easy connection via I2C or UART interfaces. The Grove Formaldehyde Sensor is a dependable and user-friendly solution for anyone seeking high-quality formaldehyde and environmental monitoring.

Features

  • Excellent sensing performance: Supports low cross-sensitivity to other VOCs such as ethanol
  • Wide formaldehyde detecting range: Standard formaldehyde measurement range of 0 ~ 1000 ppb
  • Long-term stability: Patented electrochemical cell with anti-dry technology and 6 years’ service lifetime
  • Maintain performance under different circumstances: compensated temperatures and humidity via built-in Sensirion RHT sensor by advanced algorithms
  • Grove compatible interface: The device has "Plug and Play" and is versatile for various Grove projects
  • Product Number - Seeed 101020972

What's on Board

Specifications

Supply Voltage Range 3.3V or 5V
Measurement Range 0 to 1,000 ppb
Response Time <2 min
Limit of Detection <20 ppb
Interface I2C / UART
Typical Formaldehyde Accuracy ±20 ppb or ±20% of the measured value, whichever is larger

Resources

Package Contents

  • 1x Grove Formaldehyde Sensor SFA30
  • 1x 5-pin Header
