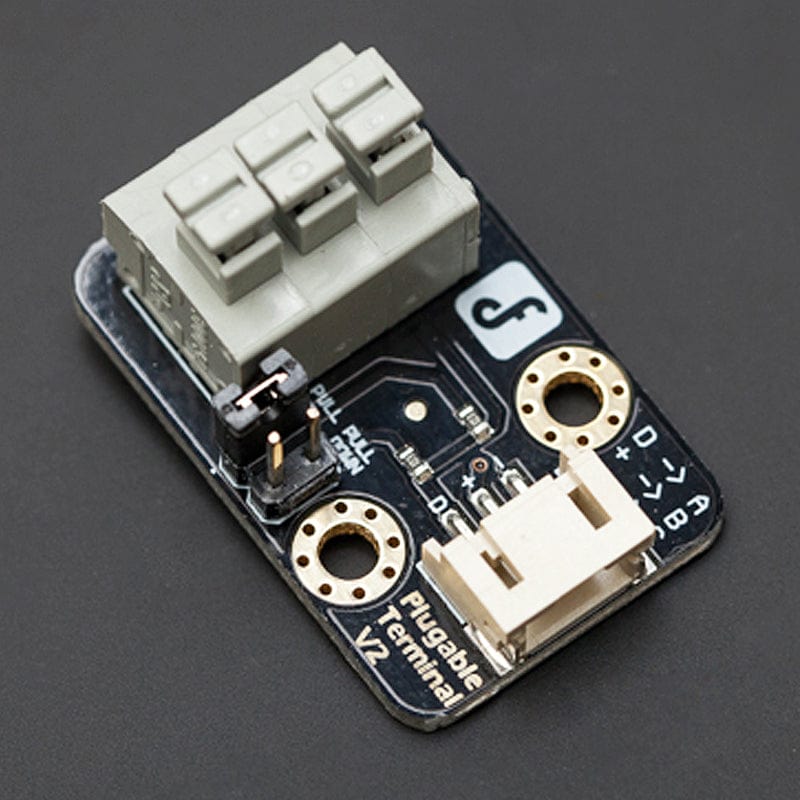

Gravity: Terminal Sensor Adapter V2.0

DFRobotSKU: DFR0055
Price:
Sale price £2.40
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
DFRobotWaterproof SMD DS18B20 Digital Temperature Sensor
Sale price £6.60 incl. VAT excl. VAT
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT

This is a universal sensor adapter that can be used by digital and analog input modules, converting sensors and other modules to the Gravity standard for easy connection to your projects.

In this latest version, DFRobot has added a 10K resistor between A & B and A & C respectively, so that you don't need to wire an additional resistor if your chosen sensor requires a pull-up or pull-down resistor.

This terminal provides a much easier way to connect a switch or any modules that require a pull-up/down resistor prior to connection with your microcontroller.

Connection Example - DFRduino UNO R3

Specifications

  • Voltage: +5 V
  • Current: <1000mA
  • Size: 22 x 34mm

Resources

Package Contents

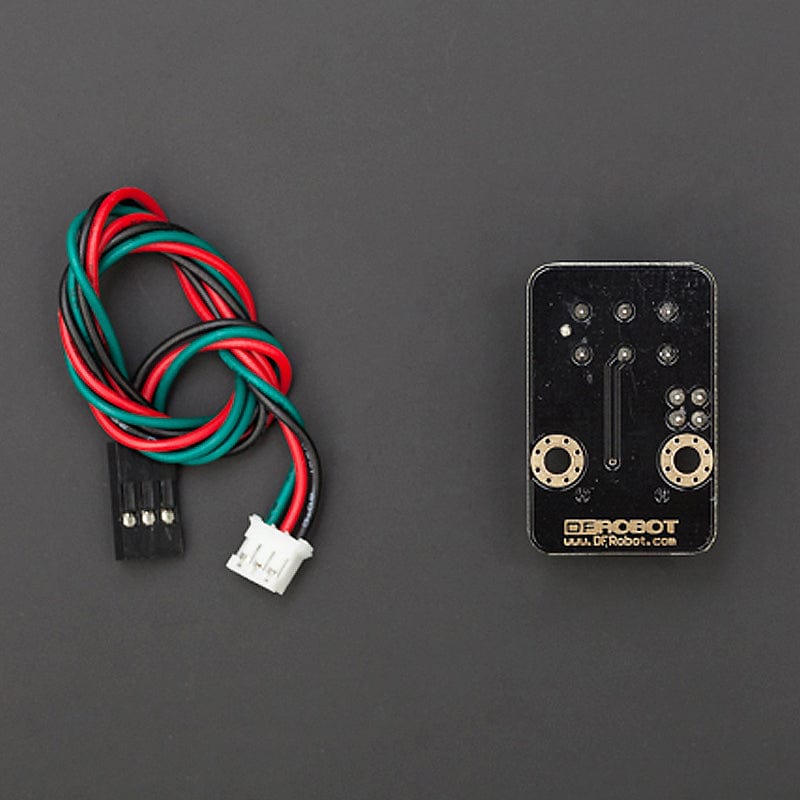

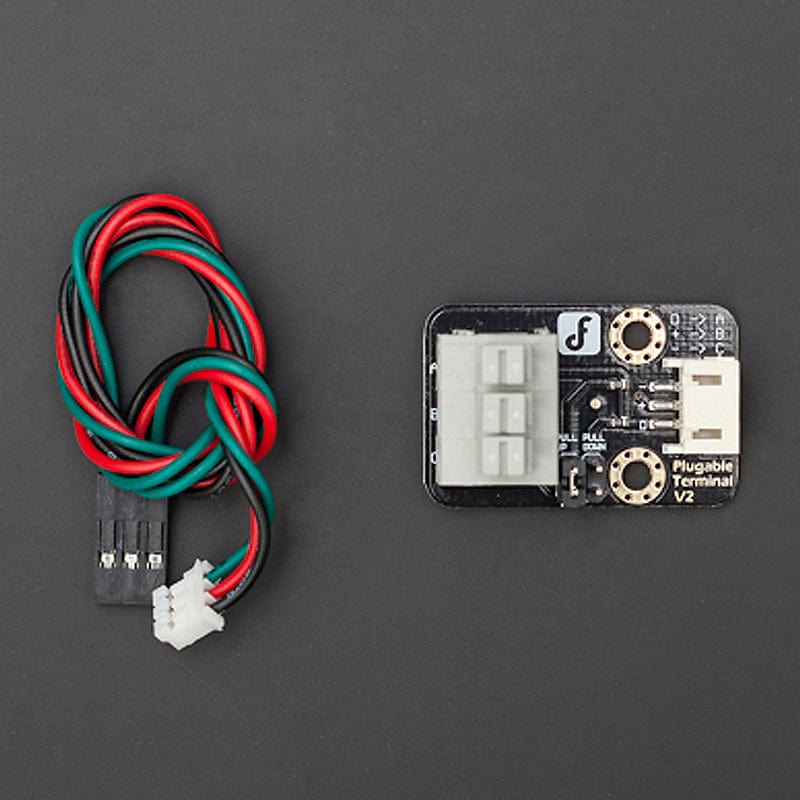

  • 1x Terminal Sensor Adapter V2.0
