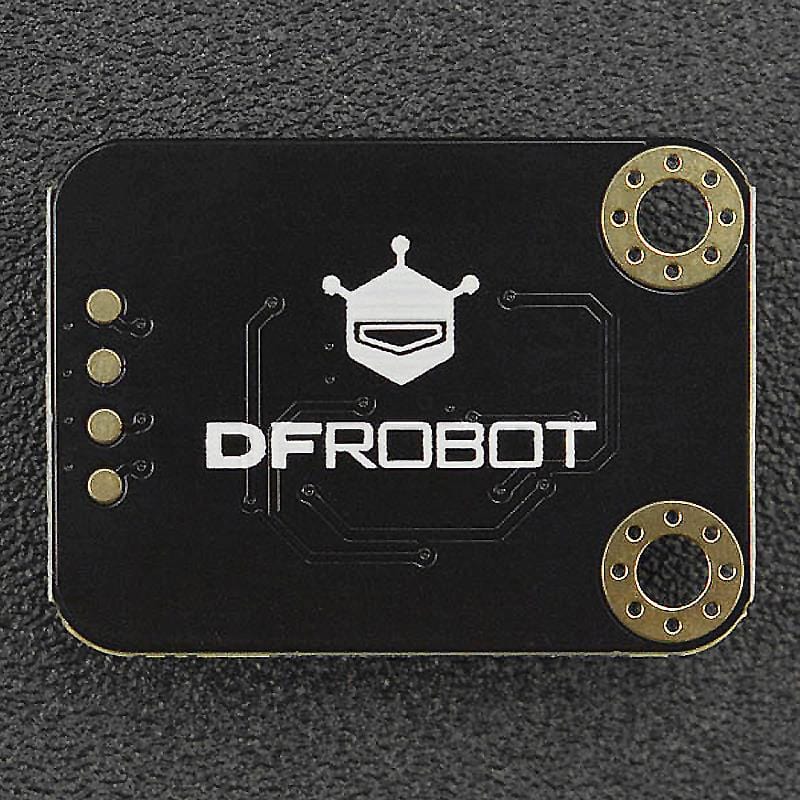

Gravity: ICP-10111 Pressure Sensor

DFRobotSKU: SEN0517
Price:
Sale price £9.50
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

DFRobotGravity: Expansion Board for Raspberry Pi Pico
Sale price £4.70 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Pico
Sale priceFrom £3.80 incl. VAT excl. VAT
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
DFRobotGravity: Nano I/O Shield for Arduino Nano
Sale price £9.10 incl. VAT excl. VAT

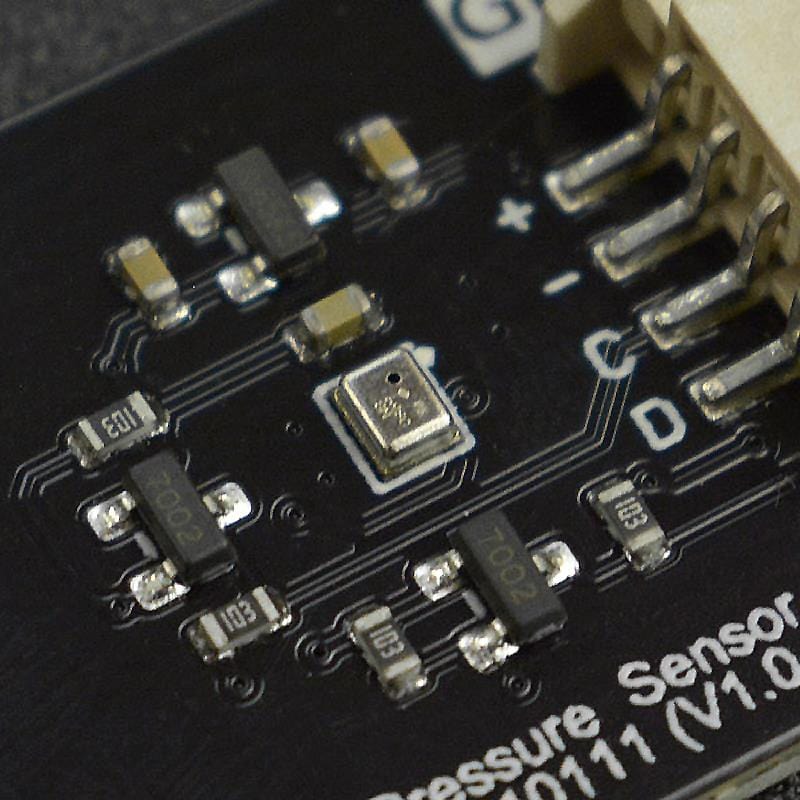

This barometric pressure temperature sensor is equipped with TDK's newly-launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor technology to achieve ultra-low power consumption, industry-leading relative accuracy and temperature offset coefficient.

The Gravity: ICP-10111 barometric pressure temperature sensor can measure the pressure difference with an accuracy of ±1Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.

The pressure noise can be as low as 0.4Pa, and the read data will be more stable. There is a built-in temperature sensor for air pressure compensation. The ICP-10111 offers a temperature coefficient offset of ±0.5 Pa/°C, more stable for long-term use. The combination of high accuracy, low power, and temperature stability in a small footprint enables higher performance barometric pressure sensing for sports activity identification, mobile indoor/outdoor navigation and altitude-hold in drones.

The easy to use Gravity interface makes it simple to connect to your favourite development board when used in conjunction with a gravity interface board.

Connection Example (Arduino)

Features

  • Relative accuracy ±1Pa, as small as 8.5cm height measurement difference
  • ±0.5Pa/℃ temperature coefficient offset, high stability for long-term use
  • 0.4Pa Pressure noise, more stable data

Specifications

  • Working Voltage: 3.3V~5.5V
  • Working Current: <2mA
  • Communication: I2C
  • I2C Address: 0x63
  • Barometric Pressure Measurement Range: 30~110kPa
  • Relative Barometric Pressure Measurement Accuracy: ±0.01 hPa (950hPa~1050hPa, 25℃)
  • Absolute Barometric Pressure Measurement Accuracy: ±1 hPa (950hPa-1050hPa, 0℃~65℃)
  • Temperature Coefficient Offset: ±0.5 Pa/℃ (100kPa, 25℃~45℃)
  • Absolute Temperature Measurement Accuracy: ±0.4℃
  • Working Temperature: -40℃~85℃

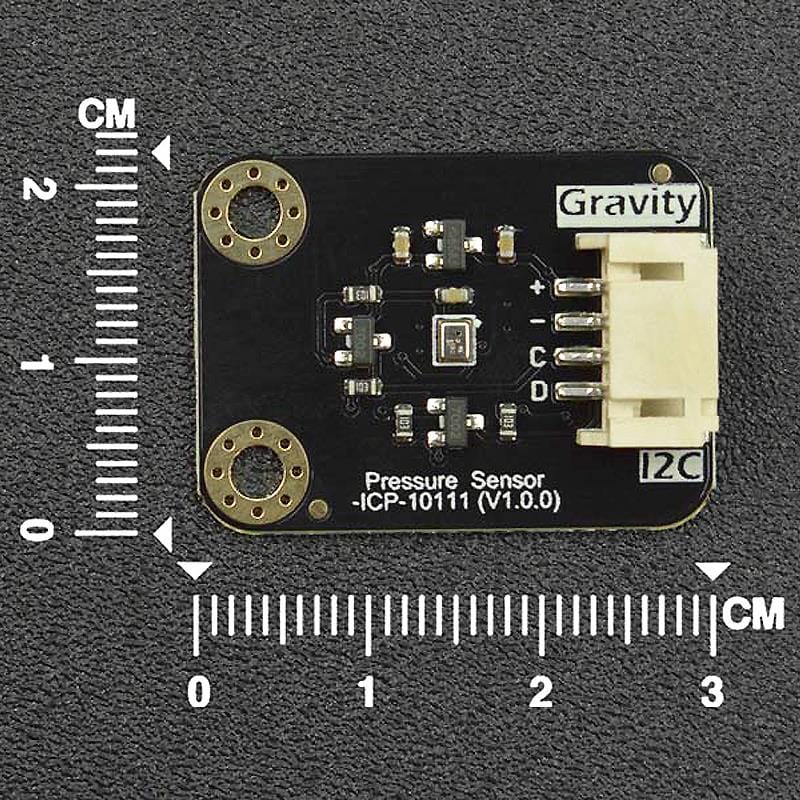

  • Dimensions: 30mm x 22mm/1.18 x 0.87inch

Package Contents

  • 1x Gravity: ICP-10111 Pressure Sensor
  • 1x 2.54-4P I2C/UART Sensor Connector
