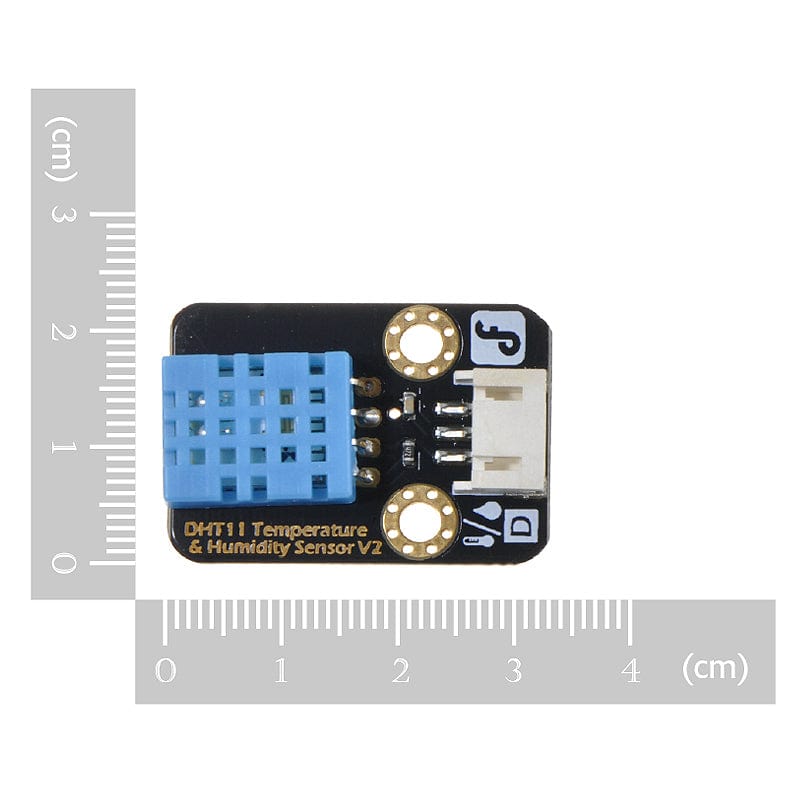

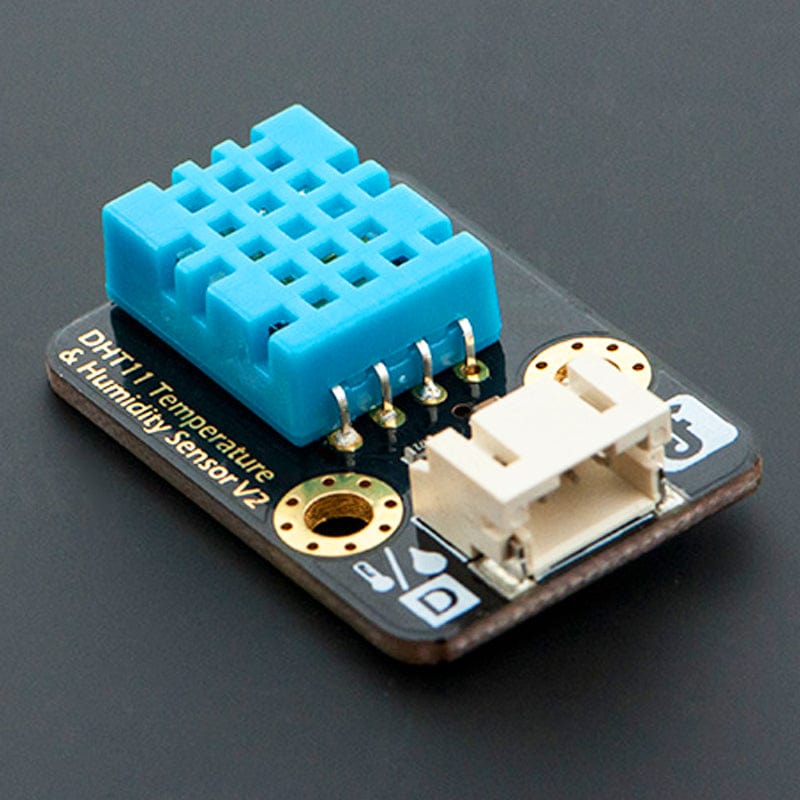

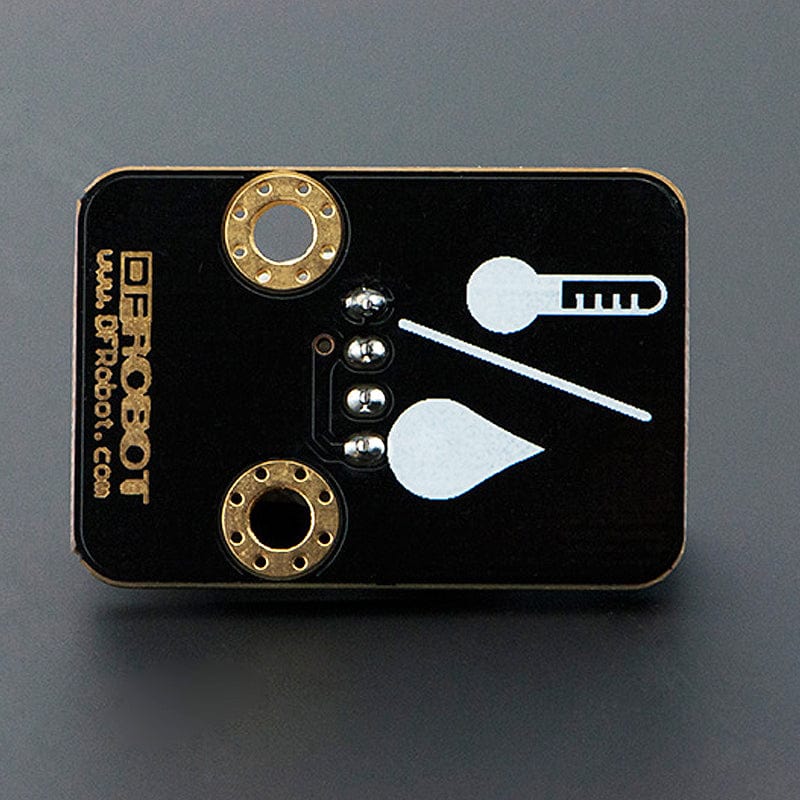

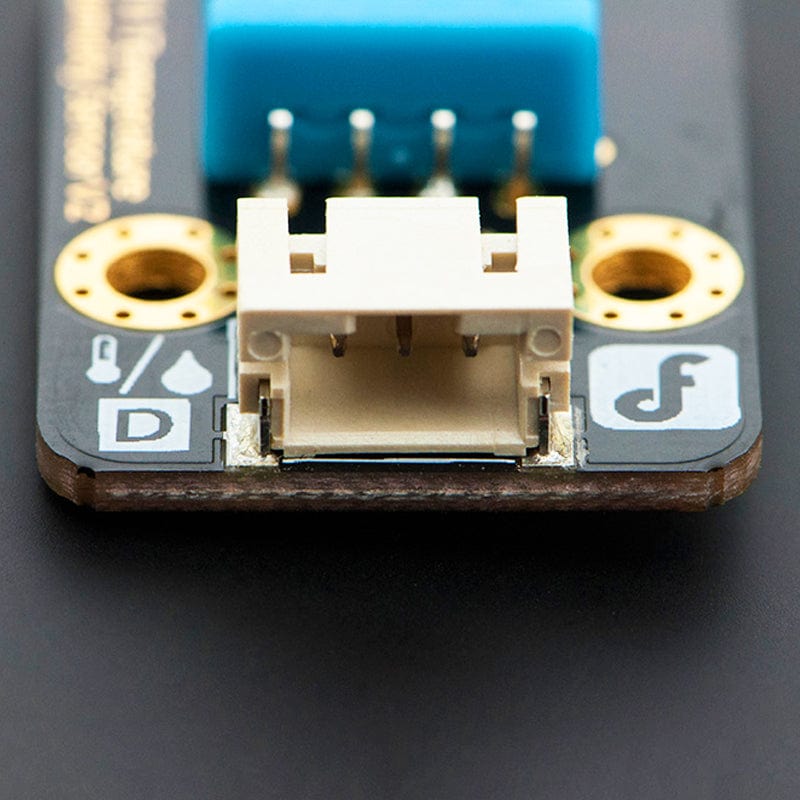

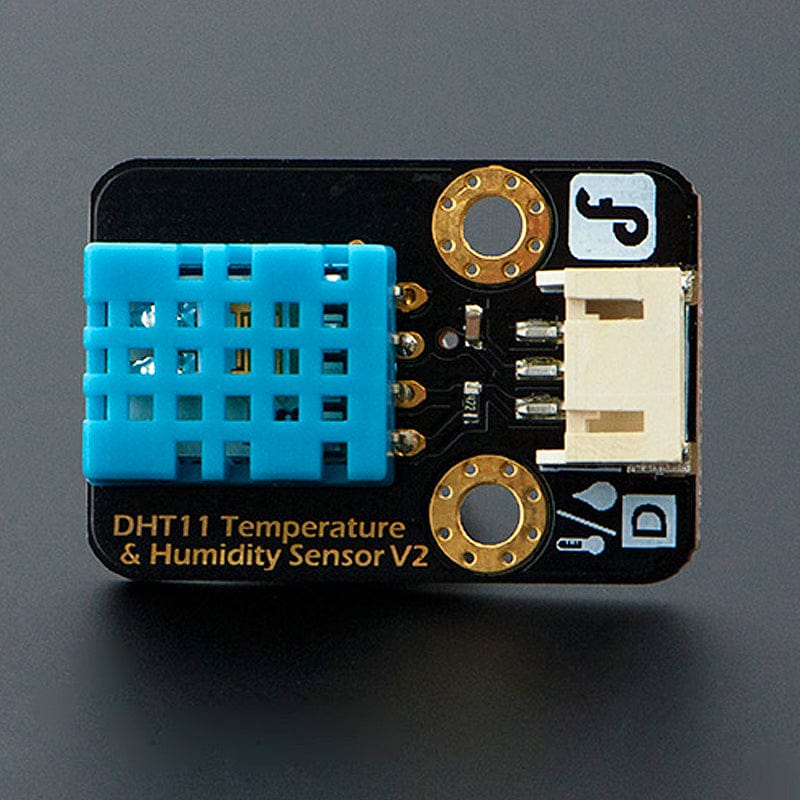

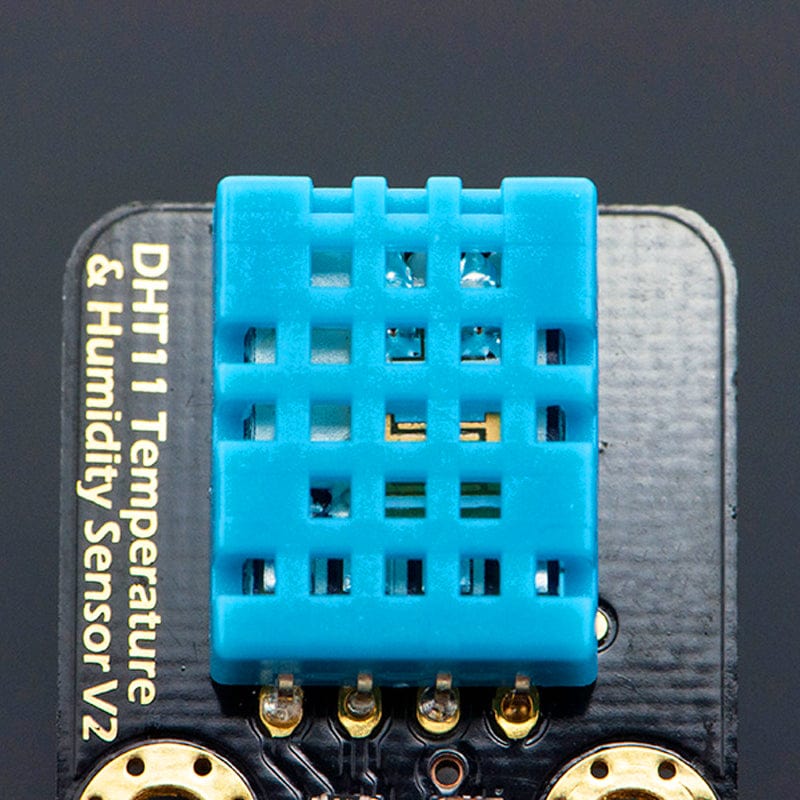

DFRobot's latest generation of digital DHT11 Temperature and Humidity sensor is as powerful as it used to be but easier to use. This DHT11 Arduino Arduino has a full range temperature compensation, low power consumption, long term stability and calibrated digital signal. A high-performance 8-bit microcontroller is integrated in the sensor with calibration-coefficient saved in OTP memory to provide accurate temperature readings.
To ease the difficulty, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match to connect with your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule and curie.
Temperature Sensor Tutorial: Type Selection of Temperature Sensors
Is it difficult for you to choose a temperature sensor from the maker market that is full of different kinds? Therefore, we have prepared a guide of temperature sensors that are compatible with Arduino for your reference.
Type Selection of Temperature Sensors
|
CMOSens technology makes it of advantages such as low power consumption, fast response, strong anti-jamming capacity etc.
Application:
Medical equipment
HVAC
Meteorology
Humidity regulator Dehumidifier
Tests and measurements
Automobile
Automatically control
|
This sensor includes a resistive element and a sense of wet NTC temperature measuring devices. It has excellent quality, fast response, anti-interference ability and high cost performance advantages. Its signal transmission distance up to 20 meters. These features make it a variety of applications and even the most demanding applications.
Application:
Medical equipment HVAC
Meteorology
Humidity regulator
Dehumidifier Tests and measurements
Automobile
Automatically control
|
It contains a resistive element and a sense of wet NTC temperature module. Compared to DHT11, it has smaller humidity deviation, faster response, stronger anti-interference ability and higher cost performance
Application:
Medical equipment HVAC
Meteorology Humidity regulator Dehumidifier
Tests and measurements
Automobile Automatically control
|
Features
- Standard assembling struct ( two 3mm holes with multiple of 5cm as interval ).
- User-friendly interfaces ( "A" for analog and "D" for digital ).
- Icons to simplely illustrate sensor function.
- High quality connector.
- Immersion gold surface.
Specification
- Wider voltage range: 3.3V to 5V
- Temperature range :0-50 °C error of ± 2 °C
- Humidity :20-90% RH ± 5% RH error
- Interface: Digital
Documents
Shipping List

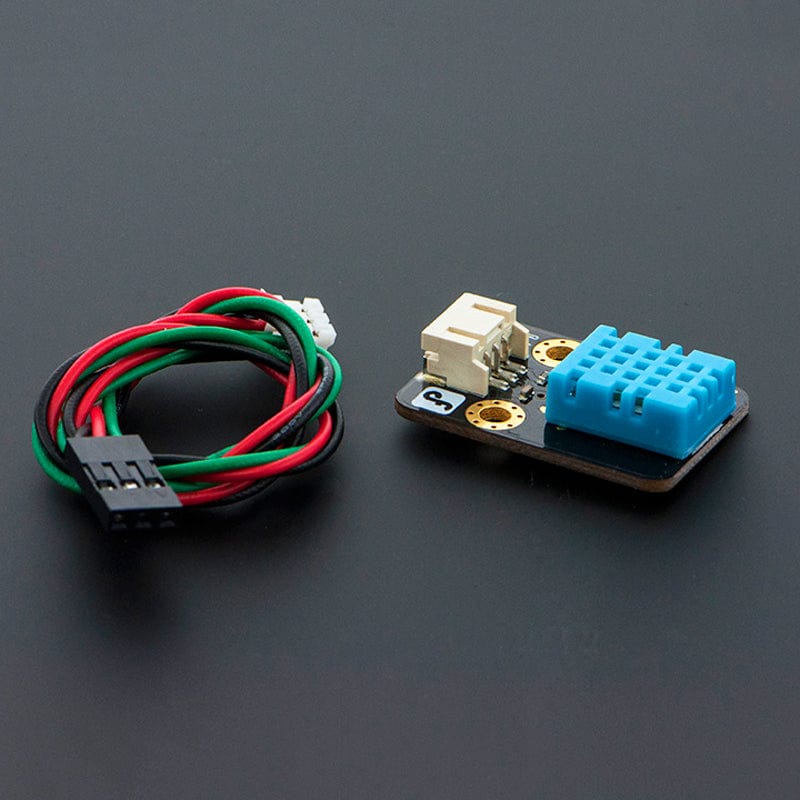

- DHT11 Temperature and Humidity Sensor x1
