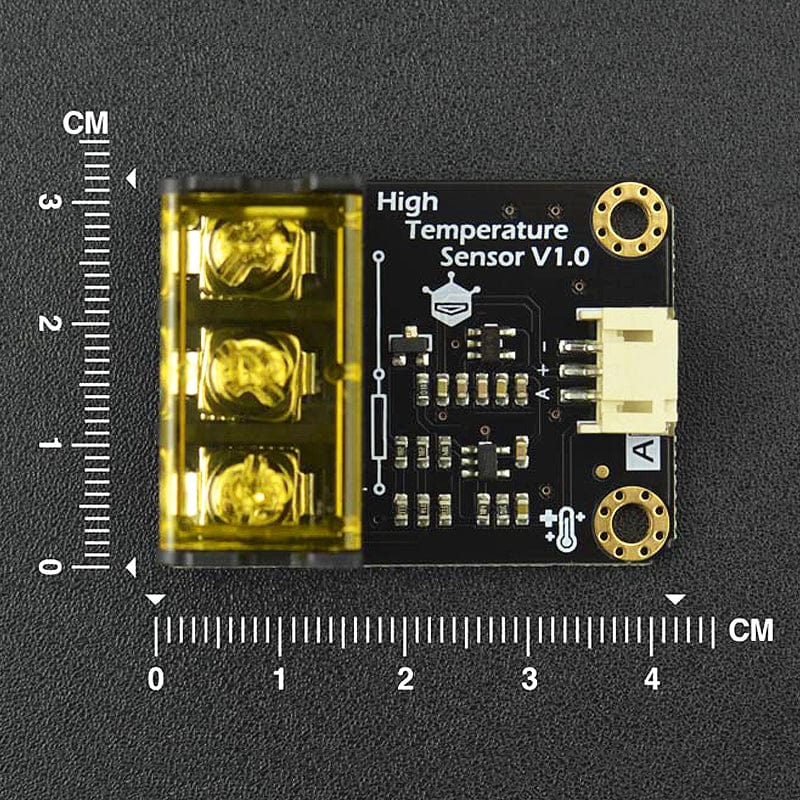

Gravity: Analog High Temperature Sensor

DFRobotSKU: SEN0198
Price:
Sale price £13.30
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
DFRobotGravity: DHT22 Temperature & Humidity Sensor
Sale price £8.90 incl. VAT excl. VAT
What sensor should you use when you need to measure temperature? Most people will think of a DS18B20 temperature sensor first, but this sensor is only capable of measuring temperatures up to 125C. In order to measure temperatures greater than 100C you will need something with a greater temperature range and resistance. This is the sensor you need! We have used a PT100 resistance type high temperature probe which is often used in industrial applications. Using this probe you can measure a temperature range between 30-350C. The module itself is compatible 3.3V-5.5V supply, so Arduino, STM32 and other microcontrollers are compatible.

Features

  • Supports 3-Pin "Gravity"
  • interface Analog output

Connection Example - DFRduino UNO R3

Specifications

1.Module
  • Operating voltage: 3.3V-5.5V
  • Analog output voltage: 0.2V-2.8V
  • Working temperature range: 30-350C
  • Relative Error: ±2% F.S.
  • Interface: PH2.0-3P
  • Size: 42 x 32 x 18 mm
  • Waterproof: No
2.PT100 Probe
  • Probe Working temperature: -20-400C
  • Sheathing Tolerance: up to 200
  • Length: 2m
  • Precision: 0.5C
  • Waterproof: Yes

Resources

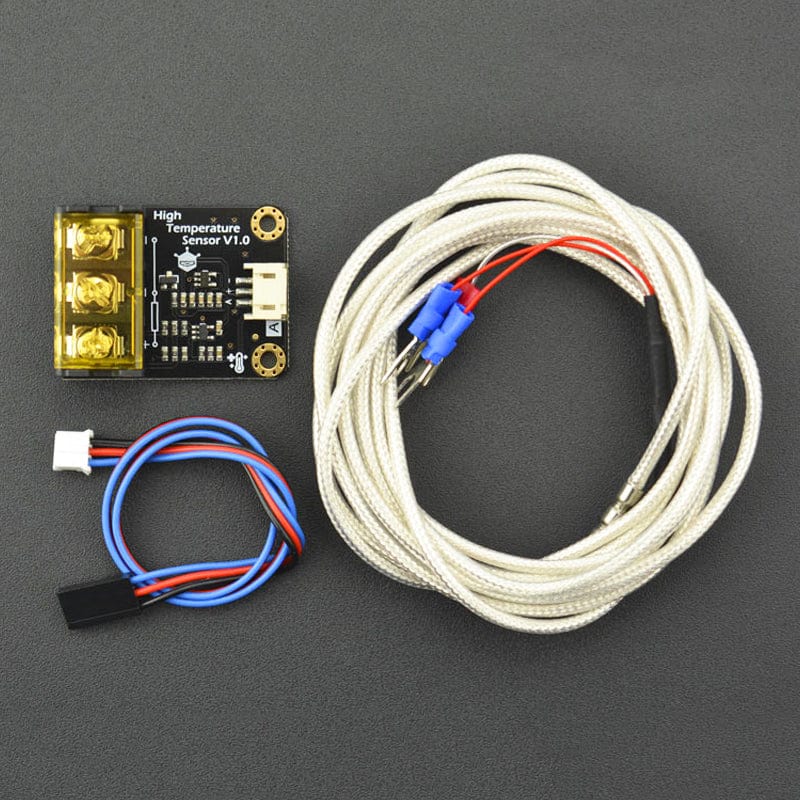

Package Contents

  • 1x Analog High Temperature Sensor Module
  • 1x PT100 Probe
  • 1x Analog Sensor Cable
