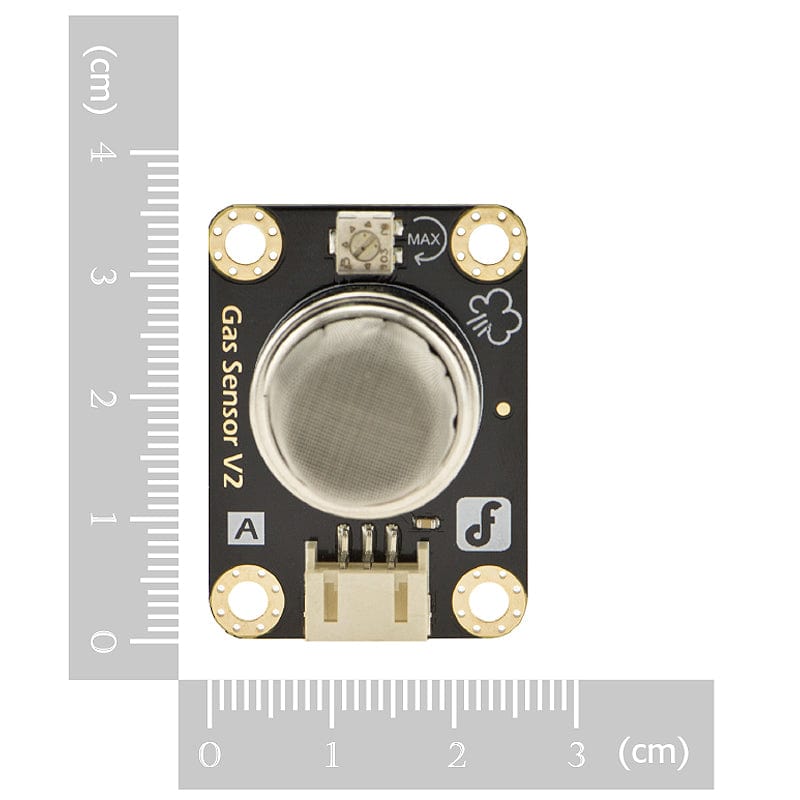

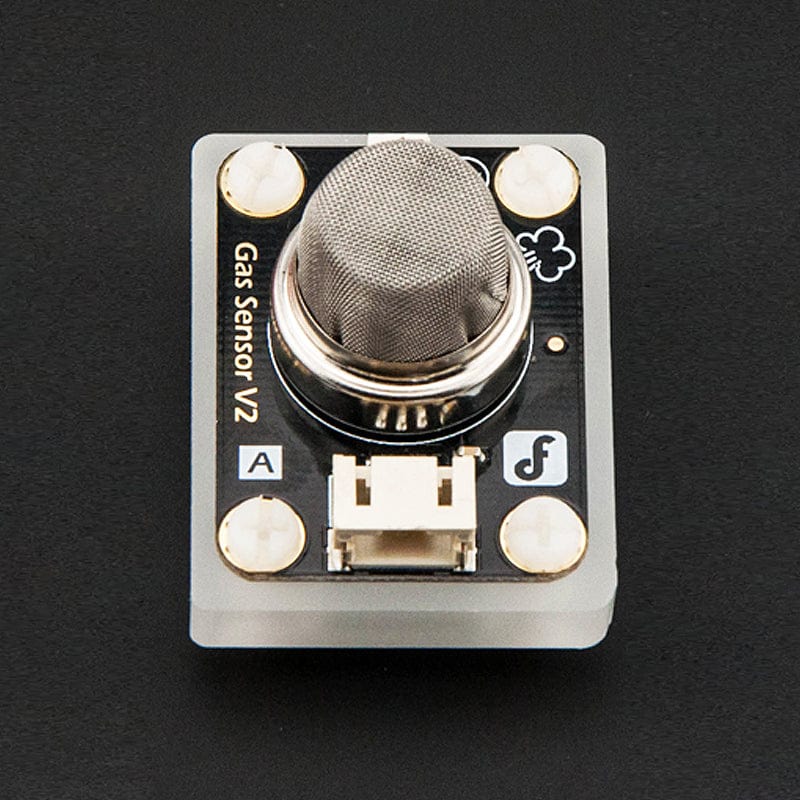

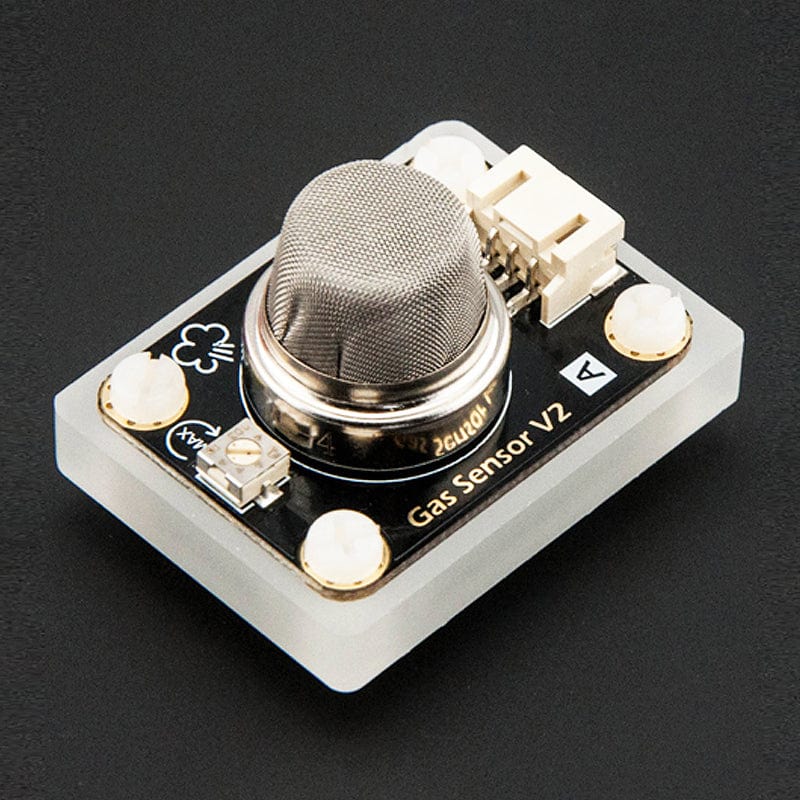

Gravity: Analog CH4 Gas Sensor (MQ4) For Arduino

DFRobotSKU: SEN0129
Price:
Sale price £6.60
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
Gravity: IO Expansion Shield for Arduino V7.1 - The Pi HutGravity: IO Expansion Shield for Arduino V7.1 - The Pi Hut
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
Gravity: Analog LPG Gas Sensor (MQ5) - The Pi HutGravity: Analog LPG Gas Sensor (MQ5) - The Pi Hut
DFRobotGravity: Analog LPG Gas Sensor (MQ5)
Sale price £6.60 incl. VAT excl. VAT
This is an Arduino CH4 gas sensor. It uses MQ4 probe which is able to detect natural gas, CH4. It is less sensitivity in detecting alcohol, cooking fumes, and cigarette smoke.

The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontroller.

Standard assembling structure (Times-of-5mm Center distance between two 3mm 0.12" mounting holes)

Features

  • Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
  • Standard assembling structure (Times-of-5mm Center distance between two 3mm 0.12" mounting holes)
  • Icons to simplely illustrate sensor function
  • High quality connector
  • Immersion gold surface

Connection Example - I/O Expansion Shield V7

Specifications

  • Power supply: 5V
  • Interface type: Analog
  • Pin Definition: 1-Output 2-GND 3-VCC
  • High sensitivity to CH4, Natural gas
  • Small sensitivity to alcohol, smoke
  • Fast response
  • Stable and long life
  • Simple drive circuit
  • Size: 40 x 20mm

Resources

Package Contents

  • 1x Arduino CH4 Gas sensor (MQ4)
