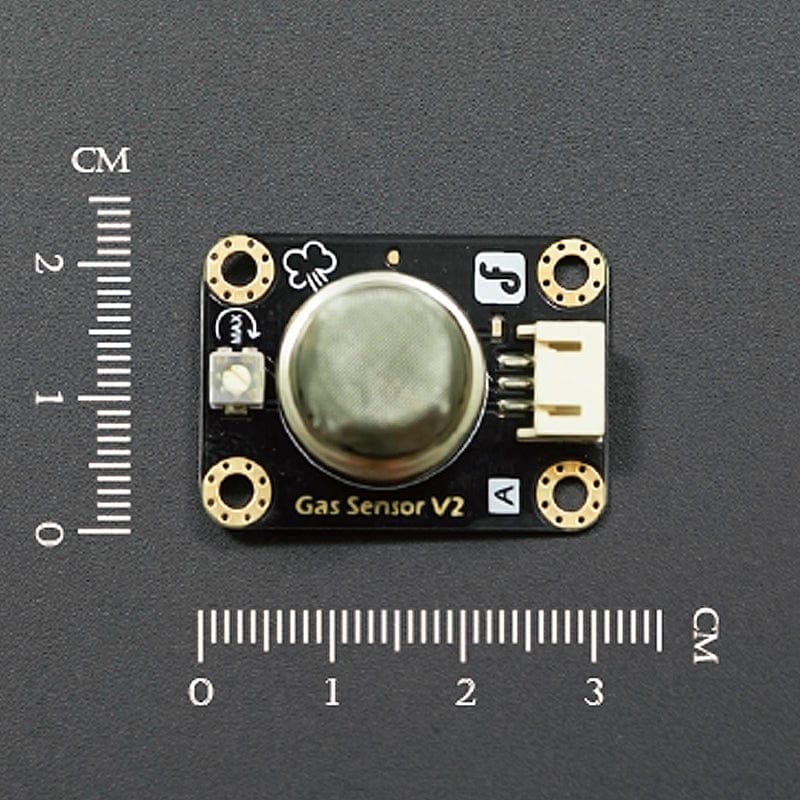

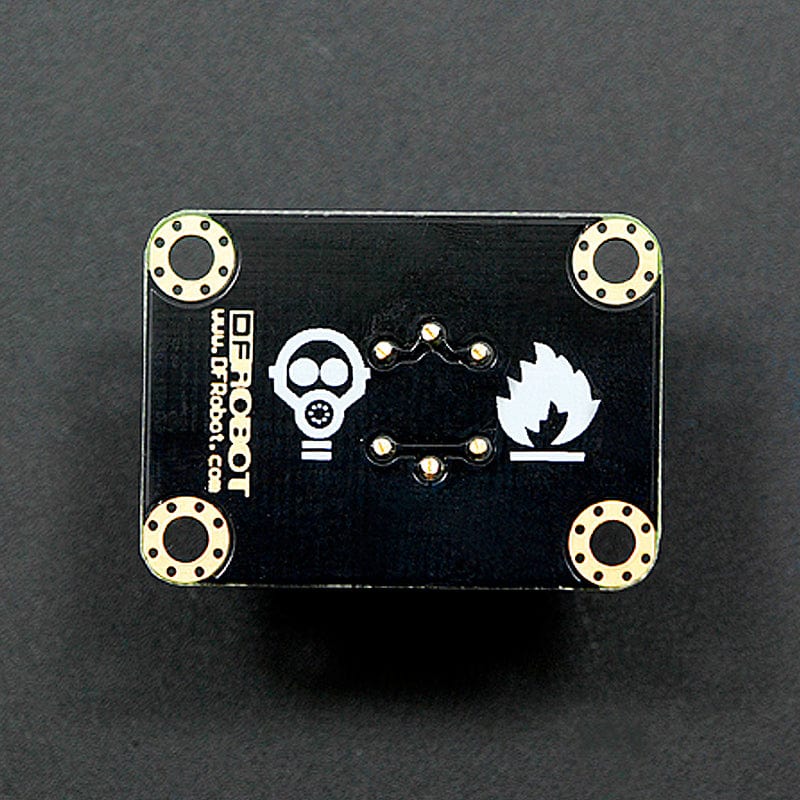

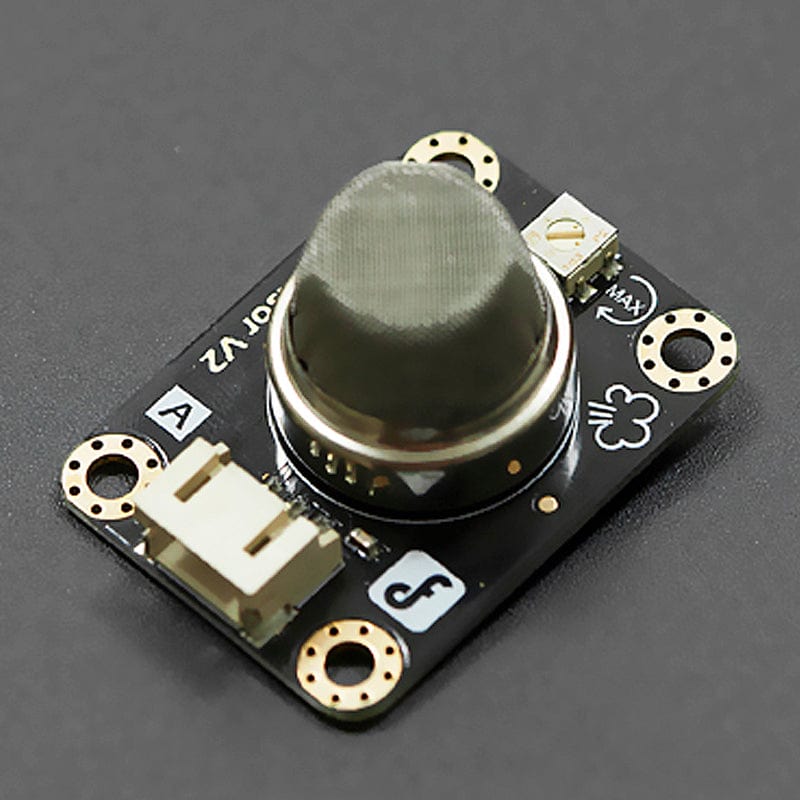

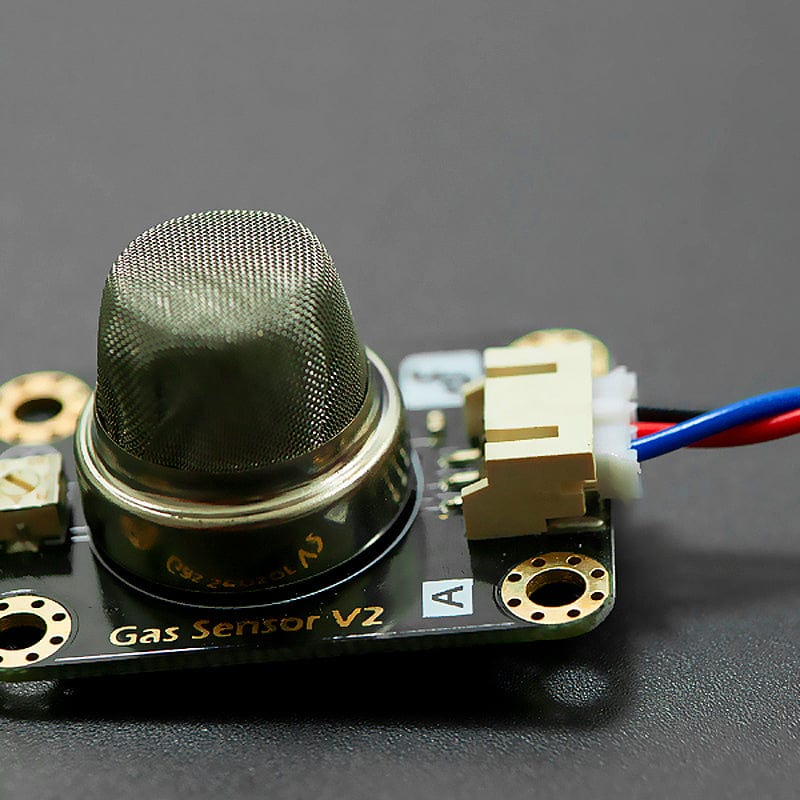

Gravity: Analog LPG Gas Sensor (MQ5)

DFRobotSKU: SEN0130
Price:
Sale price £6.60
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

Gravity: IO Expansion Shield for Arduino V7.1 - The Pi HutGravity: IO Expansion Shield for Arduino V7.1 - The Pi Hut
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
Gravity: MEMS Gas Sensor (CO, Alcohol, NO2 & NH3) - I2C - MiCS-4514 - The Pi HutGravity: MEMS Gas Sensor (CO, Alcohol, NO2 & NH3) - I2C - MiCS-4514 - The Pi Hut
This is an LPG gas sensor. It has an MQ5 probe which is very sensitive with LPG, natural gas, and town gas. It is less sensitive with alcohol, cooking fumes and cigarette smoke.

The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug & play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino.

Connection Example - I/O Expansion Shield V7

Specifications

  • Power supply needs: 5V
  • Interface type: Analog
  • Pin Definition: 1-Output 2-GND 3-VCC
  • High sensitivity to LPG, natural gas, town gas
  • Small sensitivity to alcohol, smoke
  • Fast response
  • Stable and long life
  • Simple drive circuit
  • Size: 40 x 20mm

Resources

Package Contents

  • 1x Arduino LPG Gas sensor (MQ5)
  • 1x Gravity Analog Cable
