Gravity: Analog Alcohol Sensor (MQ3)

DFRobotSKU: SEN0128
Price:
Sale price £6.60
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
Gravity: IO Expansion Shield for Arduino V7.1 - The Pi HutGravity: IO Expansion Shield for Arduino V7.1 - The Pi Hut
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
Gravity: Analog CH4 Gas Sensor (MQ4) For Arduino - The Pi HutGravity: Analog CH4 Gas Sensor (MQ4) For Arduino - The Pi Hut
DFRobotGravity: Analog CH4 Gas Sensor (MQ4) For Arduino
Sale price £6.60 incl. VAT excl. VAT

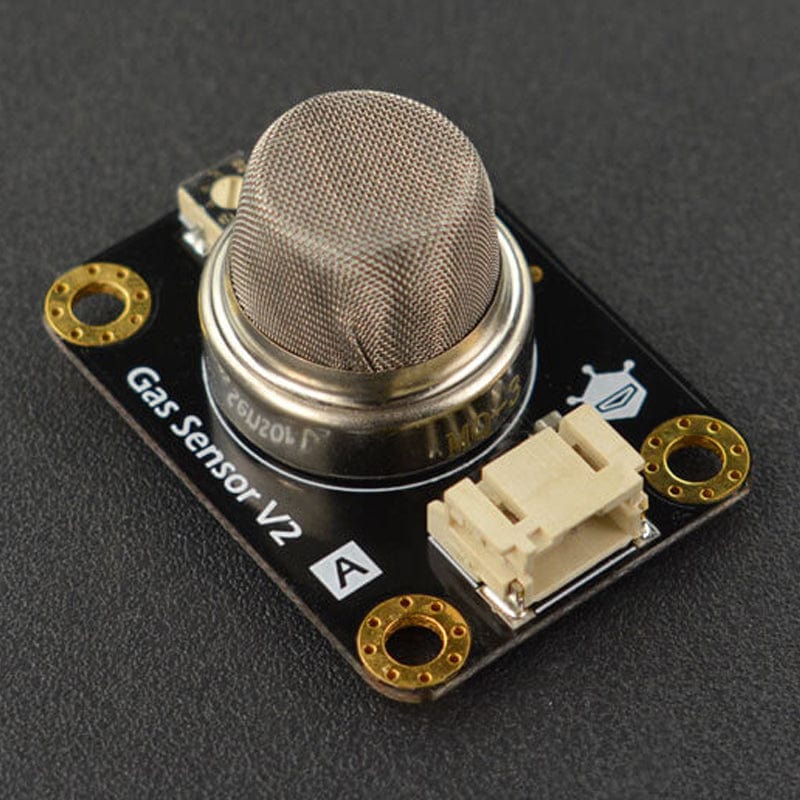

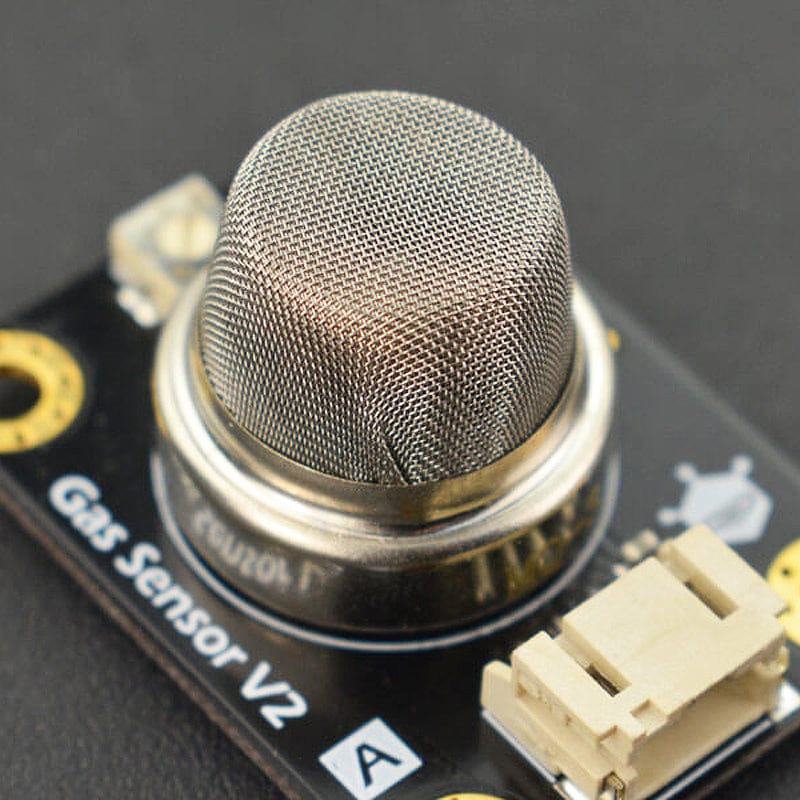

This is an Arduino Alcohol sensor. It uses a MQ3 probe which can be used in a Breathalyser. It has a high sensitivity to alcohol and less sensitivity to Benzine.

The sensitivity is able to be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontrollers.

Features

  • Standard assembling structure (Times-of-5mm Center distance between four 3mm(0.12") mounting holes)
  • Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
  • Icons to simplely illustrate sensor function
  • High quality connector & potentiometer
  • Immersion gold surface

Connection Example - I/O Expansion Shield V7

Specifications

  • Power supply: 5V
  • Interface type: Analog
  • High sensitivity to alcohol and small sensitivity to Benzine
  • Fast response and High sensitivity
  • Stable and long life
  • Simple drive circuit

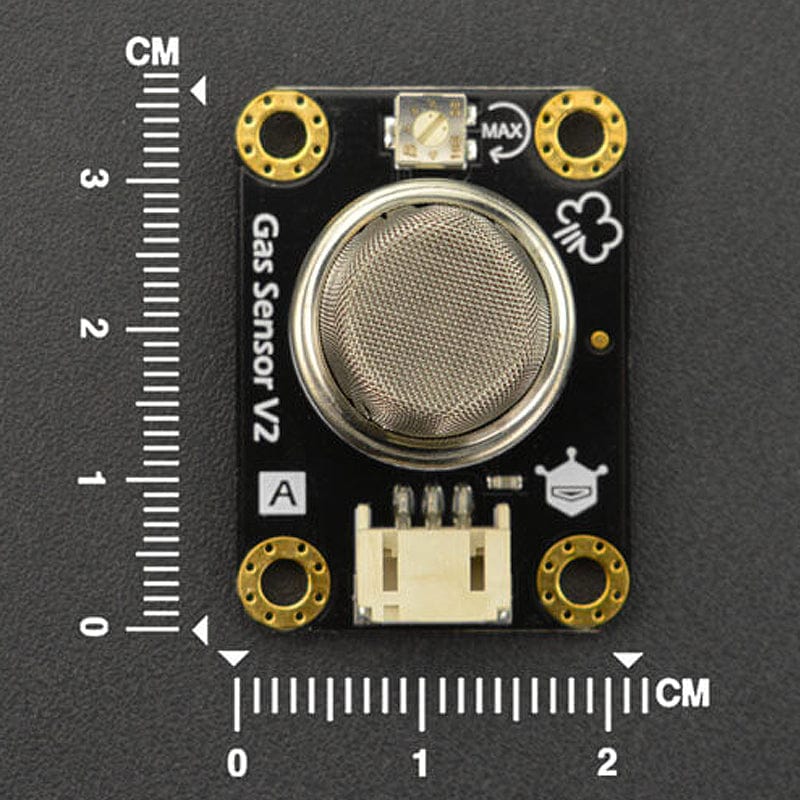

  • Size: 36.4 x 26.6mm

Resources

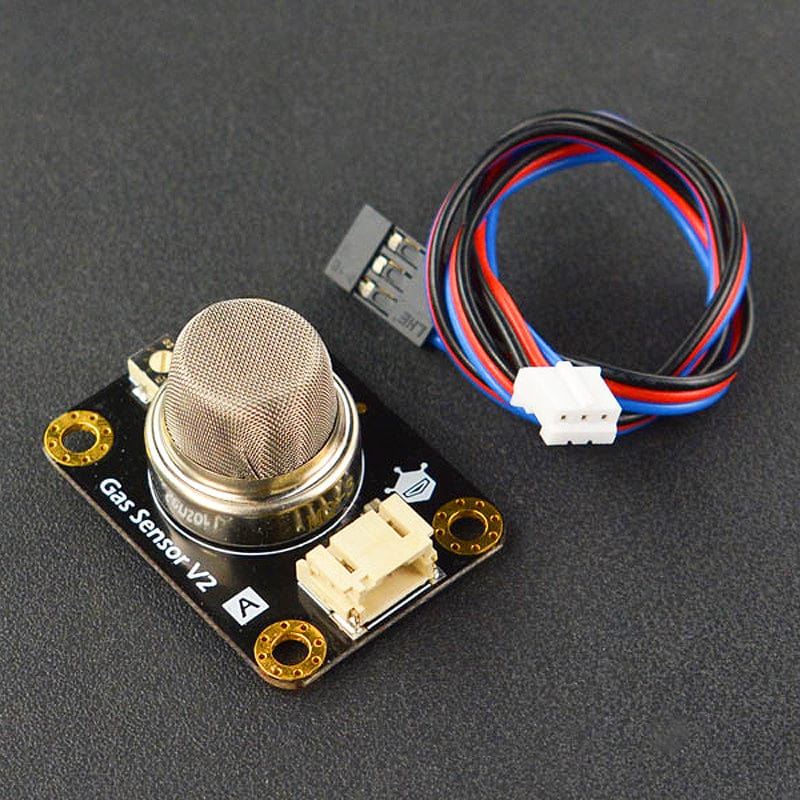

Package Contents

  • 1x Arduino Alcohol Sensor (MQ3)
  • 1x Analog Cable
