Gravity: Analog AC Current Sensor (20A)

DFRobotSKU: SEN0211
Price:
Sale price £19.10
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT

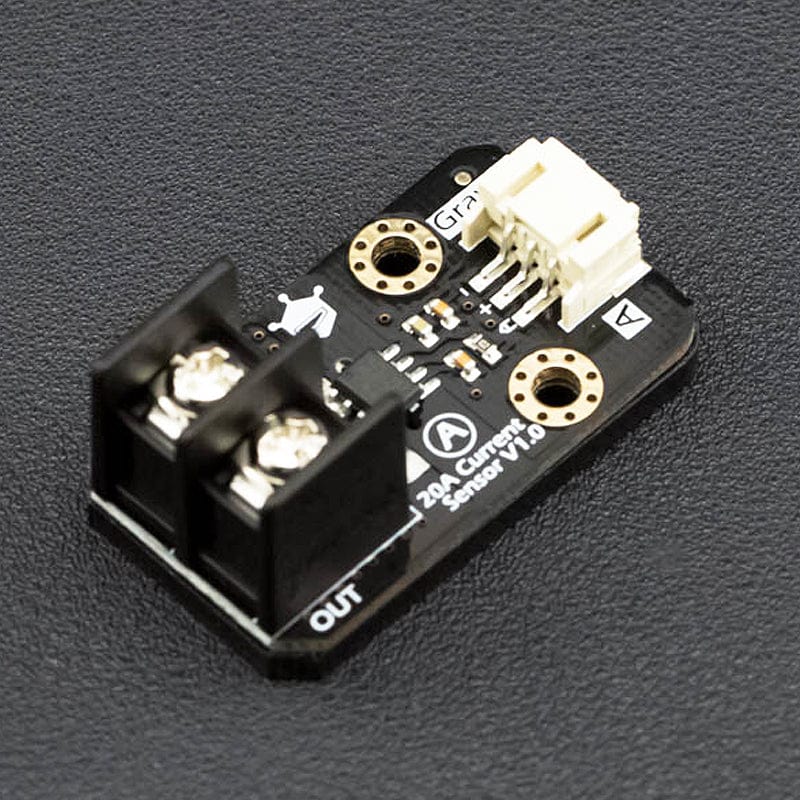

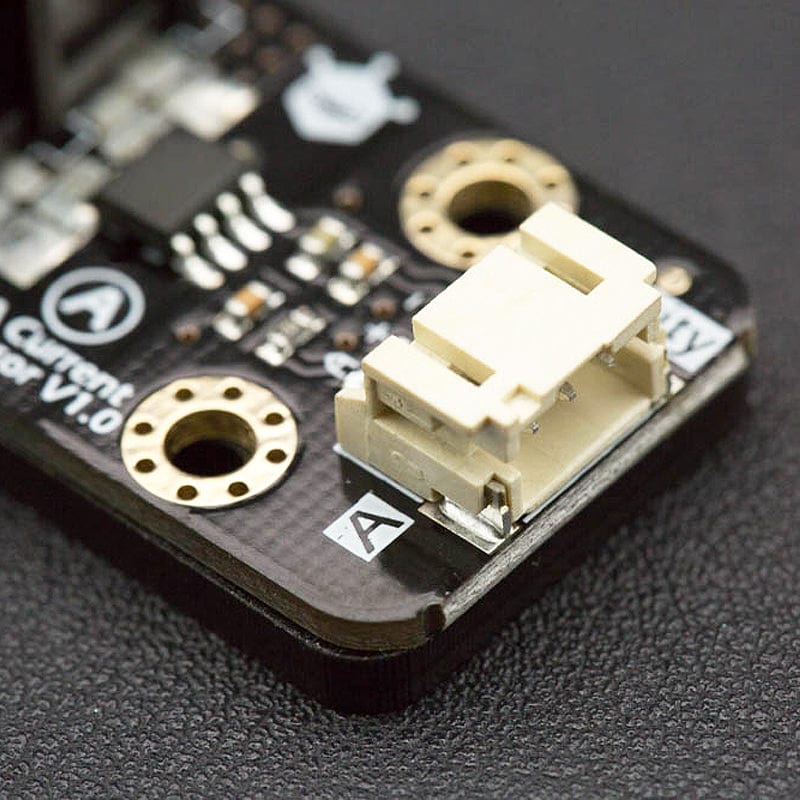

DFRobotGravity: Analog 20A Current Sensor (AC/DC)
Sale price £8.50 incl. VAT excl. VAT
When you want to measure the AC current, are you still having trouble cutting the wires, wiring, or soldering. Gravity: Analog AC Current Sensor comes to the rescue, eliminating the need to cut wires or reconnect circuits. Simply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC current value. The analog output is designed to be compatible with 3V3/5V micro-controller. It can be conveniently used for AC current measurement to monitor AC motors, lighting equipment, air compressors, etc.

Features

  • Non-contact measurement, high safety
  • Multiple ranges for various measurement scenarios
  • Compatible with 3V3/5V micro-controller

Connection Example - DFRduino UNO

Specifications

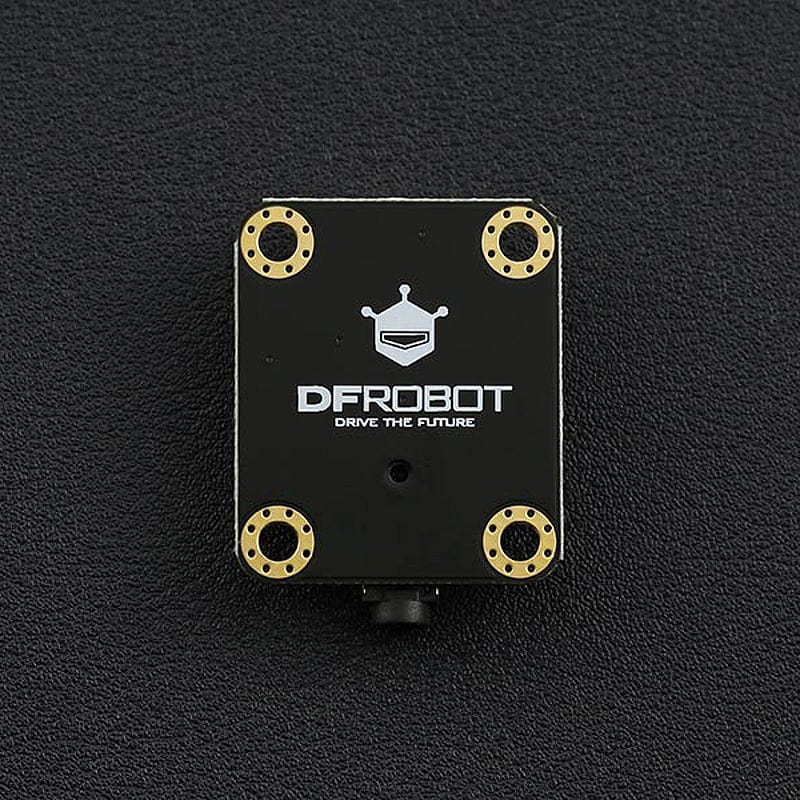

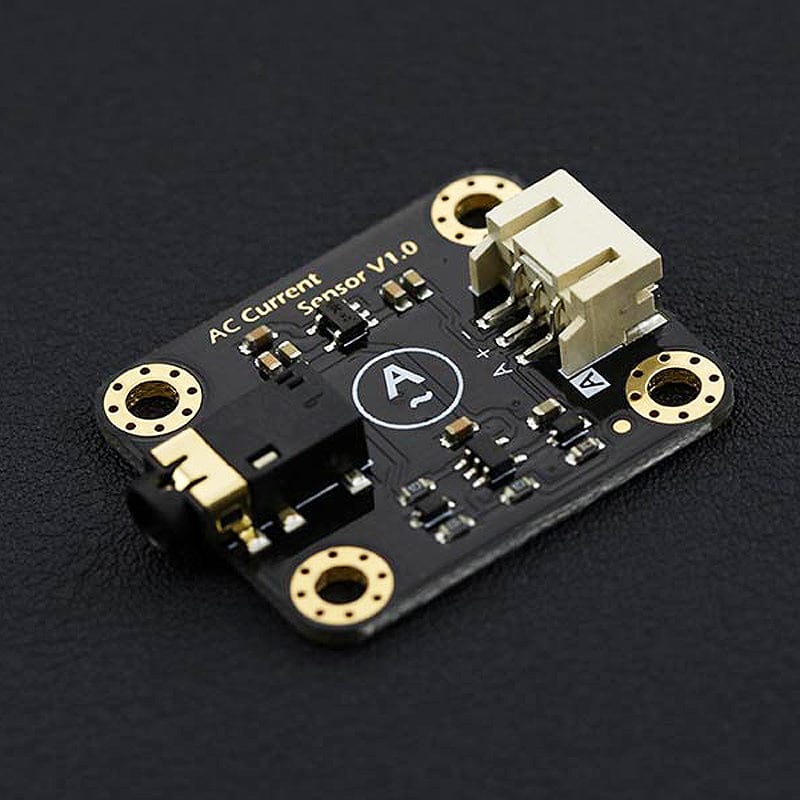

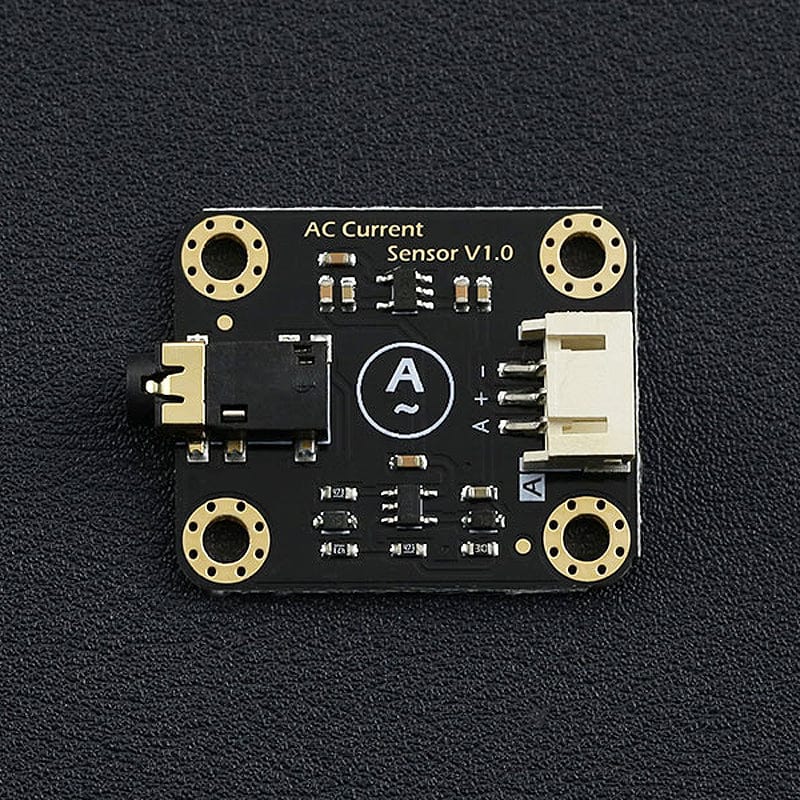

AC Current Signal Conversion Module

  • Input Voltage (VCC): 3.3V-5.5V
  • Interface: Gravity Analog (PH2.0-3P,analog voltage output 0.2-2.8V DC)
  • AC Voltage Input Range: 0-1V (AC RMS)
  • Relative Error: ±4%
  • Dimension: 32 x 27 mm
  • Weight: 5g

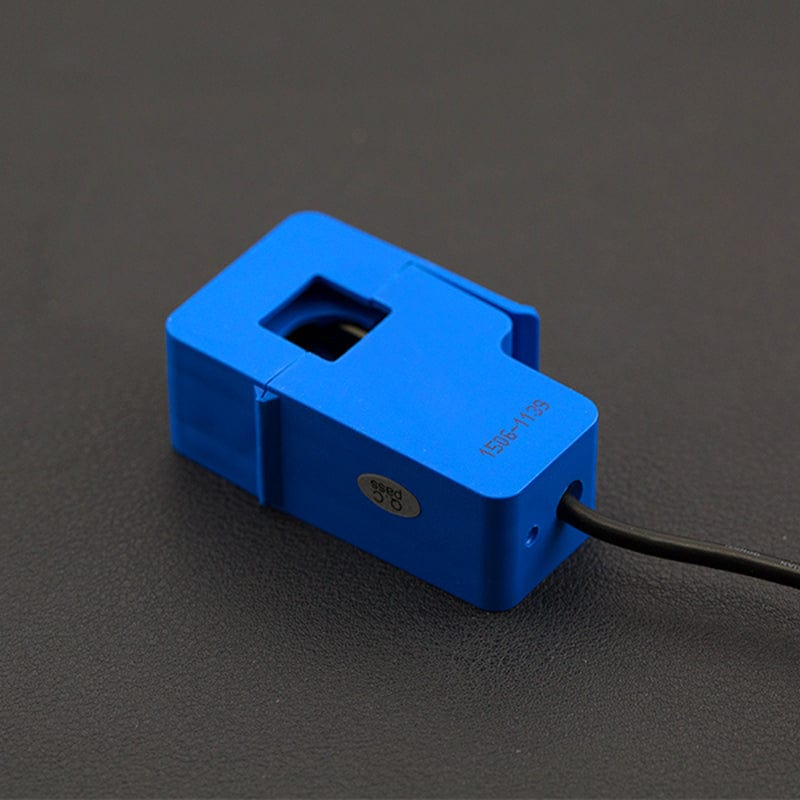

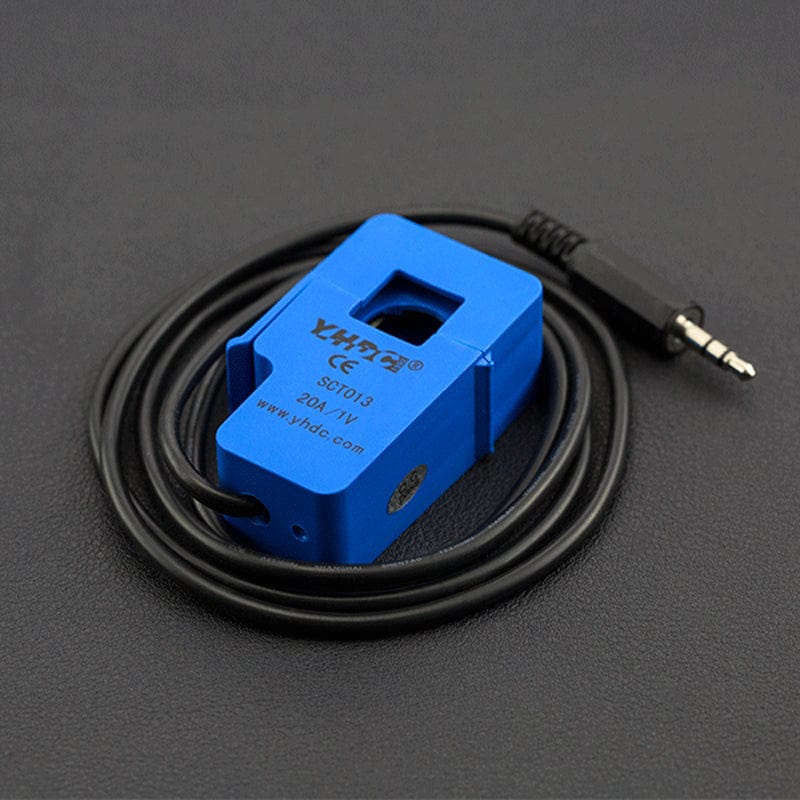

Open Type AC Transformer Probe

  • AC Current Range: 0-20A
  • Signal Output (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range 0-20A
  • Accuracy: ±1%
  • Non-linearity: ≤±0.2%
  • Frequency Range: 50Hz~1kHz
  • Cable Length: 1m
  • Working Temperature: -25°C~+70°C

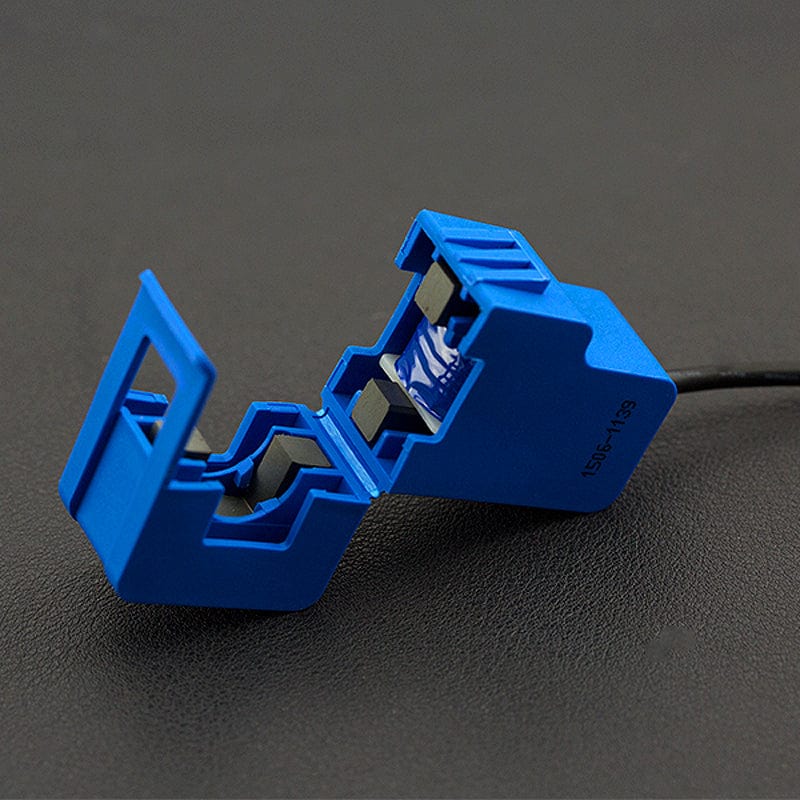

  • Opening Size: 13 x 13 mm
  • Weight: 50g

Resources

Pinout

Label Name Function Description
1 - GND
2 + Power Input (3.3V-5.5V)
3 A Signal Output (0.2-2.8VDC)

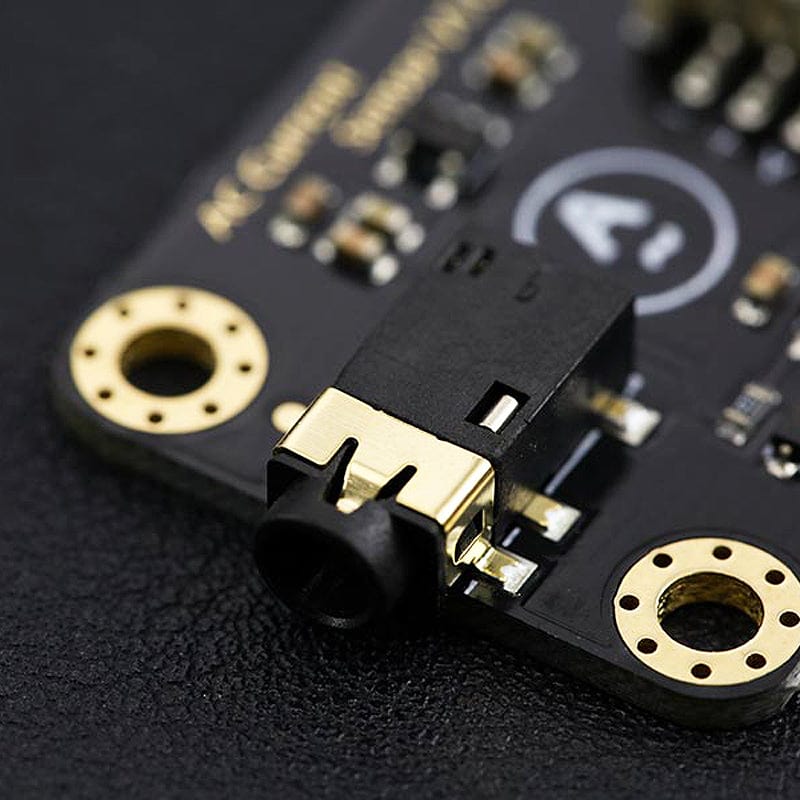

4 Φ3.5mm 3P plug AC Transformer Input Signal

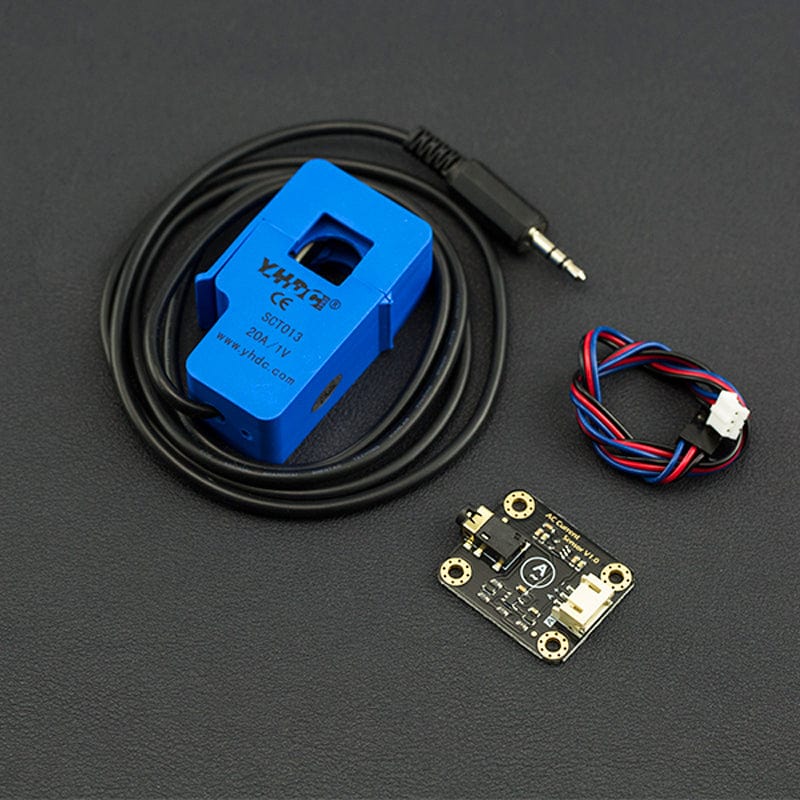

Package Contents

  • 1x AC Current Signal Conversion Module
  • 1x Open Type AC Transformer Probe (20A)
  • 1x Gravity-3P Analog Sensor Cable
