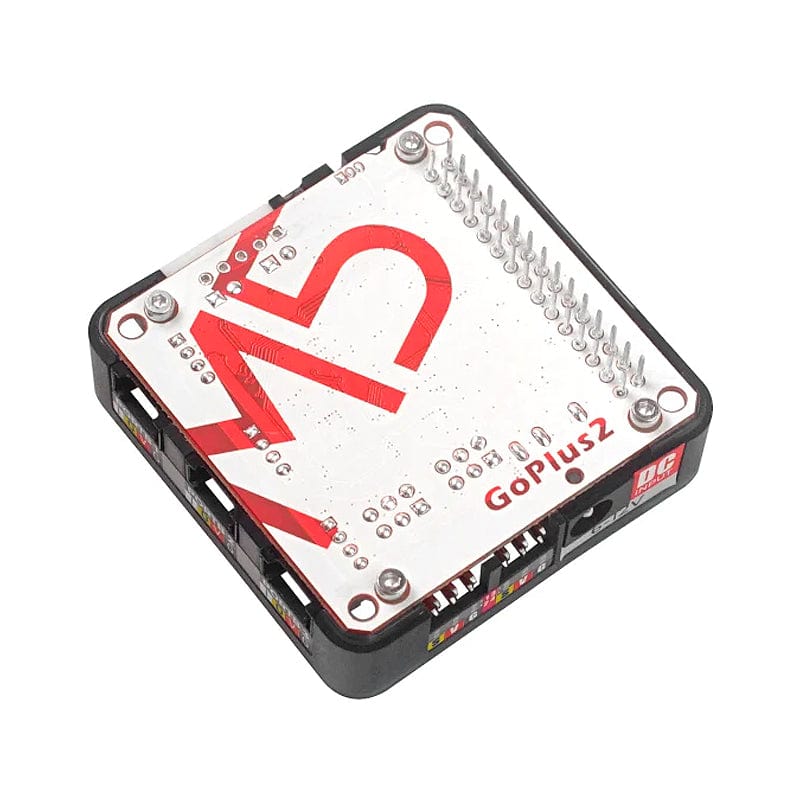

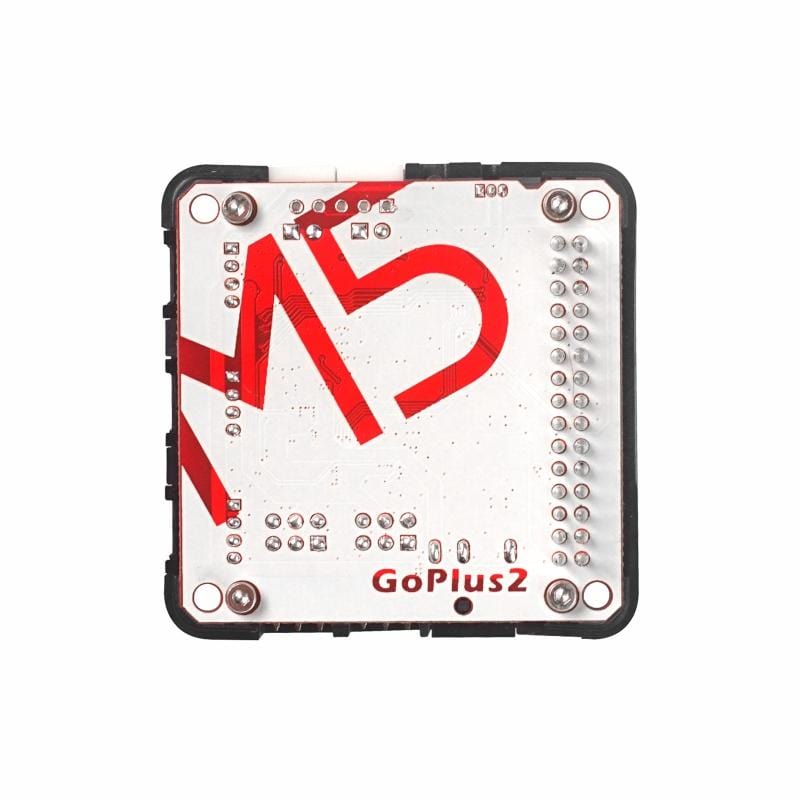

The GoPlus2 is a stackable multi-functional motor and servo control module. The master control integrates the STM32F030C8T6 chipset. The module is equipped with a 2-way DC motor drive interface and a 4-way servo drive interface. The three PORT-B interfaces (Analog Input, Digital Output, Digital Input) can be expanded. Included is a built-in 500mAh battery and support infrared (IR) transmission and receiver. In order to meet the requirements of the multi-channel interface power supply at the same time, a DC power interface is provided for an external power supply. The battery can be charged through the M5Core with a USB-C cable.

Communication protocol: I2C(0x38)

Note: This module has an I2C address conflict with the touch screen of the CORE2, so they cannot be used together.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?


Features

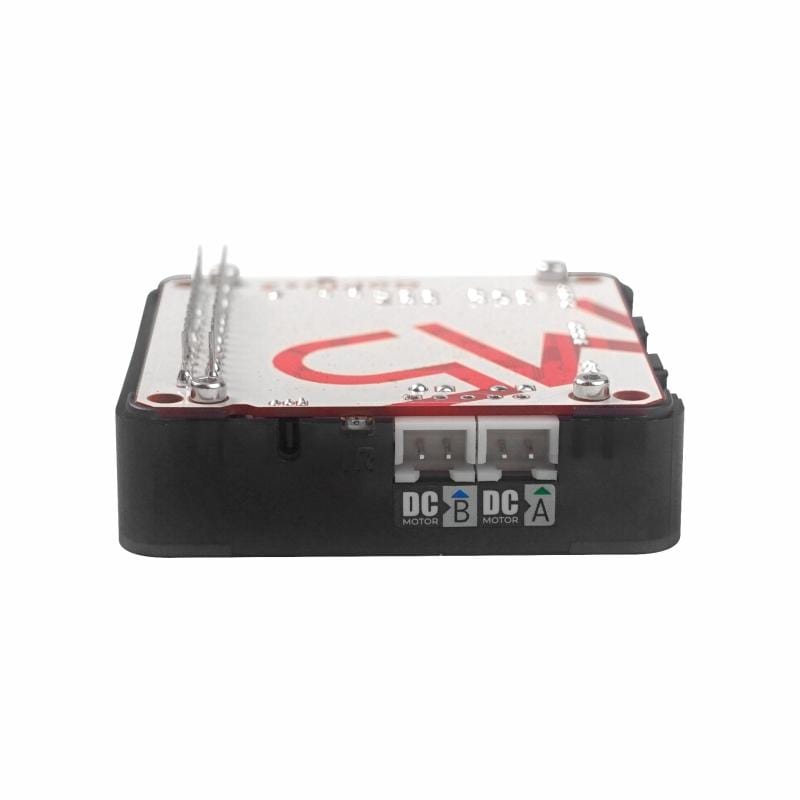

  • 2x DC motor interface

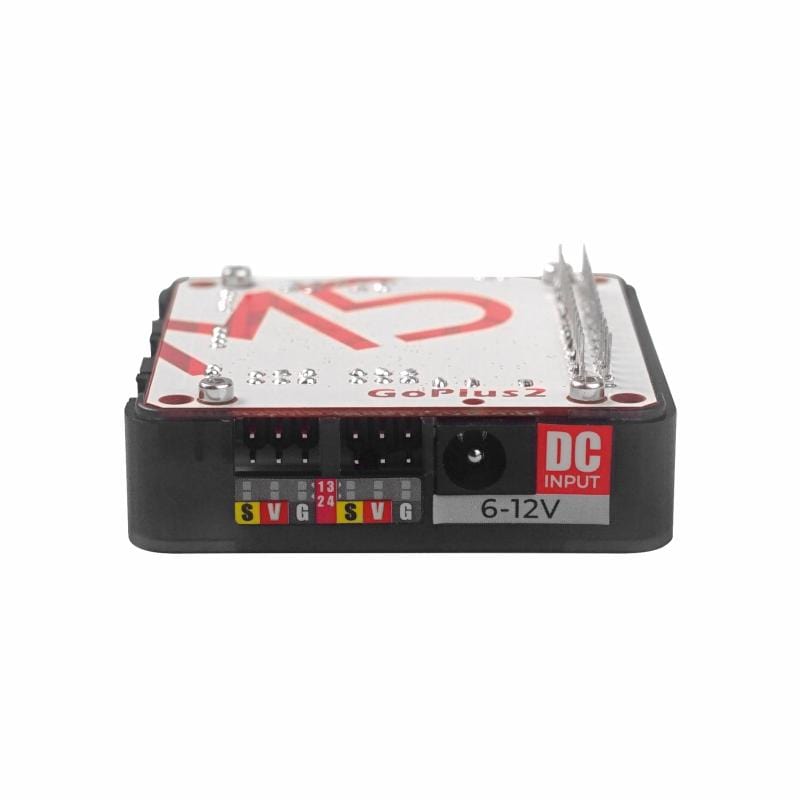

  • 4x Servo interface
  • IR transmit & receive

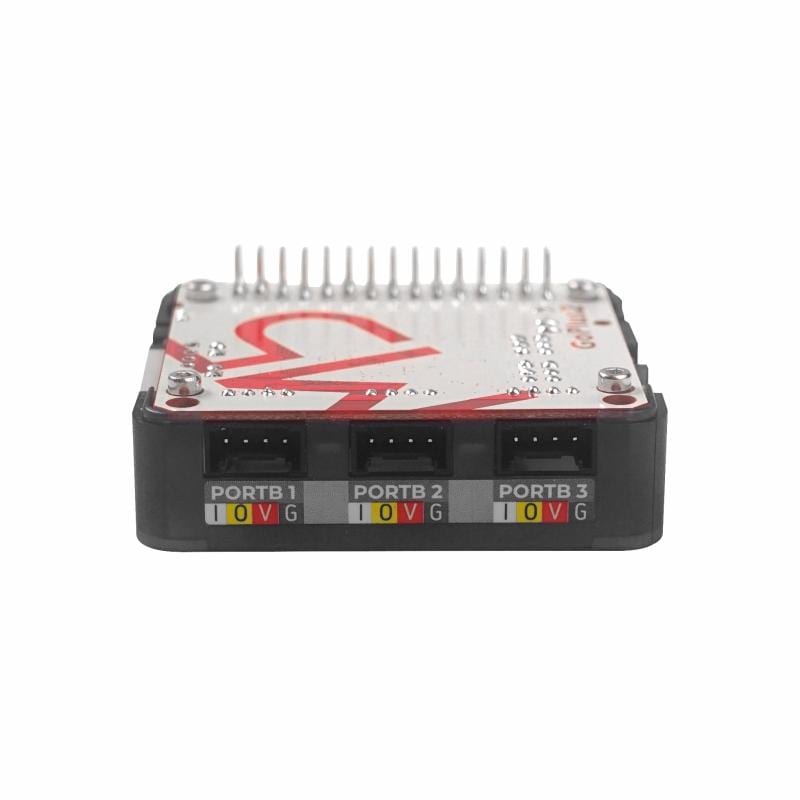

  • 3x expand PORT B
  • STM32F030C8T6

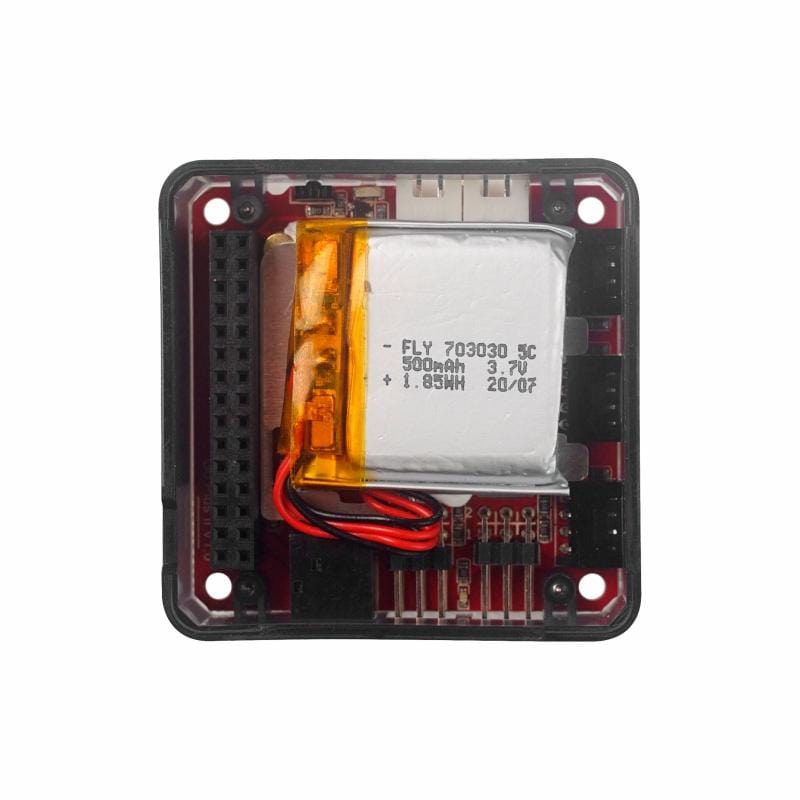

  • Built in 500mAh battery

Package Contents

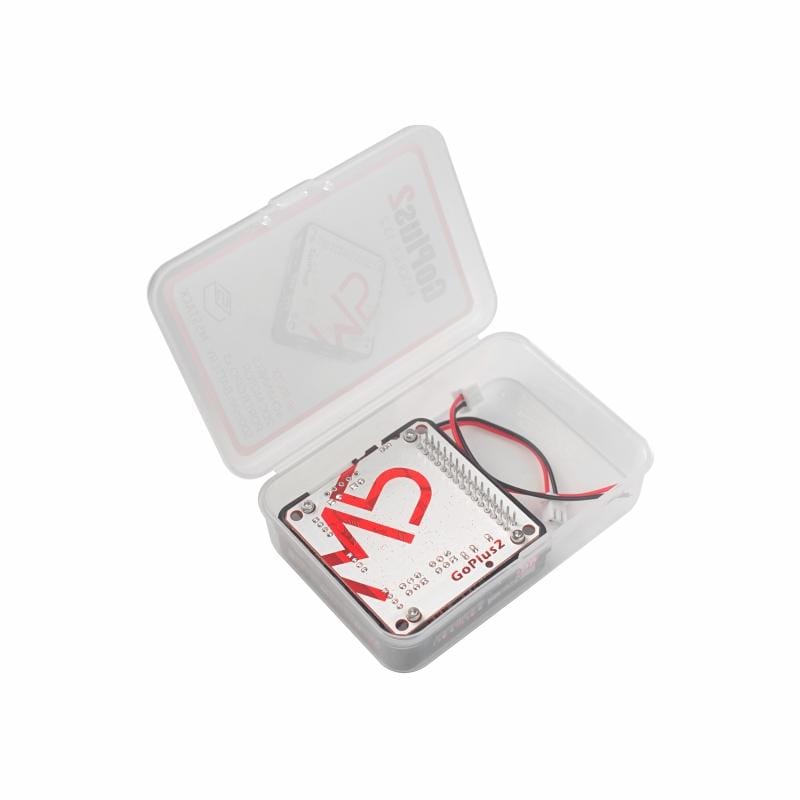

  • 1x GoPlus2 Module
  • 2x DC Motor Cable

    Specifications

    Resources Parameter
    Main control chip STM32F030C8T6
    Expand interface DC Motor x 2,PORT-B x 3, Servo x 4
    motor drive DRV8833
    IR Transmit and Receive
    Battery 500mAh
    Communication protocol I2C:0x38
    Net Weight 38g
    Gross Weight 58g
    Product Size 54 x 54 x 13mm
    Package Size 95 x 65 x 25mm
