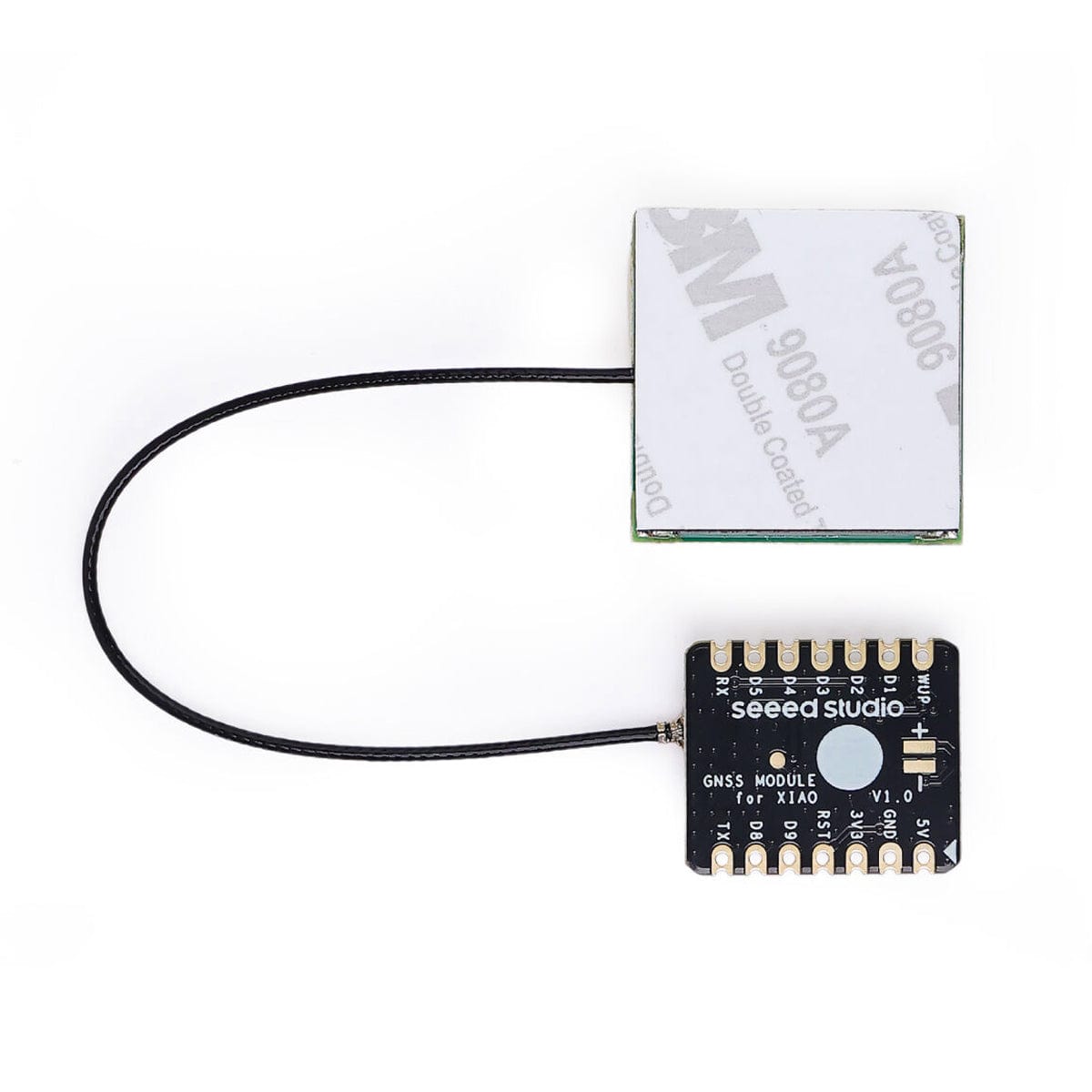

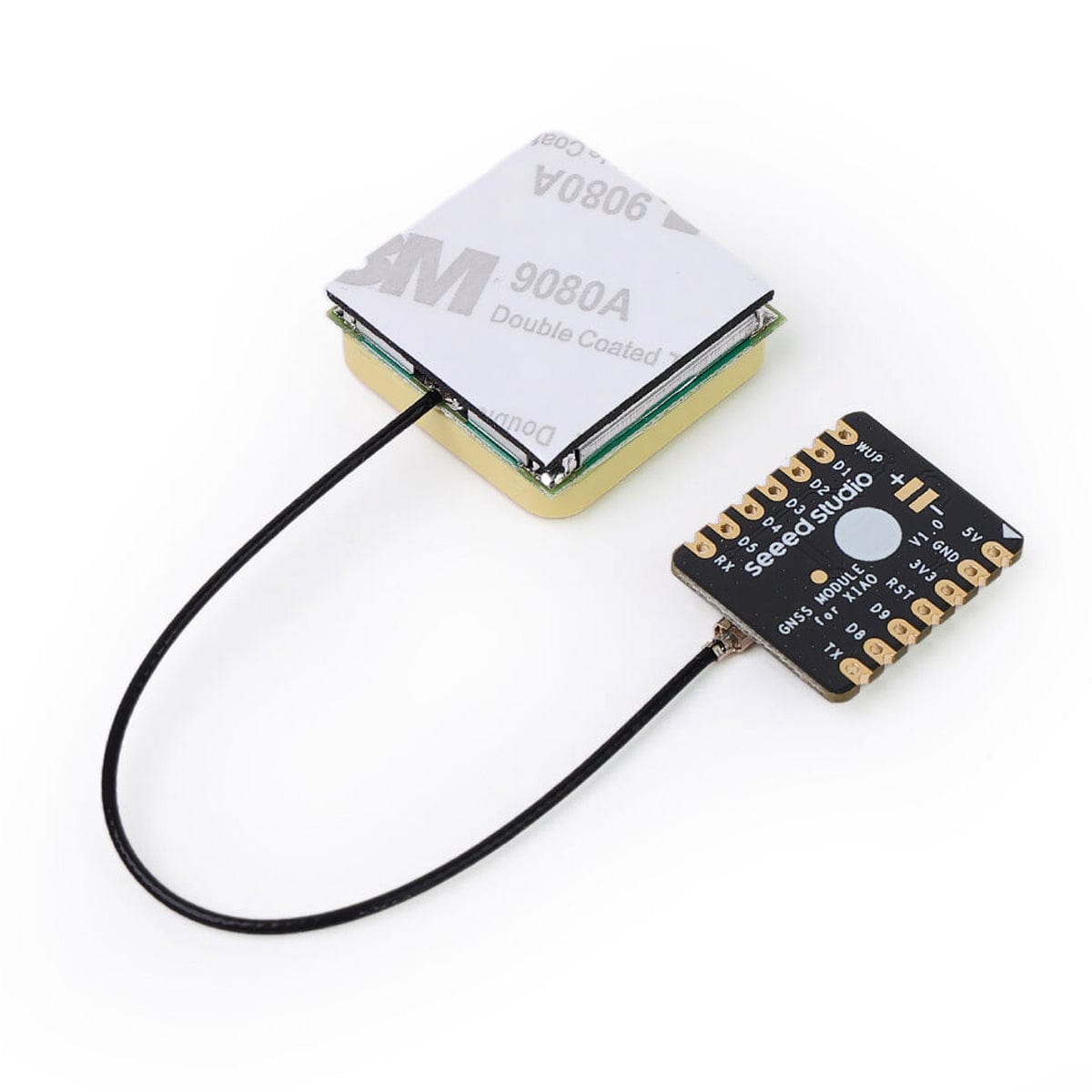

GNSS add on Module for XIAO

SeeedSKU: 106066

£11.90

incl. VAT

excl. VAT

Sold out

Awesome Extras

Seeed XIAO ESP32C3 by Seeed - The Pi Hut

Seeed Seeed XIAO ESP32C3

From £4.80 incl. VAT excl. VAT

Seeed Seeed XIAO RP2040

From £3.90 incl. VAT excl. VAT

Seeed Seeed XIAO RP2350

From £4.80 incl. VAT excl. VAT

Seeed XIAO Expansion board by Seeed - The Pi Hut

Seeed Seeed XIAO Expansion board

£15.80 incl. VAT excl. VAT

The GNSS Add-on Module is a powerful and energy-efficient GPS solution made to bring high-precision positioning to your XIAO projects. Compatible with all XIAO development boards, this module supports multiple satellite systems, including GPS, BeiDou, GLONASS, and QZSS, providing reliable positioning in a variety of projects.

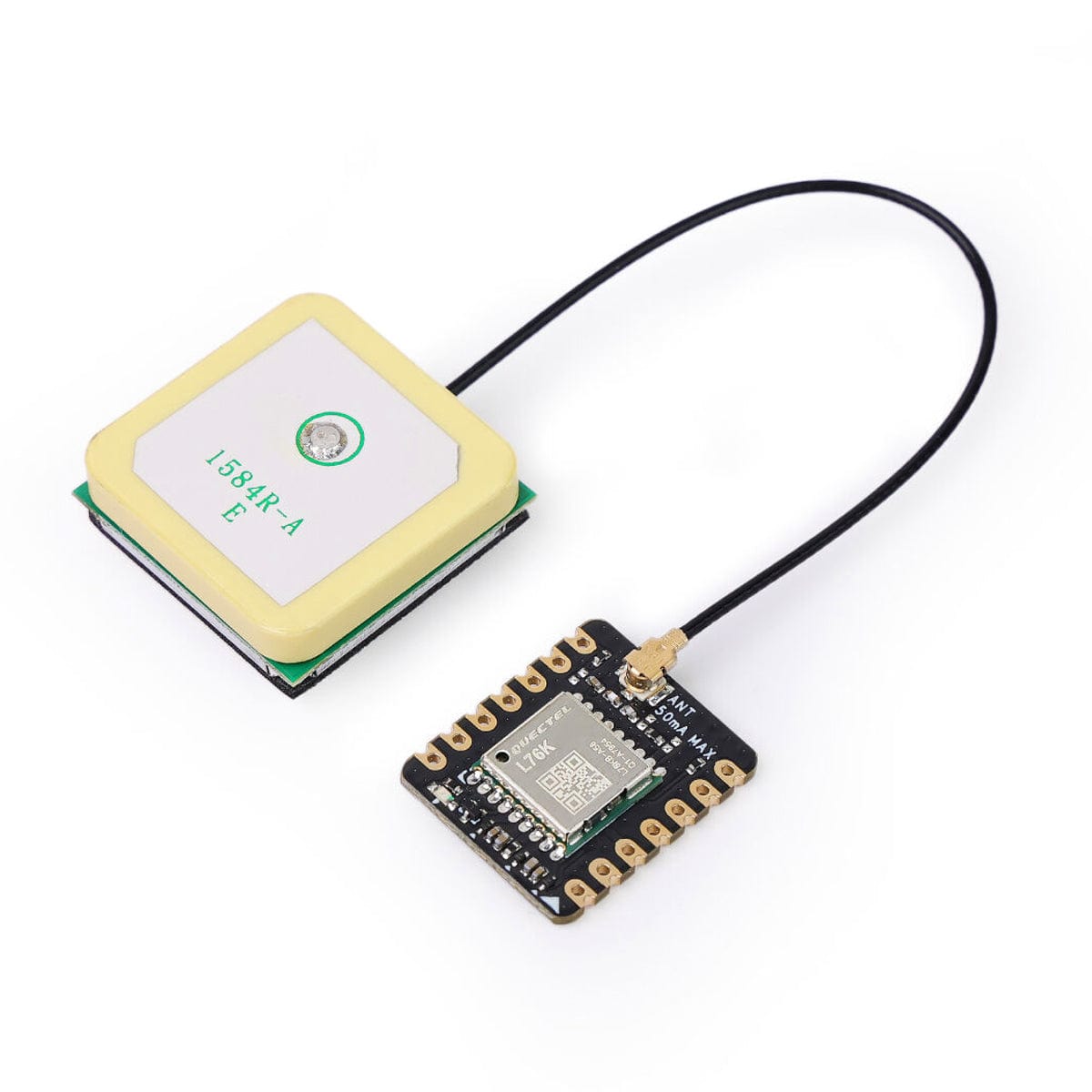

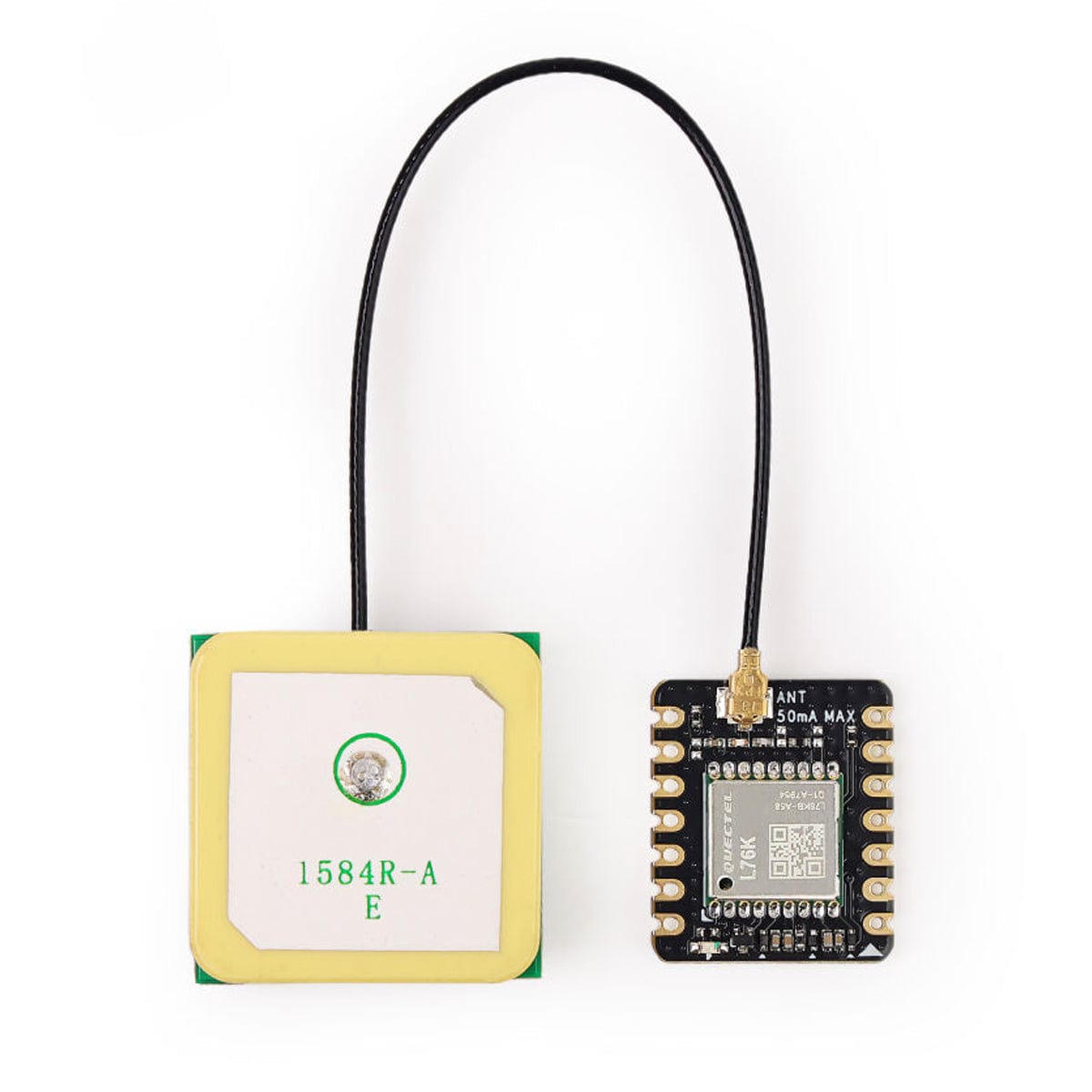

Powered by the Quectel L76K chip, it provides an improved reception with a built-in low-noise amplifier and surface acoustic wave filter, improving sensitivity and reducing noise for fast, accurate location tracking. With a high-precision 32/72 channel receiver, it has -162dBm tracking sensitivity and -160dBm re-acquisition sensitivity, which gives a strong performance in tough environments.

It is energy efficient, as it only consumes 41mA during tracking and just 360µA in standby mode, making it great for low-power projects. The integrated ceramic antenna provides a strong signal reception, outperforming traditional antennas.

A bright green LED indicates the 1PPS output when a GPS fix is established, providing easy visual confirmation. Whether you're building IoT devices, navigation systems, or other location-based projects, this GNSS Add-on Module will be a welcome addition to whatever you have planned next!

Features

Enhanced Reception: Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction
High Precision: 32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity
Energy Efficiency: 41mA tracking/acquisition, 360µA standby
Multi-GNSS Systems: Powered byQuectel L76K, supporting GPS, BeiDou, GLONASS and QZSS
Ceramic Antenna: Enhanced signal reception, superior to traditional antennas.
Product Number: Seeed 109100021

What's on Board

Specifications

GNSS Bands	GPS L1 C/A: 1575.42MHz
	GLONASS L1: 1602MHz
	BeiDou B1: 1561.098MHz
Channels	32 tracking ch/72 acquisition ch
TTFF (Time To First Fix)	Cold Starts: 30s (w/o AGNSS), 5.5s (w/ GNSS)
TTFF (Time To First Fix)	Hot Starts: 5.5s (w/o AGNSS), 2s (w/ AGNSS)
Sensitivity	Auto-acquisition: -148dBm
	Tracking: -162dBm
	Re-acquisition: -160dBm
Accuracy	Position: 2.0m CEP
	Velocity: 0.1m/s
	Acceleration: 0.1m/s²
	Timing: 30ns
UART Interface	Baud Rate: 9600~115200bps (9600bps default)
	Update Rate: 1Hz (default), 5Hz (Max.)
	Protocol: NMEA 0183, CASIC proprietary protocol
Antenna	Type: Active Antenna
	Operating Frequency: 1559–1606MHz
	Coaxial Cable: RF1.13 Length=10cm
	Cable Connector: U.FL Plug RA
Current Consumption (w/ active antenna)	Auto-aquisition: 41mA
	Tracking: 41mA
	Standby: 360uA
Dimension	18mm x 21mm

Resources

Package Contents

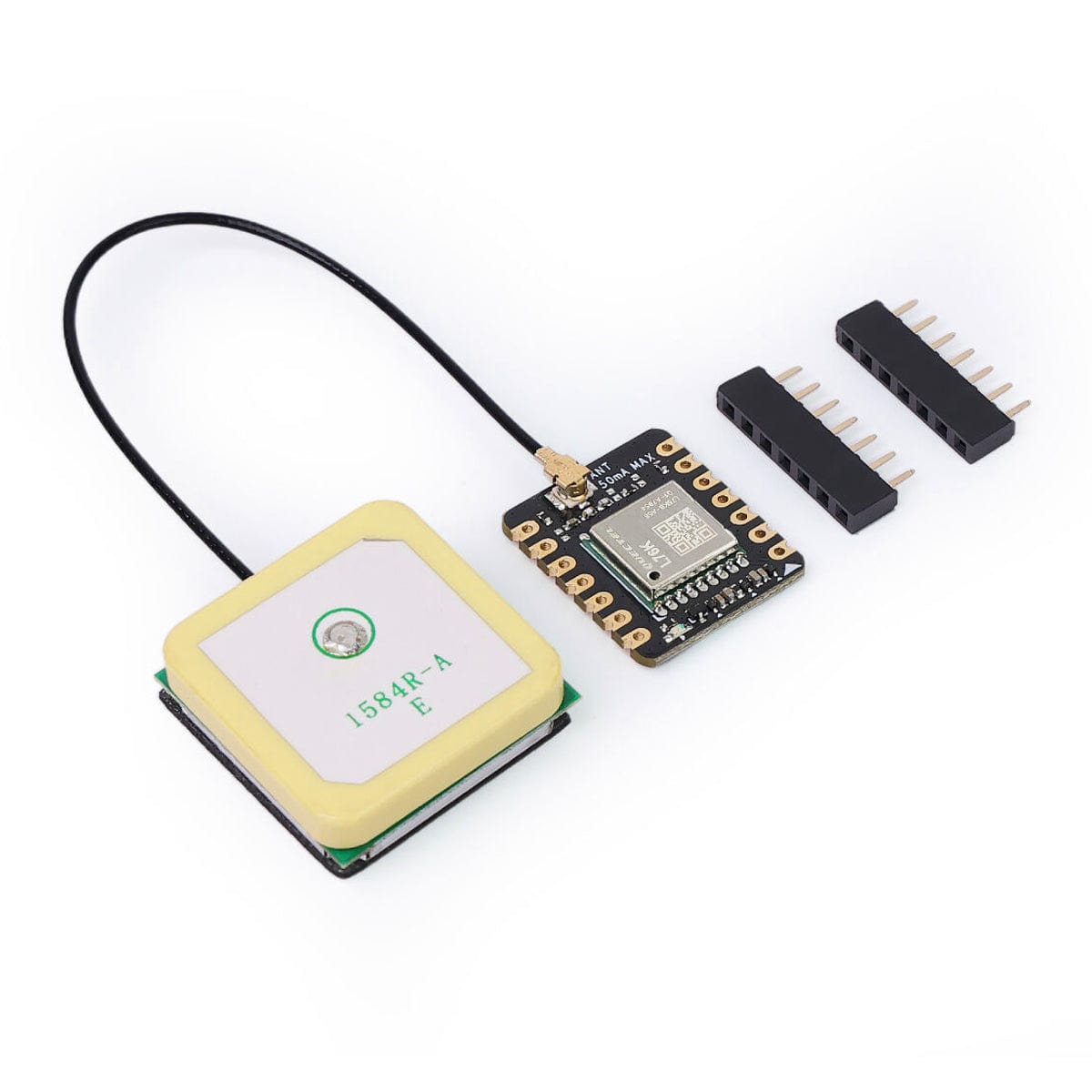

1x L76K GNSS Module
1x Active Antenna with iPex connector
2x 7-pin Female Header 2.54mm
