RJ45 Ethernet Development Board (ESP32-S3)

This ETH board is a development platform built around the ESP32-S3R8 chip, with both wireless and wired connectivity options. It supports 2.4GHz Wi-Fi, and Bluetooth 5 (LE) and includes an RJ45 Ethernet port for wireless communication, while the W5500 Ethernet chip provides 10/100Mbps wired network capabilities via the SPI interface. An optional PoE module is available, making it ideal for projects that require power over Ethernet.

It includes a camera connector compatible with OV2640, OV5640, and other popular cameras, which gives you the option for image and video capture. It also has a USB Type-C port for power, program downloading, and debugging, along with an SD card slot for additional storage. The Pico header compatibility allows it to work with some Raspberry Pi Pico HATs.

With the ESP32-S3R8 chip, it has an Xtensa 32-bit LX7 dual-core processor capable of running at 240 MHz. The board includes 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB Flash memory, providing enough resources for tricky tasks. The antenna has wireless communication, and the option to switch to an external antenna offers added flexibility for specific projects.

With the support of the rich ESP32 ecosystem and open-source resources, you can quickly start secondary development for projects related to the Internet of Things, image acquisition, smart home systems, and AI-driven ideas.

Note: There are two options to choose from. ETH Board Only and ETH Board with PoE module and an OV2640 camera. Please choose which option you want before adding to the cart!

Features

• ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
• Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use an external antenna
• W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
• For the PoE module to provide the Power over Ethernet function (IEEE 802.3af-compliant)
• Camera connector, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture
• USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• SD card slot for external TF card storage of pictures or files
• Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

What's on Board

1. ESP32-S3R8
   Xtensa 32-bit LX7 dual-core processor, up to 240MHz operating frequency
2. W25Q128
   16MB Flash memory for program and data storage
3. W5500
   Ethernet Chip
4. H1102NLT
   Ethernet Transformer
5. JW5060
   Voltage Regulator
6. USB Type-C Port
   For power supply and program burning
7. RJ45 Ethernet Port
   10/100M auto-negotiation Ethernet Port
8. PoE Module Header
   For connecting the PoE module
9. Camera Interface
   Compatible with OV2640, OV5640 and other mainstream cameras
10. IPEX 1 Antenna Connector
    Reserved connector, enabled via resoldering an onboard resistor
11. Ceramic Antenna
    used by default
12. SD Card Slot
13. BOOT Button
14. ACT Indicator
15. LINK Indicator
16. RESET Button

Resources

• Product Wiki
• Schematic
• ESP32-S3 Datasheet

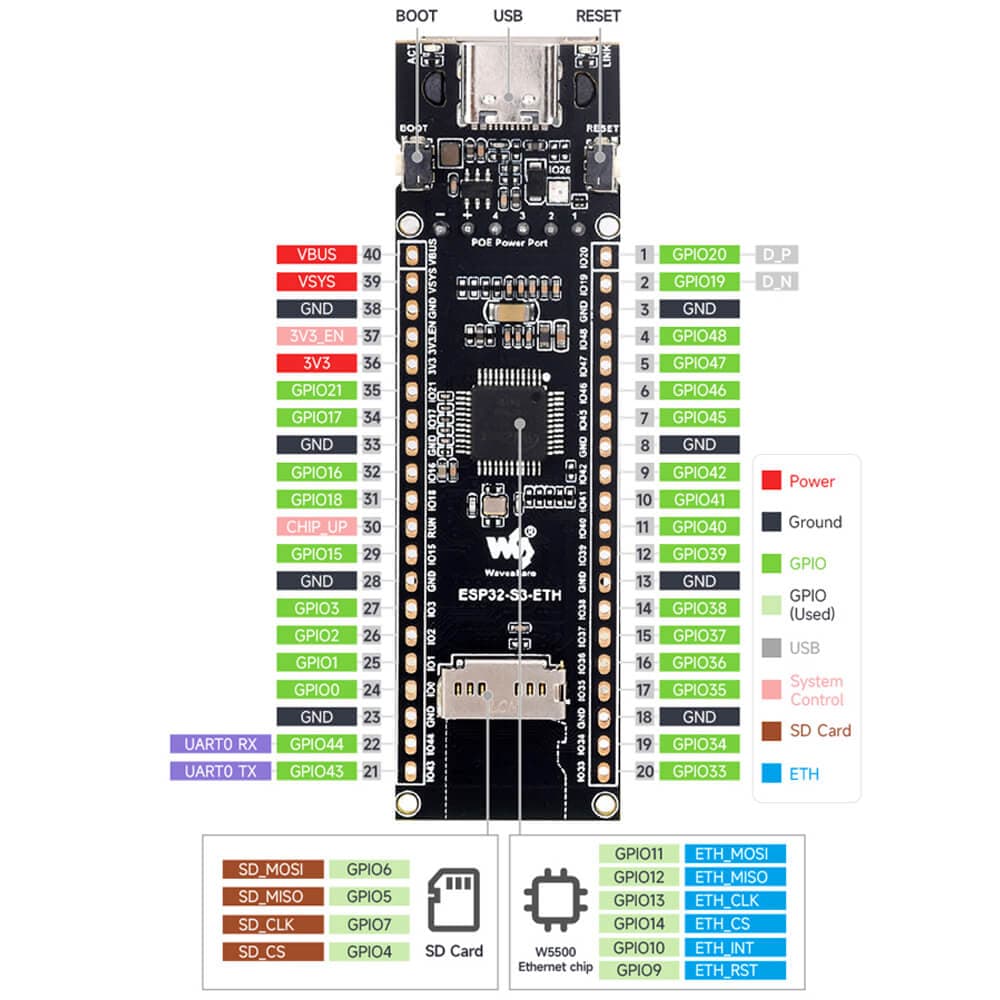

Pinout

Package Contents

ETH Board Only

• 1x ESP32-S3 ETH Development Board
• 1x 40-pin Male Pin Header (Black)

ETH Board with PoE module and an OV2640

1. ESP32-S3 ETH Development Board
2. 1x PoE Module
3. 1x OV2640 Camera
4. 1x Screws Pack
5. 40-pin Male Pin Header (Black)
