ESP32-S3 Development Board 1.43" AMOLED Display (466 x 466)

This development board uses the ESP32-S3R8 chip and has dual-core Xtensa 32-bit LX7 processors running at up to 240 MHz.

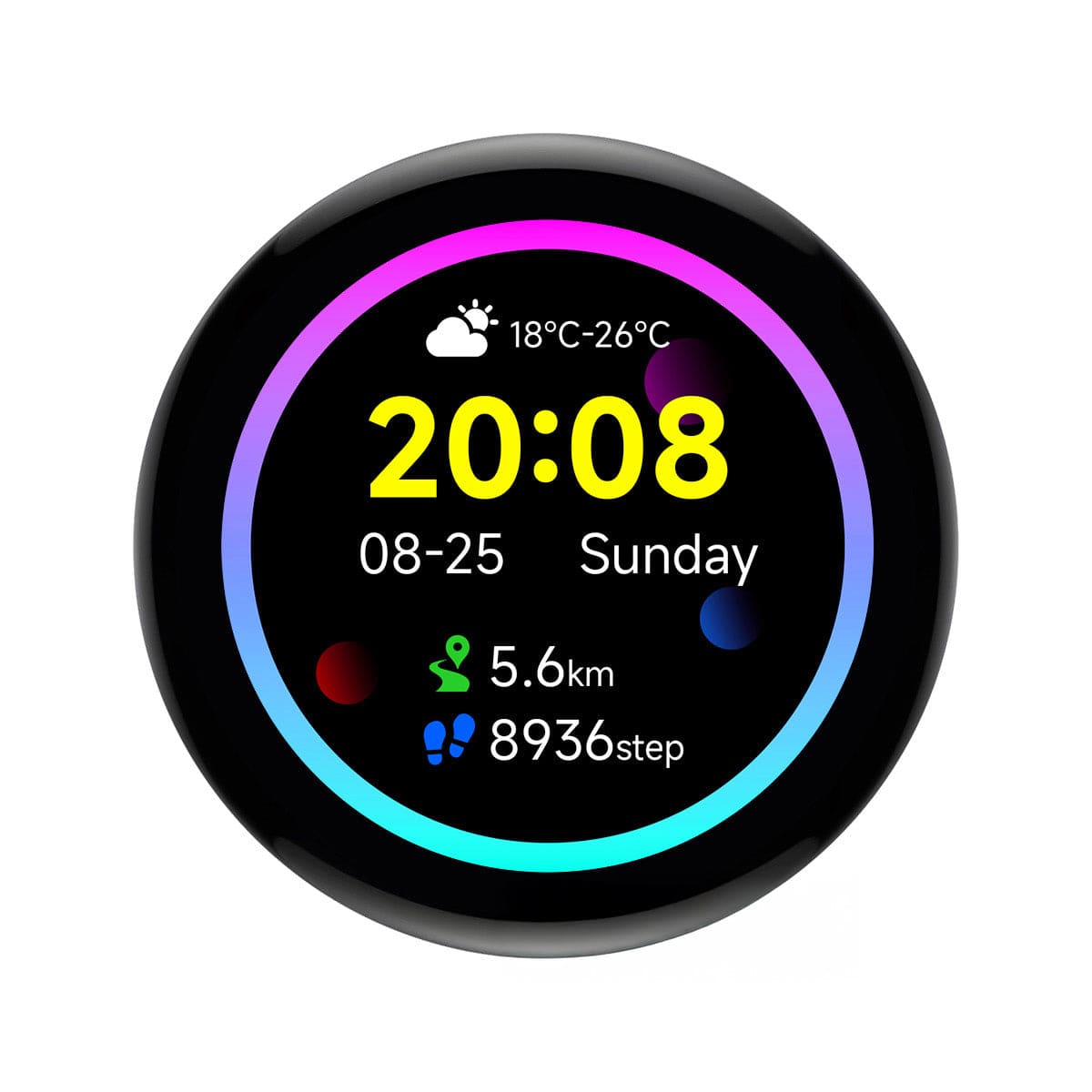

A colourful and vibrant 1.43" AMOLED display sits on top of the board with a QSPI (Quad serial peripheral interface) with a 466 x 466 resolution, 16.7 million colours, and a 178° wide viewing angle. It has capacitive touch through the I2C interface, with interrupt capabilities.

It supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an antenna and lets you switch to an external antenna by resoldering a resistor for more flexibility. A USB Type-C port is included for power, programming, and debugging. There are reserved headers for USB, UART, I2C, and GPIO that allow you to expand your project by adding additional modules and devices.

The board also has an RTC chip, QMI8658 6-axis IMU (with a 3-axis accelerometer and 3-axis gyroscope for gesture detection and step counting), an SD card slot, and a 3.7V MX1.25 lithium battery header to use on the go!

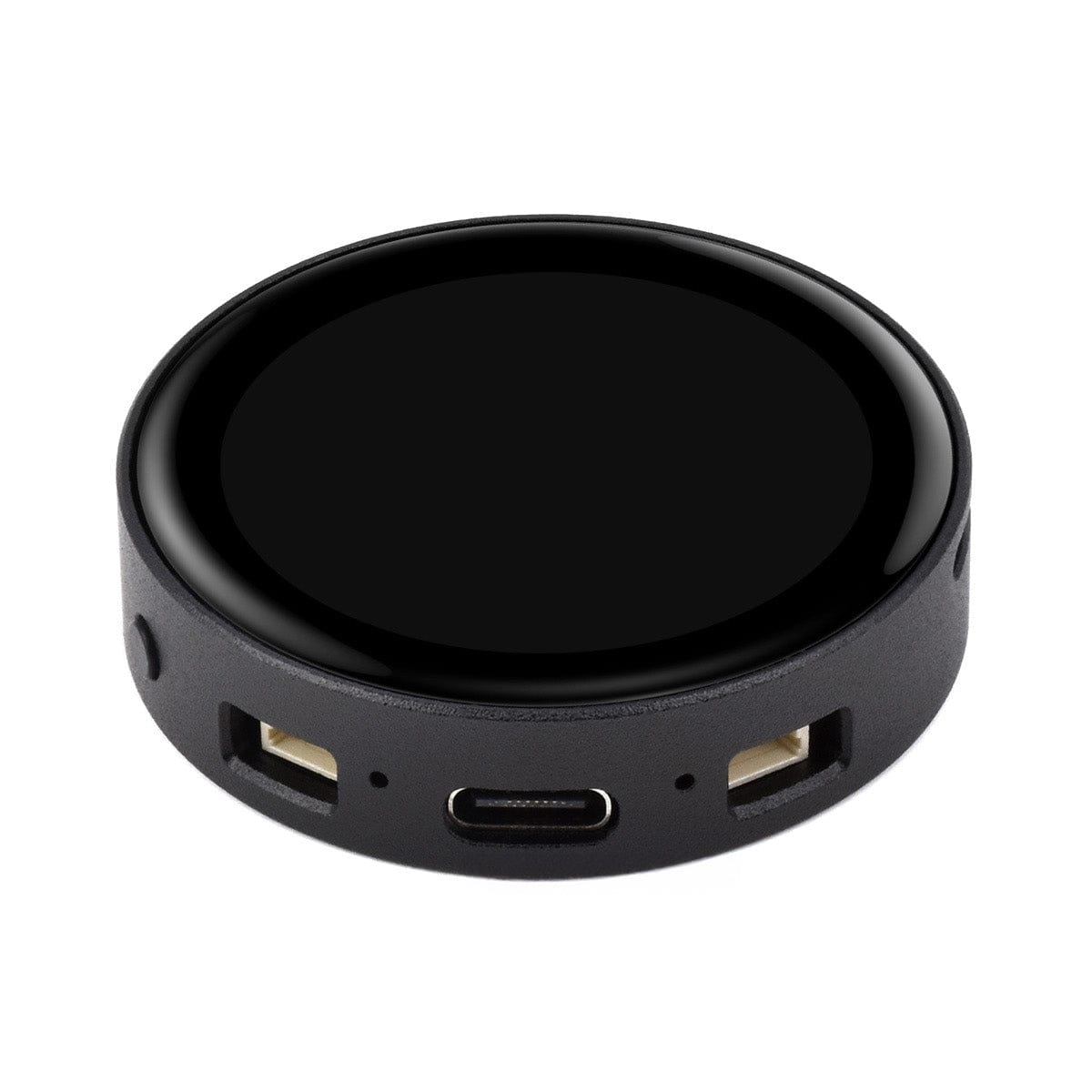

Two variants are available - the board only, or with a CNC Metal Case. Please select an option before adding it to your cart!

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely).

Features

• Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use an external antenna via resoldering an onboard resistor
• 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• 1.43" AMOLED display, QSPI interface, 466 x 466 resolution, 16.7M colour
• Capacitive touch function controlled via I2C interface, with interrupt support
• QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
• PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
• RST button and programmable BOOT button for easy custom function development
• 3.7V MX1.25 Lithium battery recharge/discharge header
• SD card slot for external SD card storage of pictures or files
• USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• UART and I2C SH1.0 4-pin connector, reserved 2x 14-pin 1.27mm pitch headers, adapting multiple GPIO interfaces

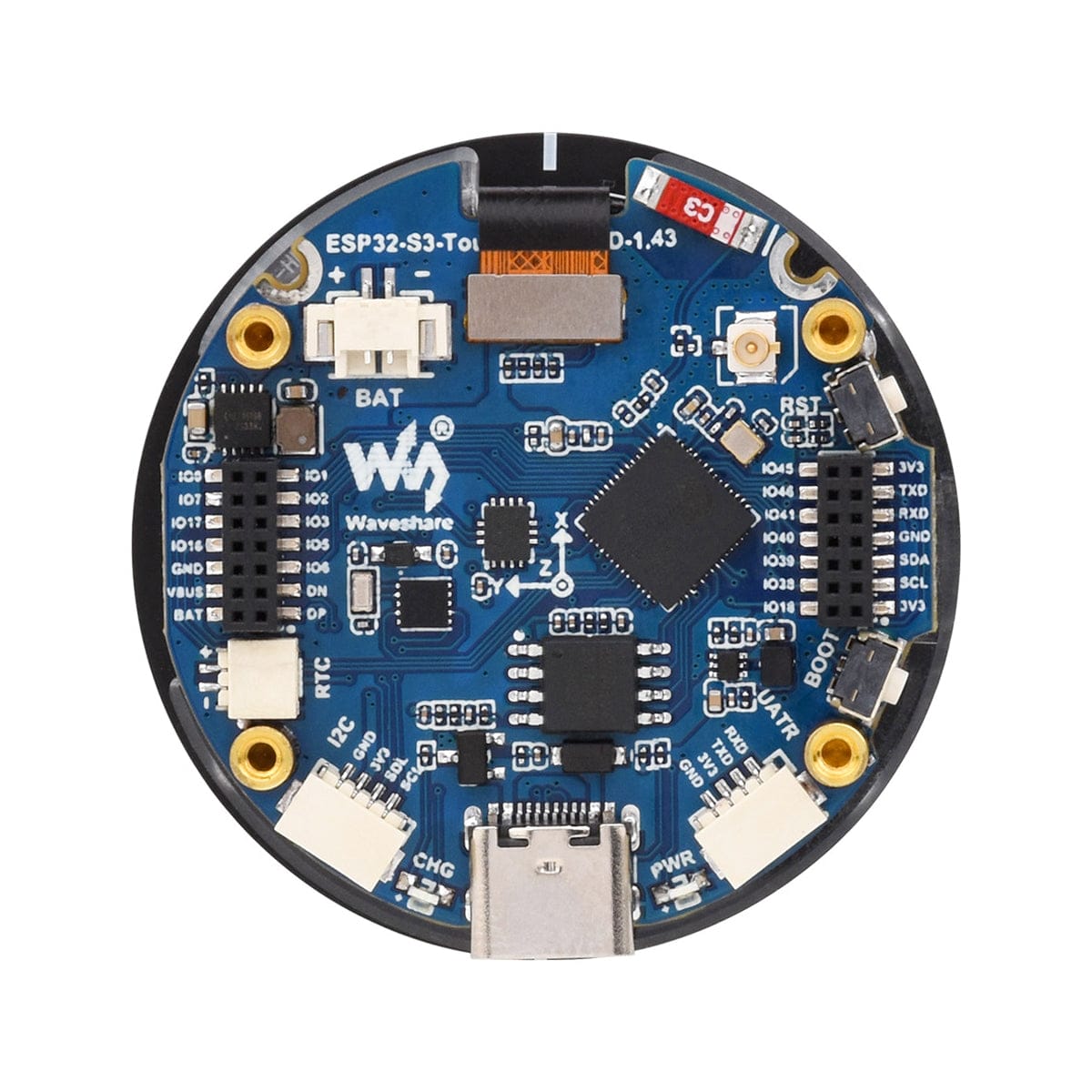

What's on Board

Specifications

Resources

• Product Wiki
• Schematic

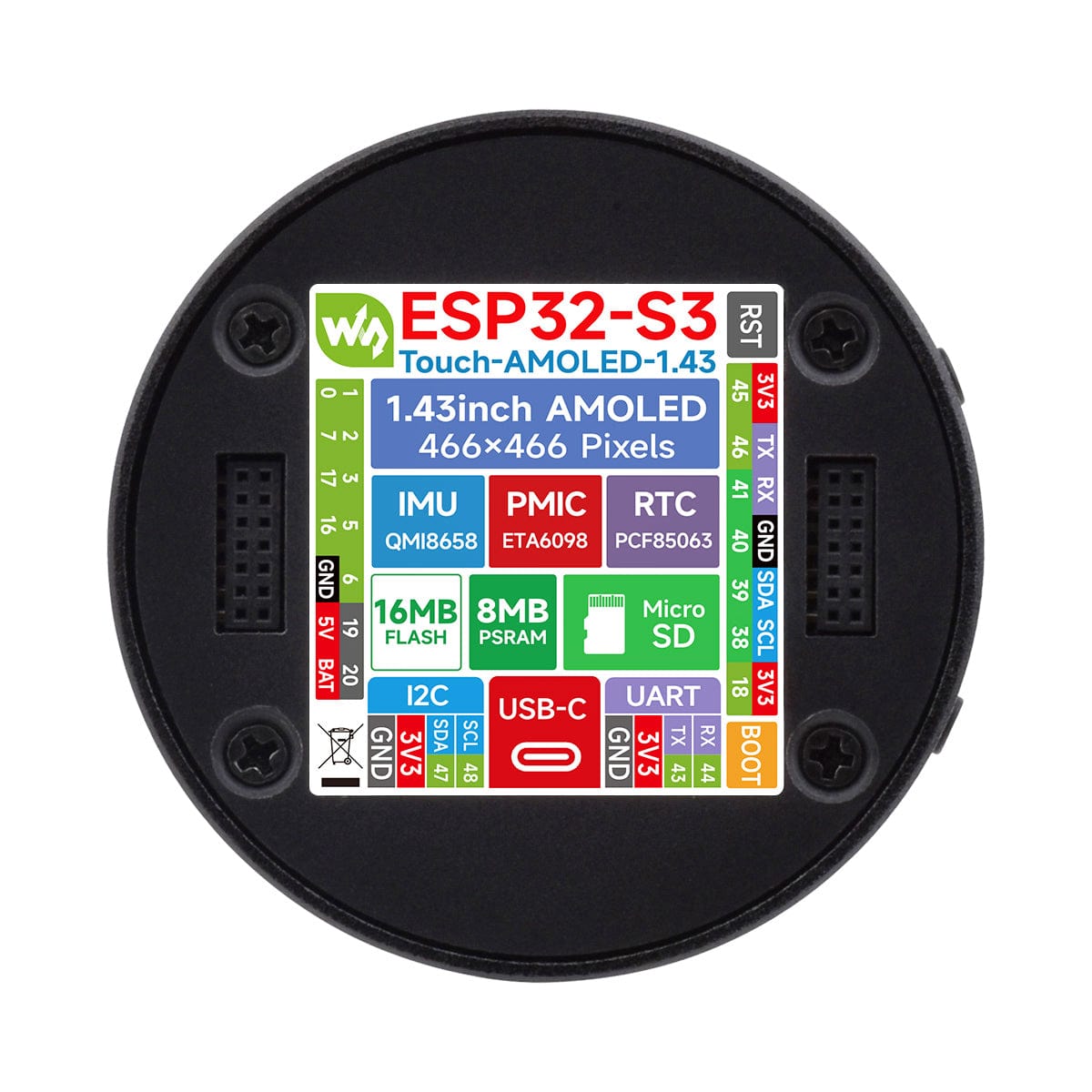

Pinout

Package Contents

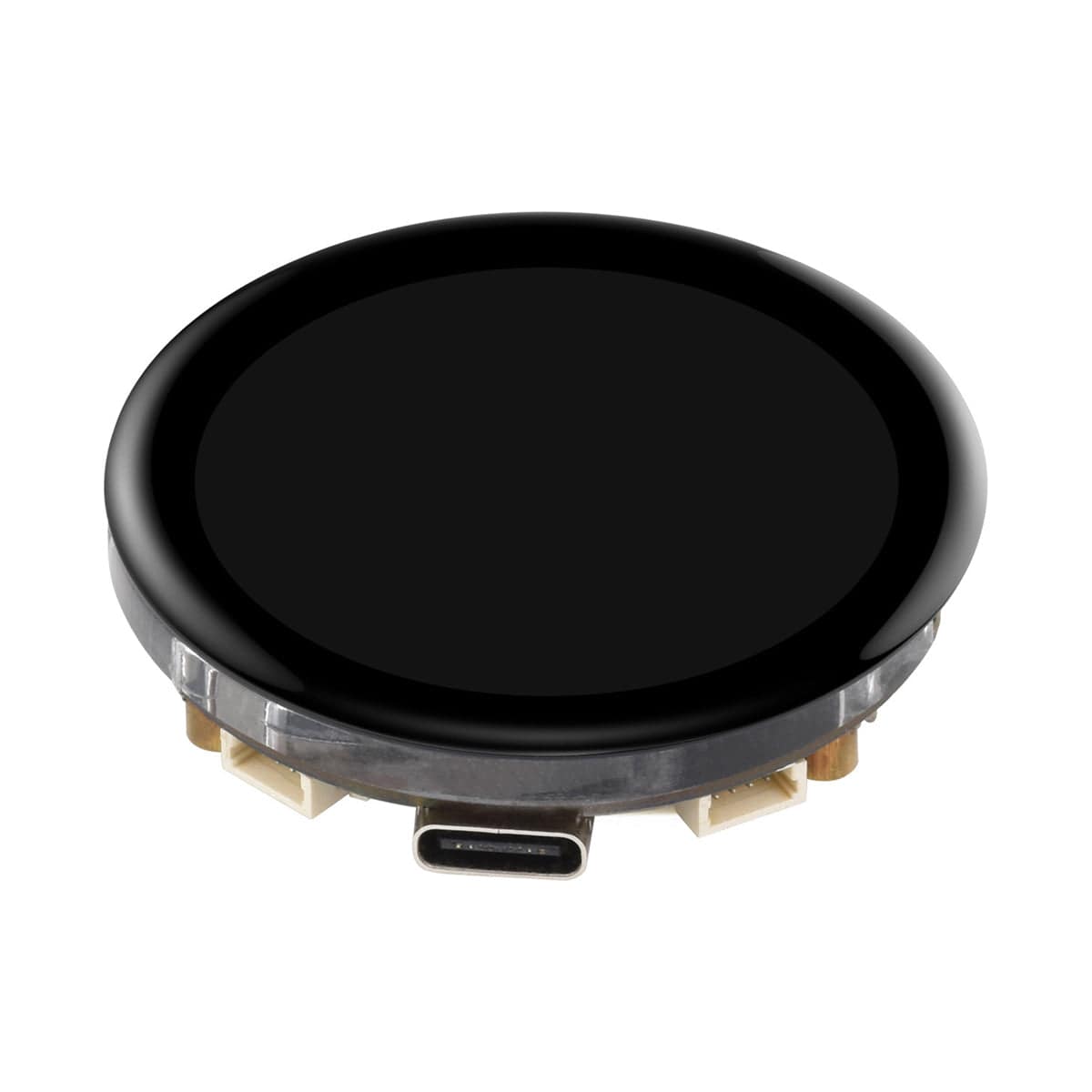

Board Only

• 1x ESP32-S3 1.43" AMOLED Display Development Board

With CNC Metal Case

• 1x ESP32-S3 1.43" AMOLED Display Development Board with Metal Case
