ESP32-S3 4.3" Touch Display Dev Board (800x480)

A 4.3" IPS touchscreen controlled by an ESP32-S3 dual-core processor with 8MB PSRAM, Wi-Fi, Bluetooth, LiPo charging, RS485, CAN, MicroSD slot, USB-C and more!

The ESP32-S3 4.3" display development board from Waveshare is built around the ESP32-S3 with a dual-core 32-bit LX7 processor running at up to 240MHz. It includes 16MB Flash and 8MB PSRAM, making it suitable for running interface libraries like LVGL without issue.

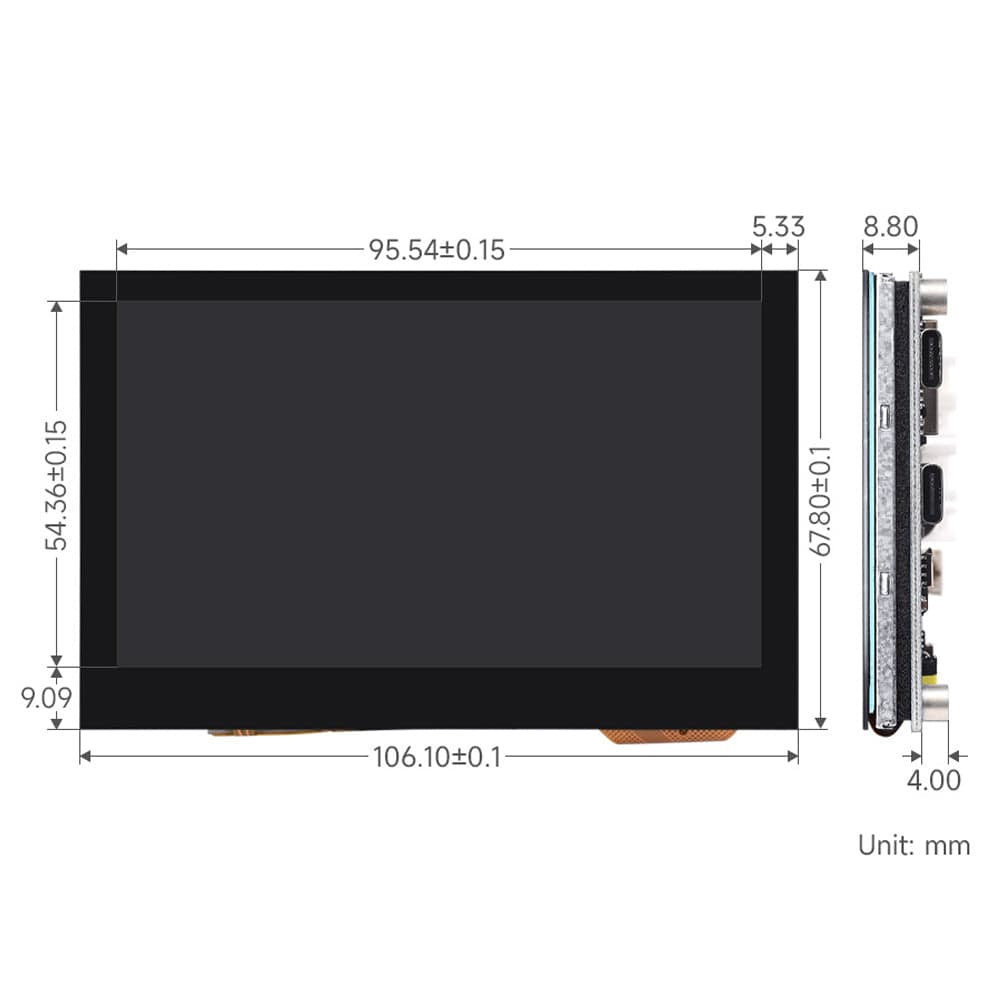

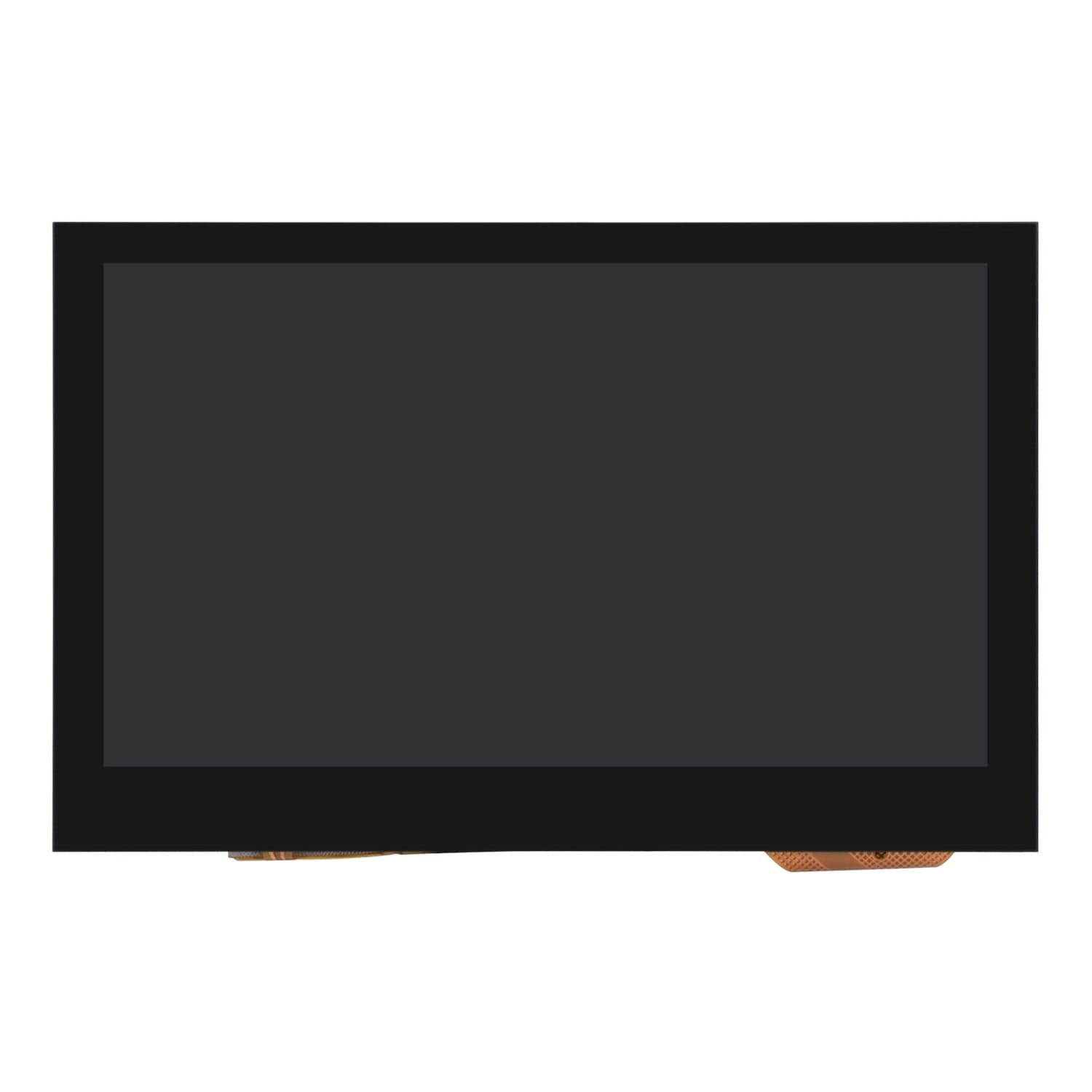

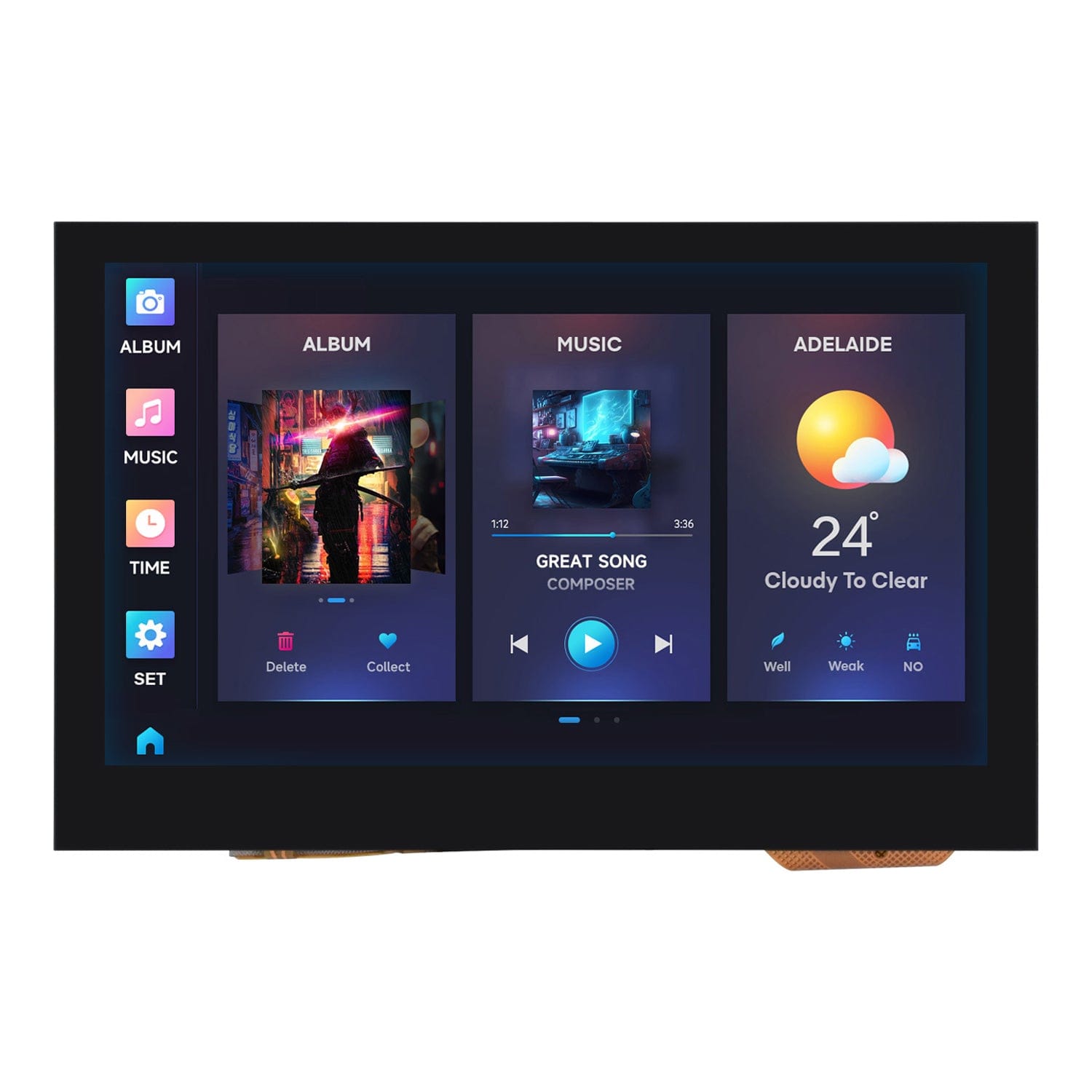

This version features a 4.3" 800×480 IPS LCD with 5-point capacitive touch input over I2C. The panel has a 160° viewing angle and supports 65K colours. Touch input includes interrupt support for better responsiveness.

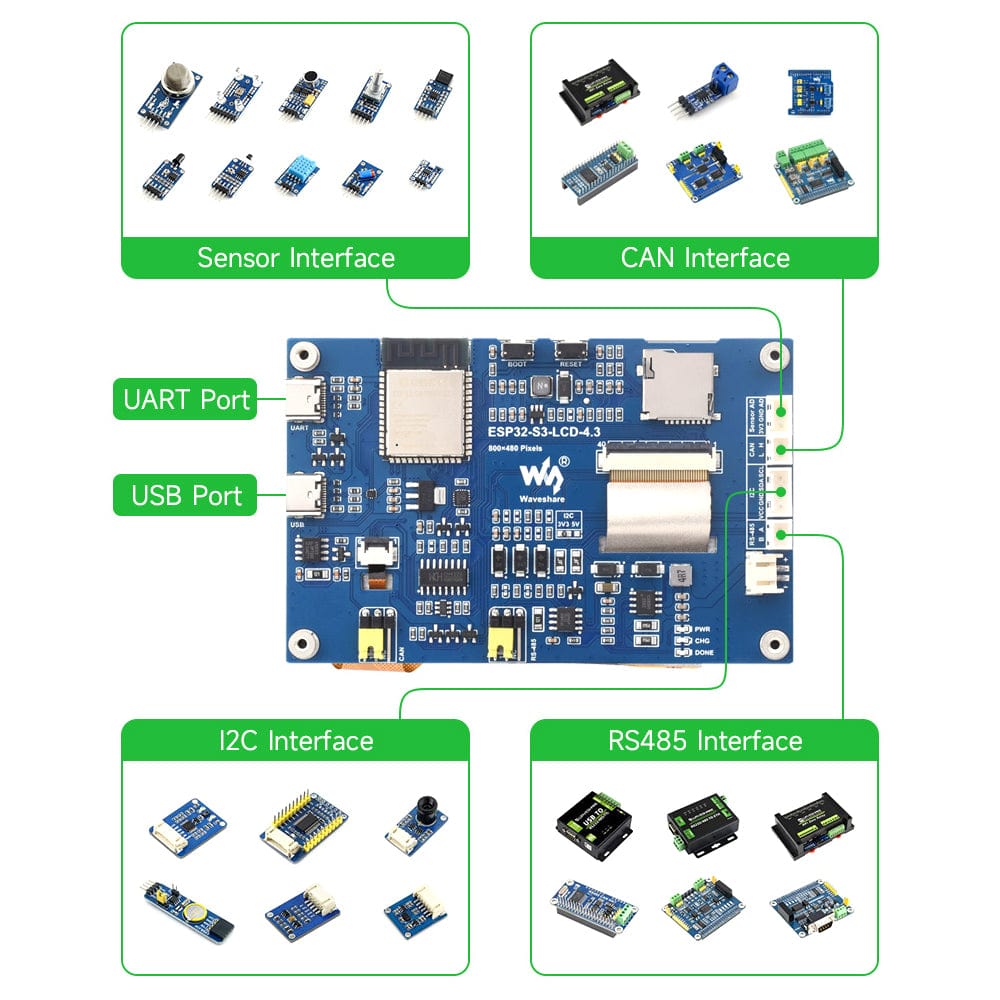

The board also supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), and includes an onboard antenna. Interfaces include CAN, RS485, I2C, a TF card slot, and a full-speed USB port. Power control features allow for tuning the board’s power usage depending on the application.

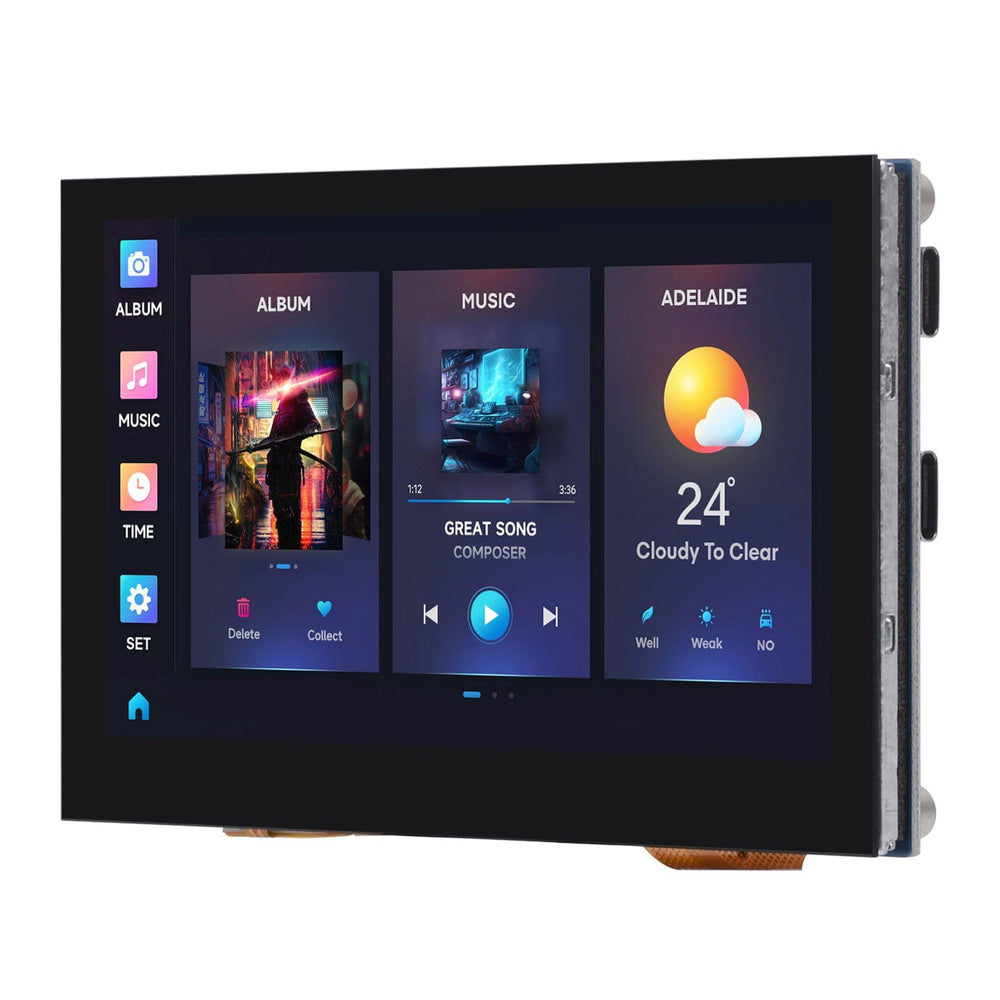

Designed to work well in HMI and general-purpose embedded projects, it fits into a variety of IoT, smart home, or portable device use cases.

Features

• ESP32-S3 dual-core processor with 16MB Flash and 8MB PSRAM
• 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
• 4.3" IPS LCD display (800×480 resolution)
  • 160° viewing angles
  • 65K colours
• Capacitive 5-point touch input via I2C, with interrupt support
• Full-speed USB and USB-to-UART USB-C interfaces
• Onboard CAN, RS485, I2C headers and microSD card slot
• Sensor headers
• PH2.0 lithium battery connector and charging
• Selectable termination resistors for CAN and RS485 interfaces
• Supports display backlight control and power management features
• BOOT and RESET buttons for firmware upload and system reset
• Status LEDs for power, charging, and charge completion

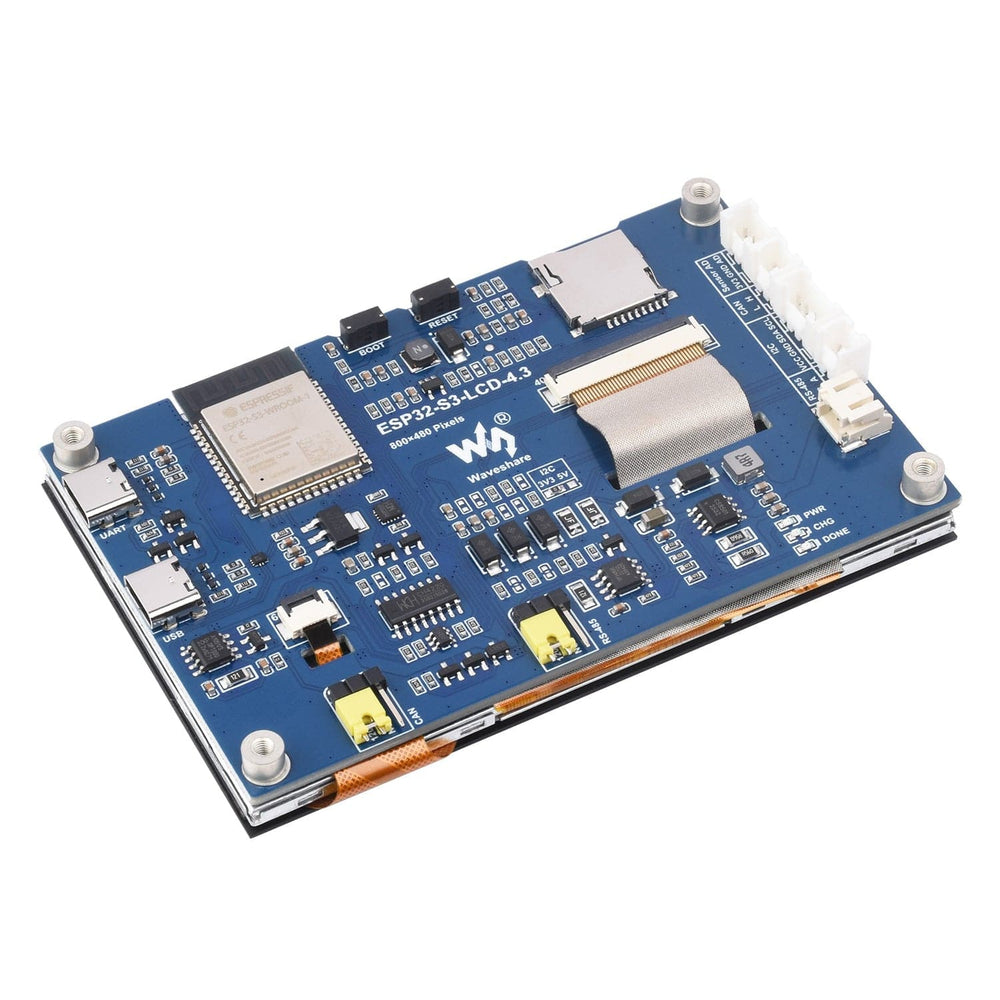

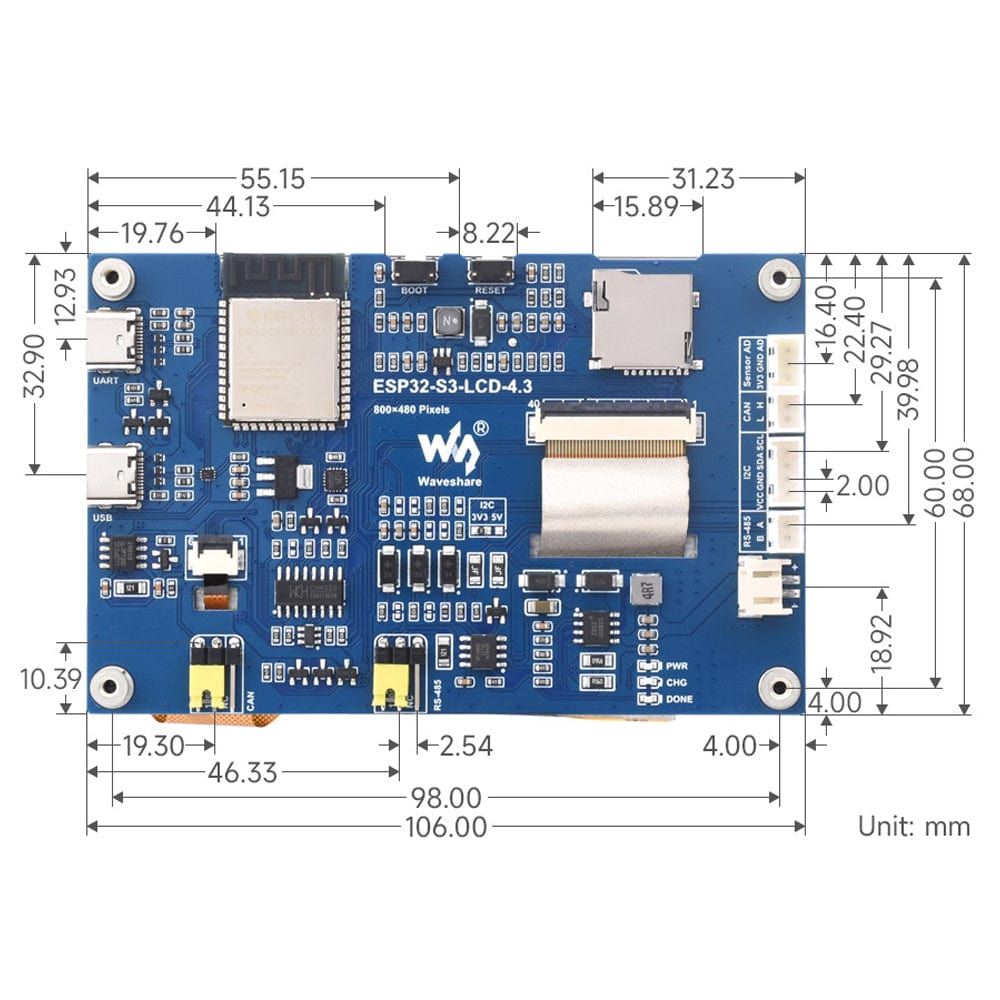

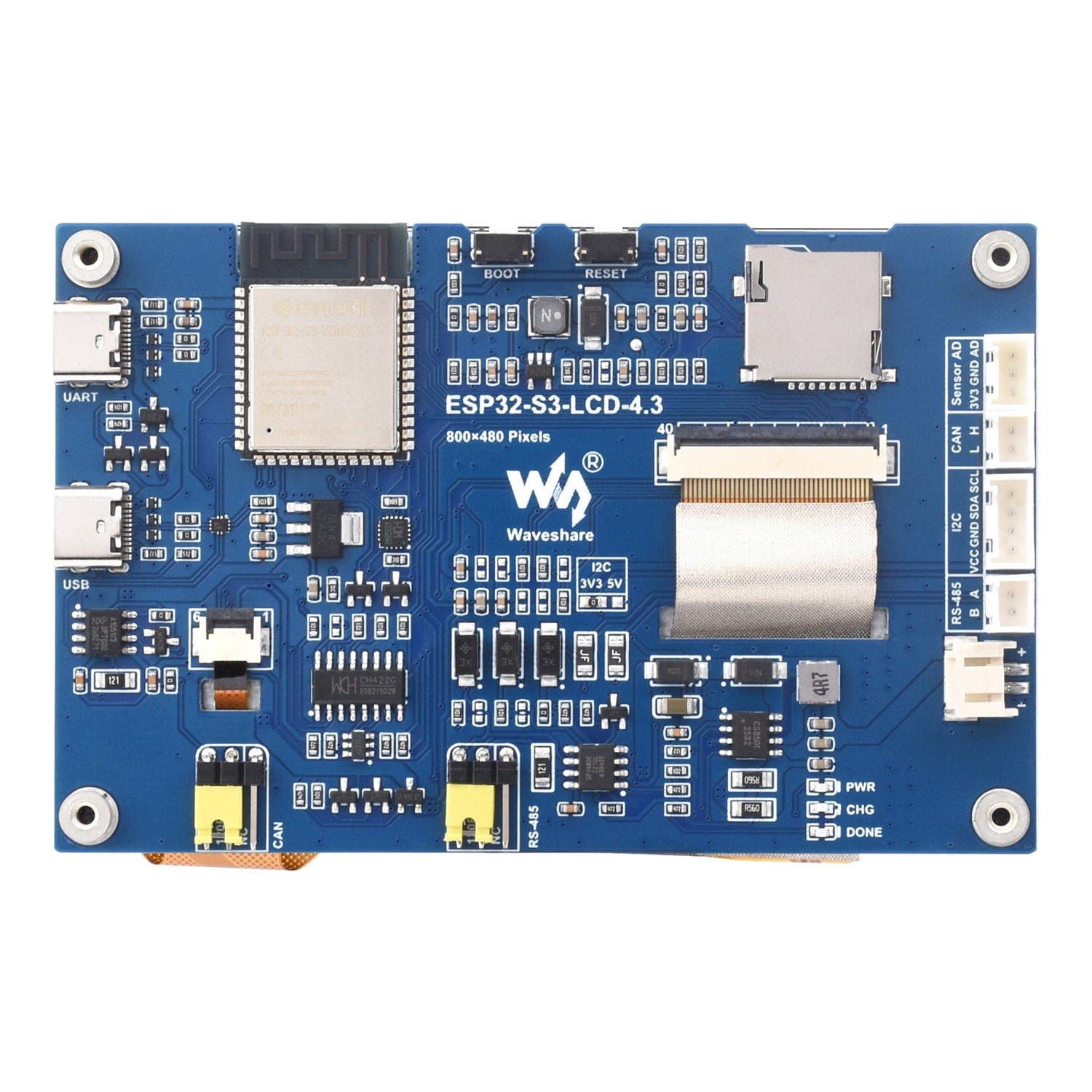

What's onboard

1. ESP32-S3N16R8
   • The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
2. SGM2212-3.3
   • 800mA low-noise LDO
3. FUSB42UMX
   • for USB pins multiplexing
4. Touch panel connector
5. USB TO UART Type-C port
6. USB Type-C port
7. TJA1051T/3/1J
   • CAN interface chip
8. CH422G
   • IO expansion chip
9. BOOT button
   • Press and hold while powering on for program burning
10. RESET button
11. MP3202DJ-LF-Z
    • Screen backlight boost chip
12. 4.3" display panel connector
13. TF card slot
14. Sensor header
15. CAN header
16. I2C header
17. RS485 header
18. 3.7V single lithium battery PH2.0 header
19. CAN terminal resistor selection
20. RS485 terminal resistor selection
21. CH343P
    • USB to UART chip
22. SP3485
    • RS485 transceiver chip
23. CS8501
    • Lithium battery recharge manager
24. Status Indicators
    • PWR: Power supply indicator
    • CHG: Lithium battery charging indicator
    • DONE: Lithium battery charging completed indicator

Resources

• Product Wiki

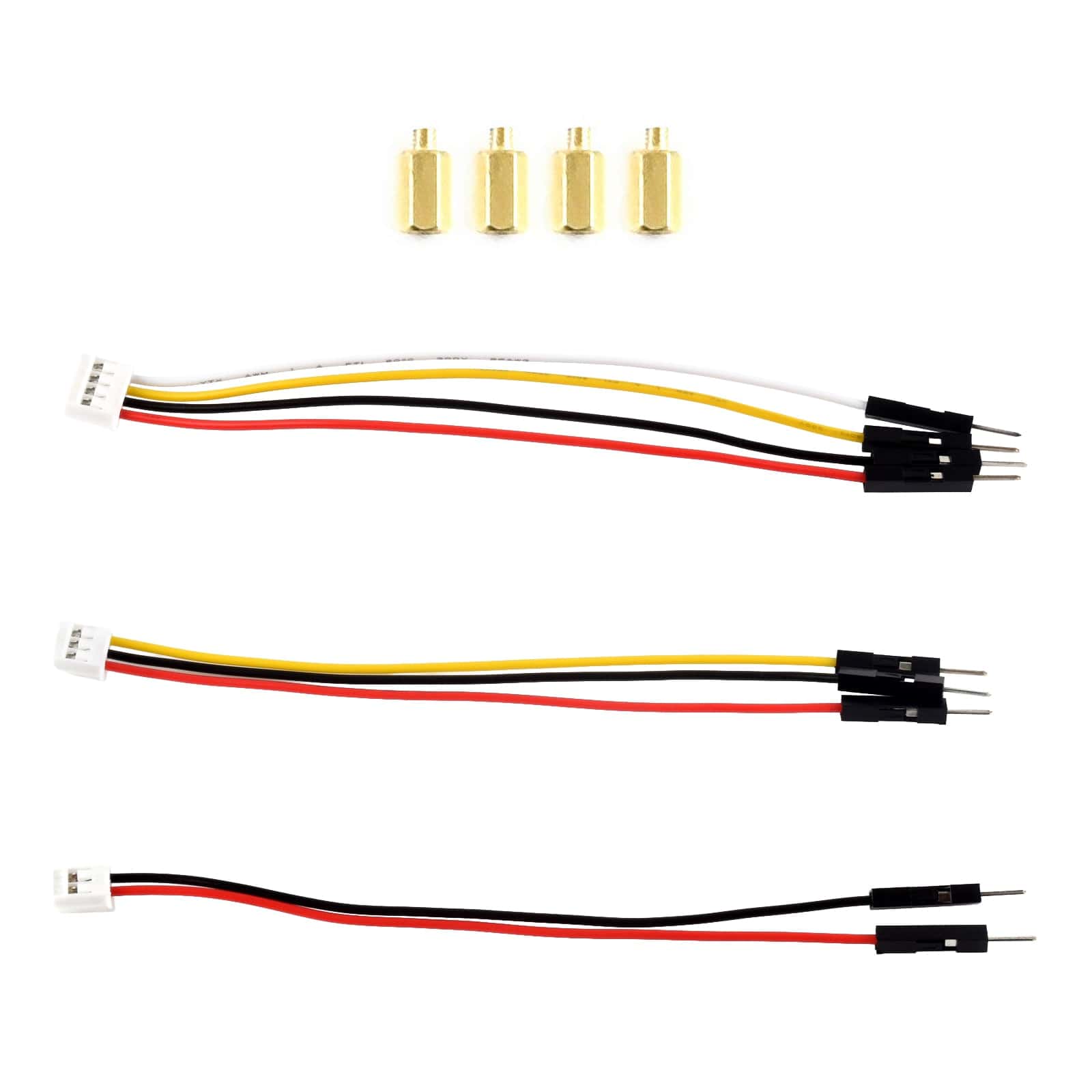

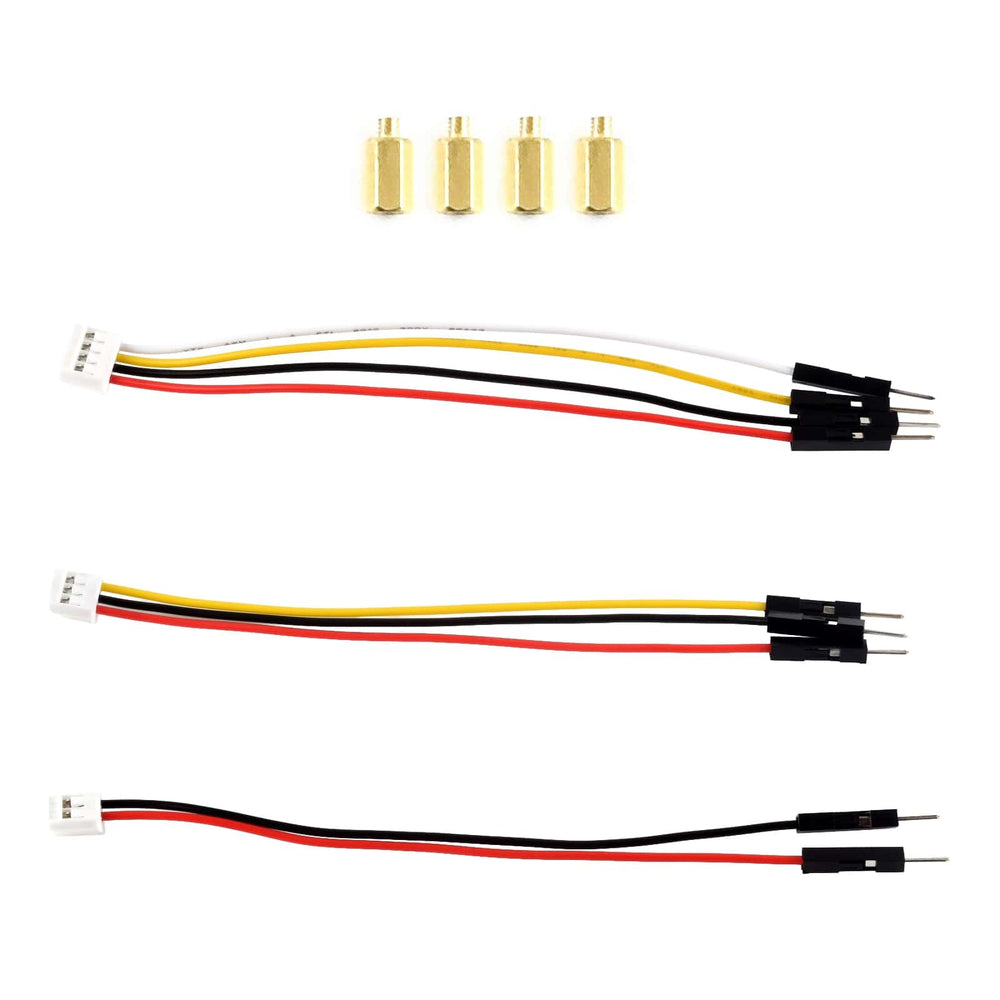

Package Contents

• 1x ESP32-S3 4.3" Touch Display Dev Board
• 2x HY2.0 2-pin to 2-pin male cable 10cm
• 1x HY2.0 3-pin to 3-pin male cable 10cm
• 1x HY2.0 4-pin to 4-pin male cable 10cm
• 1x Standoff pack
