ESP32-S3 1.3" IPS LCD Display Dev Board with IMU (240×240)

Waveshare have packed a whole bunch of features into this little board, giving you a compact 1.3" LCD display tied to an ESP32-S3 along with an IMU, MicroSD slot, lithium charging and more!

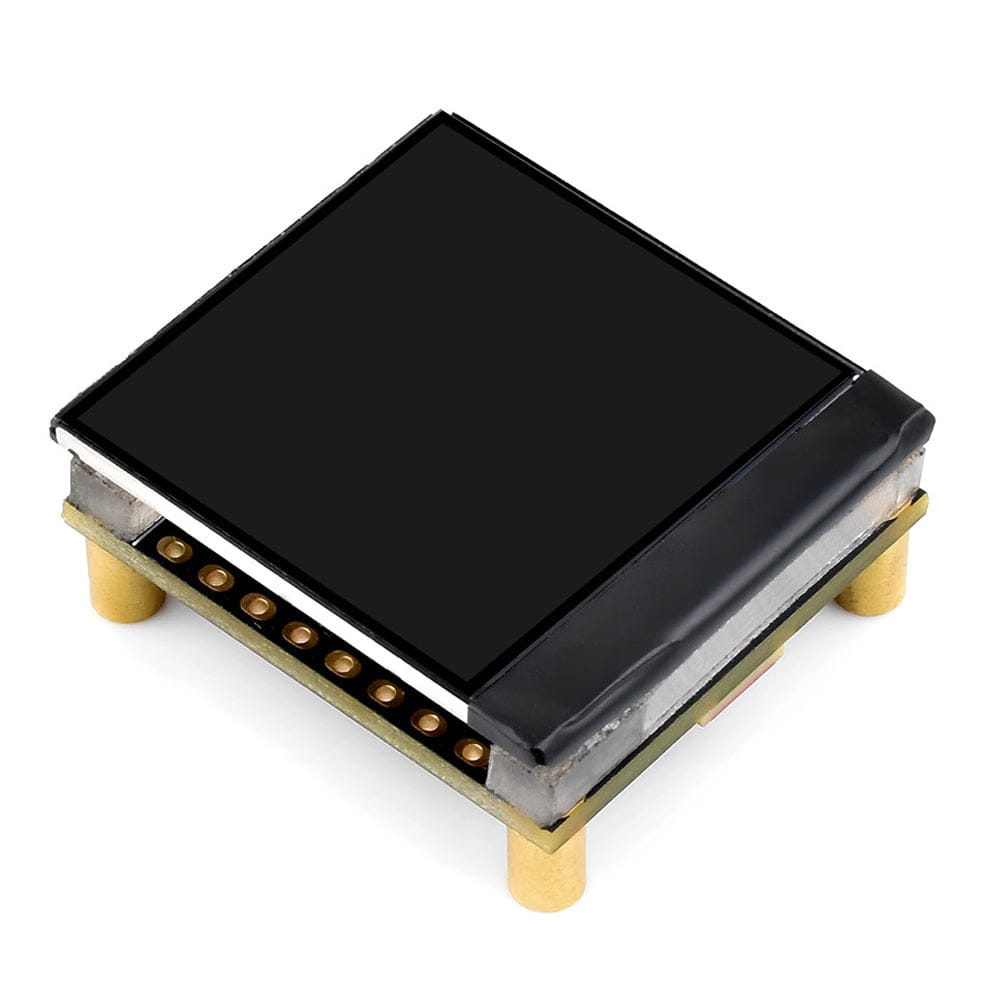

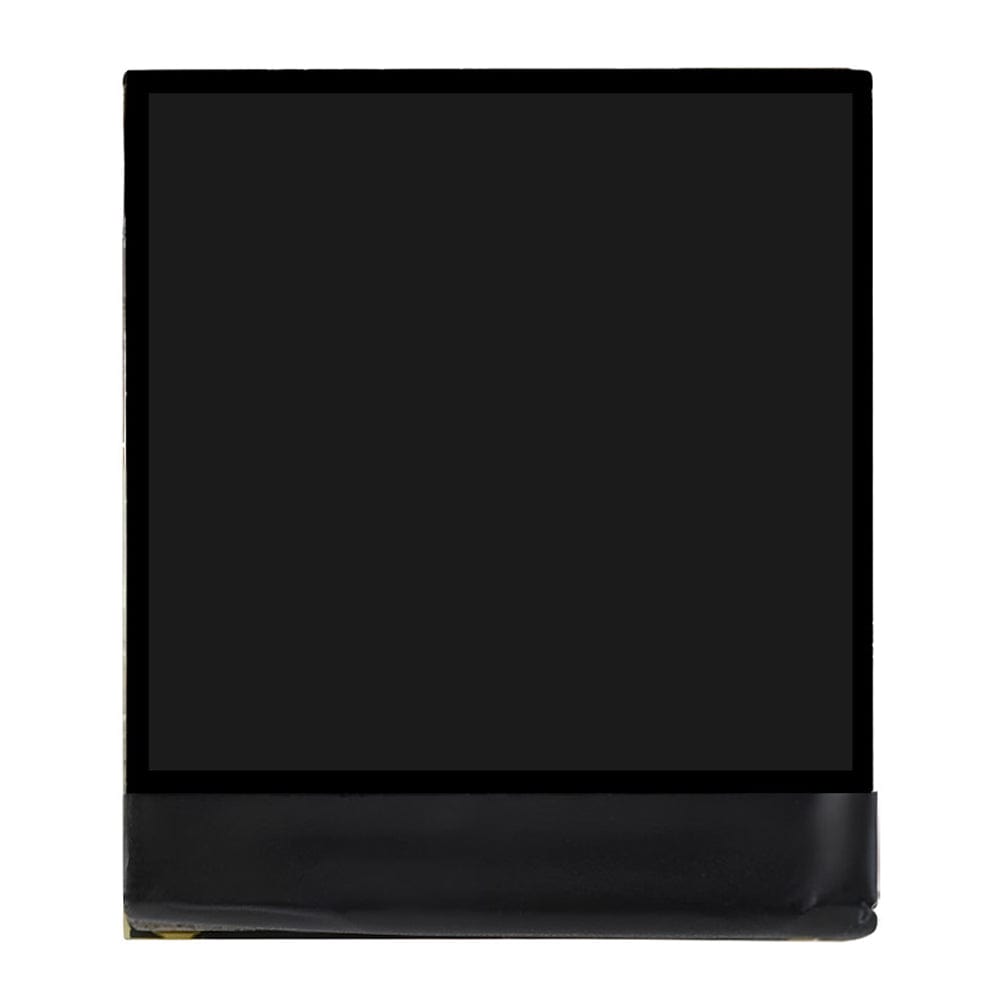

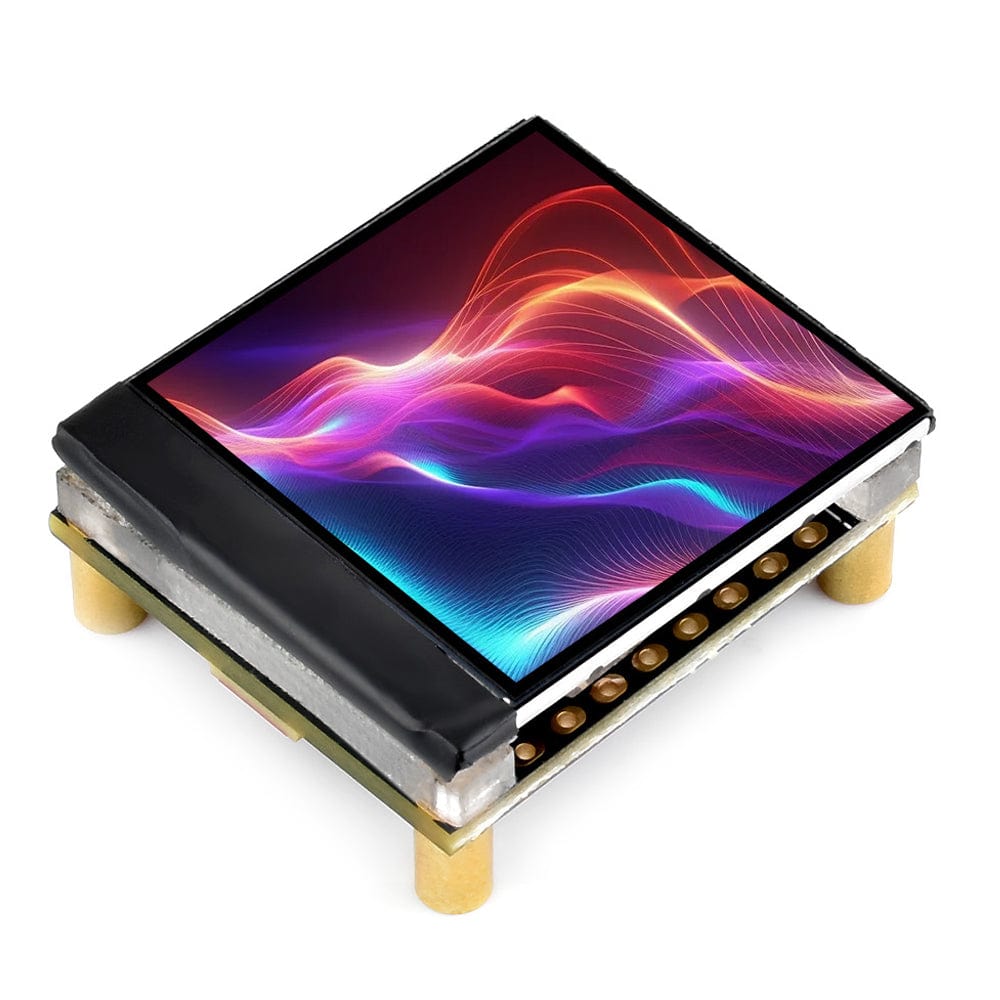

The tiny IPS LCD display is just 1.3" with a 240x240 resolution, offering 262K colours - all driven via SPI. On the back is an ESP32-S3 with 512KB RAM and 384KB ROM, supported by onboard 8MB PSRAM and external 16MB Flash memory. It features an onboard ceramic antenna supporting the 2.4GHz Wi-Fi and Bluetooth 5 (LE).

You'll also find a QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion/gestures, a MicroSD slot for storage, and an MX1.25 (PicoBlade compatible) lithium battery connector and charging circuit (PL4054) with charge indicator LED.

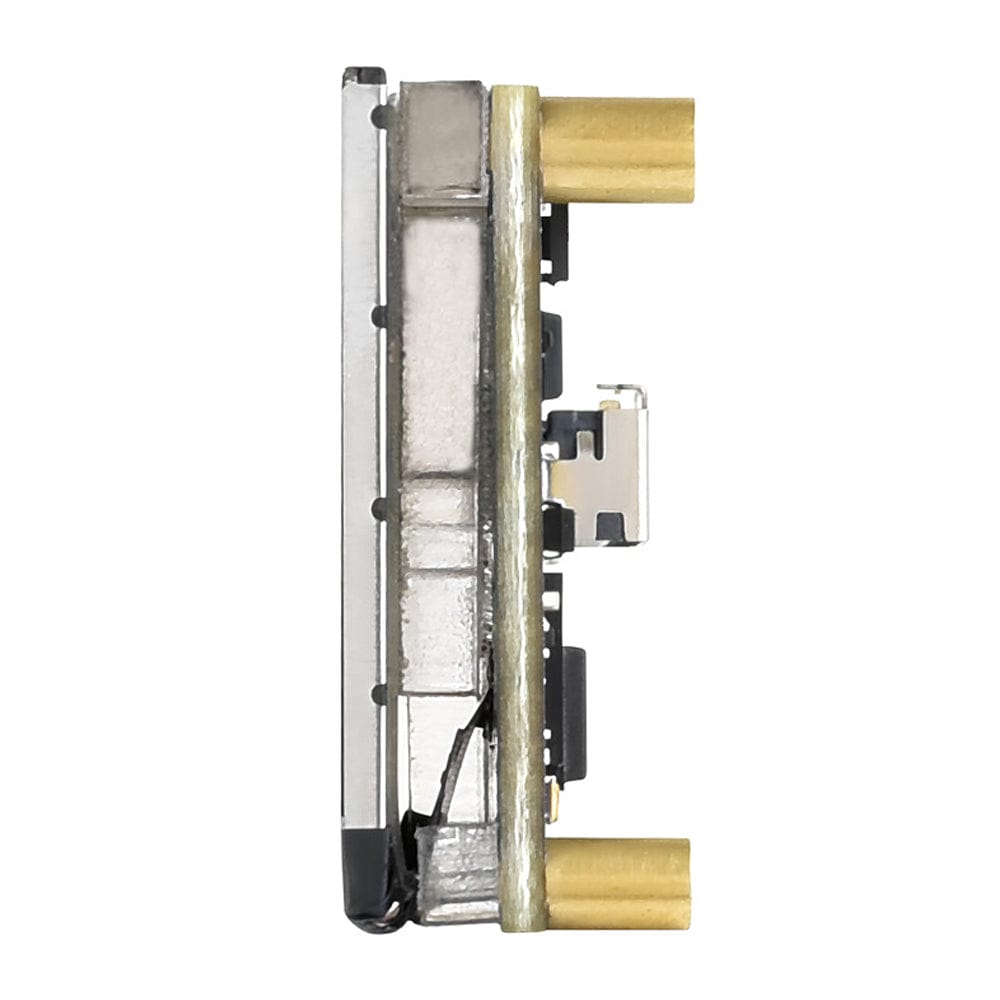

Power and programming are handled via a USB-C connection sandwiched between the display and PCB. USB-C cable not included - grab one here!

Please note - the battery connector is not the 'usual' PH2.0 type, it's a tiny PicoBlade-compatible MX1.25 socket. We're sourcing some PicoBlade LiPo batteries, but in the meantime, you may want to grab a cable like this and adapt your existing LiPos.

Features

• ESP32-S3R8 dual-core Xtensa 32-bit LX7 processor, up to 240MHz
• 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
• 512KB SRAM and 384KB ROM, with 8MB PSRAM and 16MB Flash
• USB-C connector
• 1.3" display, 240×240 resolution, 262K colours
• ST7789V2 display driver via SPI interface
• QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
• 3.7V MX1.25 lithium battery recharge/discharge header
• Header for peripherals and debugging

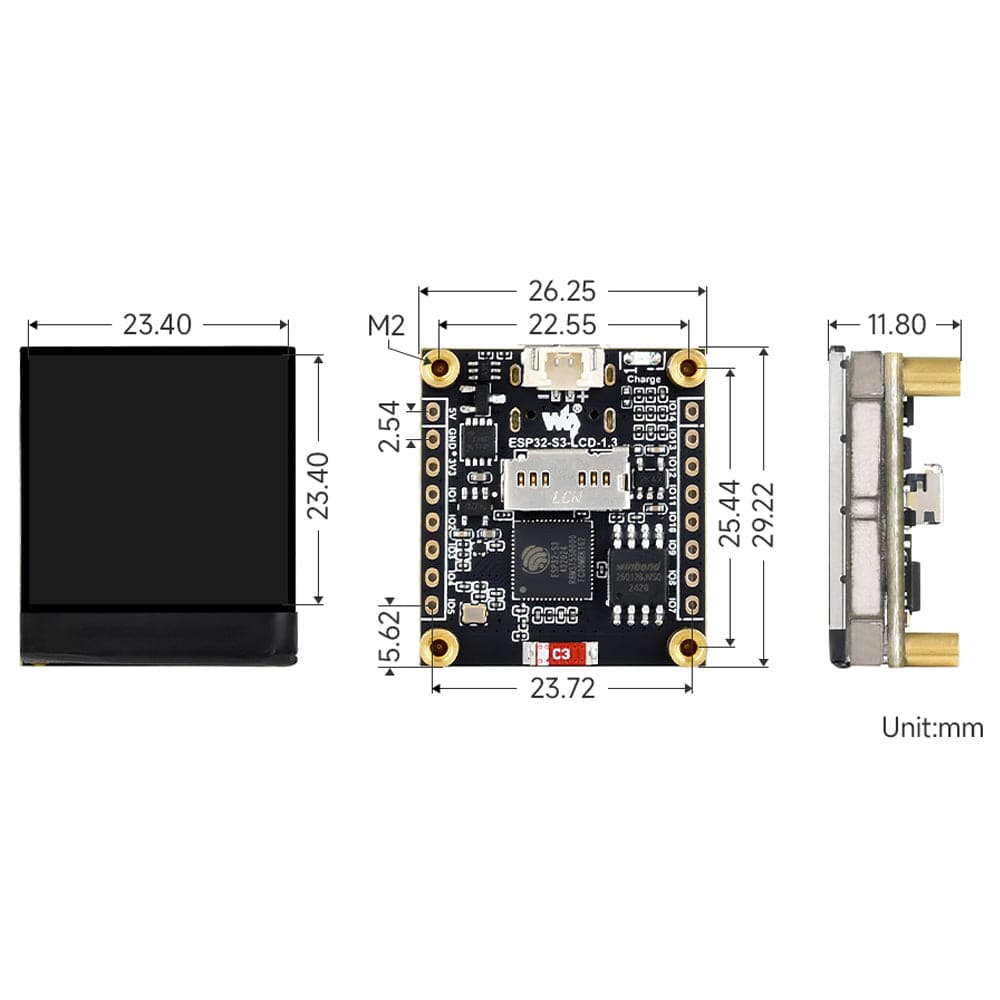

• M2 Mounting posts

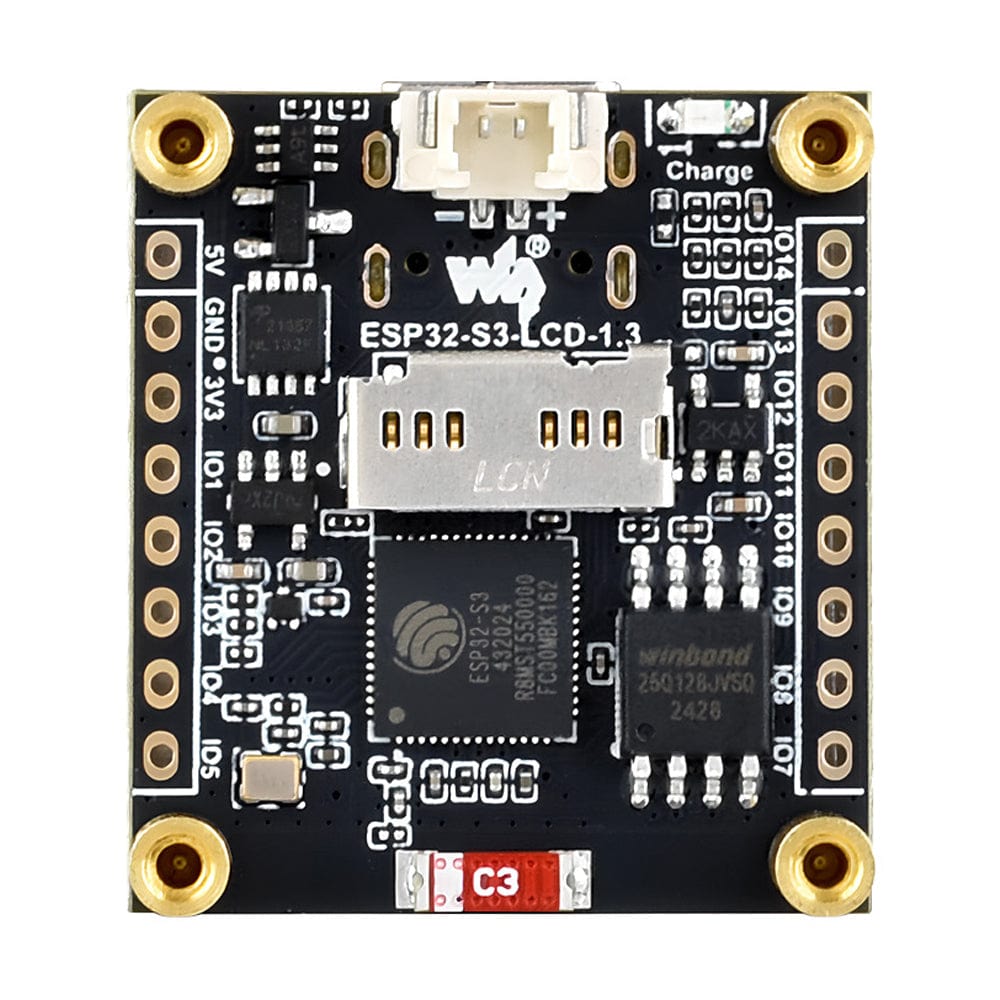

What's Onboard?

1. ESP32-S3R8
   Dual-core processor, up to 240 MHz operating frequency
2. Onboard ceramic antenna
3. 16MB Flash
4. microSD card slot
5. Charge indicator
   Off when fully charged
6. PL4054 battery recharge manager
7. ME6217C33M5G
   Low dropout regulator, 800mA output (Max.)
8. MX1.25 battery header
9. QMI8658 (back side)
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

Resources

• Product Wiki

Pinout

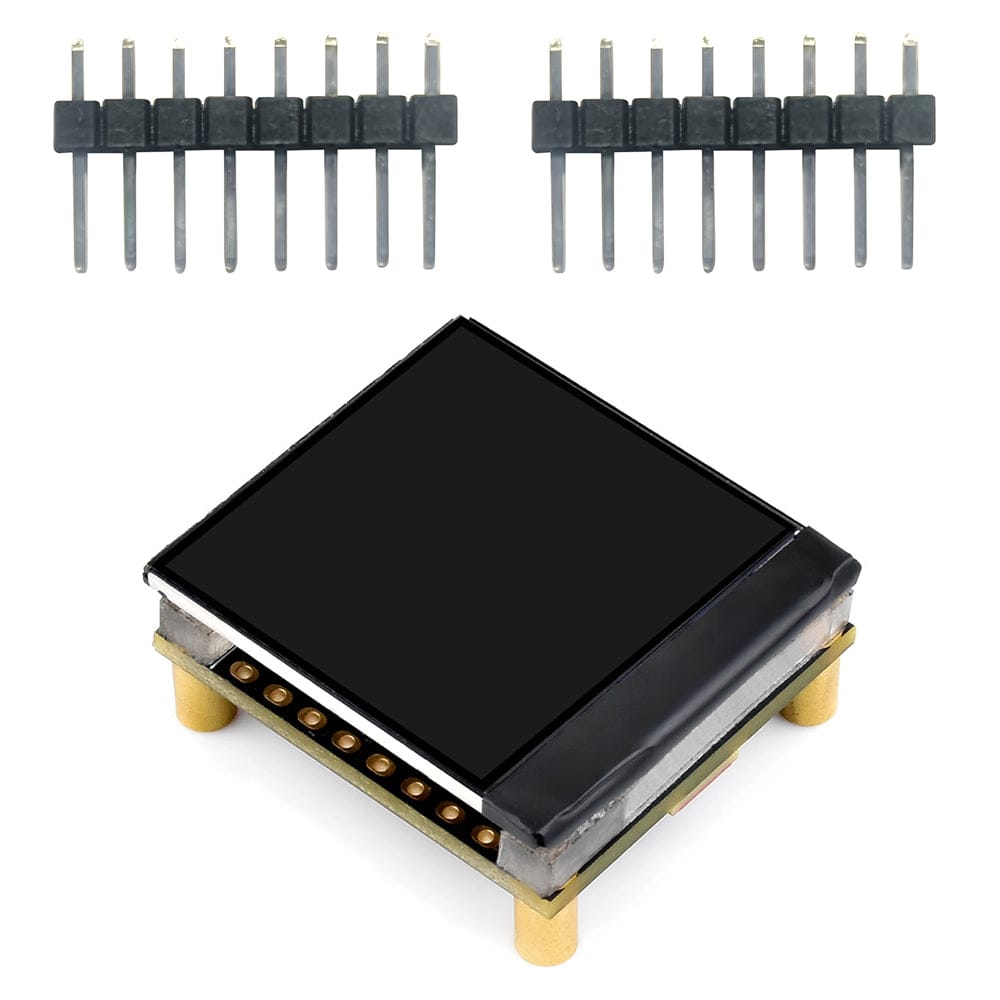

Package Contents

• 1x ESP32-S3 1.3" IPS LCD Display Dev Board with IMU (240×240)
• 2x 8-pin 2.54mm header strips
