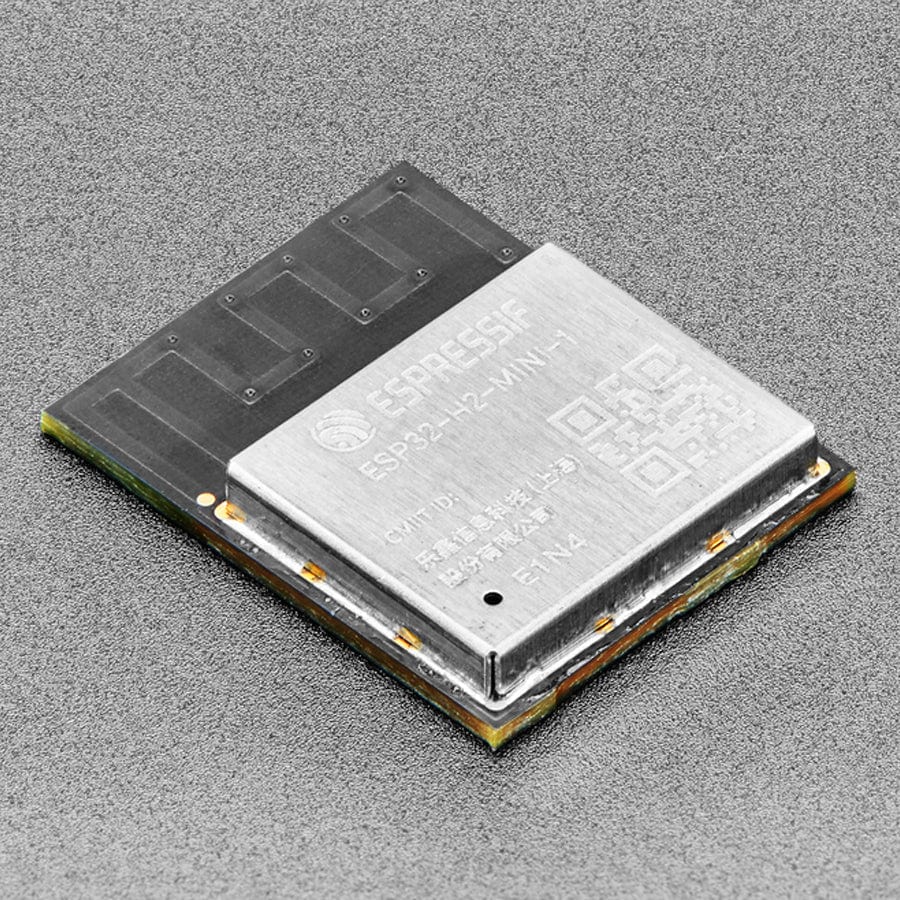

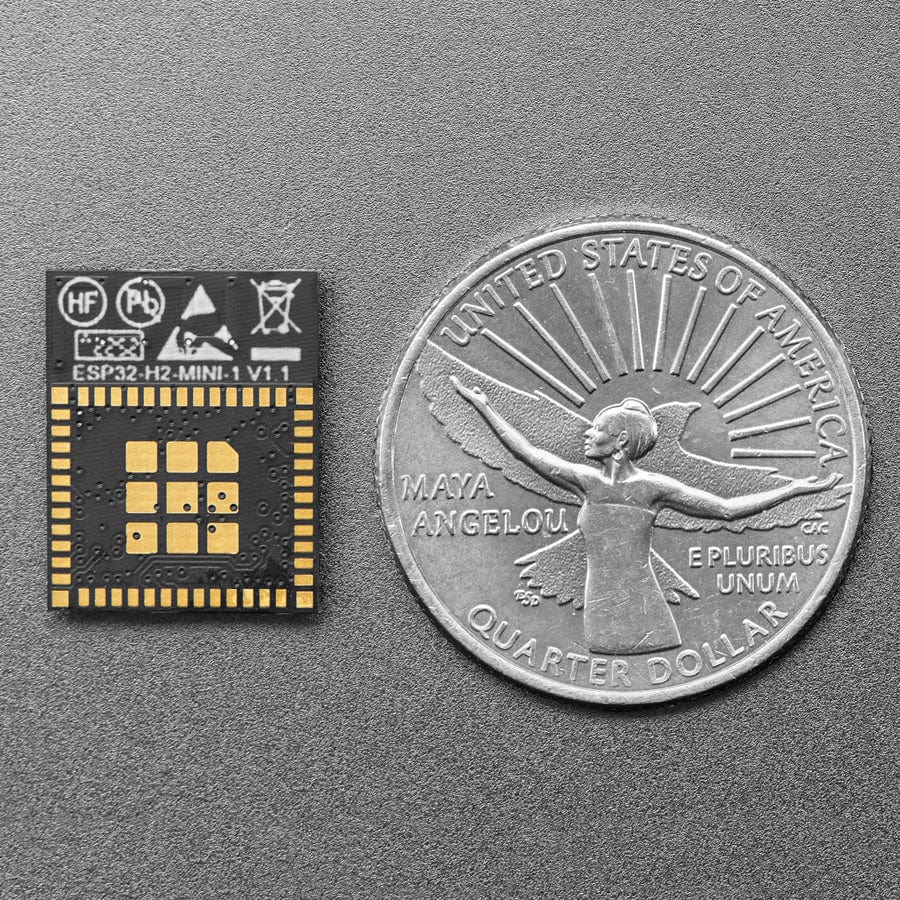

ESP32-H2-MINI-1 Module - 4MB Flash

ESP32-H2-MINI-1 is a powerful, generic Bluetooth® Low Energy and IEEE 802.15.4 combo module that has a rich set of peripherals. This module is an ideal choice for a wide variety of application scenarios related to the Internet of Things (IoT), such as embedded systems, smart homes, wearable electronics, etc.

At the core of this module is ESP32-H2, a 32-bit RISC-V single-core CPU that operates at up to 96 MHz. You can power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds.

ESP32-H2 integrates a rich set of peripherals including I2C, I2S, SPI, UART, ADC, LED PWM, ETM, GDMA, PCNT, PARLIO, RMT, TWAI, MCPWM, USB Serial/JTAG, temperature sensor, general-purpose timers, system timer, watchdog timer as well as up to 19 GPIOs.

For advanced users only! This product is just the module - which can be difficult to use. You'll need to solder it onto a board with supporting circuitry. This module is for developers at this time.

Resources

• ESP Forum
• Datasheet
