ESP32-C6 Mini Development Board

The ESP32-C6 development board has a 32-bit RISC-V processor with a clock speed of up to 160 MHz and a low-power 32-bit RISC-V processor with a clock speed of up to 20 MHz. It includes 320KB of ROM, 512KB of HP SRAM, 16KB of LP SRAM, and 4MB of Flash memory for decent storage and fast processing.

The board has 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, providing excellent RF performance. The castellated module and onboard ceramic antenna facilitate direct soldering to carrier boards. With support for flexible clock settings and module power supply independent control, it provides low power consumption across various scenarios.

It comes with an onboard USB Type-C port, 22 GPIO pins, and a flexible configuration of pin functions, making it a highly adaptable choice for a range of development projects.

Features

• Equipped with a high-performance 32-bit RISC-V processor with a clock speed of up to 160 MHz and a low-power 32-bit RISC-V processor with a clock speed of up to 20MHz
• Built-in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
• Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Onboard USB Type-C port, 22 x GPIO pins allow flexibly configuring pin functions

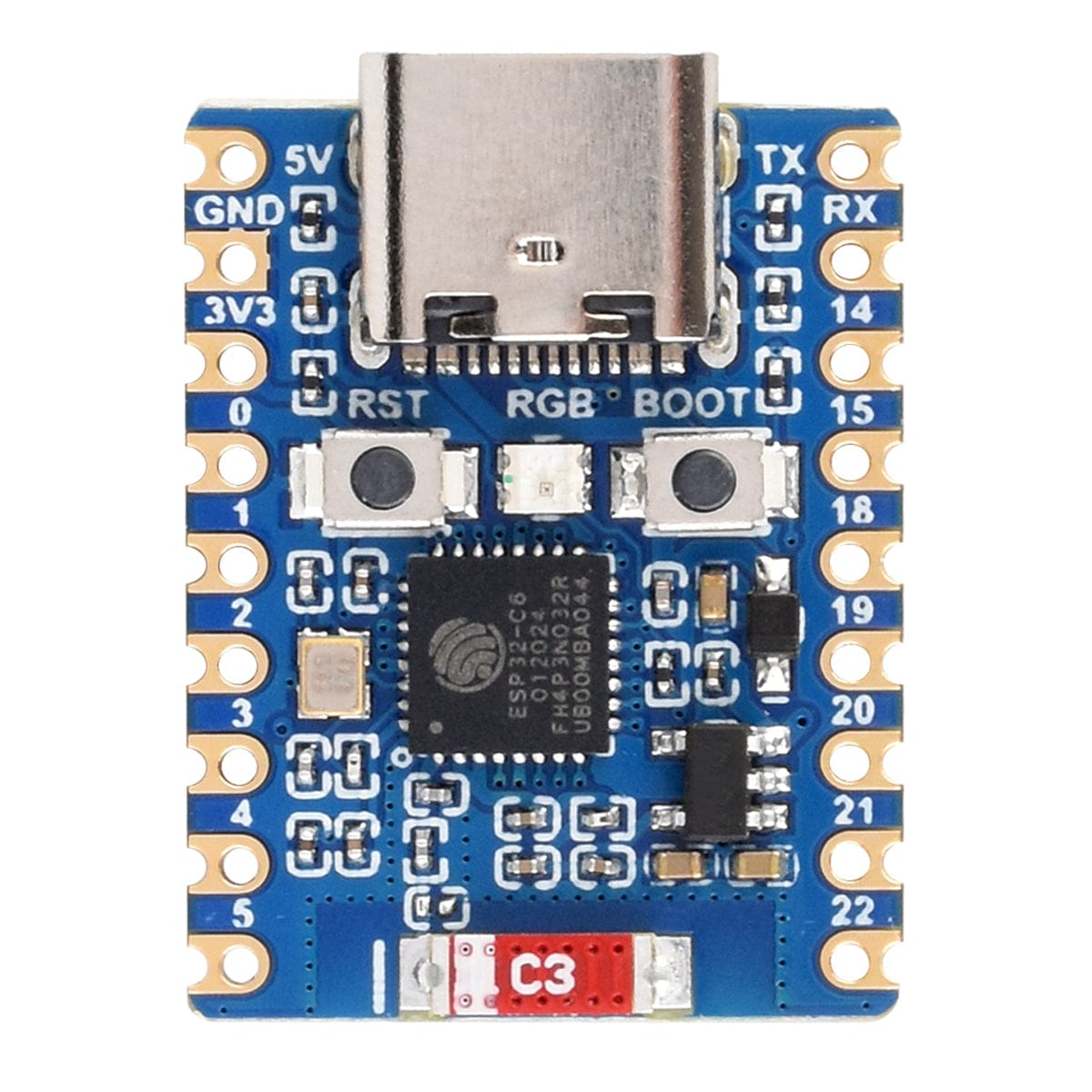

What's on Board

1. ESP32-C6FH4
   Built-in dual processors, main frequency is up to 160 MHz
2. USB Type-C Port
   For downloading programs and debugging
3. ME6217C33M5G
   Low dropout LDO, 800mA (Max)
4. WS2812 RGB LED
5. 2.4G ceramic antenna
6. BOOT button
   Press it and then press the RESET button to enter download mode
7. RESET button
8. ESP32-C6FH4 pins

Resources

• Product Wiki
• Schematic
• ESP32-C6 Technical Reference Manual

Pinout

Package Contents

• 1x ESP32-C6 Mini Development Board
