ESP32-C6 1.69" IPS LCD Display Dev Board (240x280)
Price:
Sale price
£15.40
Stock:
Quantity:
Awesome Extras
A compact USB-C ESP32-C6-based development offering 2.4GHz Wi-Fi 6 and Bluetooth 5, combined with an LCD display and a host of other features including an IMU, amp & speaker, LiPo port, RTC and more!

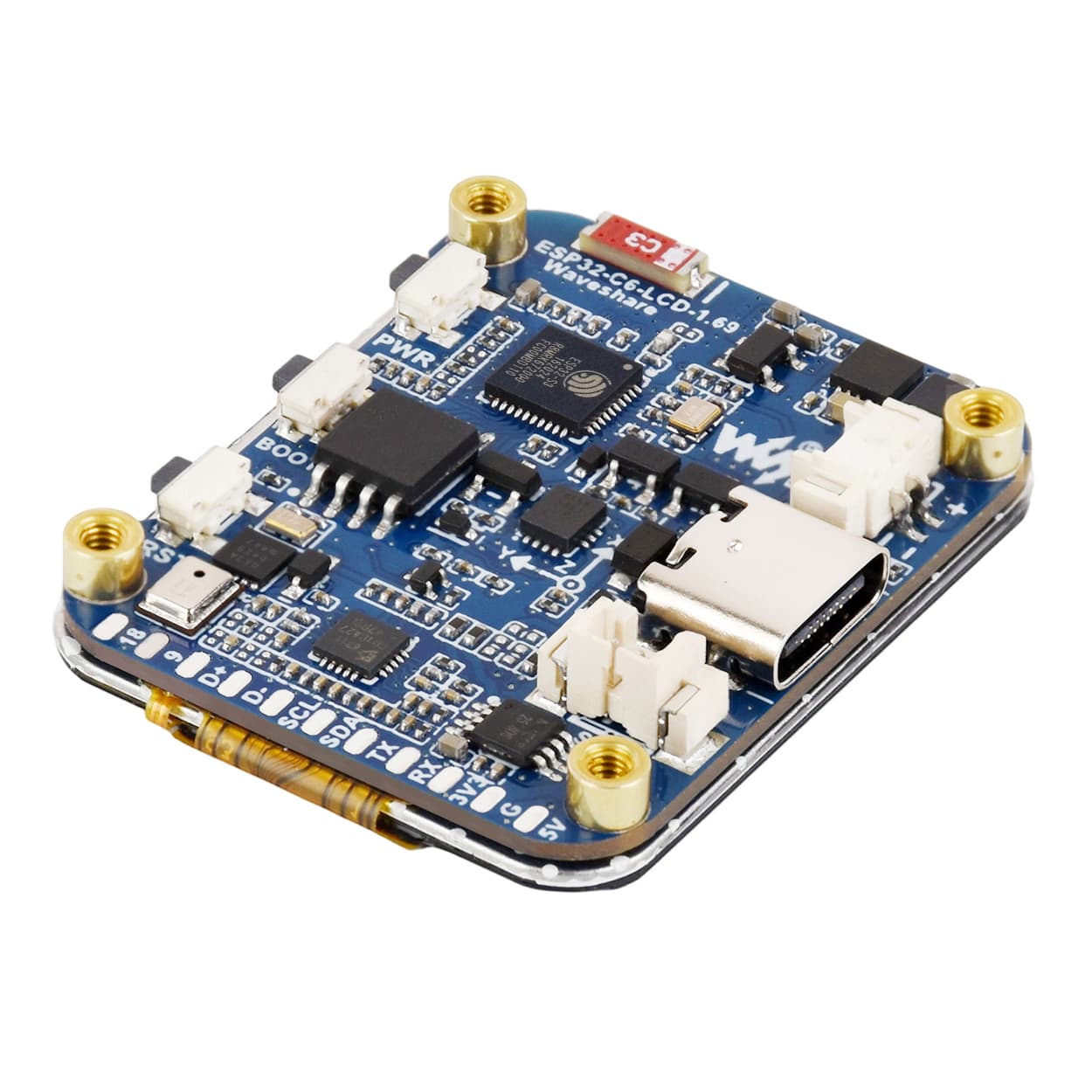

This development board from Waveshare is based around an Espressif ESP32-C6, which combines a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz. It offers integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication.
The ESP32-C6 runs 320KB ROM, 512KB HP SRAM and 16KB LP SRAM, with an additional 16MB flash on the board to support this. Program the chip via the USB-C port, assisted with the onboard RST and BOOT buttons.

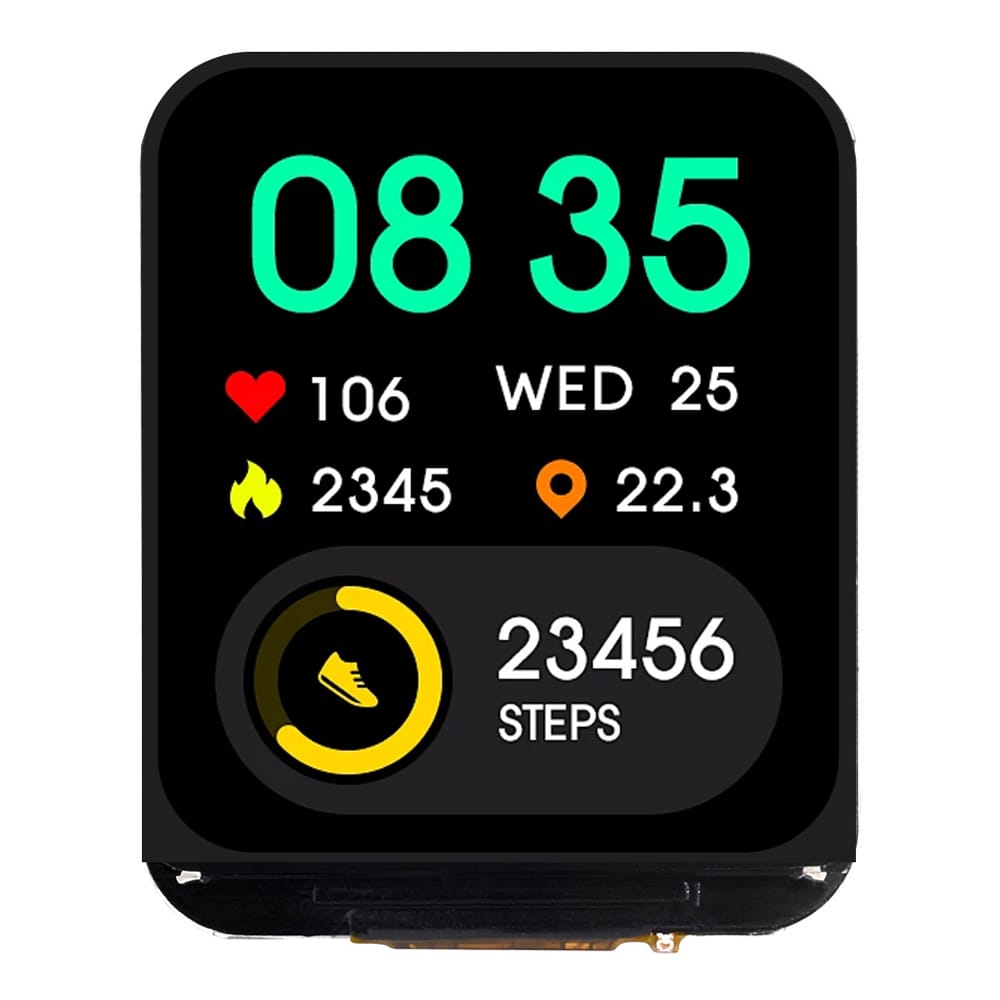

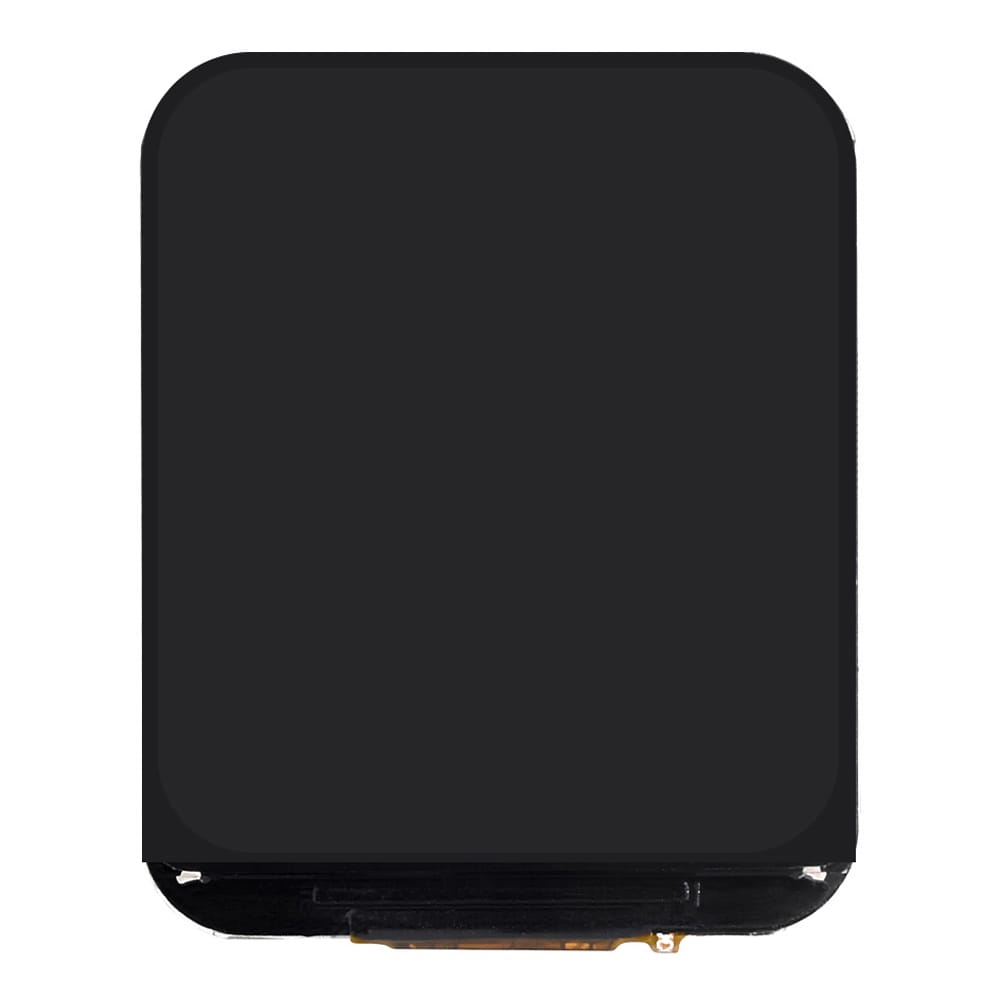

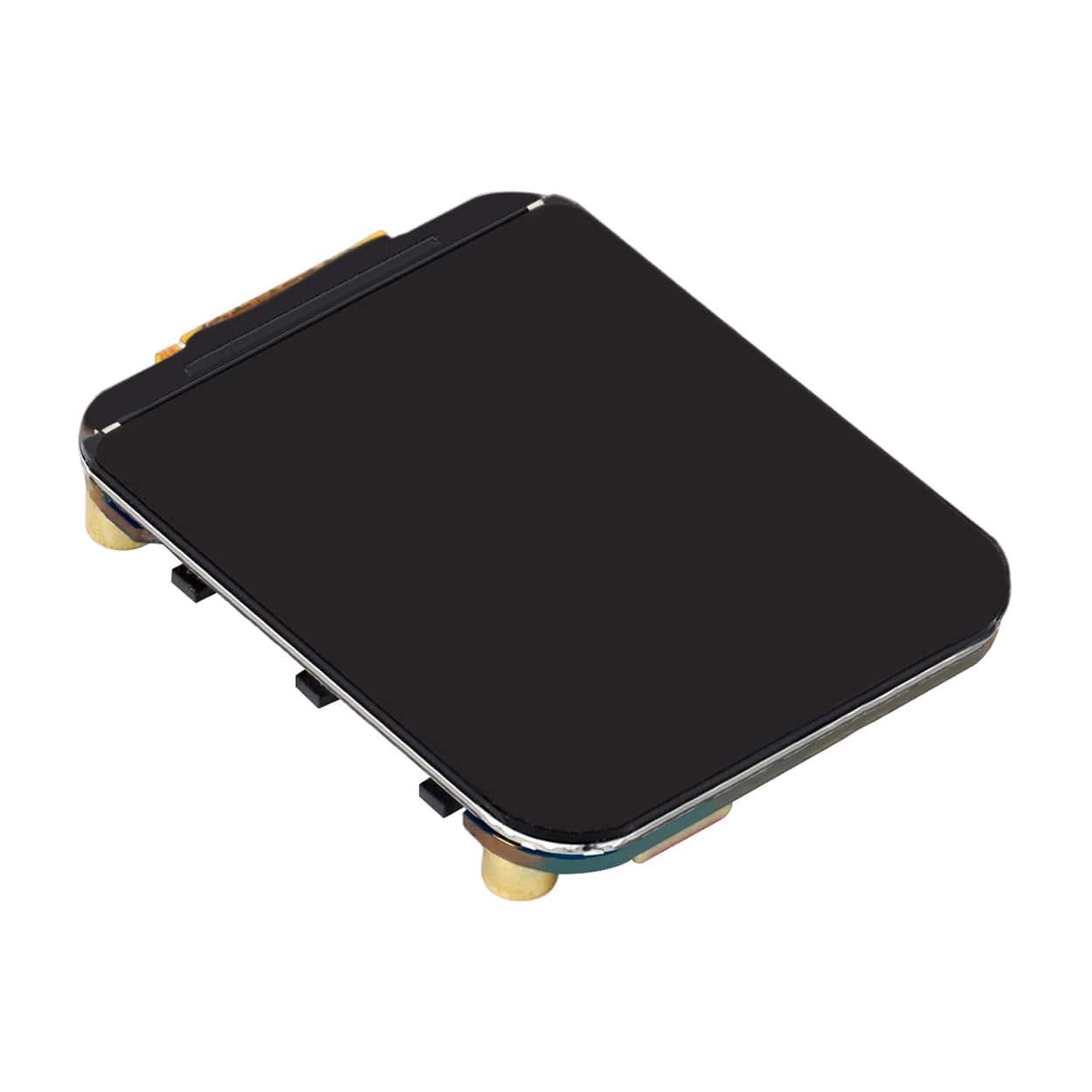

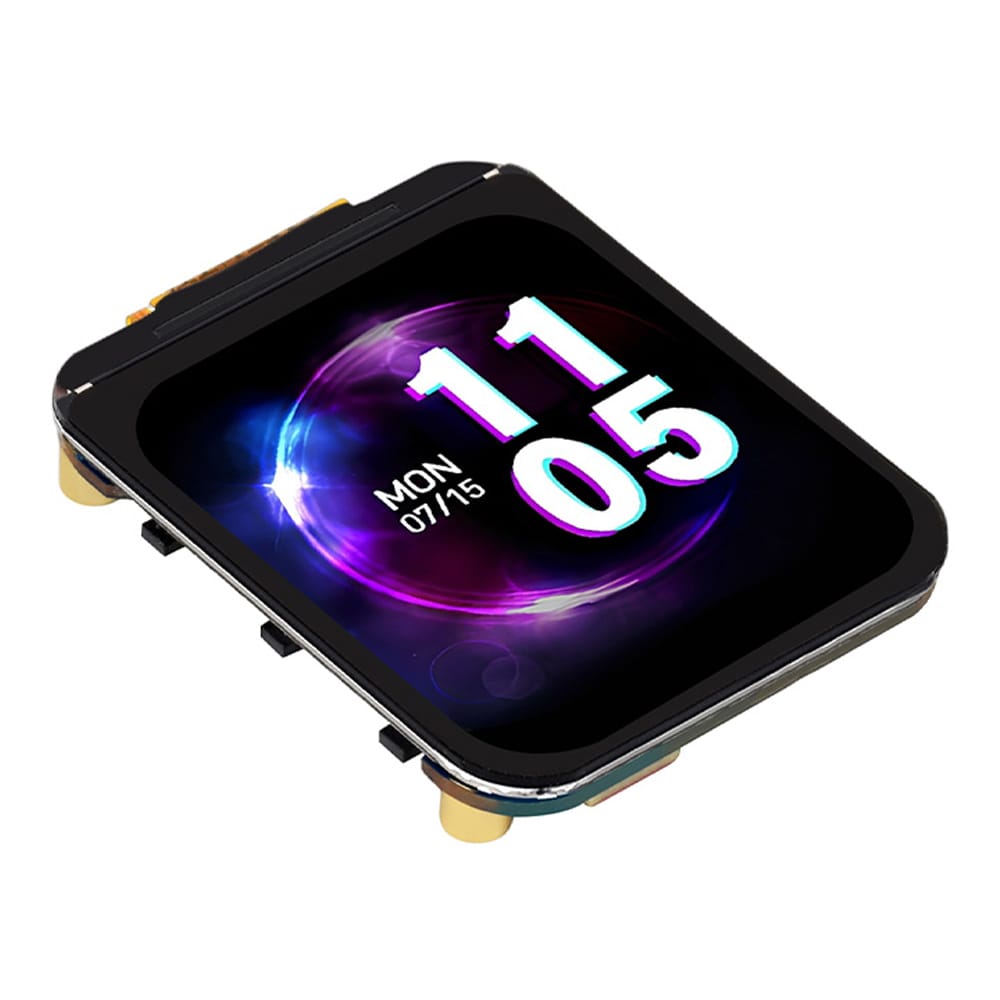

The front of the board holds the 1.69" IPS LCD display, with 262K colours and a 240x280 resolution, driven by a ST7789V2 chip via SPI. It does not support touch input, however we sell a version that does.
A PicoBlade-compatible/MX1.25 LiPo port is onboard (battery not included), with an onboard charge circuit that keeps your battery charged when plugged in to USB-C power. We stock a range of Picoblade-compatible LiPo batteries in the store - just be sure to check and/or adjust polarity as this can vary from board to board.
You'll also find a 6-axis IMU providing a 3-axis gyroscope and a 3-axis accelerometer on the board, a real-time clock (RTC), and an audio amplifier to drive the included 6Ω 1W speaker, with a microphone also onboard to support audio projects with input.
Features
-
Processor: ESP32-C6
- High-performance 32-bit RISC-V processor up to 160MHz
- Low-power 32-bit RISC-V processor up to 20MHz
- Integrated 2.4GHz Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 support
- Supports Zigbee 3.0 and Thread wireless communication
- 320KB ROM, 512KB HP SRAM and 16KB LP SRAM
- Flash: 16MB onboard flash
- USB-C: USB-C port for programming and power
- Onboard controls: RST and BOOT buttons for programming support + user programmable button
-
Display: 1.69" IPS LCD
- 262K colours
- 240x280 display resolution
- ST7789V2 driver (SPI)
- LiPo connector: PicoBlade-compatible/MX1.25 LiPo port onboard
- Battery charging: Onboard charge circuit (powered via USB-C)
- IMU: 6-axis IMU 93-axis gyroscope and 3-axis accelerometer)
- RTC: Onboard real-time clock
- Audio output: Audio amplifier for included 6Ω 1W speaker
- Audio input: Onboard microphone

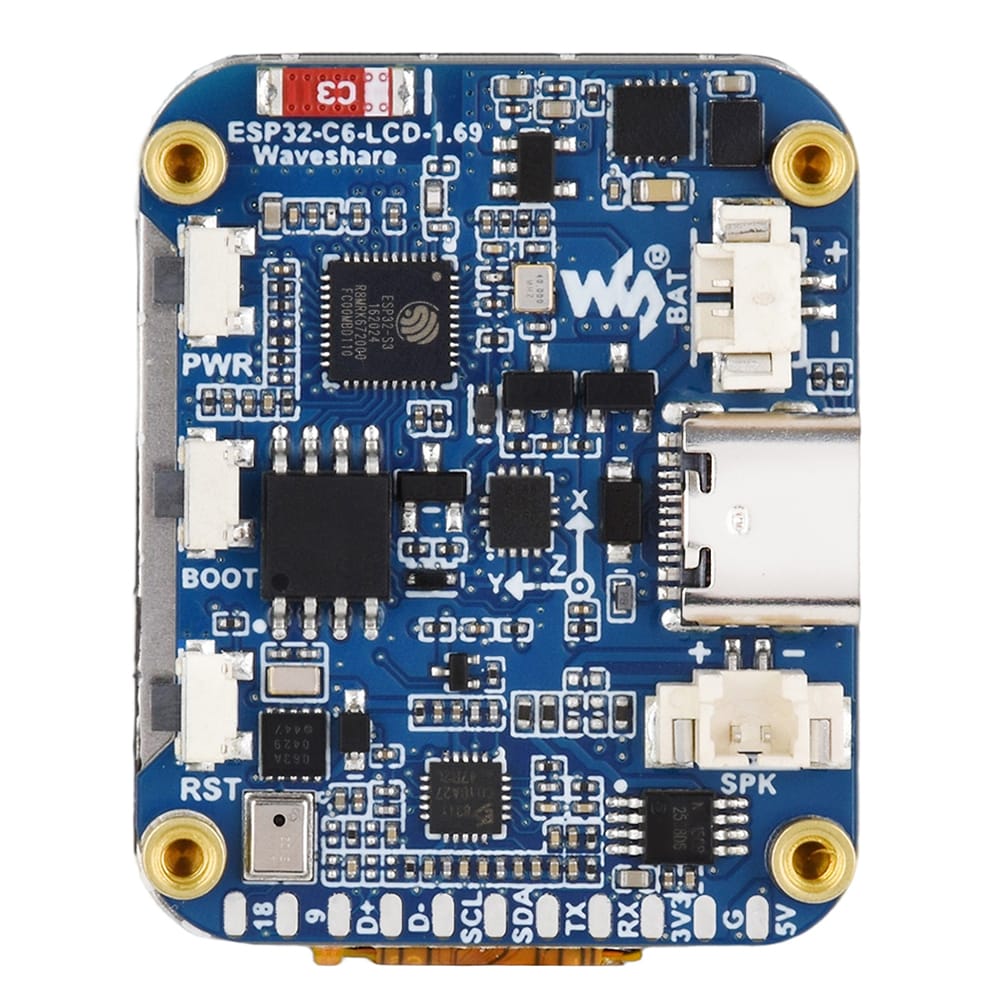

What's Onboard?
- ESP32-C6
-
W25Q128JVSIQ
- 16MB NOR-Flash
-
PCF85063
- RTC chip
-
QMI8658
- 6-axis IMU, including a 3-axis gyroscope and 3-axis accelerometer
-
ETA6098
- High-efficiency lithium battery charging IC
-
MX1.25 2P lithium battery header
- For connecting a 3.7V lithium battery, supporting charging and discharging
-
Type-C port
- ESP32-C6 USB interface for program uploading and log printing
- MX1.25 speaker header
- Onboard antenna
-
PWR button
- Supports battery power supply control, single-press, double-press, multi-press and long-press operations
- BOOT button
- RST button
- Microphone
-
NS4150B
- 3.0W mono class-D audio power amplifier
-
ES8311
- Low-power mono audio codec
LCD Specifications
| Display panel | IPS |
| Display size | 1.69" |
| Resolution | 240 × 280 pixels |
| Colour | 262K |
| Brightness | 435 cd/㎡ |
| Contrast ratio | 315:1 |
| Communication interface | SPI |
| Display driver | ST7789V2 |
Resources

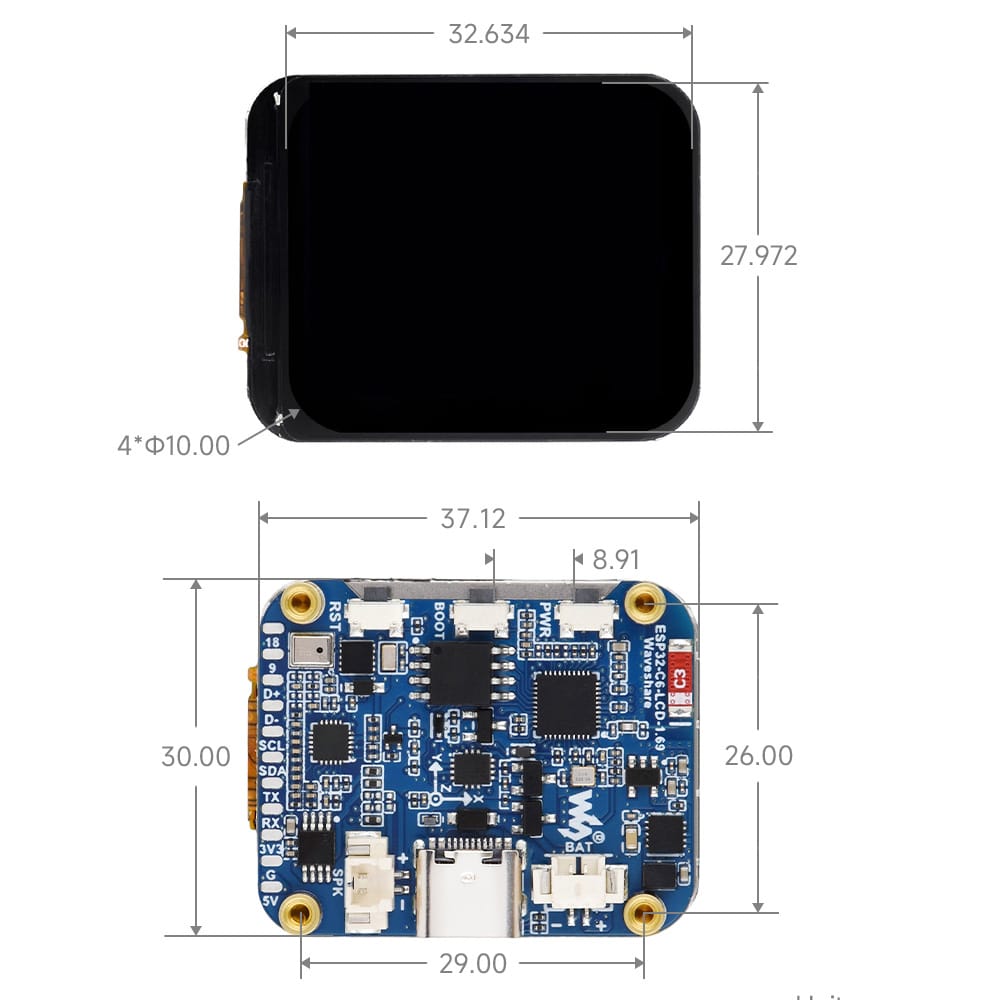

Pinout
Package Contents
- 1x ESP32-C6 1.69" IPS LCD Dev Board (240x280)

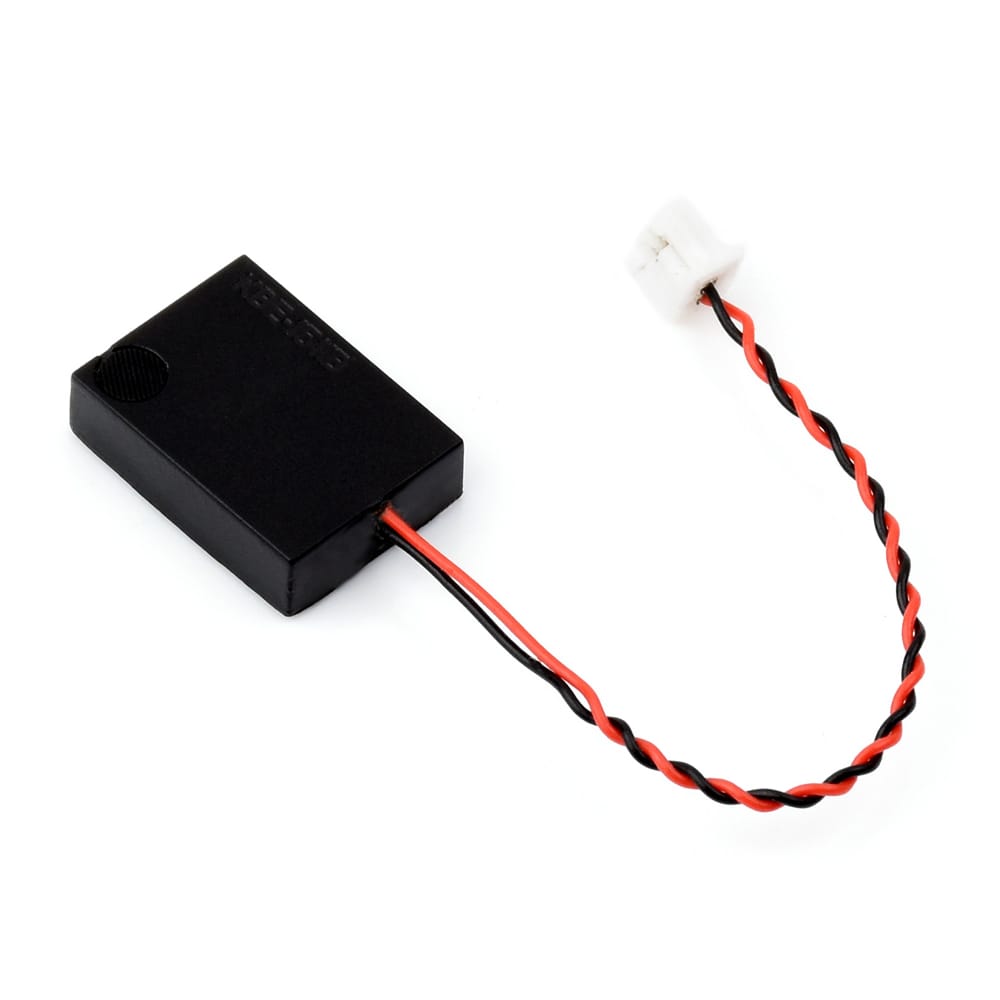

- 1x 6Ω 1W speaker
