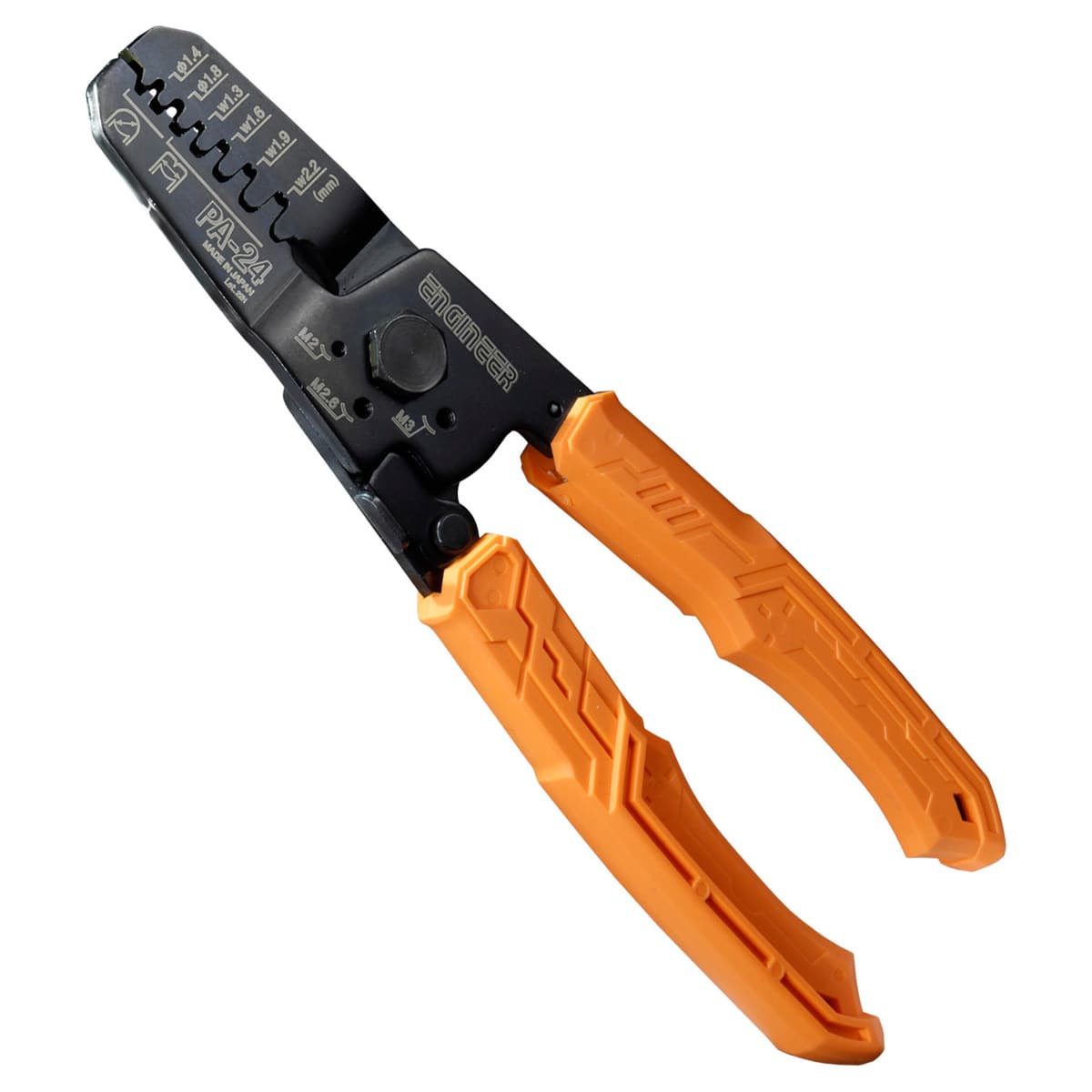

The updated Engineer PA-24Crimping Tool Pliers feature precision crimp dies, which offer uniform quality and a professional finish when crimping connectors.
The PA-24 is capable of crimping more than 170 different open-barrel terminals that cover most of the conventional 2.5mm pitch connectors, including DuPont connectors (Servo connectors) professionally. The PA-24 is also equipped with a screw cutter (M2, M2.6 & M3) ideal for construction and repair of hobby PC, RC, Drone, Robotics, Prototypes, etc.
Engineer® has been manufacturing high-quality Japanese precision tools since 1948. If you're looking for the very best precision hand tools for your projects - look no further. Check out our full range of Engineer tools here!
Features

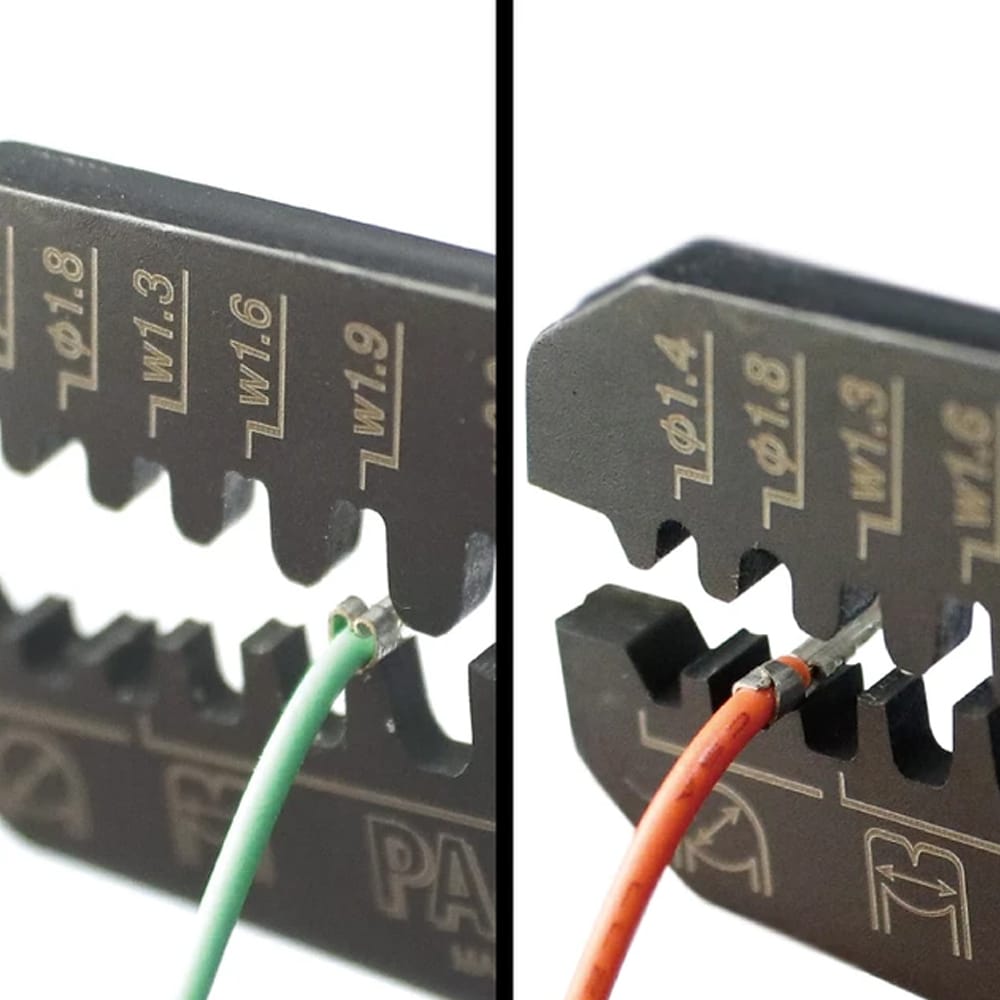

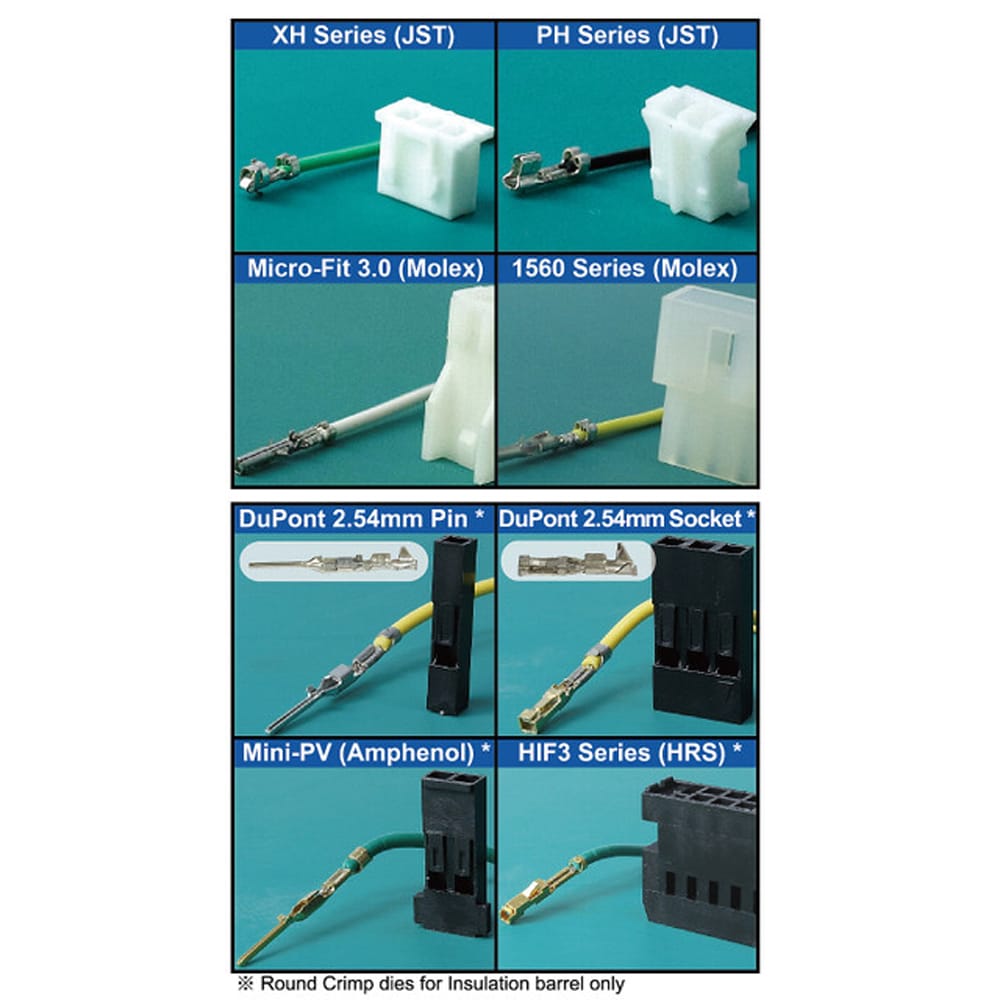

ENGINEER's new technology of die design offers super neat 'curled' crimping of 2.5mm pitch connector contacts (AWG #32-#18). Works with more than 170 different terminals such as JST XH, PH, EH & NH series, Molex Micro-Fit 3.0, KK series, etc.

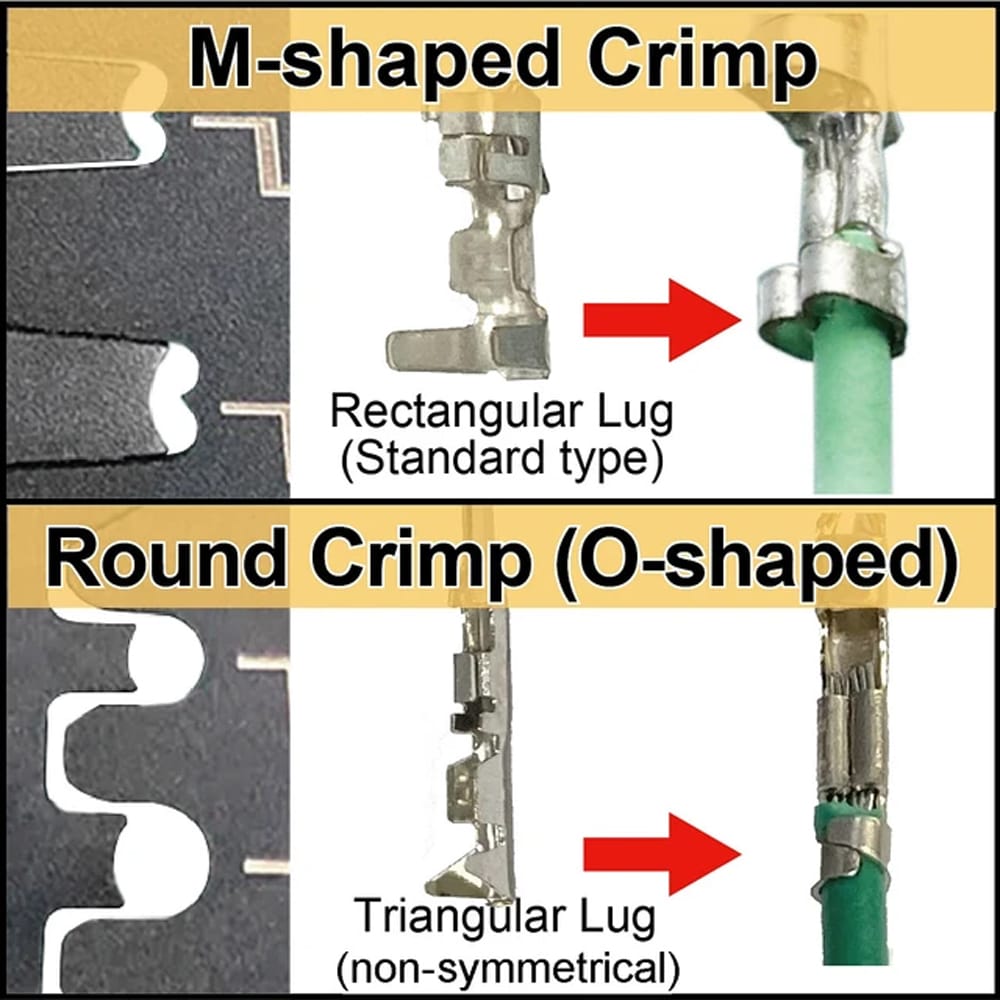

Perfectly crimps triangular insulation barrel (lugs) of DuPont / Servo connectors, Molex C-Grid III, etc. without damaging the insulation

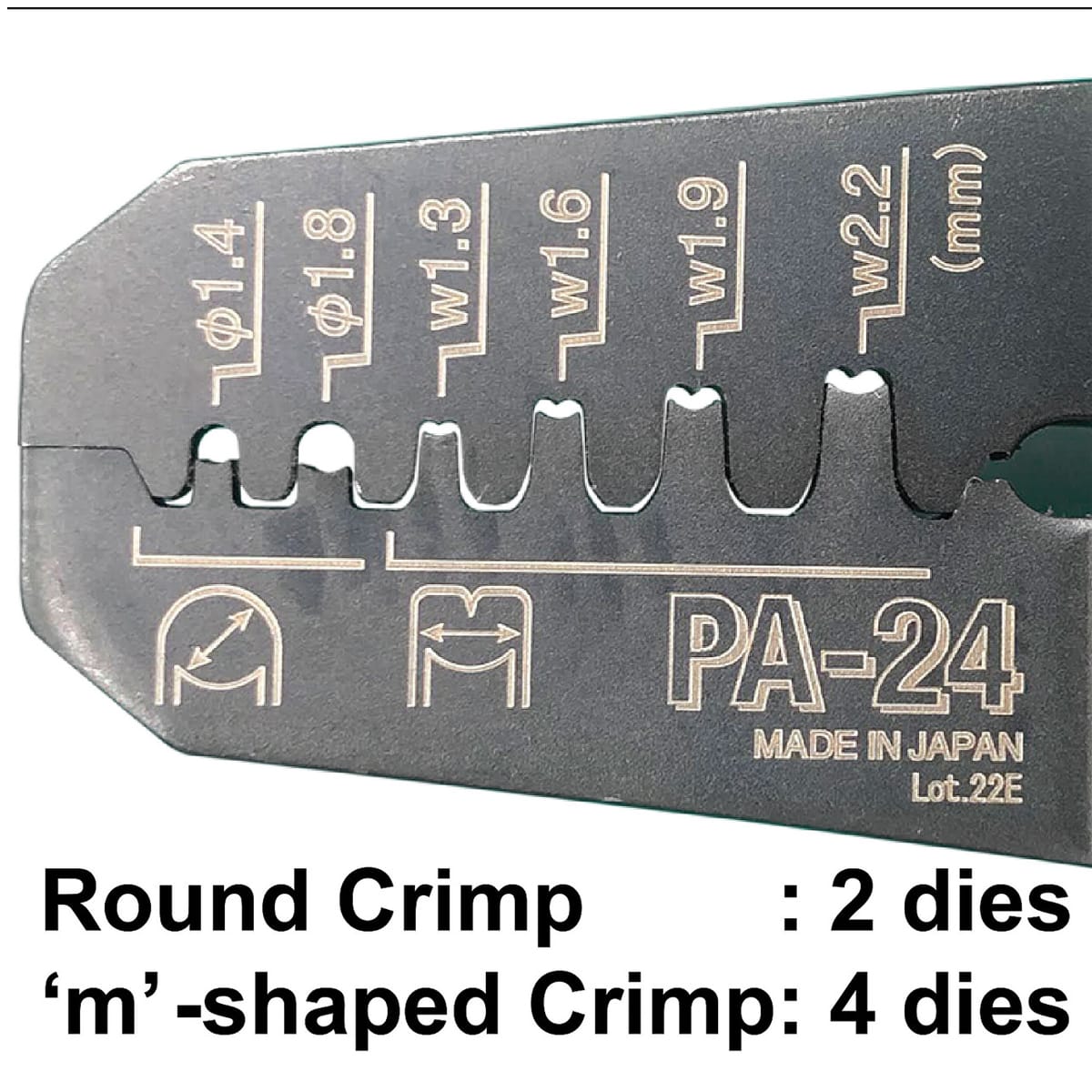

Six Crimping Dies - 'm'-shaped: ⌀1.3mm, ⌀1.6mm, ⌀1.9mm & ⌀2.2mm. Round shaped: ⌀1.4mm & ⌀1.8mm) for open-barrel contacts

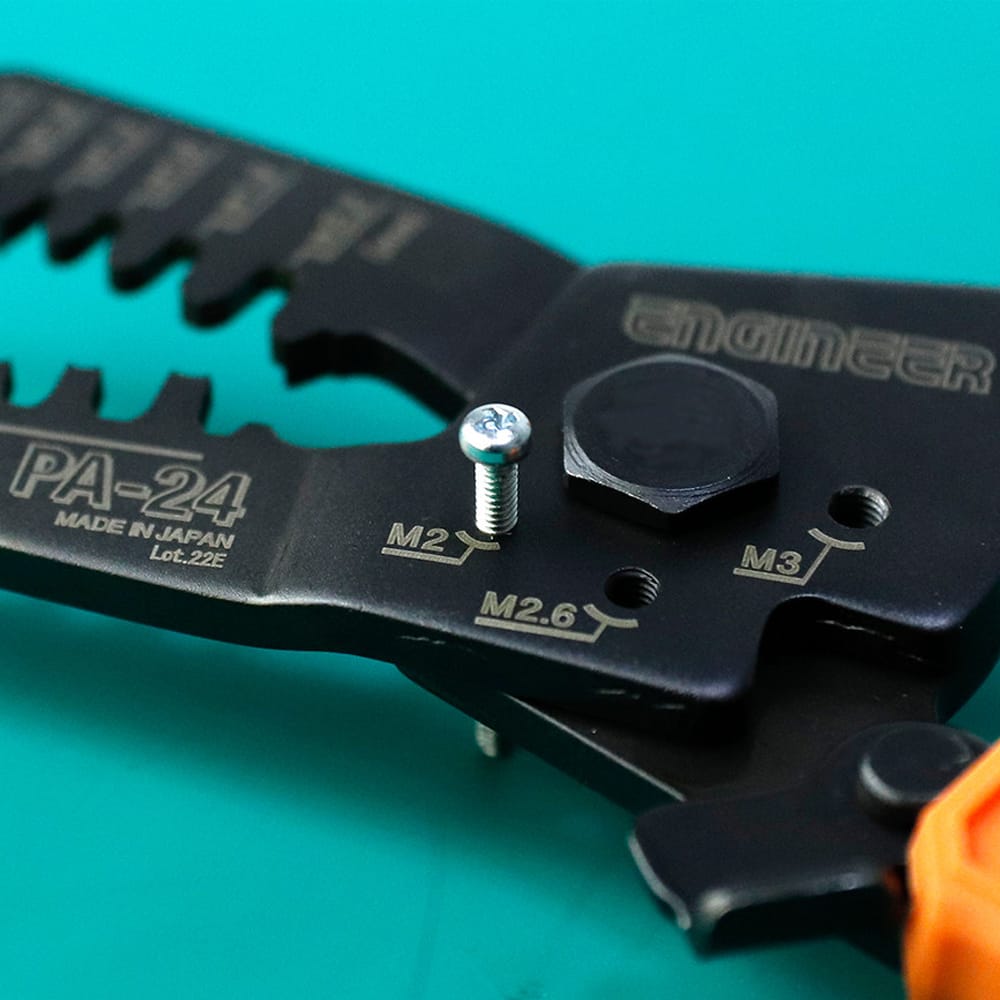

Built-in screw cutter -for M2, M2.6 & M3 screws
Spring loaded grips for easy handling - locking latch to hold the grips closed for ease of storage
Tapered and slender jaws, lightweight (only 115g)
Made in Japan

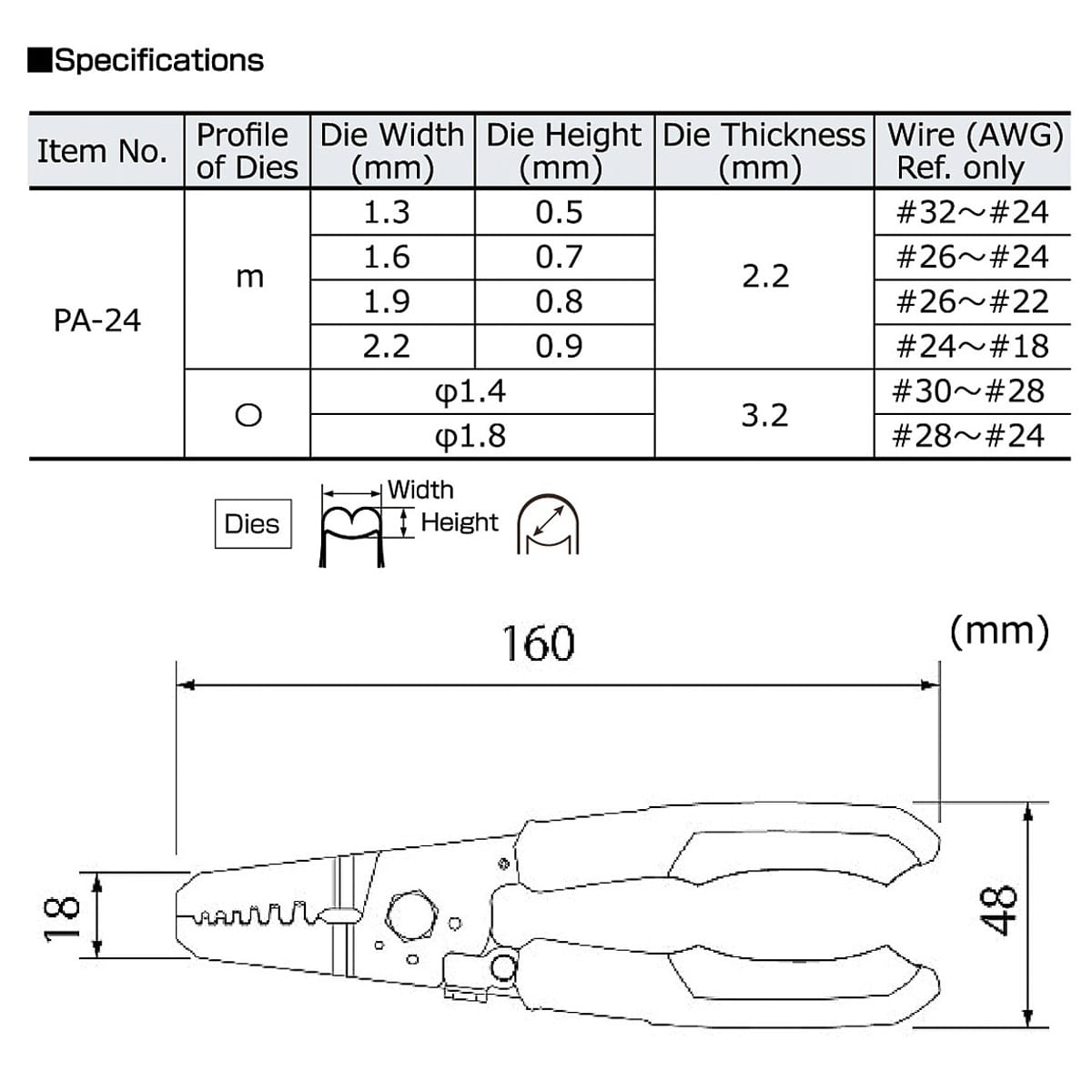

Specifications
Die Width: Round dies/φ1.4, φ1.8, M-shaped dies/1.3, 1.6, 1.9, 2.2mm
Length: 160mm
Handle Width: 48mm
Weight: 115g
Material: Body/Carbon steel, Grip/TPR
Package Contents
1x Engineer® PA-24 Crimping Tool
