DF Metal 15KG Servo with Analogue Feedback 270° (DSS-M15S)

DFRobotSKU: SER0044
Price:
Sale price £14.40
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
DF Metal Geared 15Kg Standard Servo 180° (DSS-M15) - The Pi HutDF Metal Geared 15Kg Standard Servo 180° (DSS-M15) - The Pi Hut
DFRobotDF Metal Geared 15Kg Standard Servo 180° (DSS-M15)
Sale price £13.40 incl. VAT excl. VAT

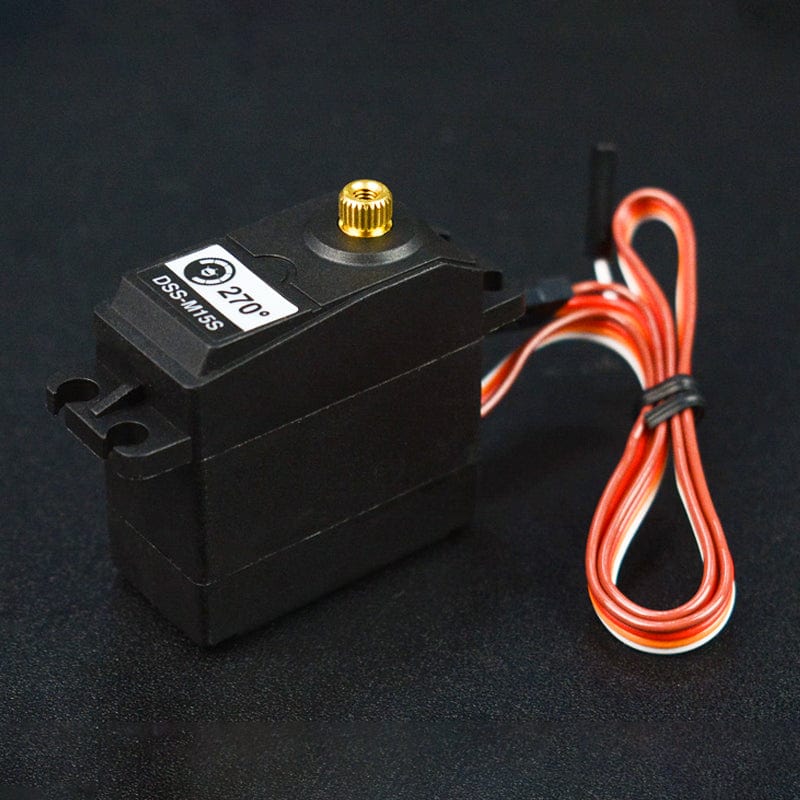

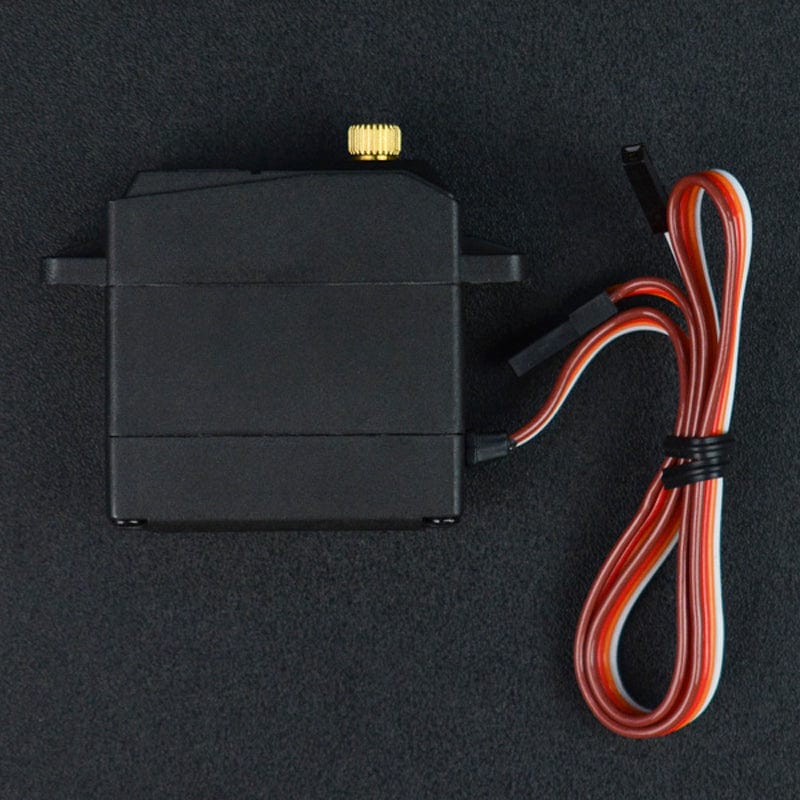

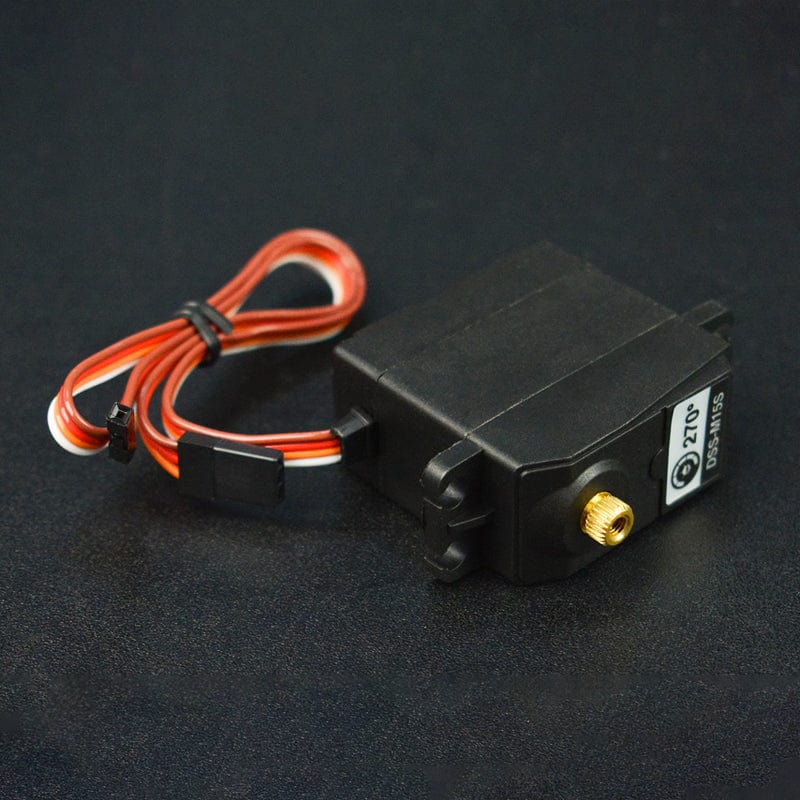

This DSS-M15S Servo is a metal servo that has precise angle control with feedback, making it ideal for projects requiring accurate positioning. It operates at 4.8-7.2V, provides a locking torque of up to 12KG.cm, and supports a 270° rotation range.

Compatible with Arduino, it gives real-time angle feedback via a 0-3.3V analogue signal, which allows closed-loop control. The servo includes various horns and screws for flexible mounting, making it perfect for robotics, automation, and precise motion control projects.

Specifications

Electronic Specifications

  • Operating voltage: 4.8-7.2V

6V Test Environment

  • Operating speed (no load): 0.18 sec/60 degrees
  • Resting current: 80mA
  • Locking torque: 11.5KG.cm
  • Stall current: 1.4A
  • Standby current: 4mA

7V Test Environment

  • Operating speed (no load): 0.16sec/60 degrees
  • Resting current: 100mA
  • Locking torque: 12KG.cm
  • Stall current: 1.76A
  • Standby current: 5mA

Mechanical Specifications

  • Gear material: metal gear
  • Operating angle: 270 degrees
  • Wiring gauge: 28PVC
  • Data line length: 320mm

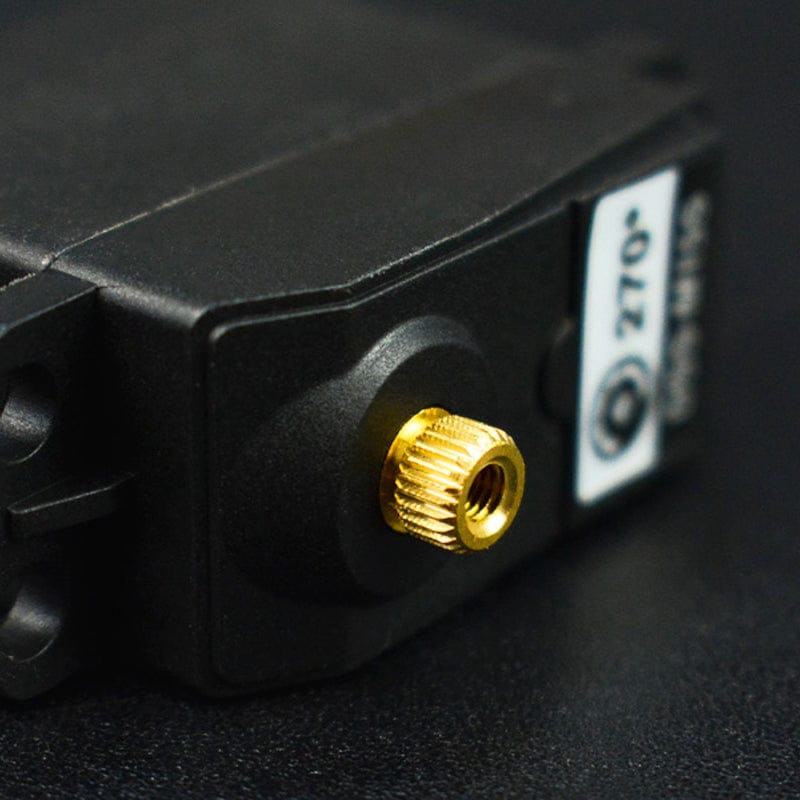

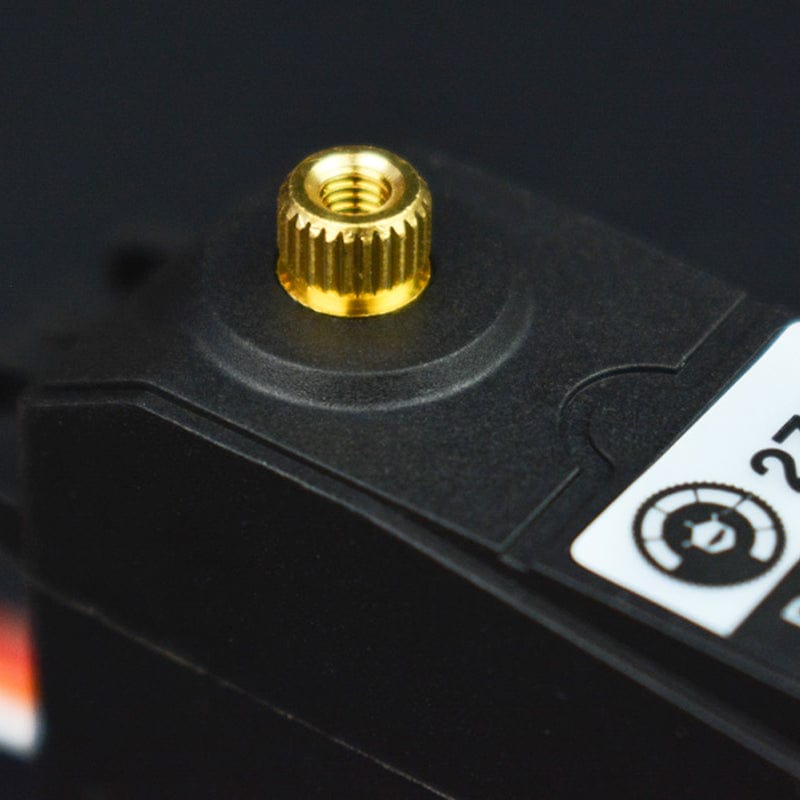

  • Gear bracket spline: 25T/5.80
  • Gear ratio: 310:1

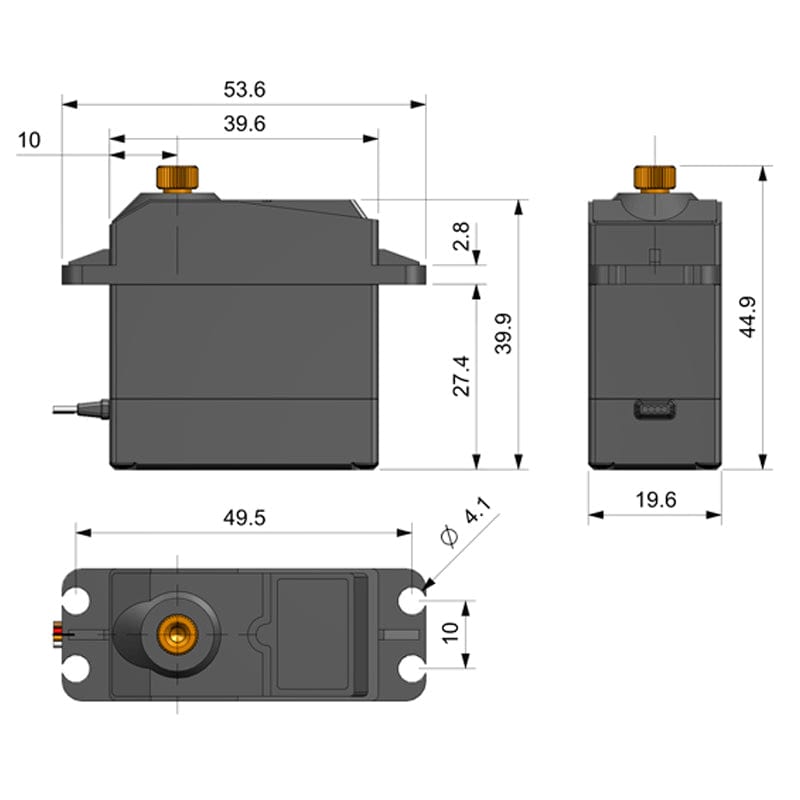

  • Size: 54.5 x 20 x 47.5mm

Control Specifications

  • Feedback signal: 0-3.3V
  • Control signal: RC PWM
  • Pulse range: 500-2500 us
  • Median signal value: 1500us
  • Clockwise rotation: <1500us
  • Control frequency: 50-330Hz (Arduino Compatible)

Connection Example - DFRduino UNO

Resources

Pinout

1 GND GND
2 VCC 4.8~7.2V
3 INPUT PPM Signal
4 OUTPUT Analogue feedback

Package Contents

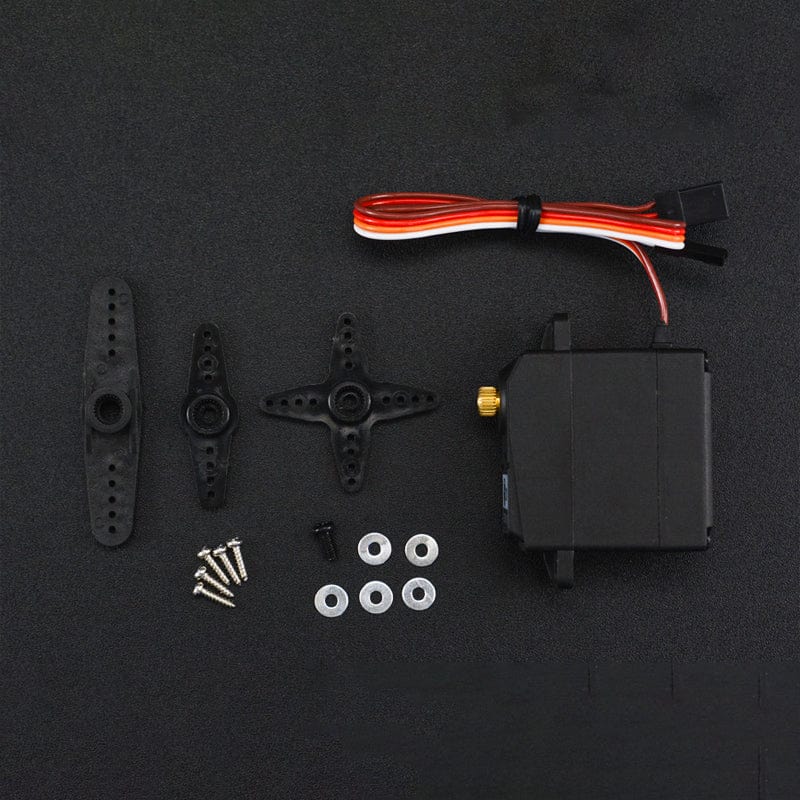

  • 1x DSS-M15S 270° servo with analogue feedback
  • 1x Crossed horn
  • 1x Long straight horn
  • 1x Short straight horn
  • 5x M2 x 8 self-tapping screws and gasket
  • 1x M3 x 6 screw
