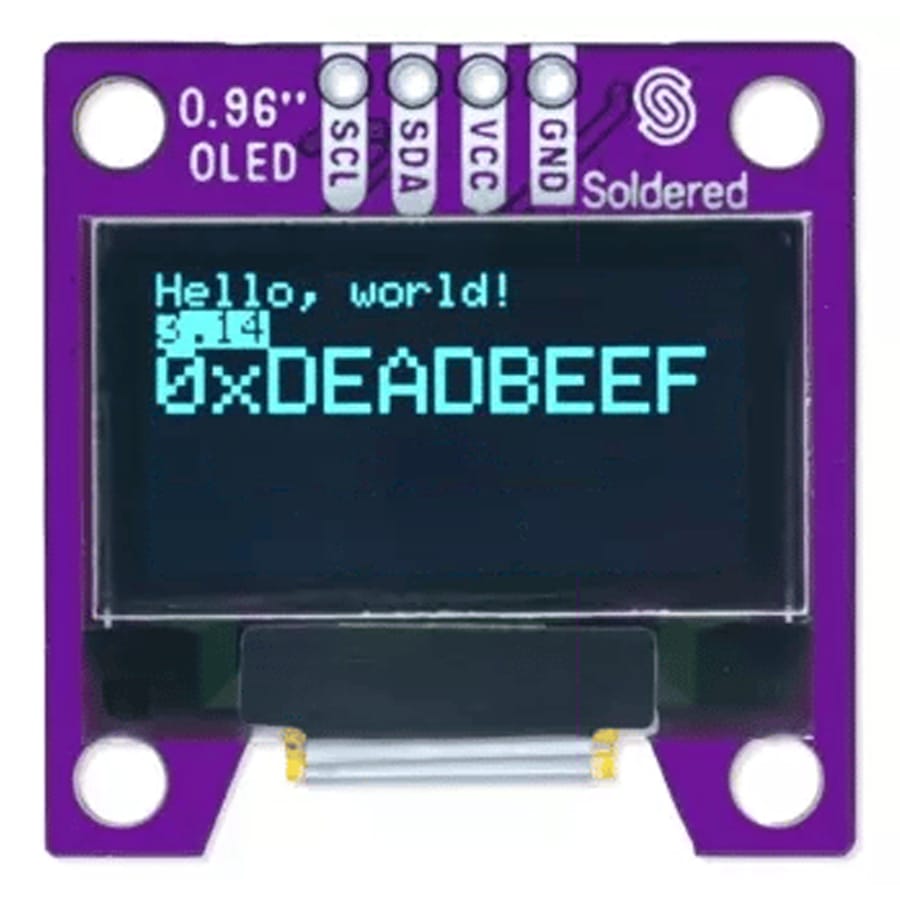

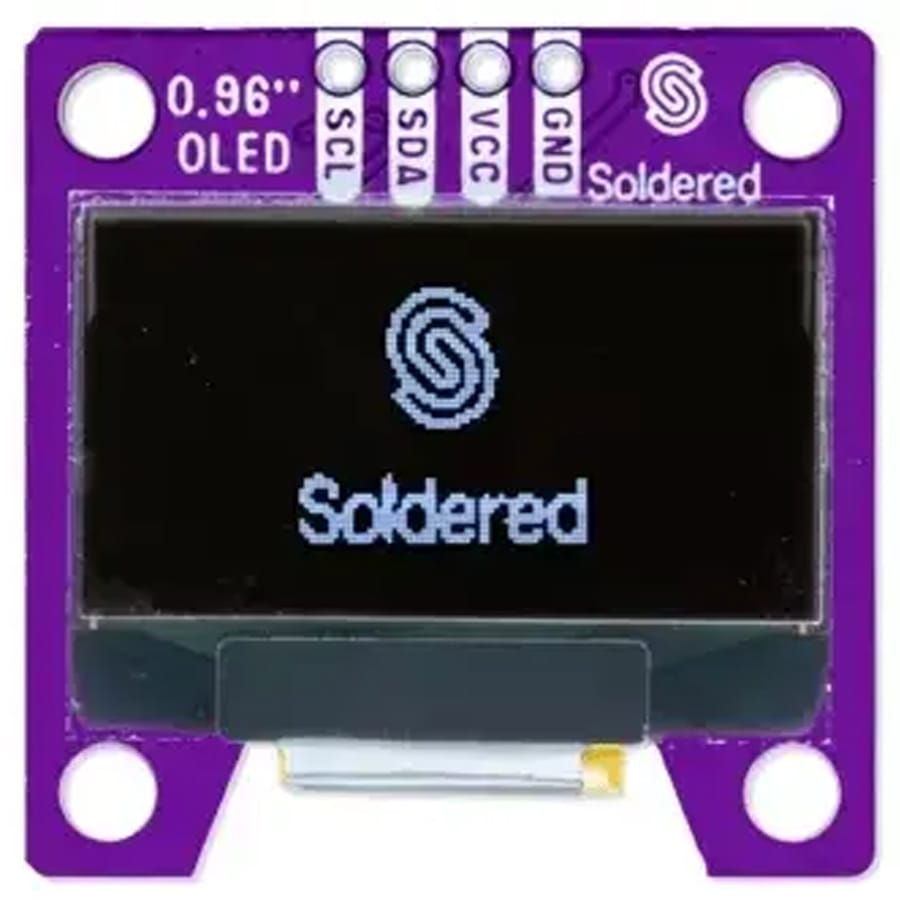

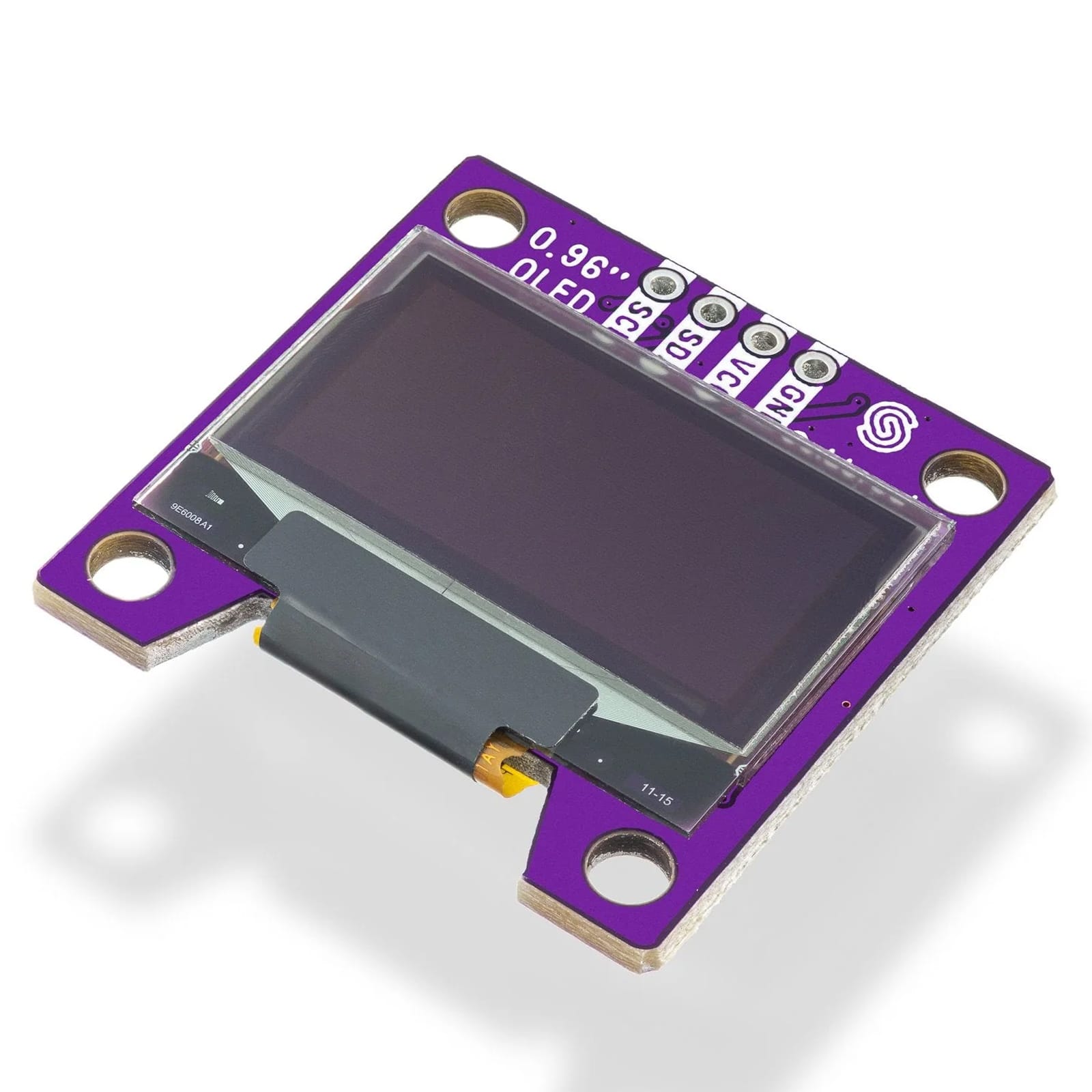

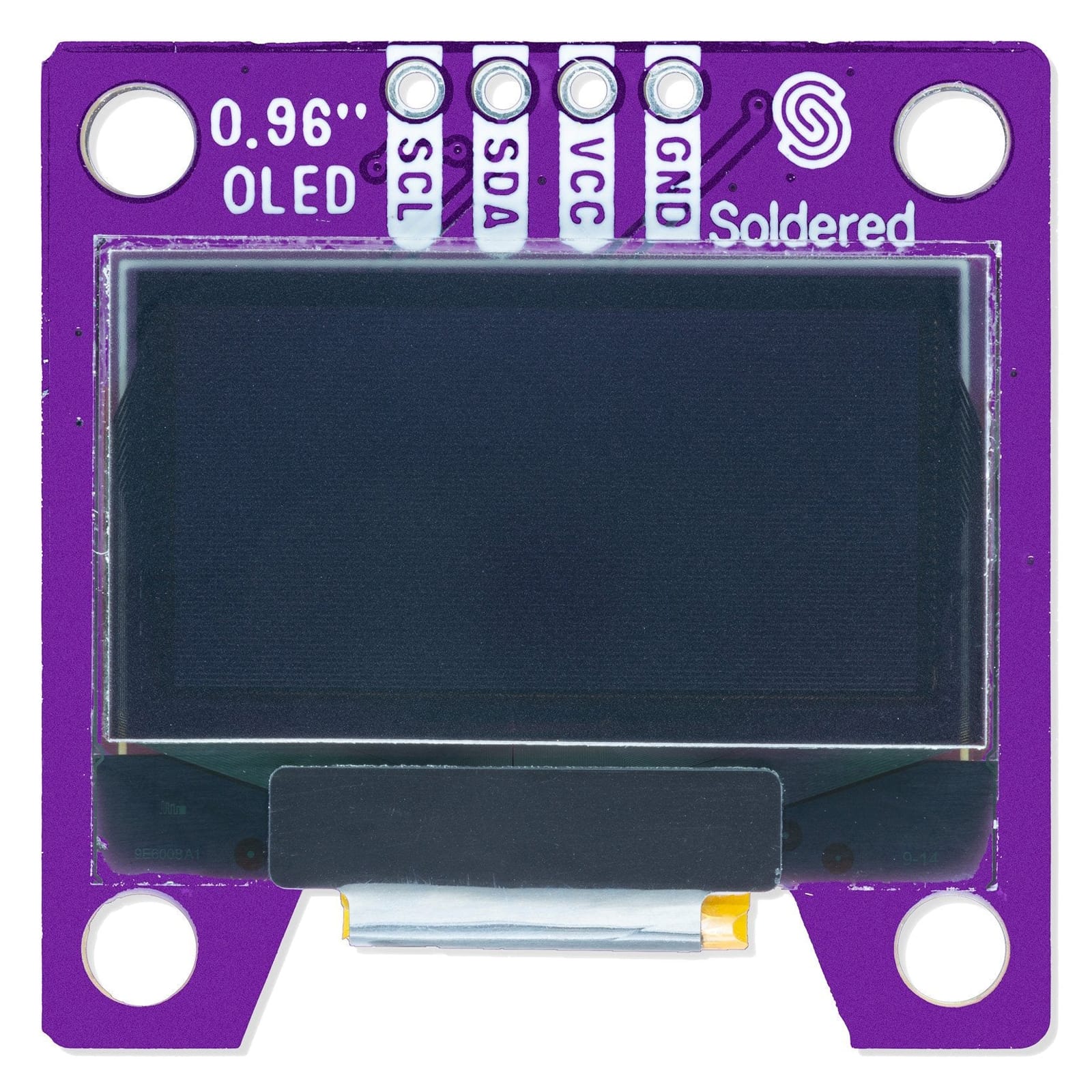

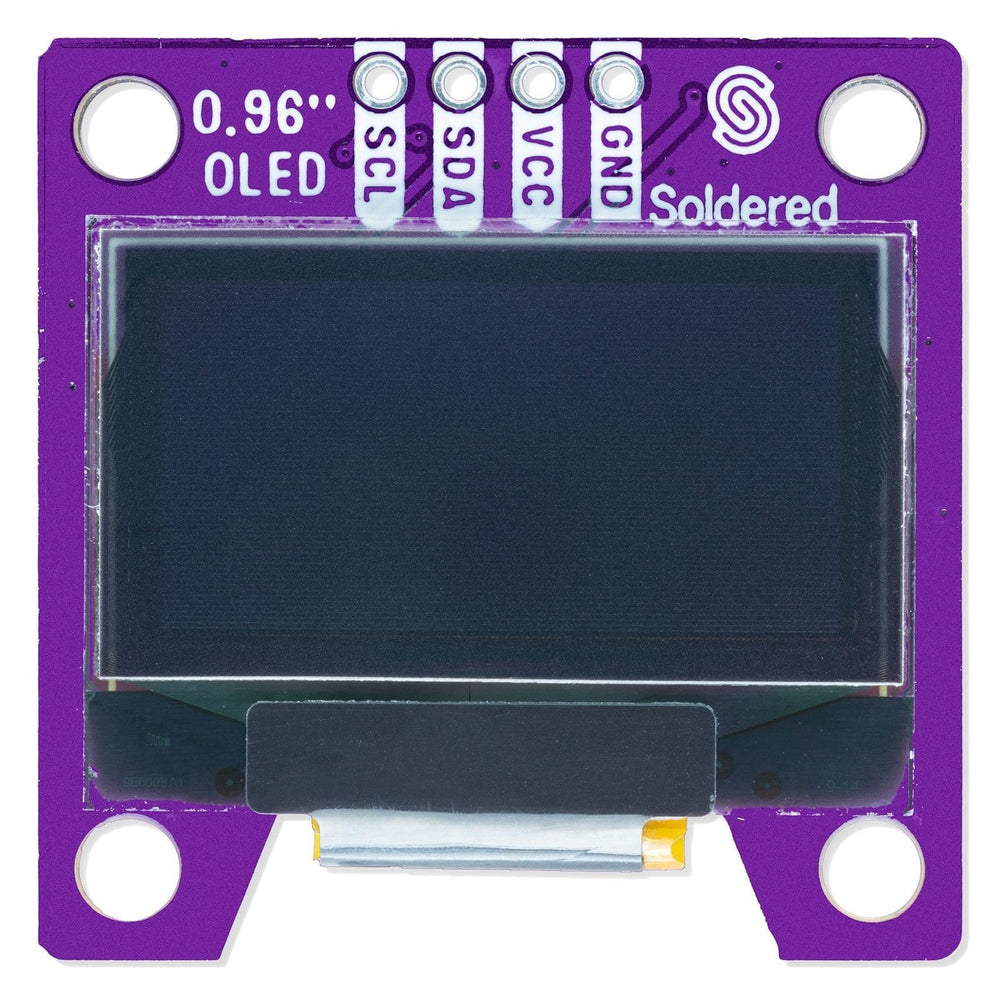

Display OLED I2C 0.96" SSD1306

This 128×64 I2C OLED Display provides a crisp, high-contrast display for text, graphics, and icons, with low power consumption and easy I2C or Qwiic connectivity for embedded and microcontroller projects.

Looking to add visuals to your Arduino projects? The I2C OLED breakout board is perfect for that. Because of its high contrast, you will be in awe of its crispness!

The display is made from hundreds of LEDs, each representing one pixel in a 128x64 grid. Thus, it doesn't need any backlight, and it needs less power than the classic LCD screens. That’s 8192 pixels all individually lit at your fingertips!

The design is 5V ready with an onboard regulator, so is compatible with any 3.3V board. The breakout board uses only about 20mA, depending on active pixels.

It is easy to control over the I2C interface. It is even easier to connect with the Qwiic system - no soldering required!

This is available in WHITE or BLUE. Please select colour preference before checkout.

View our full range of Soldered Electronics products here.

Features

• Screen diagonal: 0.96" wide
• Current consumption: ~20 mA (depending on active pixels)
• Logic voltage level: 5V (on I2C header)
• Operating voltage: 5V (onboard regulator for 3.3V)

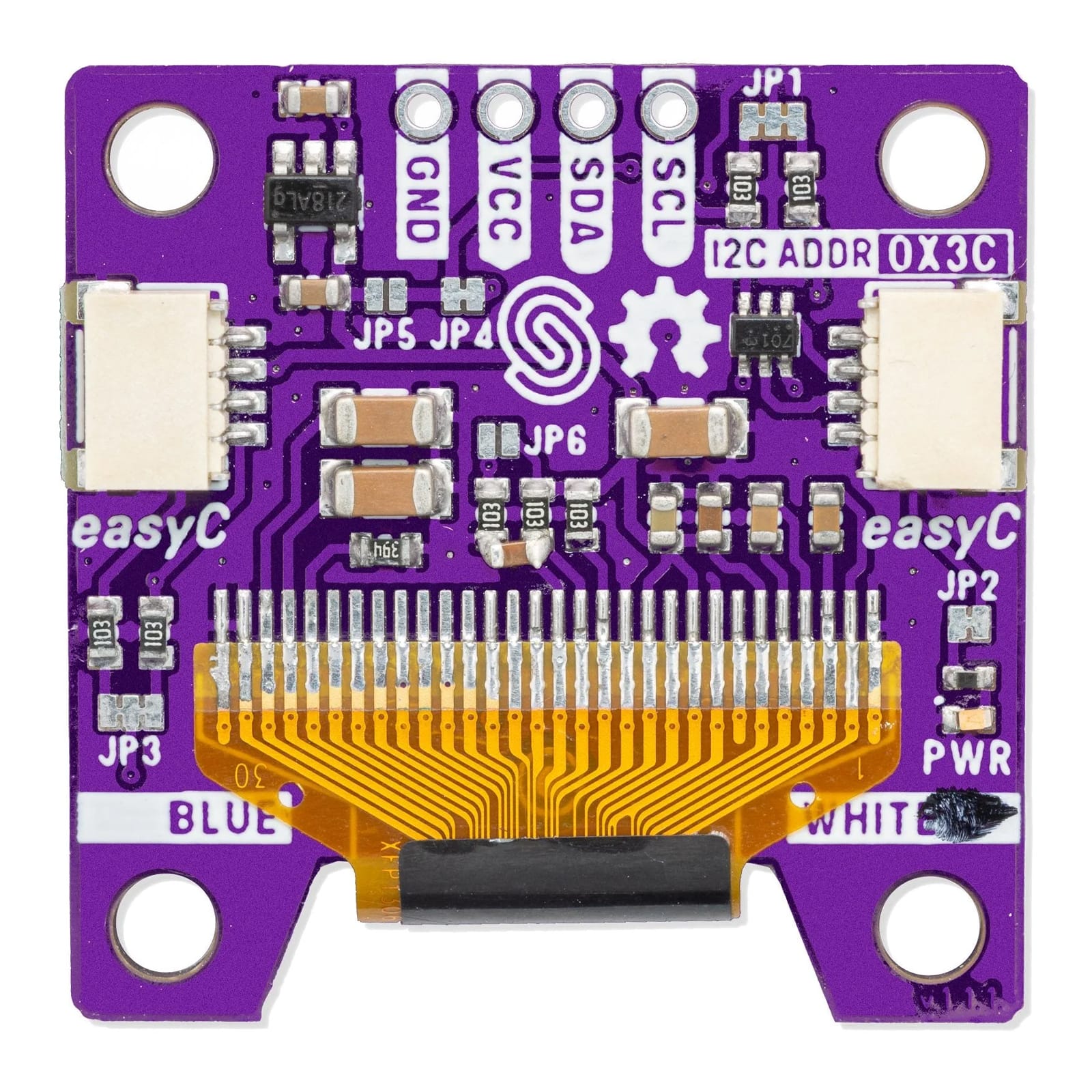

• Communication: I2C (address: 0x3C)

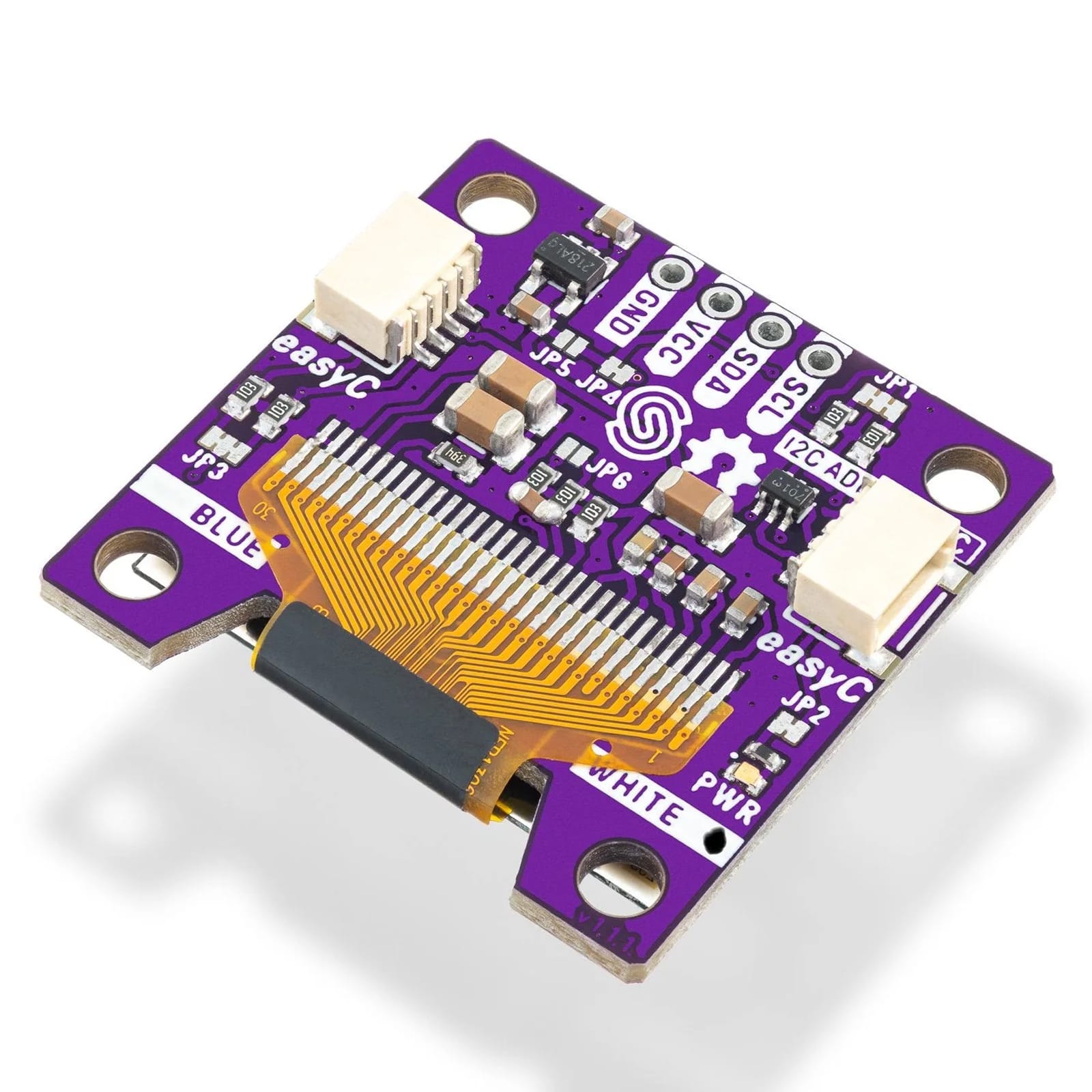

• Connectors: Qwiic x2
• Optional white pixel colour
• Optional blue pixel colour
• Mounting holes: x2

Specifications

• Dimensions: 30 x 30 mm

Resources

• Full product documentation
• Product datasheet SSD1306
• Open source hardware files
• Arduino library
• Arduino library documentation
• Hardware details
• Getting started with Arduino
• Micropython module
• CE Certificate
• UKCA Certificate

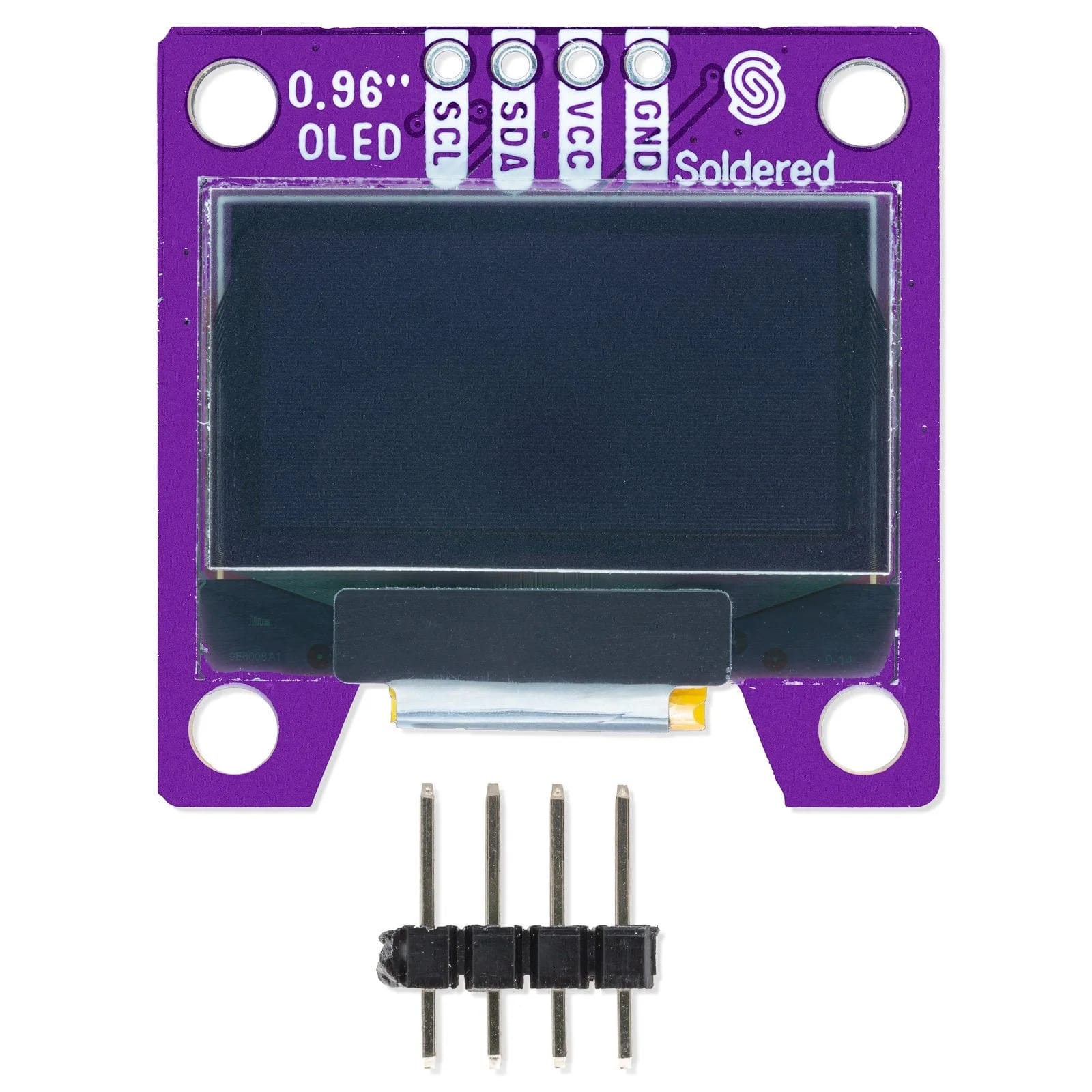

Package Contents

• 1x Display OLED I2C White 0.96" SSD1306
• 1x Header strip

This is available in WHITE or BLUE. Please select colour preference before checkout.
