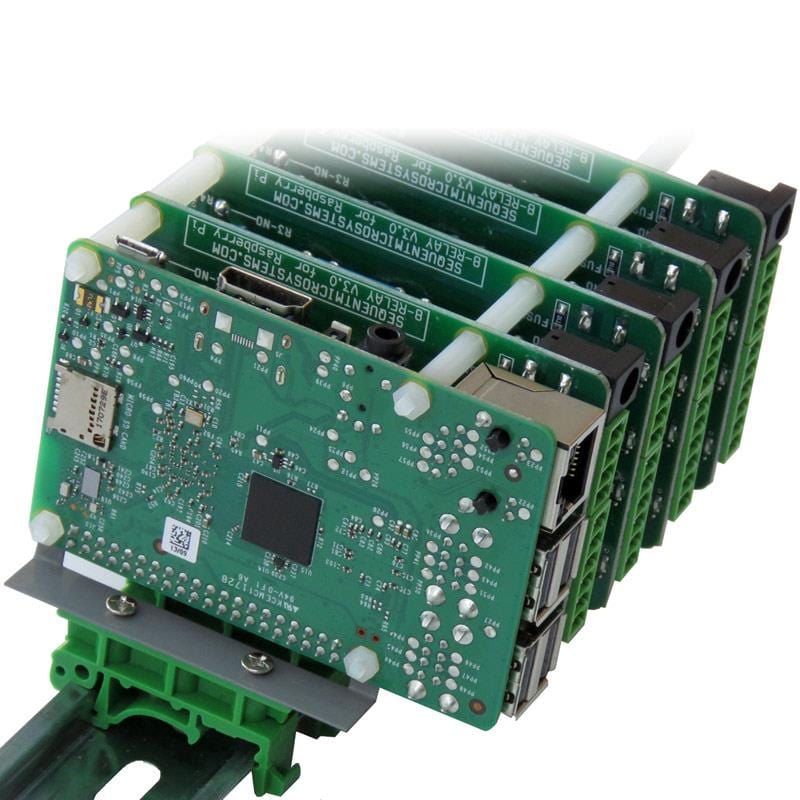

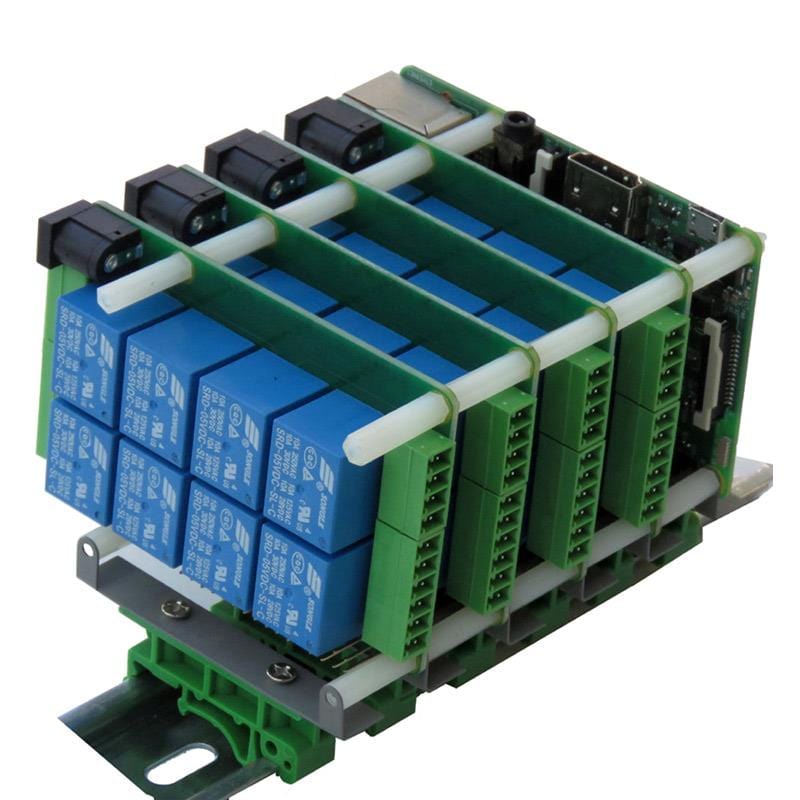

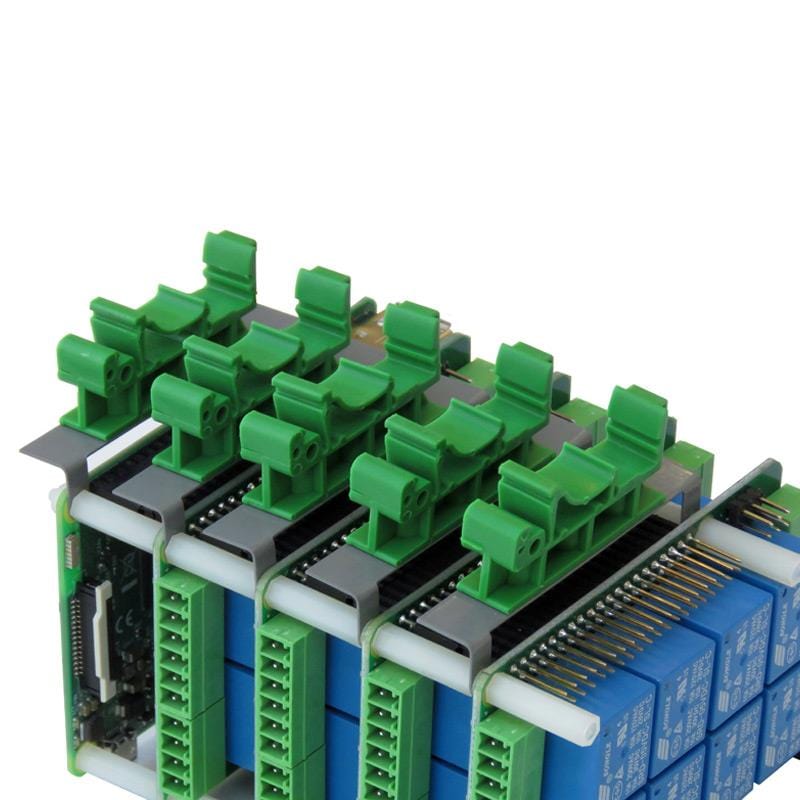

This kit permits installation of all versions of Raspberry Pi, from Zero to 4, and any number of add-on cards, perpendicular to a DIN Rail.

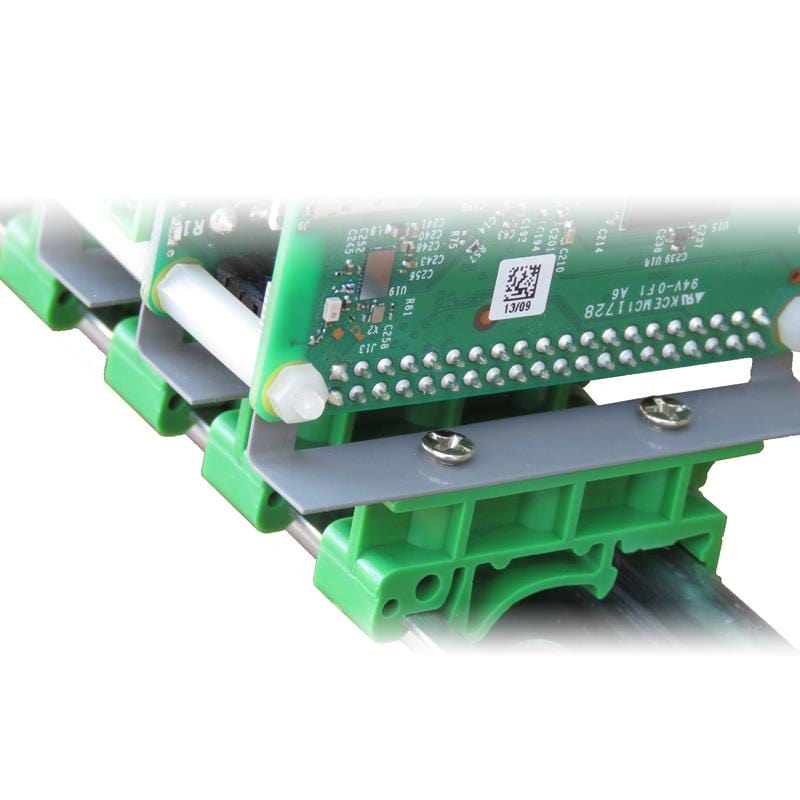

Each card is secured with a steel bracket, providing good mechanical stability. For a parallel to DIN-Rail installation, see our DIN-RAIL Kit Type 1.
One kit contains all the hardware for mounting one Raspberry Pi and one add-on card. Each additional kit will install two more add-on cards on the DIN-RAIL. The mounting plate is made out of 0.8mm steel with powder-coated finish.

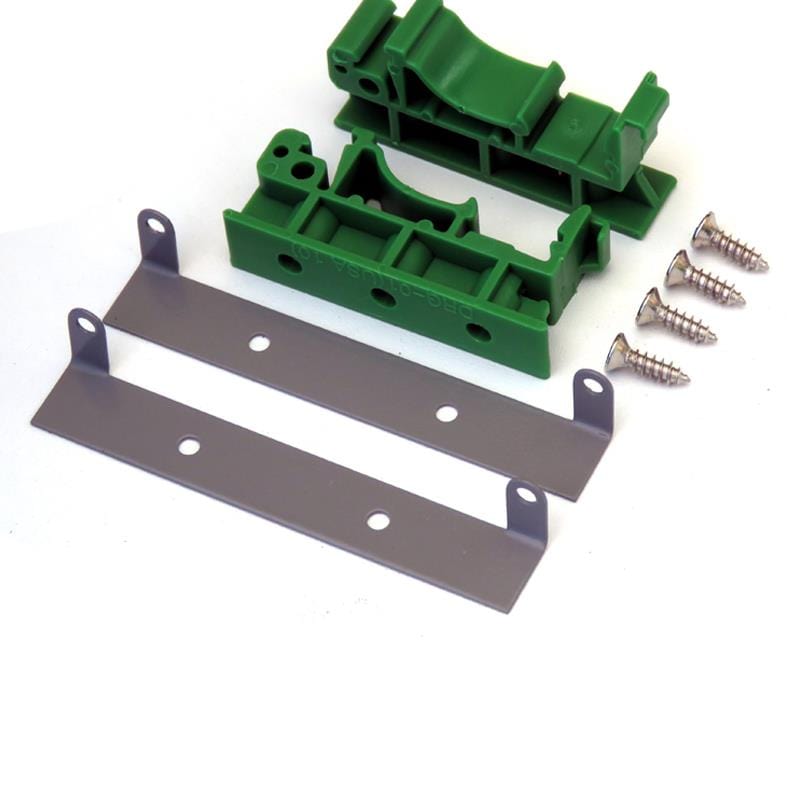

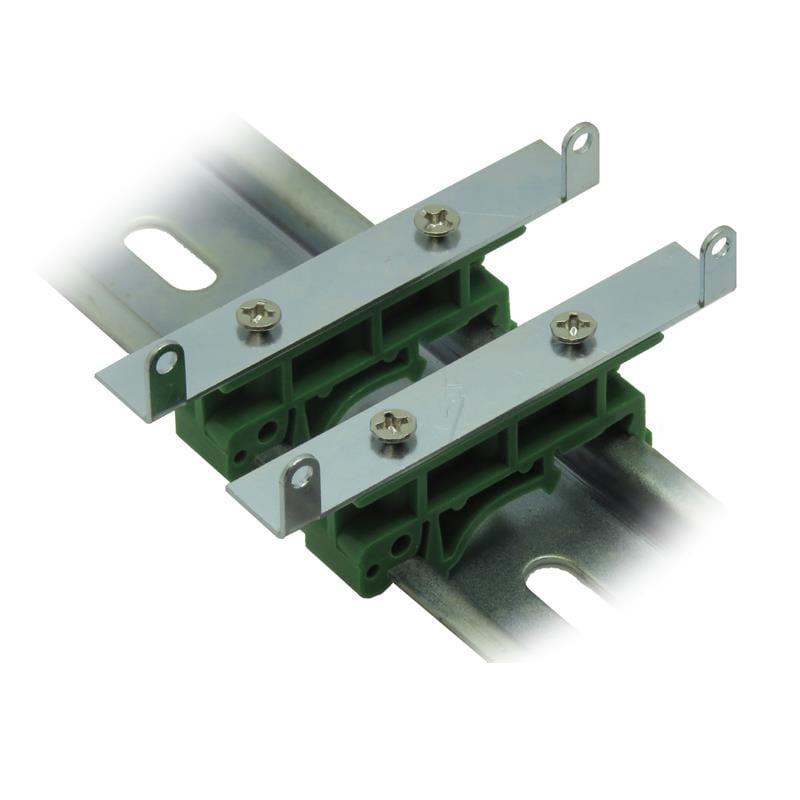

- Two Plastic DIN Rail Brackets with Screws
- Two Custom Steel Plates
Dimensions and Weight
- Weight: 25 g
- Dimensions: 5cm×6cm×1cm
Custom steel plate dimensions
