Gravity: Digital Crash Sensor (Right)

DFRobotSKU: SEN0138-R
Price:
Sale price £2.80
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Awesome Extras

DFRobotDFRduino Uno R3
Sale price £16.70 incl. VAT excl. VAT
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £8.50 incl. VAT excl. VAT
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT
A miniature snap-action switch, also trademarked and frequently known as a micro switch, is an electric switch that is actuated by very little physical force.Micro switches are very widely used; among their applications are appliances, machinery, industrial controls, vehicles, and many other places for control of electrical circuits. They are usually rated to carry current in control circuits only, although some switches can be directly used to control small motors, solenoids, lamps, or other devices.

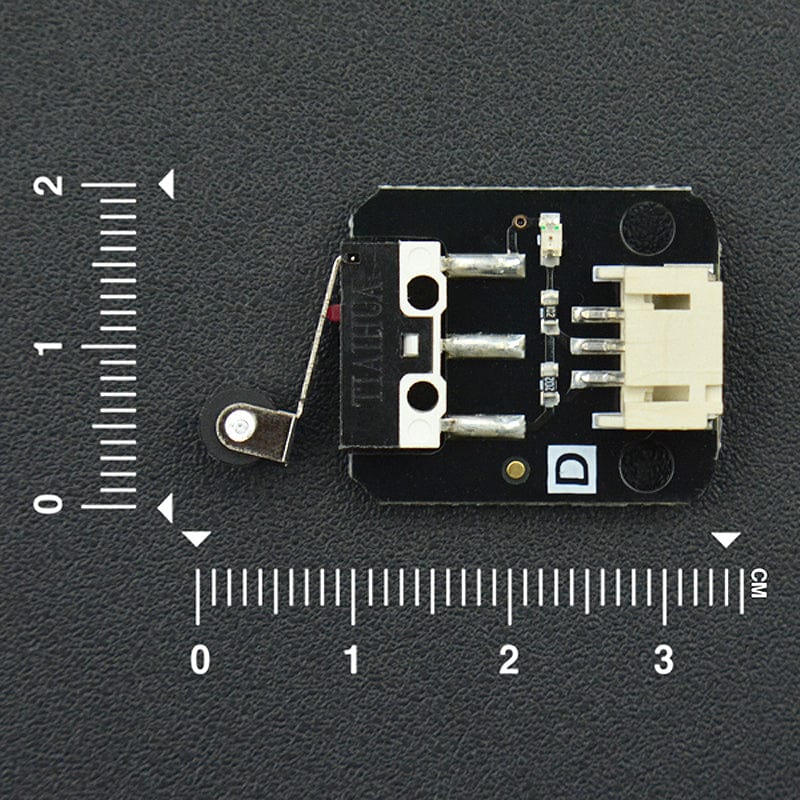

This is a small micro switch crash sensor designed for the Arduino. It could be directly connected to the IO Expansion shield. It integrates the pull-up resistor and the status indicator LED onboard. That makes it easier for testing.The miniature snap-action micro switch with roller lever make it suitable for more different environment applications.

Now it comes the upgraded version that it can be compatible with Micro:bit.

Connection Example - DFRduino UNO

    Specifications

    • Working Voltage: 5V
    • Pinout:
      • 1 Digital output
      • 2 VCC
      • 3 GND
    • Onboard status indicator LED
    • Directly connected to the IO Expansion shield For Arduino
    • M3 mounting hole x2
    • Size: 30 x 20 x 8mm

    Resources

    Package Contents

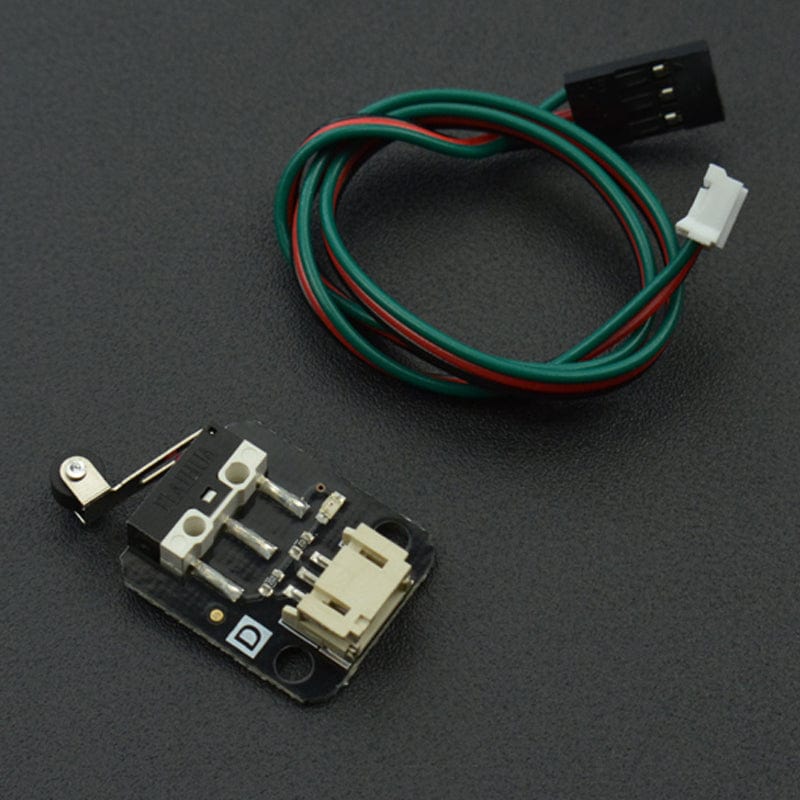

    • 1x Crash sensor
