Gravity: Digital Crash Sensor (Left)
Price:
Sale price
£2.80
Stock:
Quantity:
Awesome Extras
A miniature snap-action switch, also trademarked and frequently known as a micro switch, is an electric switch that is actuated by very little physical force. Micro switches are very widely used; among their applications are appliances, machinery, industrial controls, vehicles, and many other places for control of electrical circuits. They are usually rated to carry current in control circuits only, although some switches can be directly used to control small motors, solenoids, lamps, or other devices.

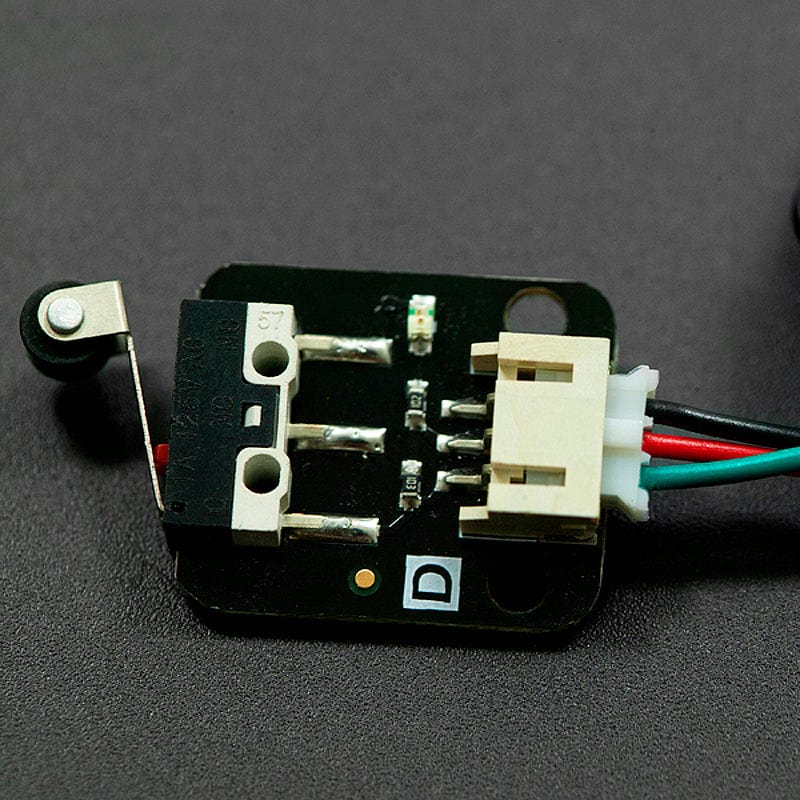

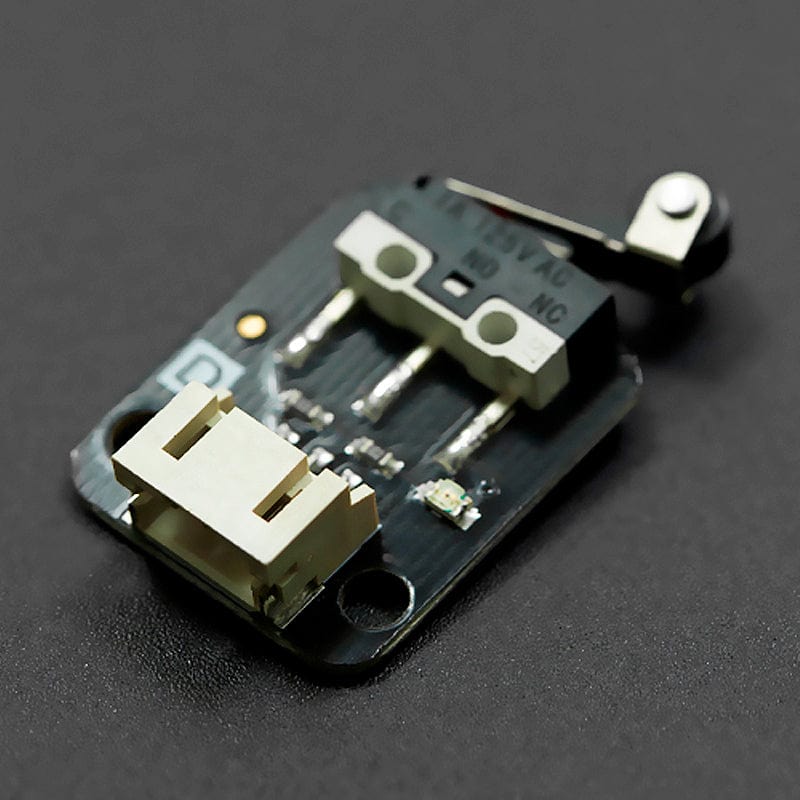

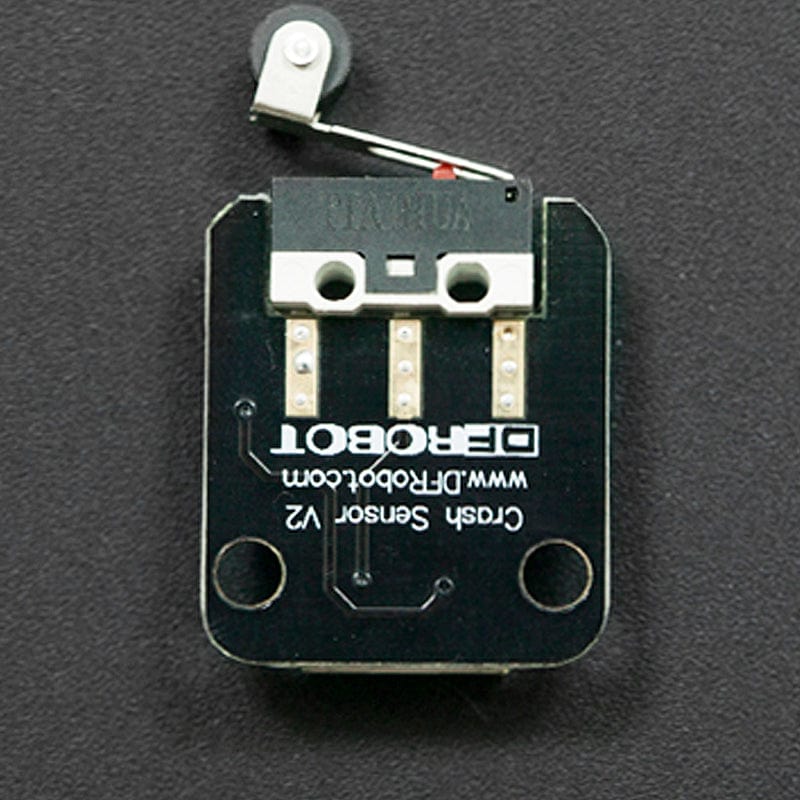

This is a small micro switch sensor designed for the Arduino. It could be directly connected to the IO Expansion shield. It integrates the pull-up resistor and the status indicator LED onboard. That makes it easier for testing.The miniature snap-action micro switch with roller lever make it suitable for more different environment application.
Connection Example - DFRduino UNO
Specifications
- Working Voltage: 5V
- Pinout
- 1 Digital output
- 2 VCC
- 3 GND
- Onboard status indicator LED
- Directly connected to the IO Expansion shield For Arduino
- M3 mounting hole x2

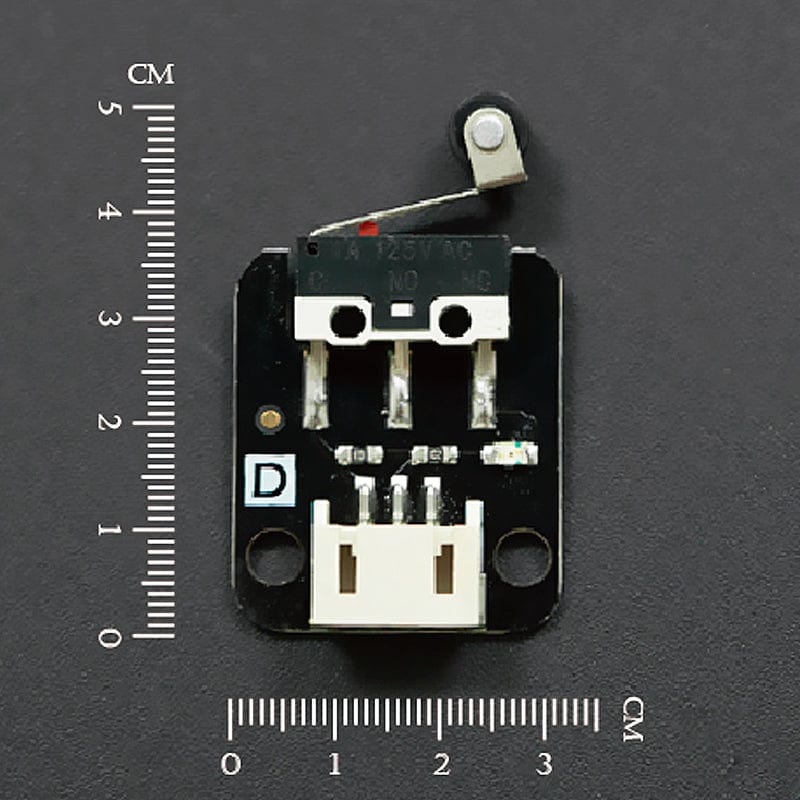

- Size: 30 x 20 x 8mm
Resources
Package Contents
- 1x Crash Sensor
