The Conductive Copper Foil Tape is a flexible, solderable copper tape with conductive adhesive, making it ideal for EMI shielding, capacitive touch sensors, ultra-thin wiring, and other electronics projects.
Copper tape can be an interesting addition to your toolbox. The tape itself is made of thin pure copper so its extremely flexible and can take on nearly any shape. You can easily solder to it, and the tape itself can carry current just like a wire.
On the back is an electrically conductive adhesive. The adhesive can't carry significant current but it is very handy for sensing applications where you don't want to solder the copper tape.
We've seen such tape used for EMI shielding, working with EL, making capacitive touch pads, ultra-thin wiring needs, etc.

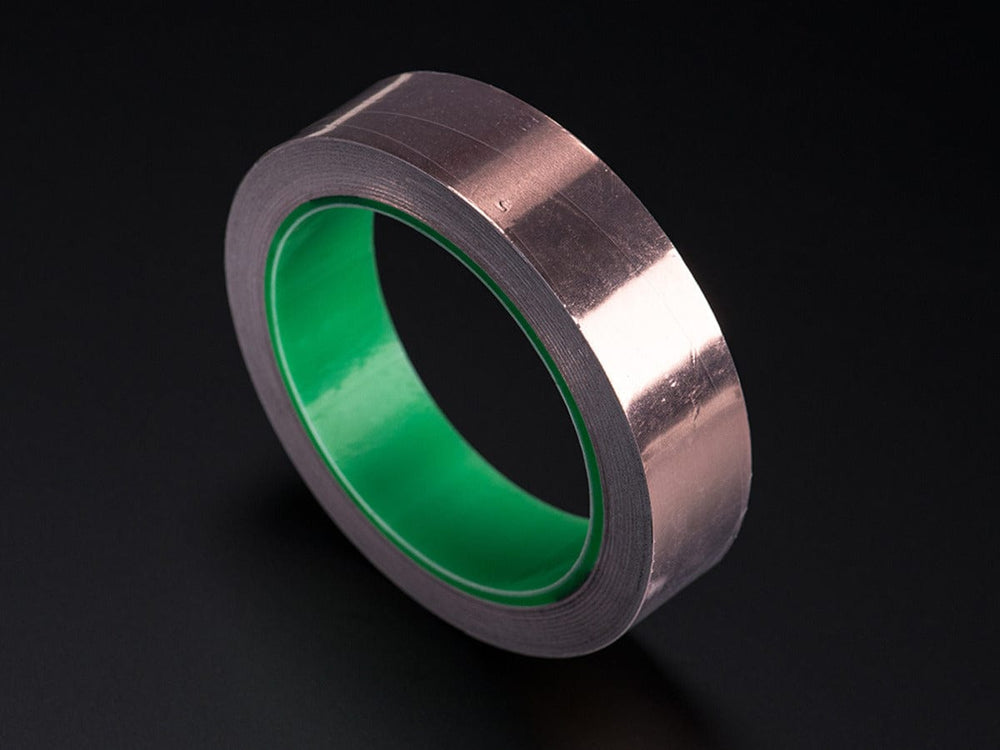

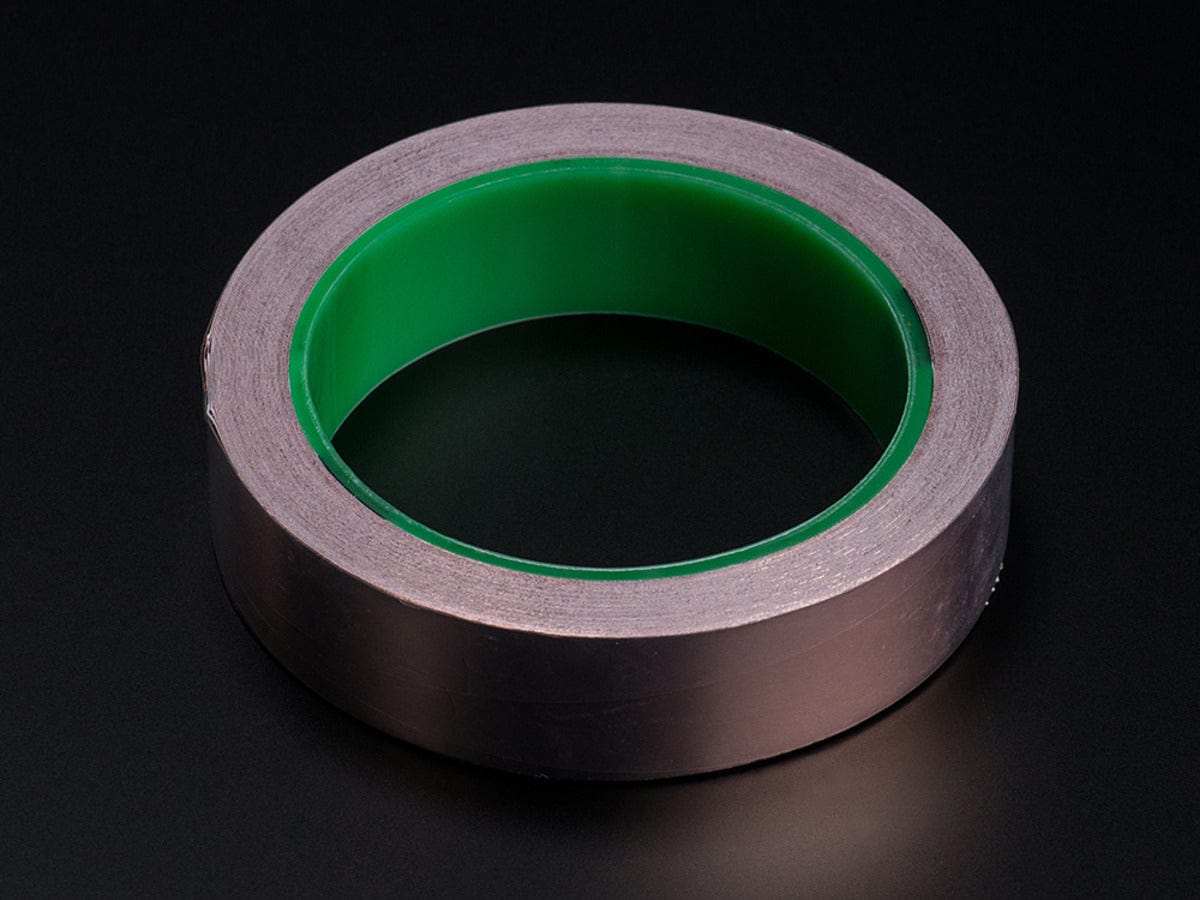

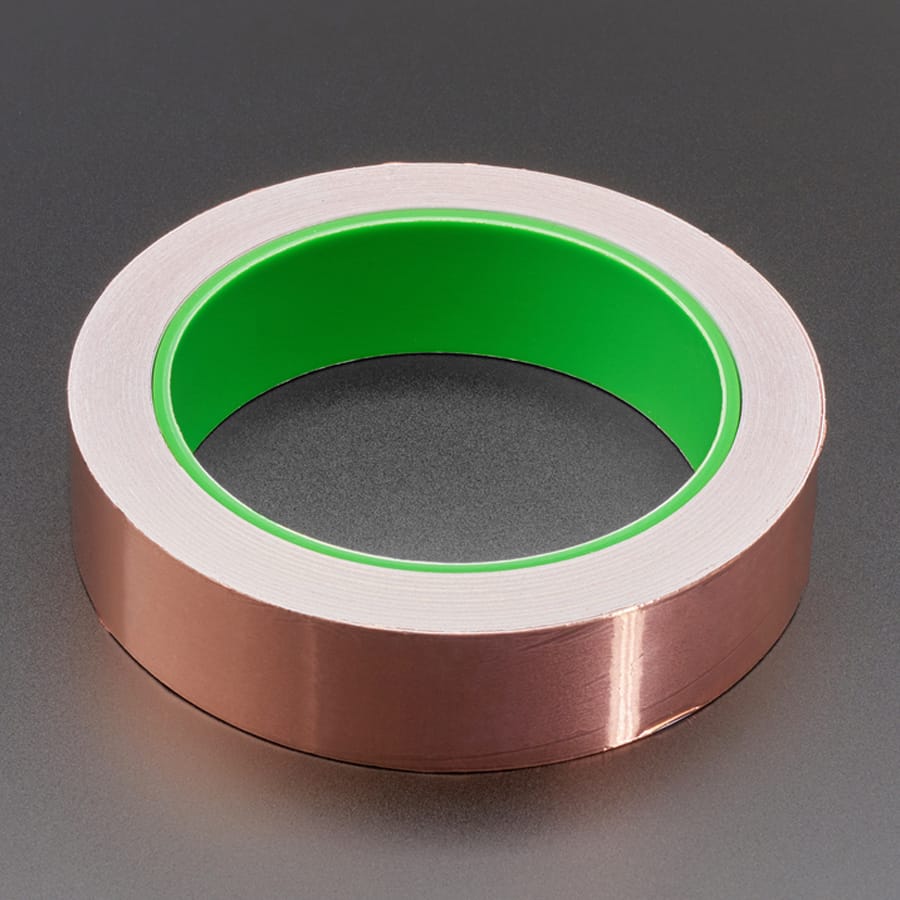

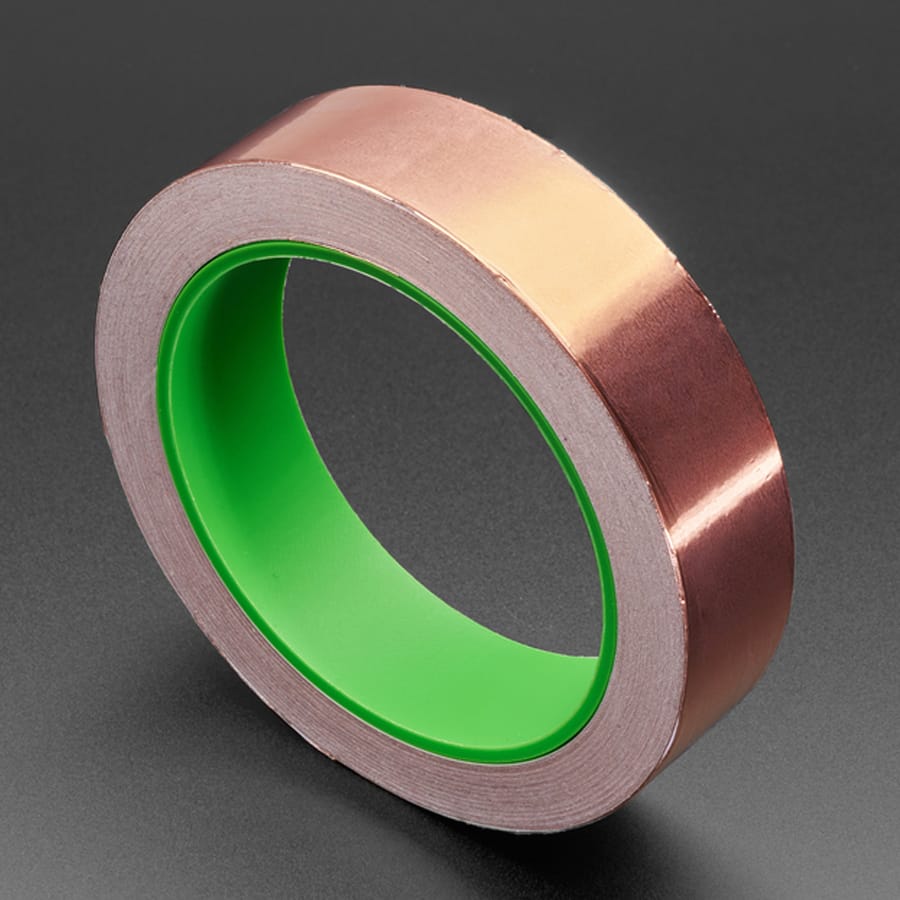

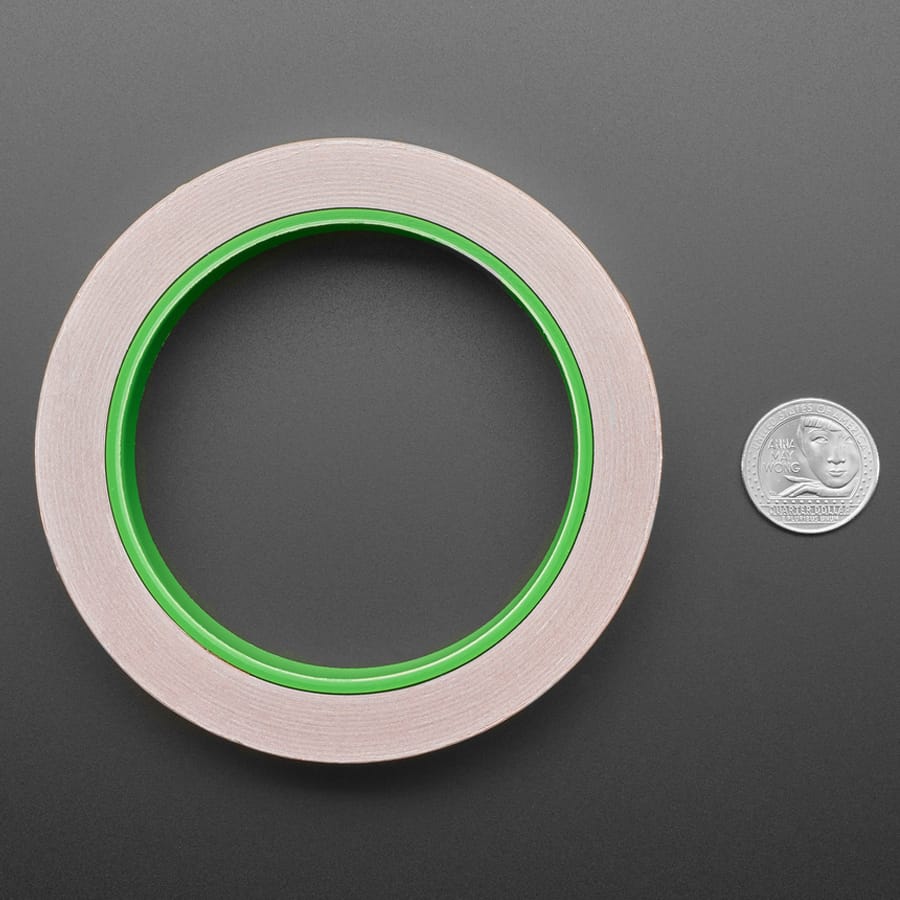

Comes in a roll 15 meters long, this tape is 3mils/0.07mm thick, 1"/25mm wide and has conductive adhesive on one side and a protective paper backing over the adhesive.
Features
Pure copper tape, extremely flexible and 'shapeable'
Solderable copper surface for reliable connections
Carries electrical current like standard wire
Electrically conductive adhesive backing for sensing applications
Ideal for EMI shielding, EL applications, and capacitive touch pads
Perfect for ultra-thin wiring needs
15 metre roll length
3mil (0.07mm) thickness
25mm width
Protective paper backing on adhesive
Specifications
Length: 15 meters
Thickness: 3mils/0.07mm
Width: 1.25mm
Package Contents
1x Copper Foil Tape with Conductive Adhesive - 25mm x 15 meter roll
