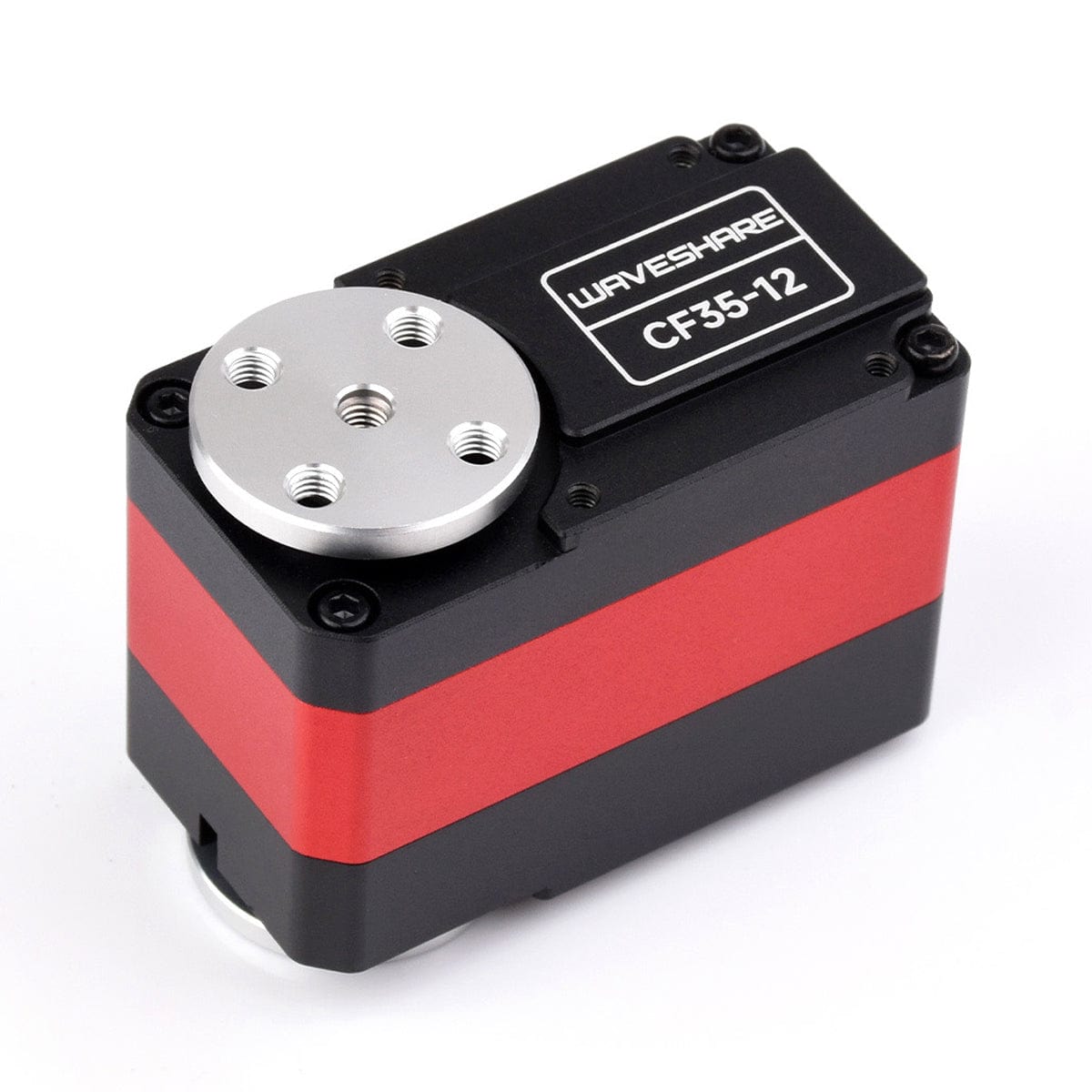

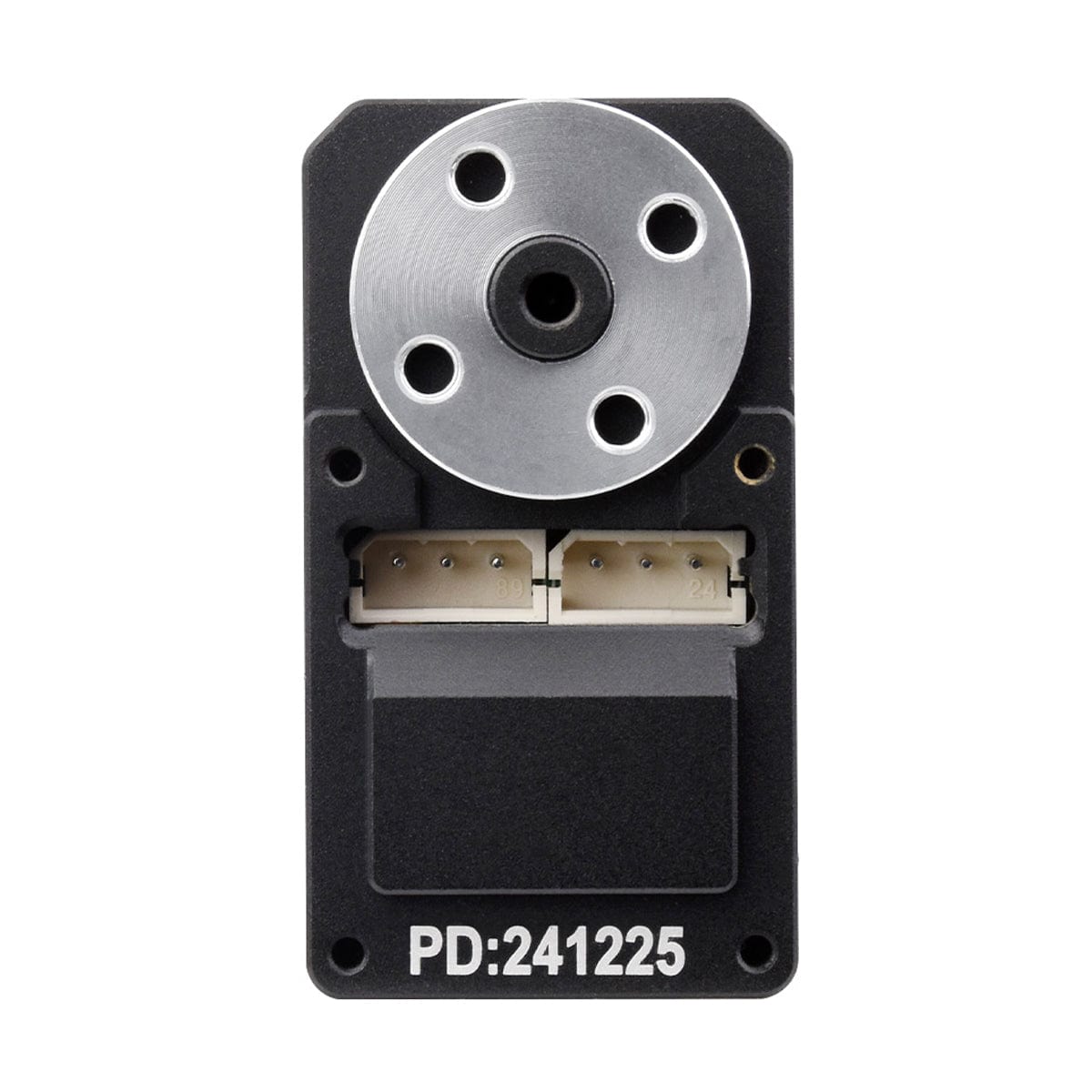

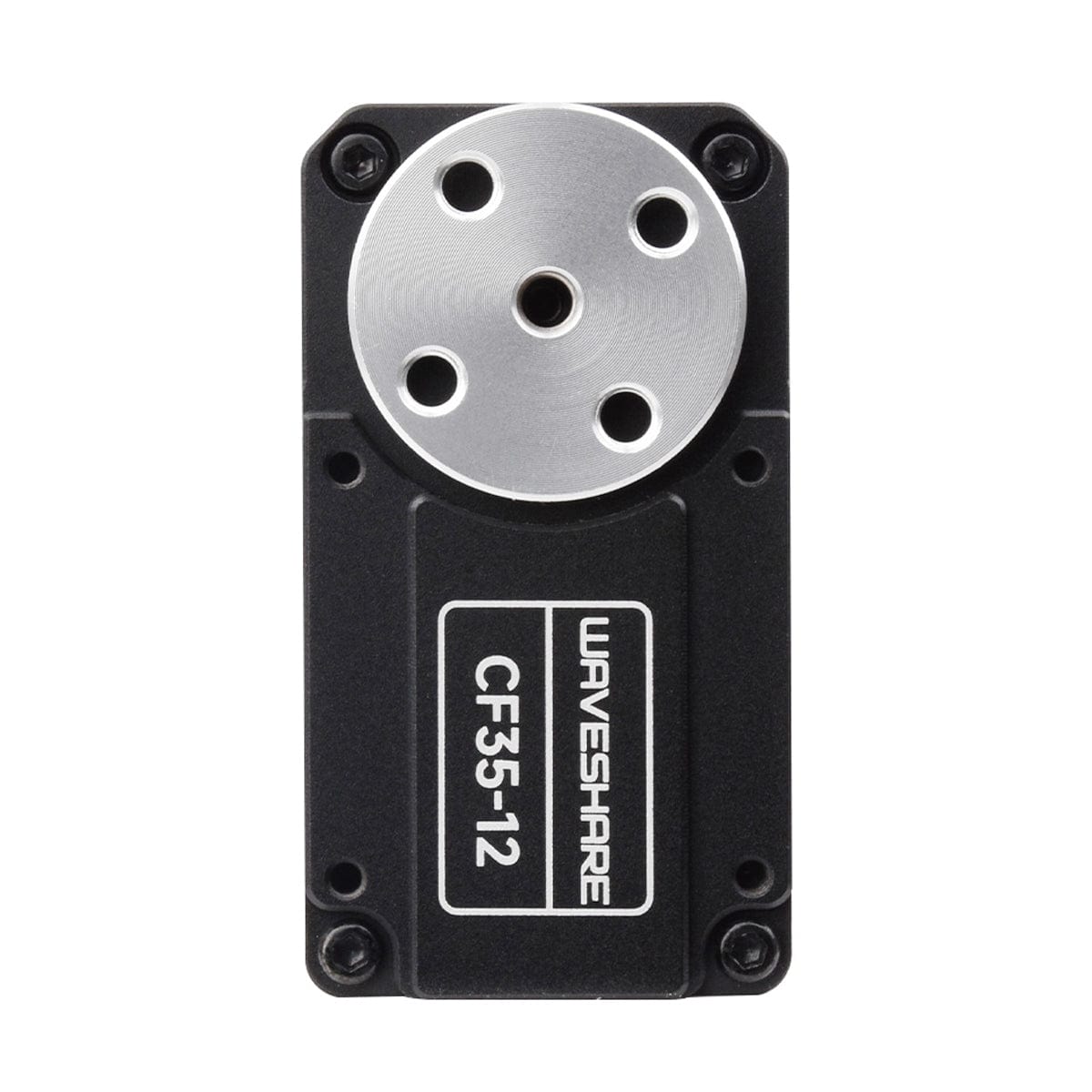

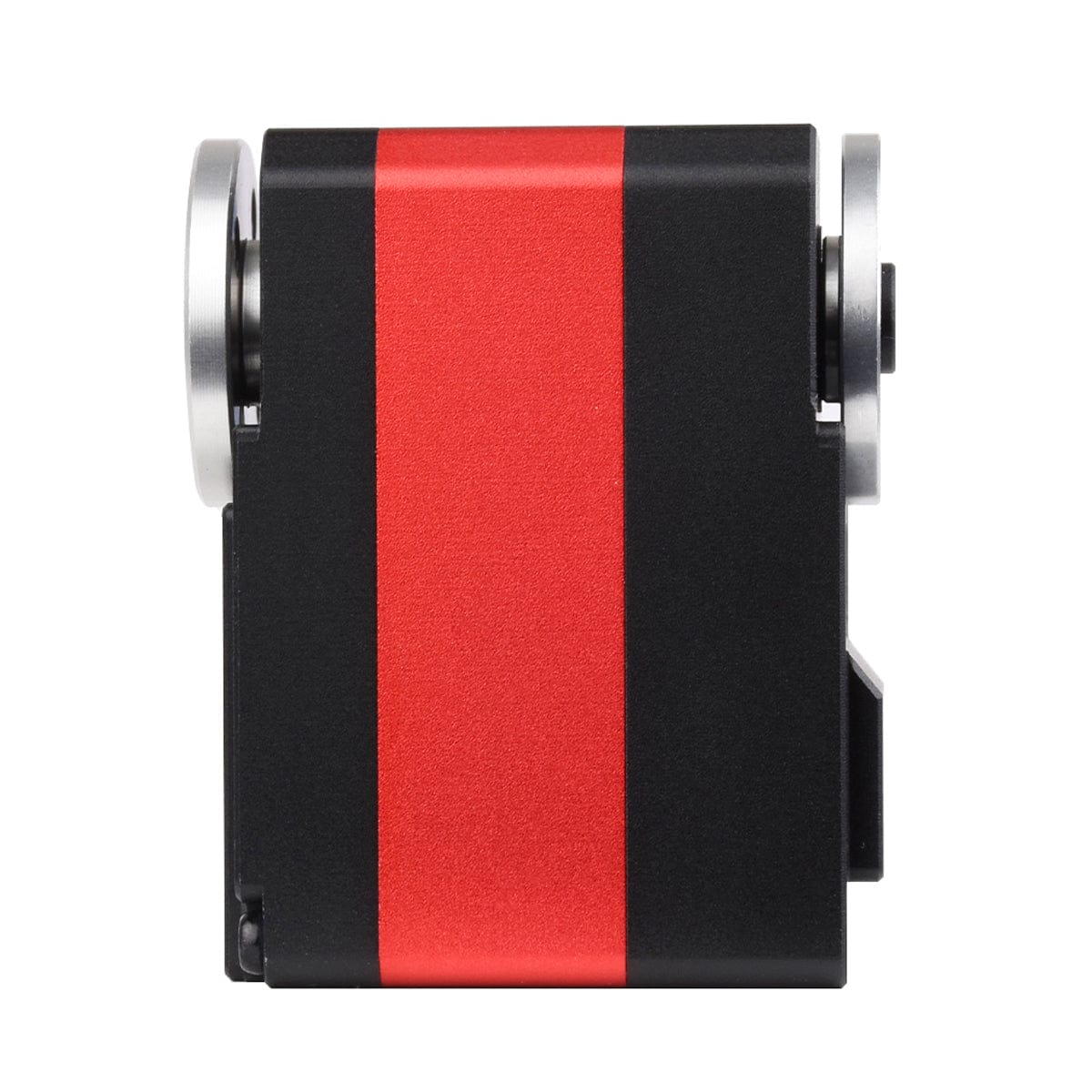

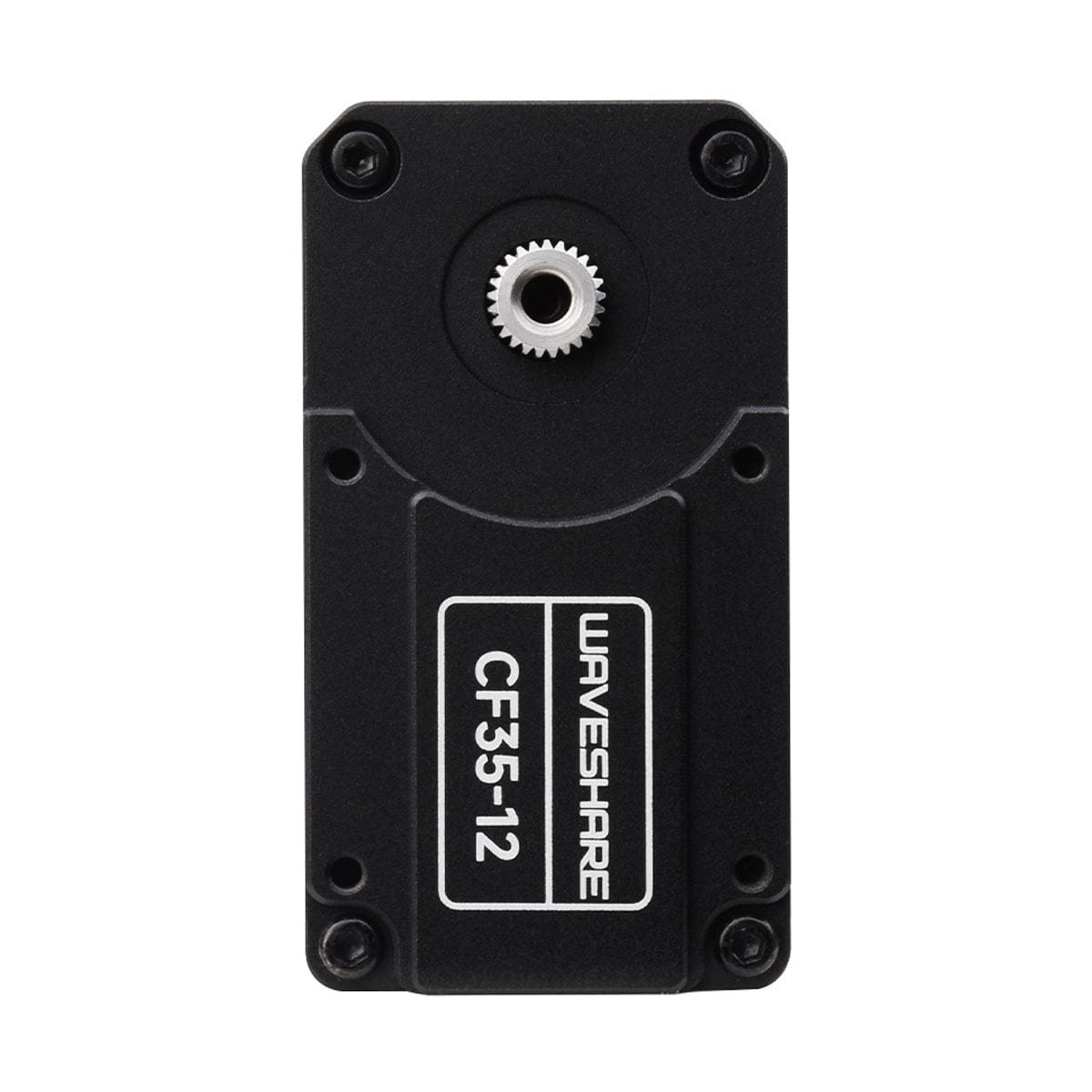

CF35-12 Bus Servo (35kg)

The CF35-12 is a bus servo for robotic projects that need a bit more oomph with high torque and accurate control. It has a stall torque of 35 kg.cm, which is ideal for tasks that need significant rotational force. The servo operates within a voltage range of 9V to 12.6V, with 12V being typical. It has a no-load speed of 0.222 seconds per 60° (equivalent to 45 RPM).

Equipped with a 360° high-precision magnetic encoder, the servo has multiple operating modes, including angle control mode, motor constant speed control mode, and motor constant current control mode.

Made with an aluminium alloy case, the CF35-12 is both durable and has efficient heat dissipation. The servo can be connected in series, allowing control of up to 253 bus servos simultaneously (provided the correct power supply is supplied).

Driver board and cable are NOT included.

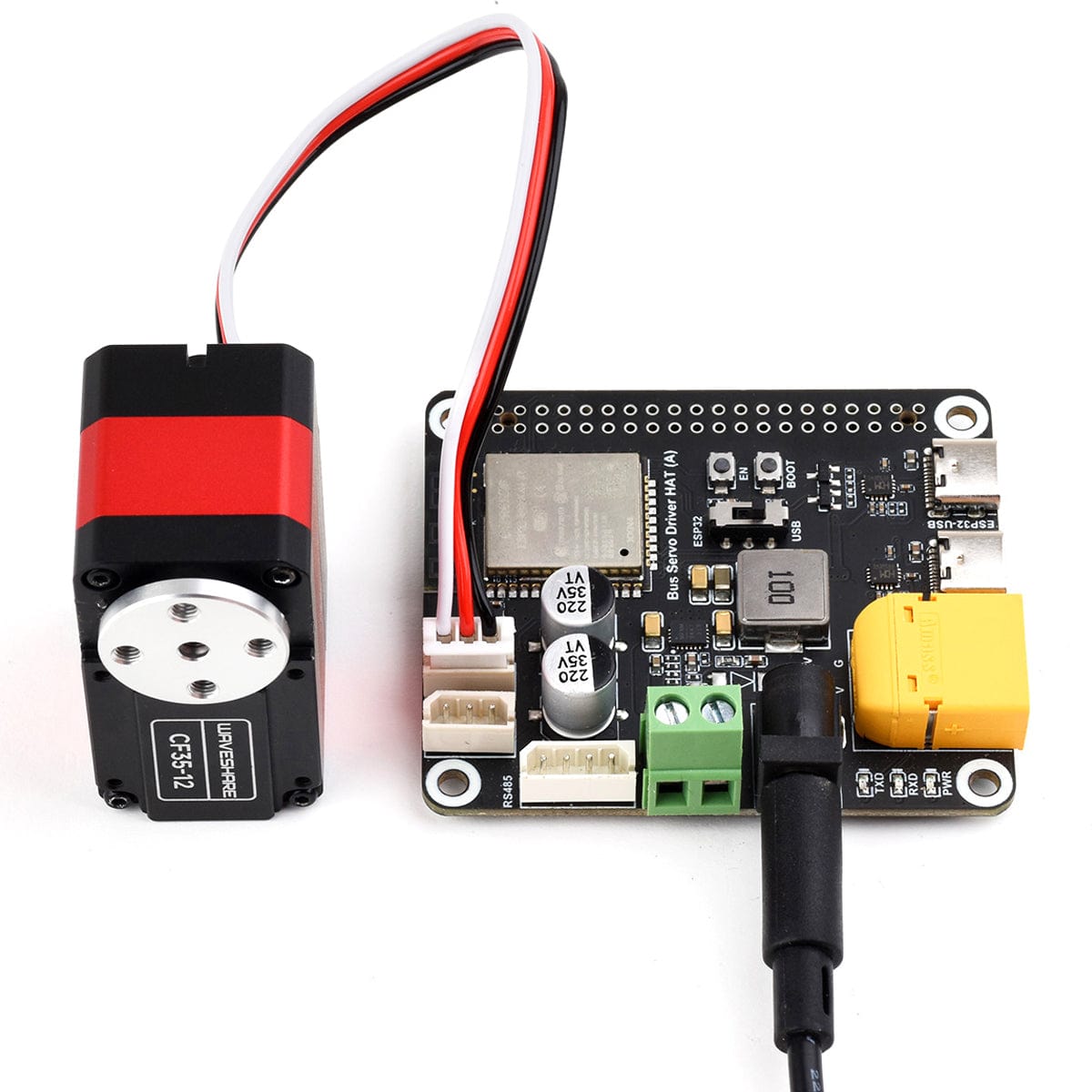

Here are some boards in our store that you can use to run this servo

• ESP32 Servo Driver
• Serial Bus Servo Driver HAT for Raspberry Pi
• Serial Bus Servo Driver Board
• ESP32 Robotics Driver Board

Features

• 360° magnetic encoder, high precision, angle control accuracy up to 360°/4096
• Any angle can be set to the servo centre position for easy assembly
• Acceleration start-stop function, smoother motion effects
• Compact structure design, more beautiful product appearance
• Wide voltage input of 9-12.6V, can be directly powered by 2S or 3S lithium batteries
• Stall torque up to 35kg.cm @ 12V
• Multiple working modes can be set:
  • Angle control mode
  • Motor constant speed control mode
  • Motor constant current control mode
• Can be used in series to control up to 253 bus servos at the same time (provided that the power supply is sufficient) and obtain feedback information for each bus servo

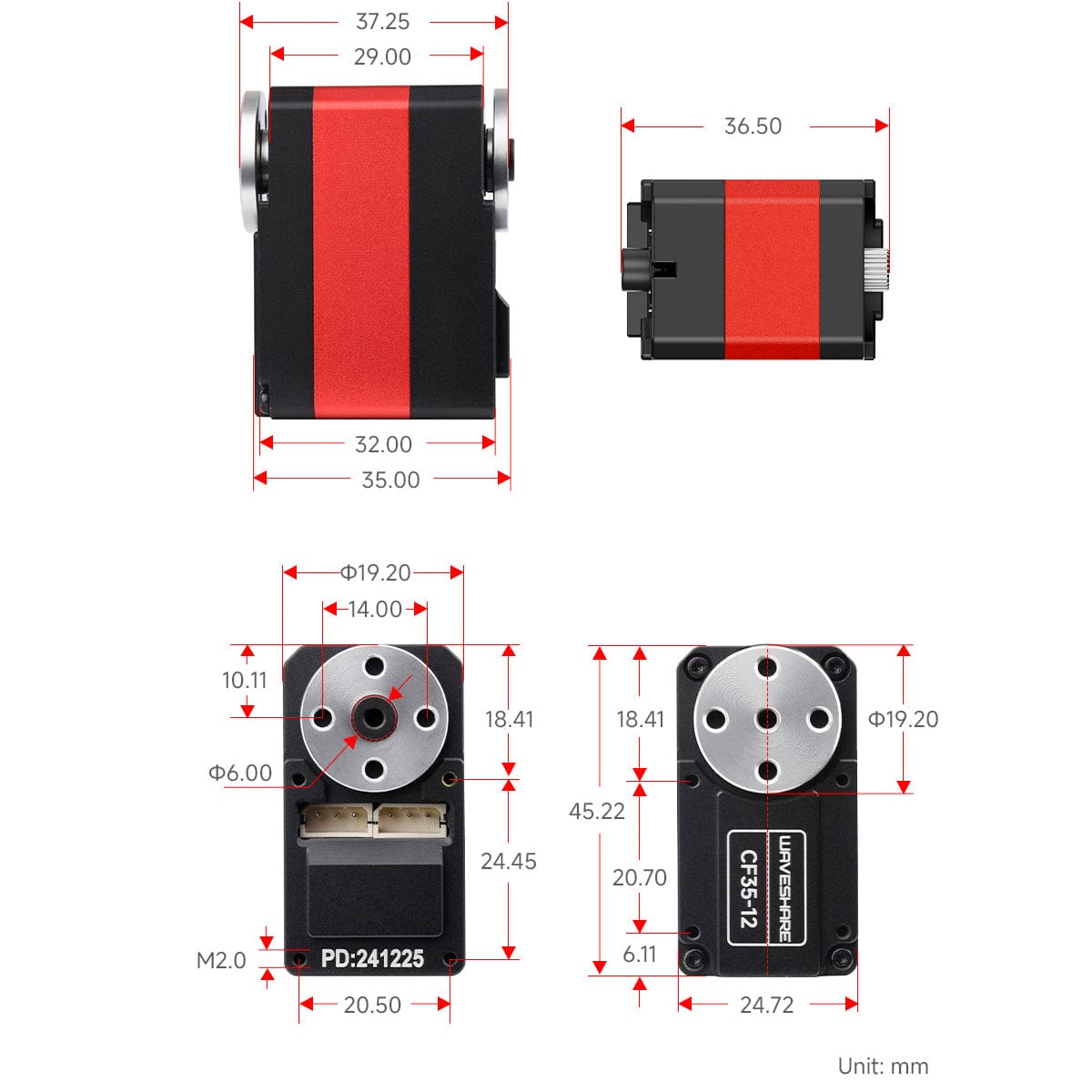

Specifications

Resources

• Product Wiki

Package Contents

• 1x CF35-12 Bus Servo
• 3x Brackets
• 1x Servo Cable
• 2x Servo Discs
• 1x Screw Pack
