Industrial CAN/CAN FD Bus Adapter (Windows & Linux)
Price:
Sale price
£83
Stock:
Coming Soon
Coming Soon
Awesome Extras

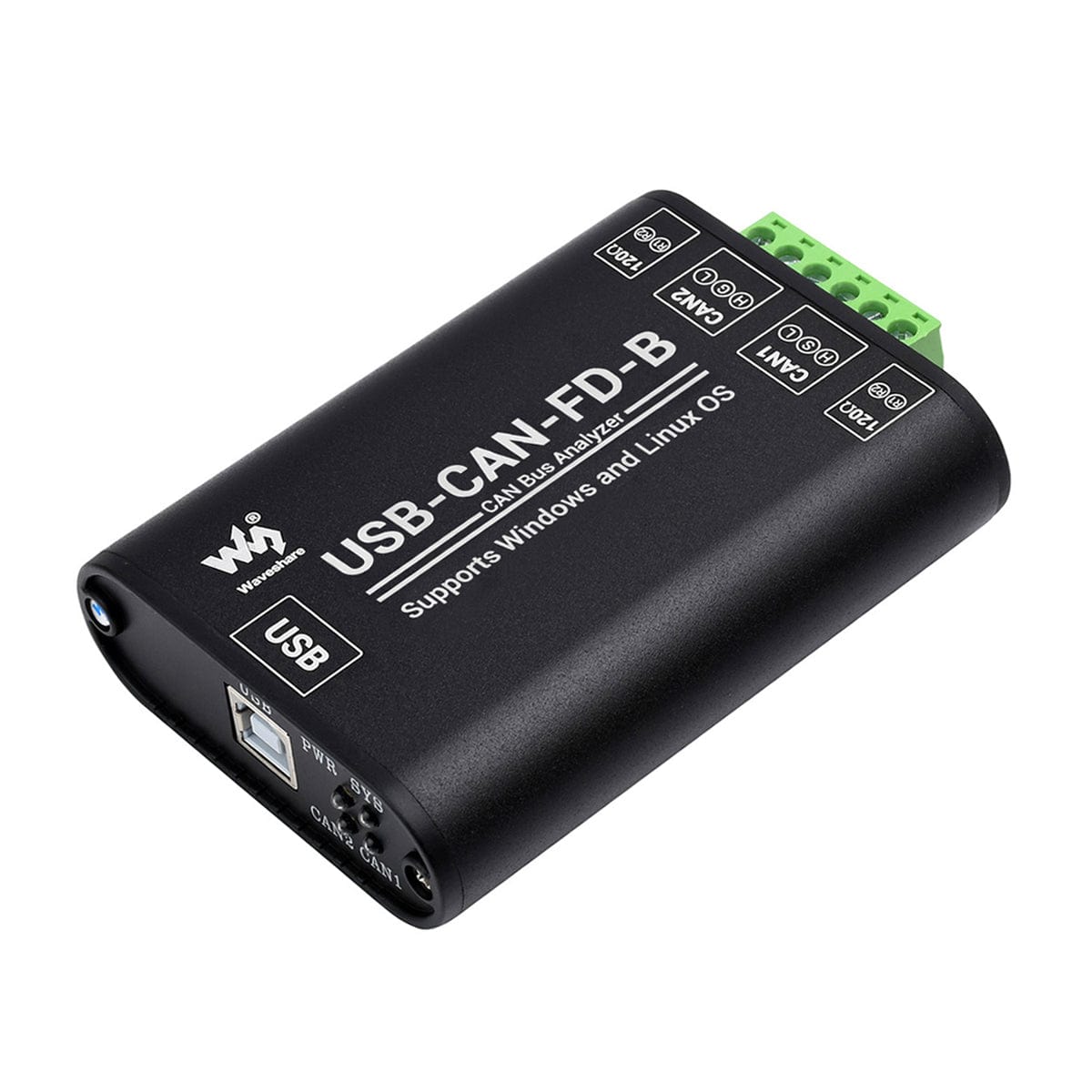

This CAN/CAN FD bus data analyser is an adapter that bridges USB and CAN FD buses, acting as both a communication card and a protocol data analyser. It has a USB 2.0 connection and dual independent CAN/CAN FD channels, supporting bi-directional transmission. These channels operate independently without interference, which in turn, gives you uninterrupted data management and communication.
With support for baud rates from 100Kbps to 5Mbps, it is compatible with CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocols. It is designed to work with Windows XP, 7, 8, 10, and 11, as well as Linux systems like Raspberry Pi OS for Raspberry Pi, Ubuntu for Jetson Nano, and Linux running on VMware virtual machines.
The adapter provides extensive resources for secondary development, offering examples for platforms such as C#, VC, Delphi, Qt, LabVIEW, and Python/Python-can. It lets you run multiple CAN FD analysers simultaneously on a single PC, tested with up to 128 devices without interference, making it a useful tool for large-scale projects.
Features
- Dual CAN FD Channels
- Protocol Compatibility
- USB 2.0 Connection
- Multi-System Support
- Development Resources
- Multi-Device Operation
What's on Board
Specifications
| Type | Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyser | |
| USB | Operating Voltage | 5V (directly powered by USB port without external power supply) |
| Connector | USB-B | |
| CAN/CAN FD Interface | CAN/CAN FD channel | Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC) |

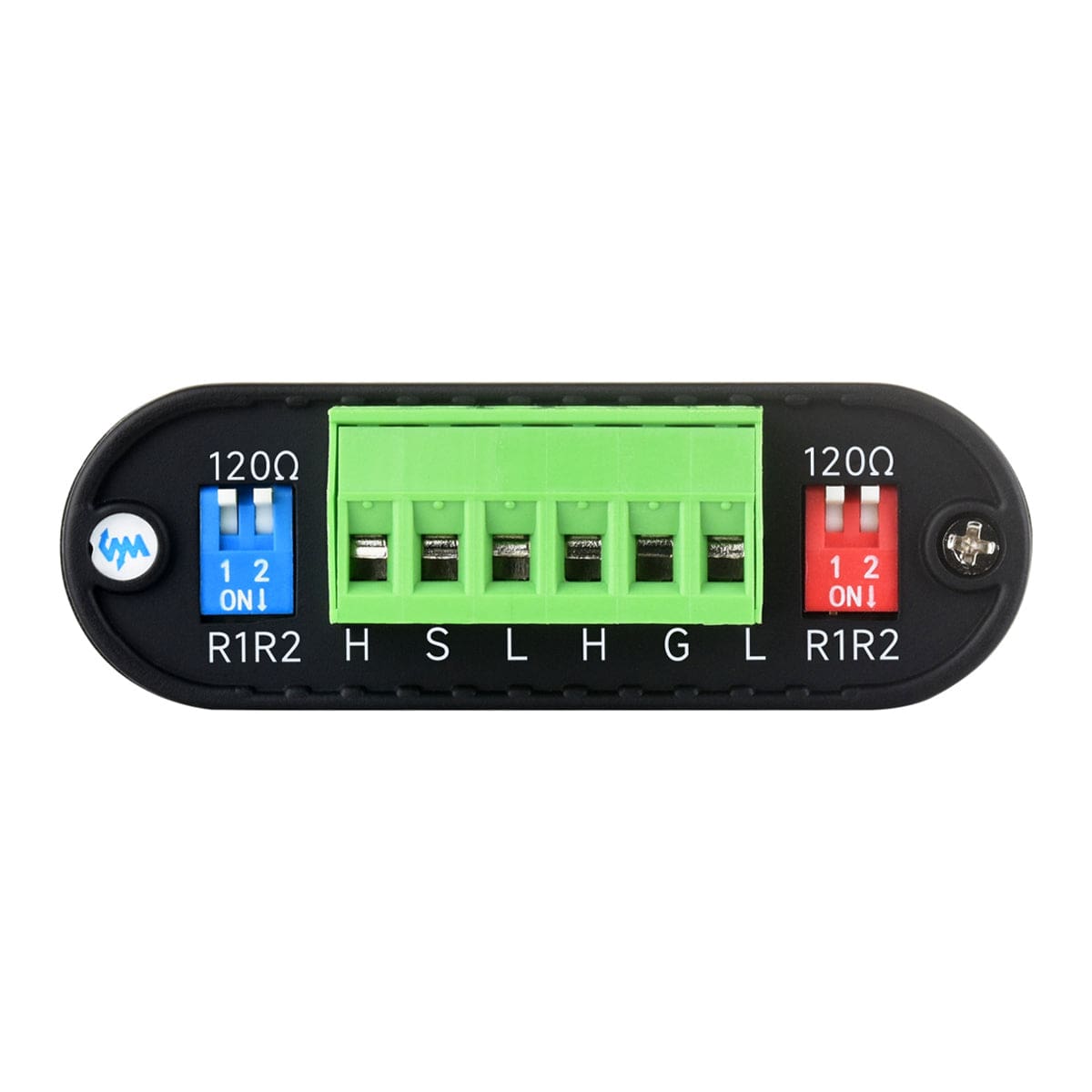

| Connector | CAN bus screw terminal (OPEN6 5.08mm pitch) | |
| Terminal Resistor | Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch | |
| Baud Rate | 100Kbps~5Mbps (Configurable via software) | |
| Protocol Support | CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0 | |
| Transfer Speed | The receiving/sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/s | |
| Transmit Buffer | 1500 frames receiving buffer and 64 frames sending buffer per channel | |

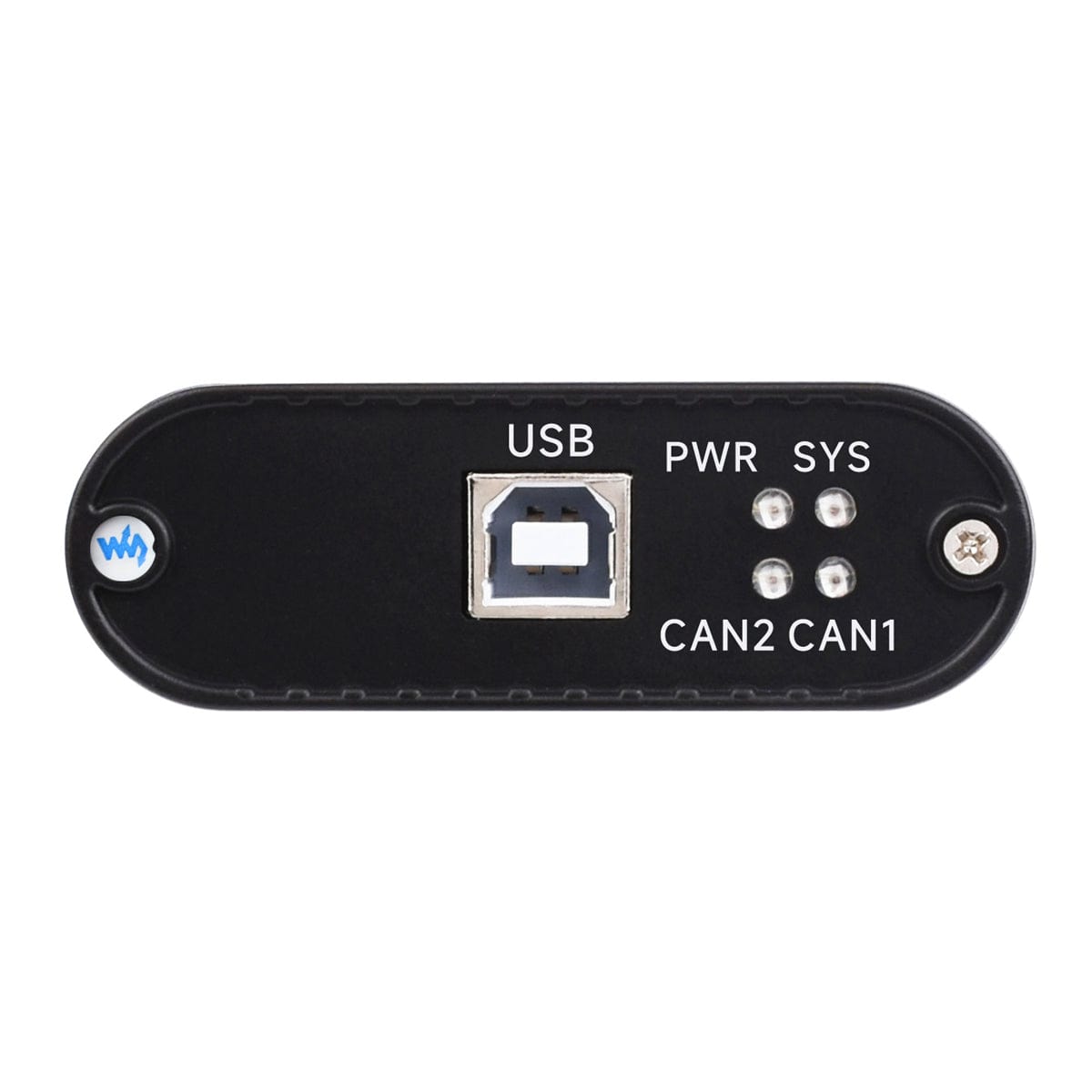

| Indicators | PWR | Power indicator |
| SYS | System status indicator, normally off; keeps on when there is a bus error | |
| CAN1 | CAN1 channel indicator (blinking when sending and receiving data) | |
| CAN2 | CAN2 channel indicator (blinking when sending and receiving data) | |
| System support | Windows | Windows XP/7/8/10/11 (32/64 bits) |
| Linux | Raspberry Pi OS (for Raspberry Pi), | |
| Ubuntu (for Jetson Nano), | ||
| Linux system on VMware virtual machines, etc. | ||
| Operating Temperature | -40~85℃ | |
| Case Material | Aluminium alloy case + 3D flame-retardant insulating sheets on both sides (provides better protection against metal tip discharge) | |

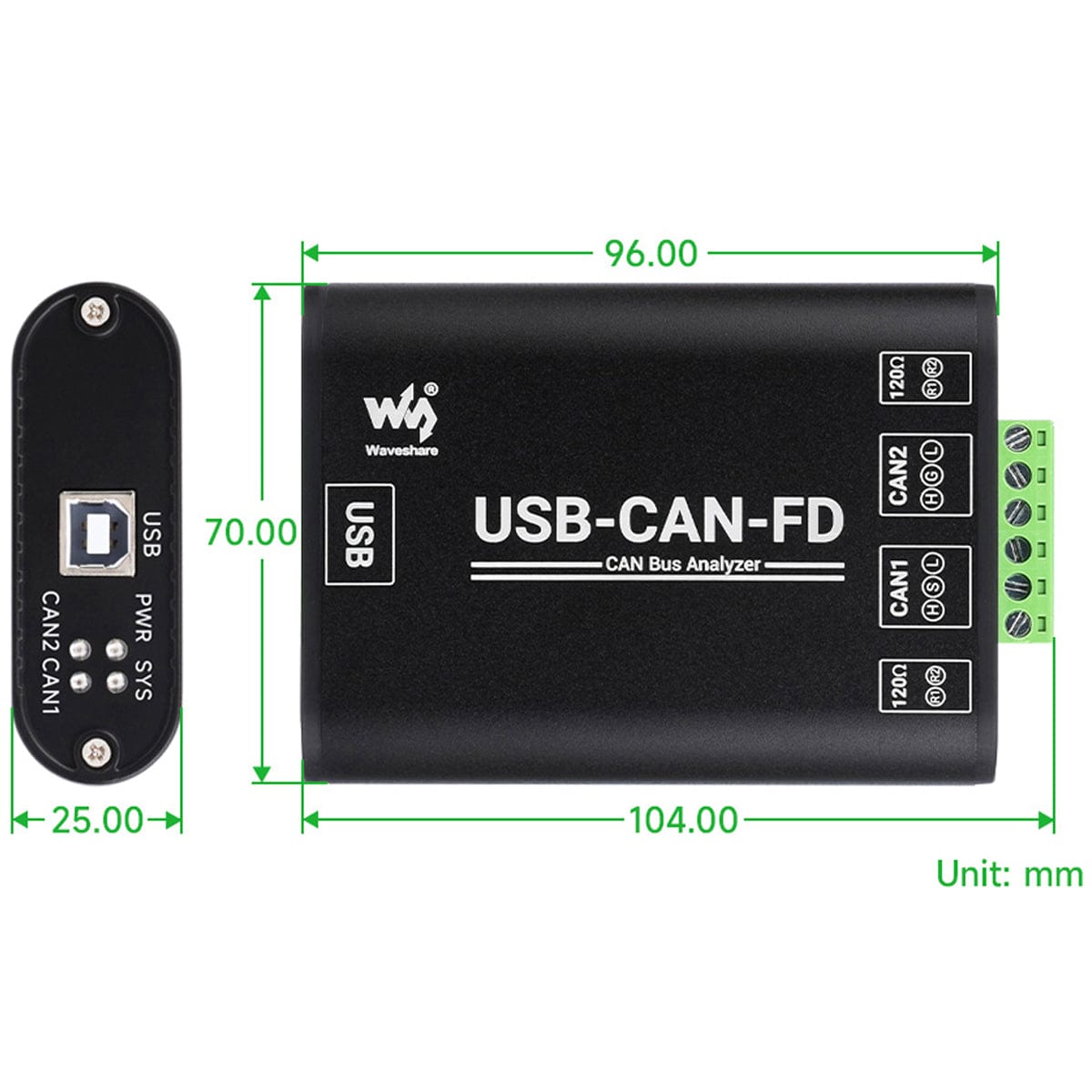

| Dimensions | 104 x 70 x 25 mm | |
Connection Example - Raspberry Pi & 2-Channel CAN FD HAT
Note: Raspberry Pi and HAT are NOT included
Resources
Package Contents
- 1x CAN/CAN FD Bus Adapter
- 1x USB type A plug to type B plug cable
- 1x 4-pin Cable
- 1x Screwdriver
