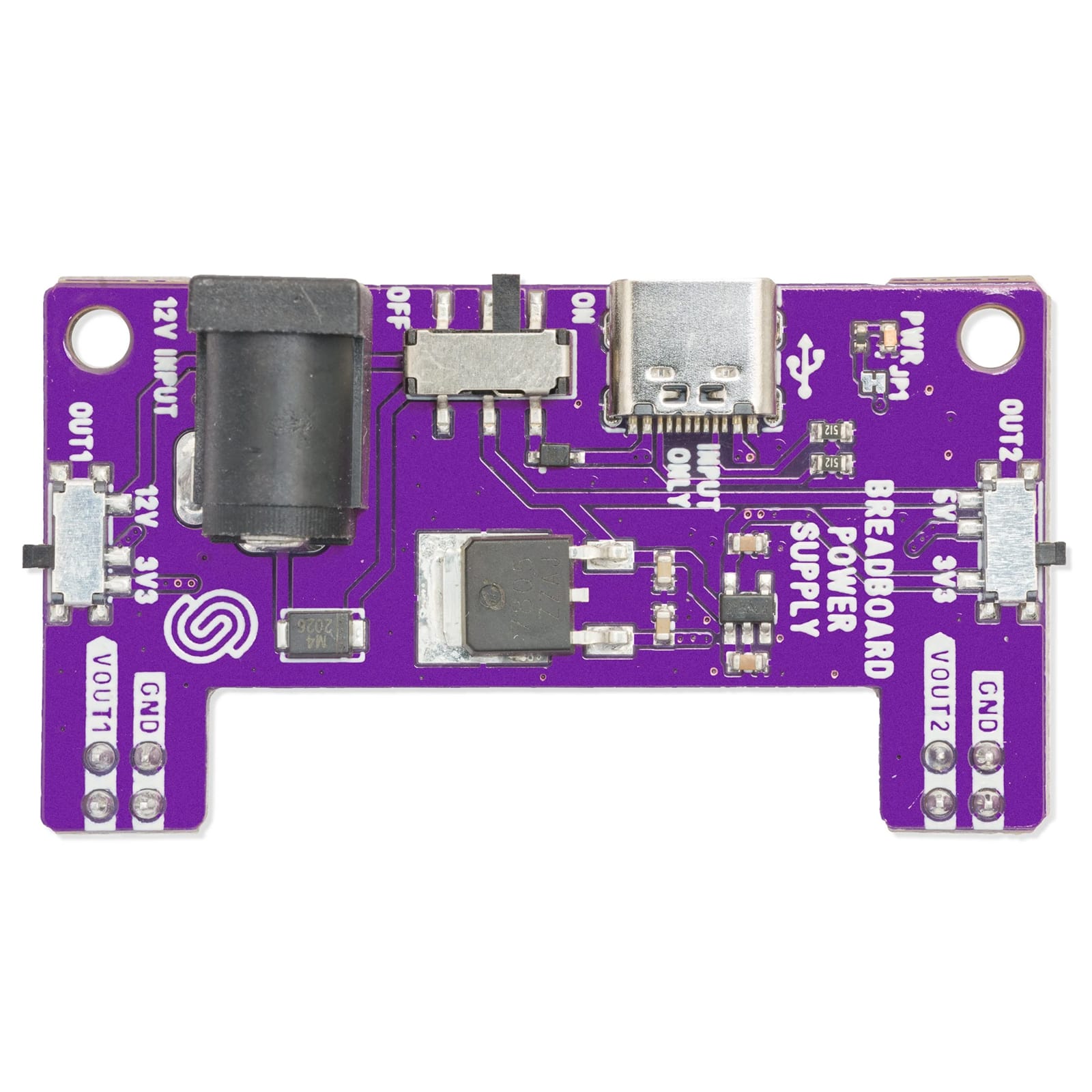

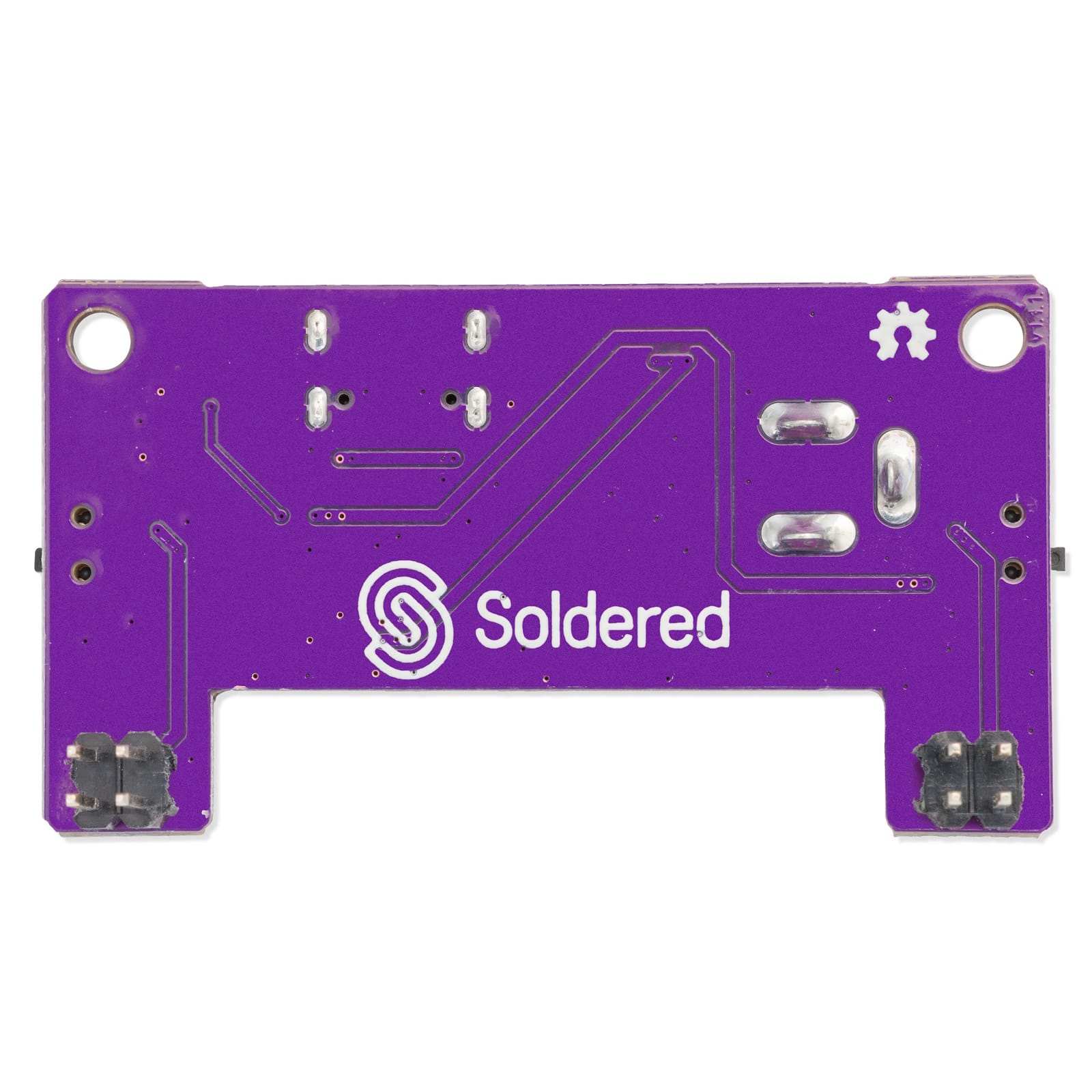

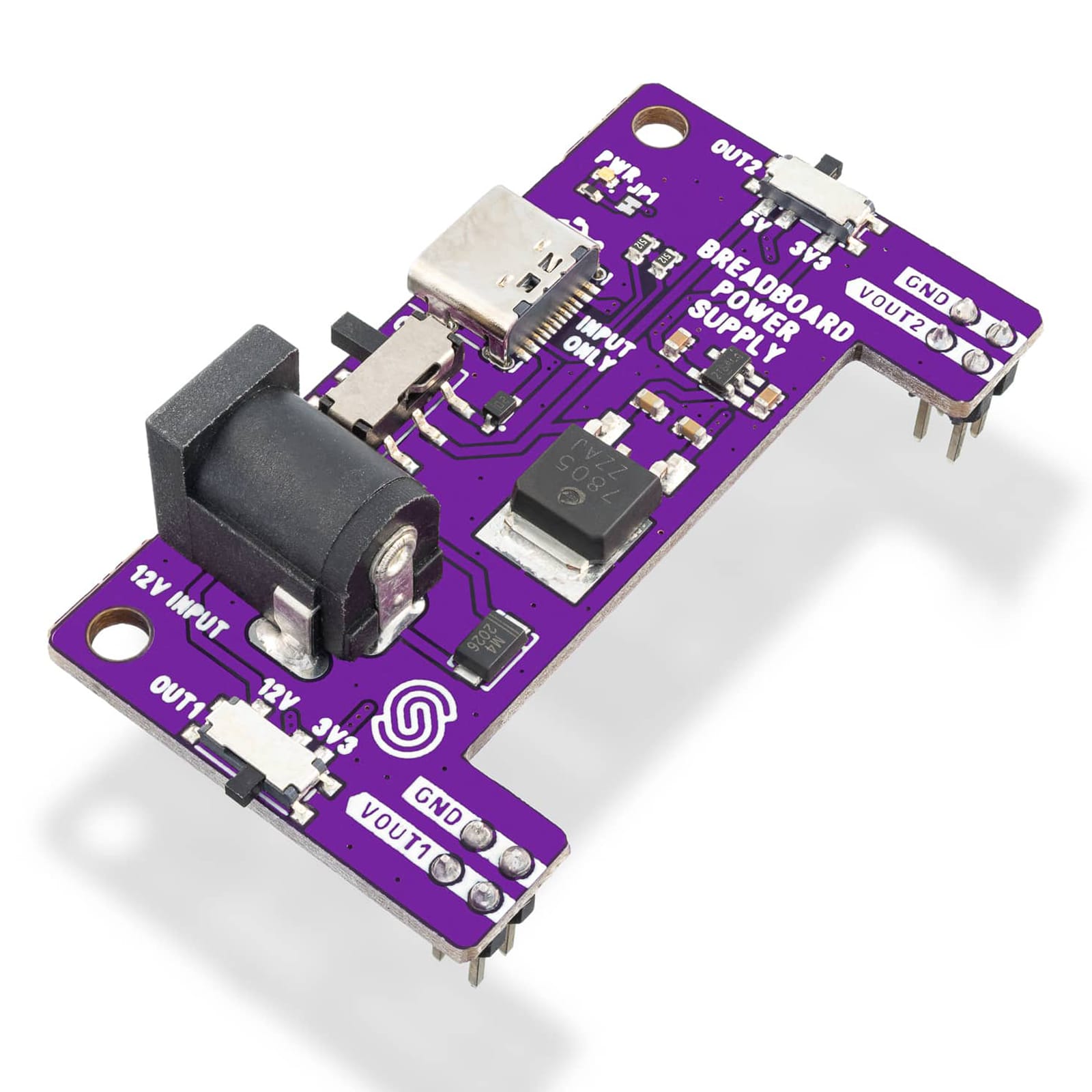

Breadboard Power Supply

This Breadboard Power Supply provides a simple and reliable way to power your breadboard projects, with selectable 3.3V, 5V, or 12V outputs, USB-C and DC input options, and independent voltage selection for each power rail.

If you need a simple and stable power source on your breadboard, this board is here to help. Just give it some other power source via DC port or USB-C, and it gives you 3V3, 5V or 12V discretely to the power lines on the experimental.

The output voltages are adjustable for both sides via switches. It also has a power LED, ignition switch and automatic power source selection (if both are present, it will be powered via the DC jack).

Please note that 12V is only available when used with a DC jack with 12V power supply.

View our full range of Soldered Electronics products here.

Features

• Input: USB-C or DC jack
• Power supply on DC jack: 12V DC
• Output current: 3V3 @ 500mA, 5V @ 500mA

Specifications

• Dimensions: 54 x 30mm
• DC jack diameter: 6.22mm

Resources

• Full product documentation
• Open source hardware files
• Pinout drawing
• Hardware details
• CE Certificate
• UKCA Certificate

Package Contents

• 1x Breadboard power supply board
