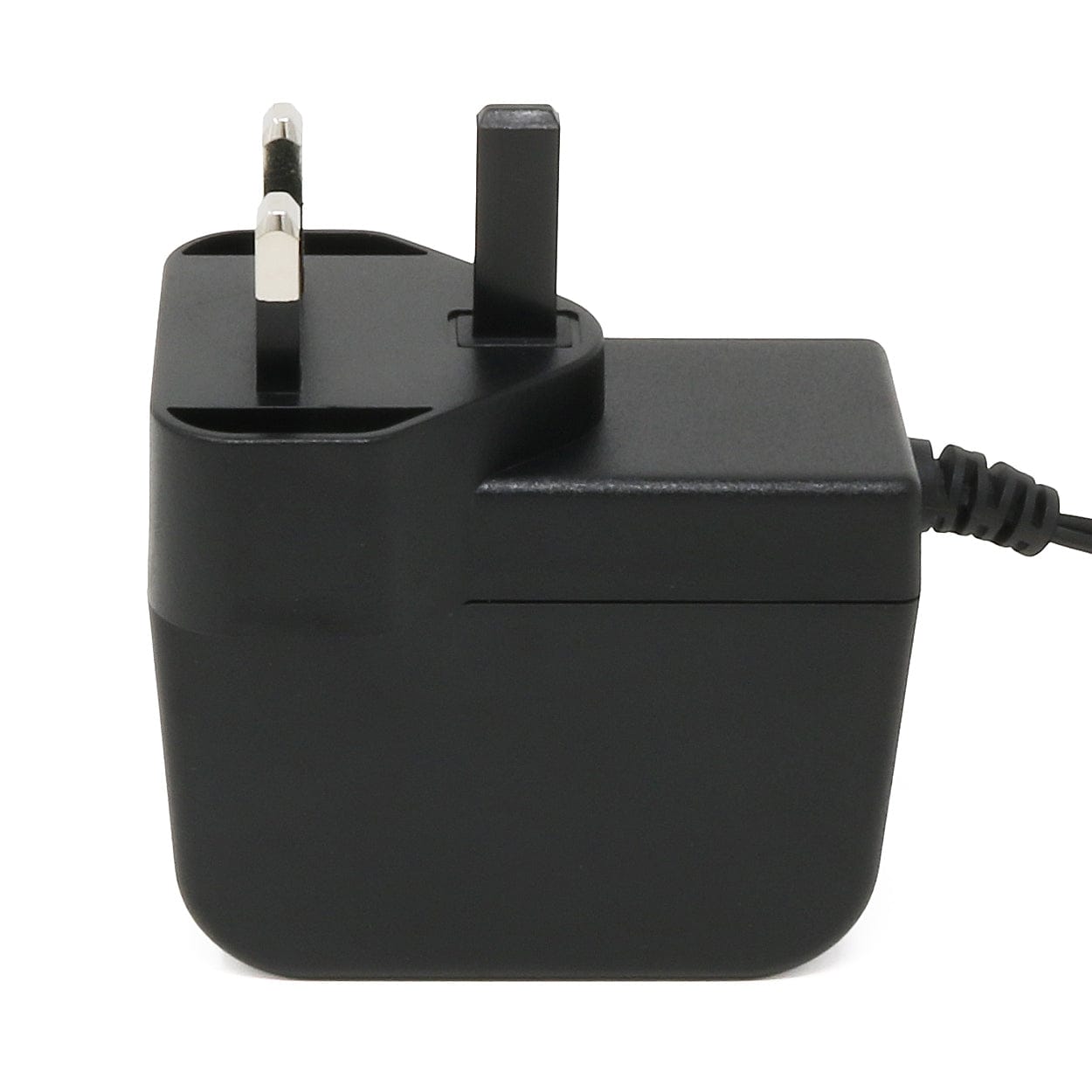

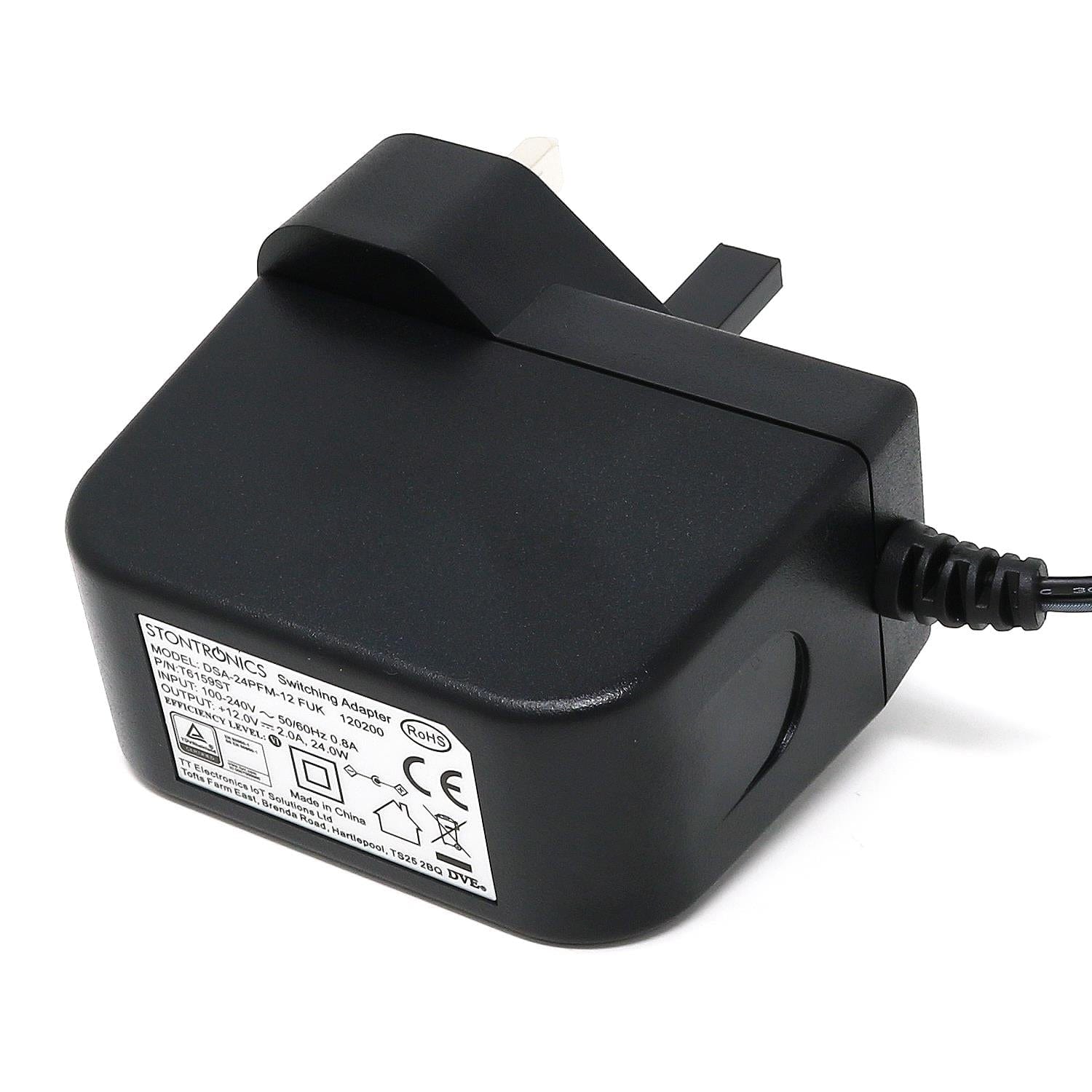

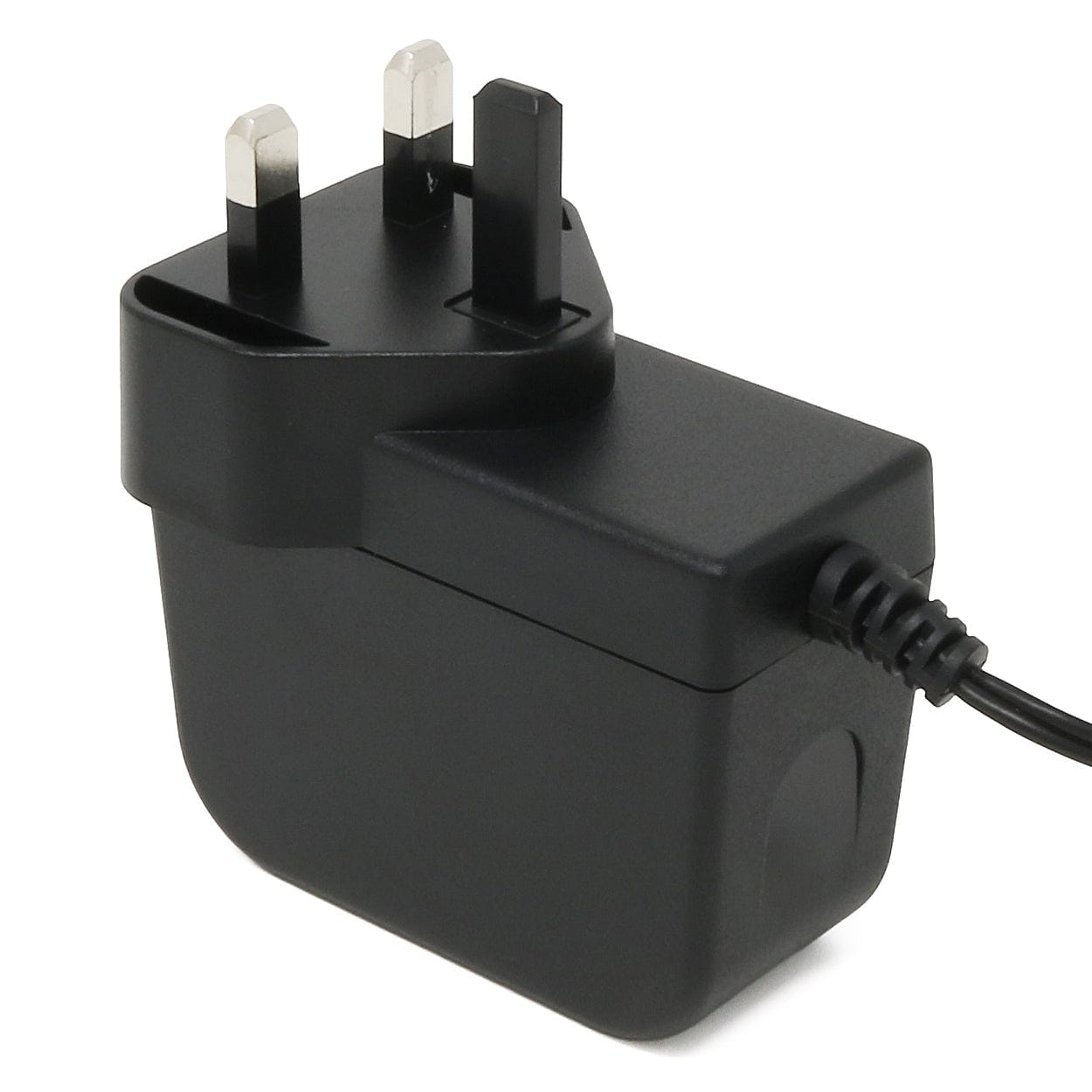

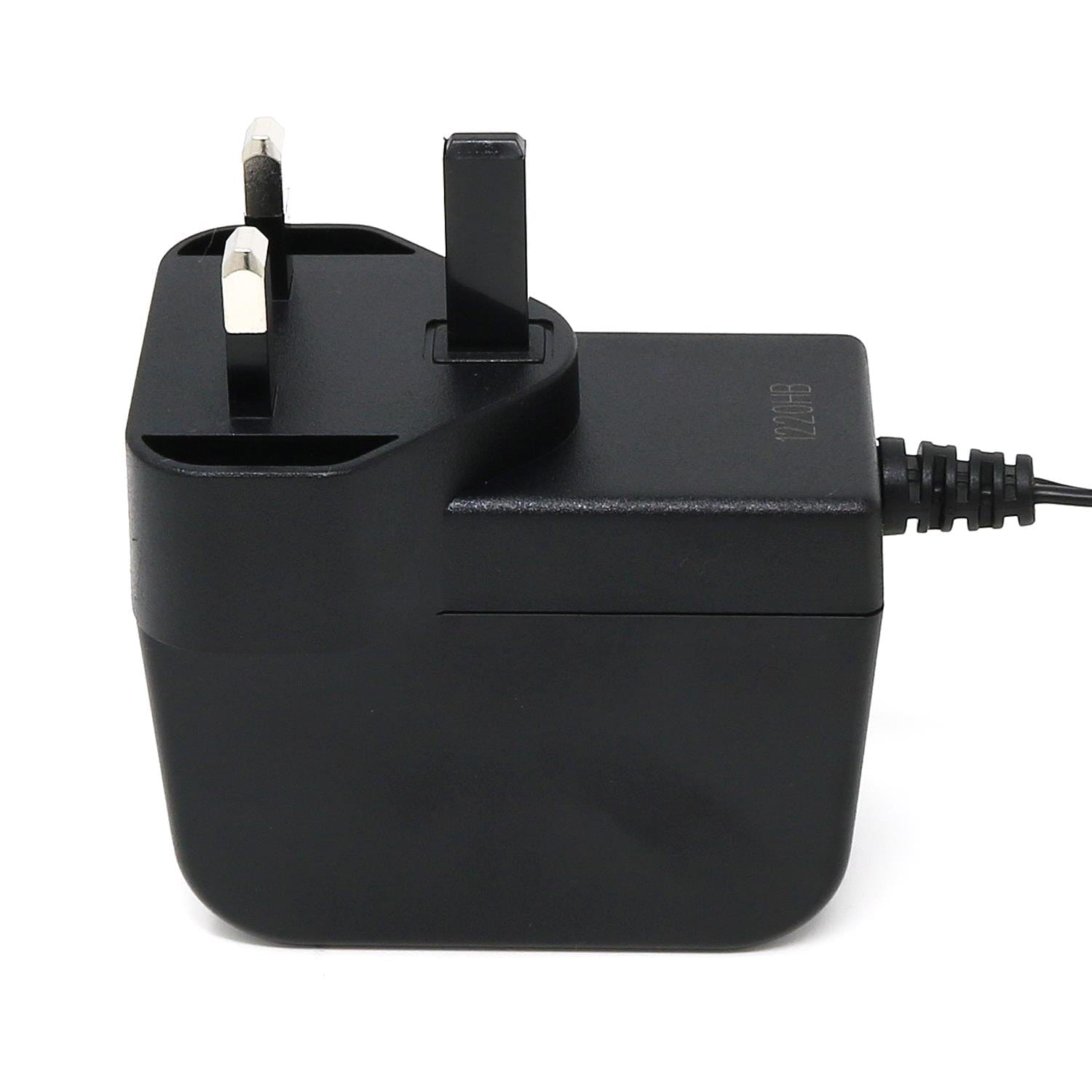

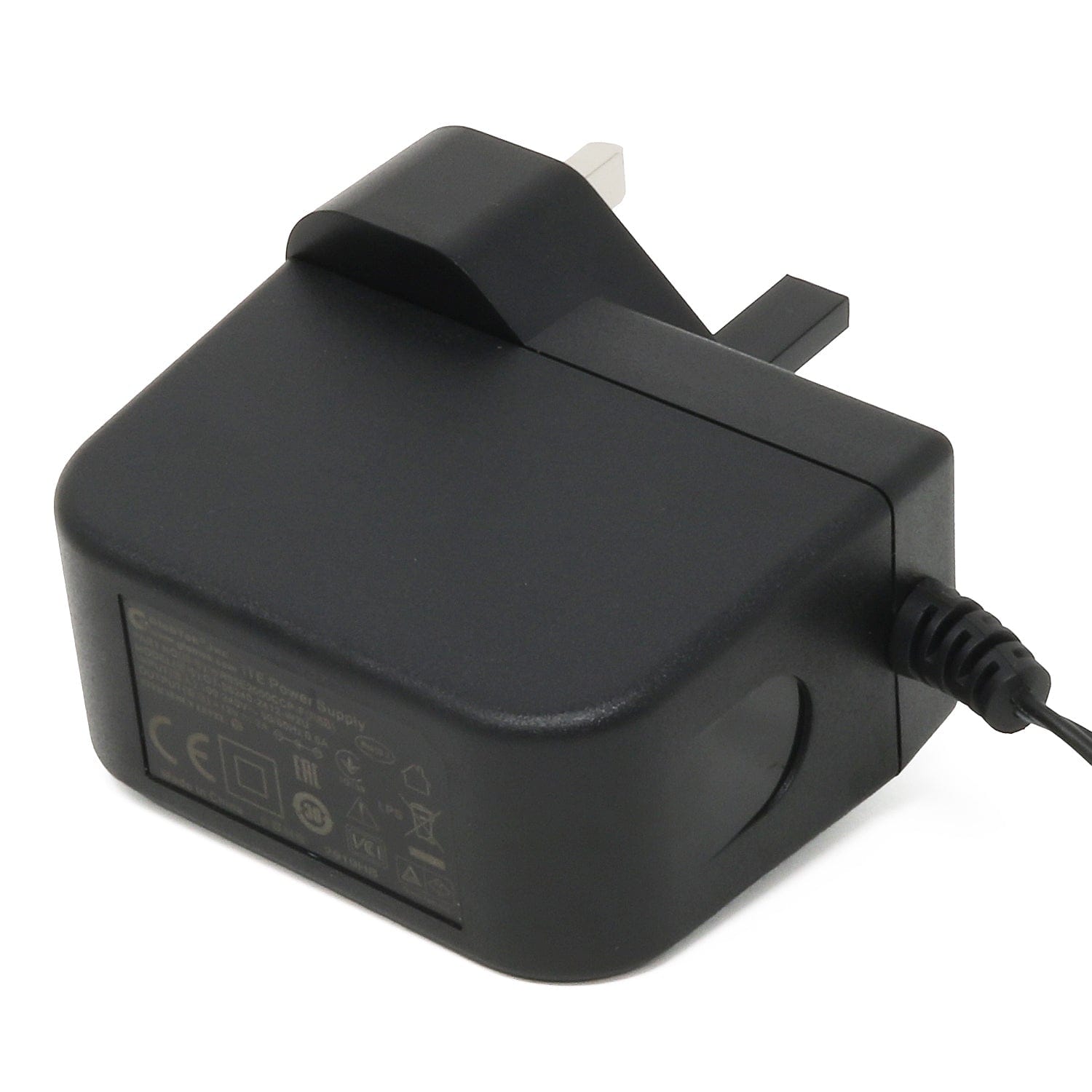

12V 2A Power Supply with 2.1mm Barrel Jack

This is a UK 12V 2A (24W) power supply with a 2.1mm centre-positive DC Barrel Jack, ideal for powering compatible boards such as an Arduino Uno or using with a breadboard-friendly barrel jack socket to break out a handy 12V line for your projects.

For your safety, it has built-in protection against overvoltage, overcurrent. and short circuits. The cable length is 1.5m so it's easy to position your plugged-in devices somewhere convenient.

This regulated power adapter has a mean time between failures (MTBF) of 200,000 hours, so you can be sure it will last!

Features

• 12V 2A power supply

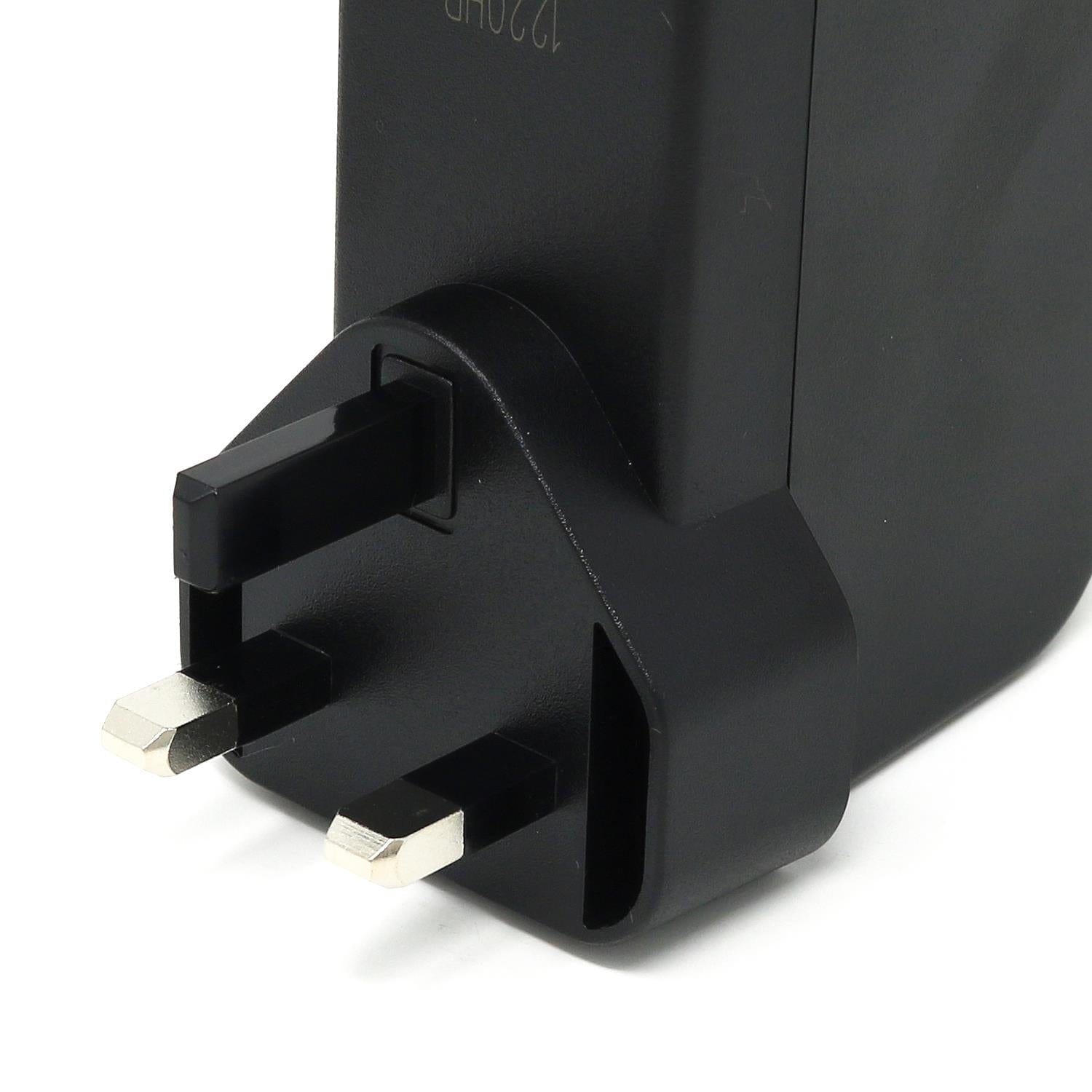

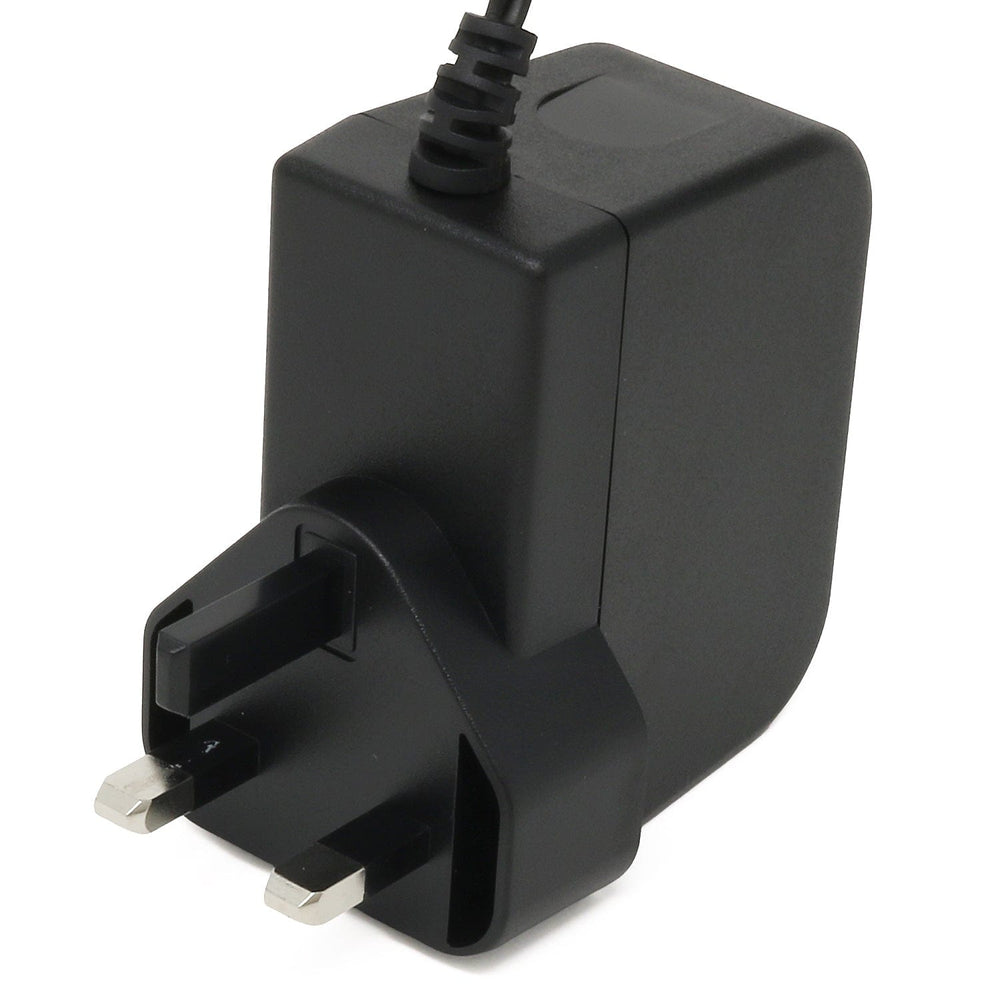

• United Kingdom 3-pin Fixed Head Plug
• Barrel Jack (2.1mm, centre-positive)
• Level VI Efficiency
• CE Approved

Specifications

• Plug type: UK fixed
• 12V DC output
  • 2A max output current
  • Power: 24W

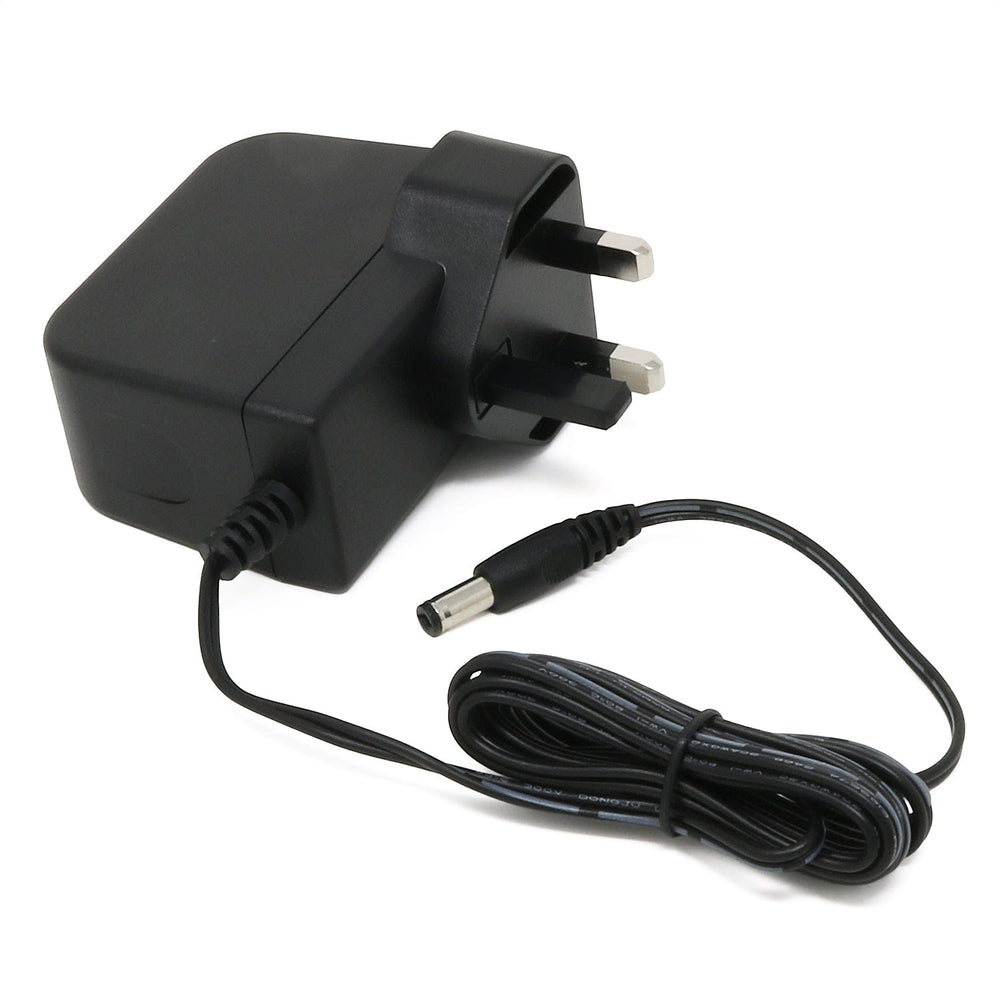

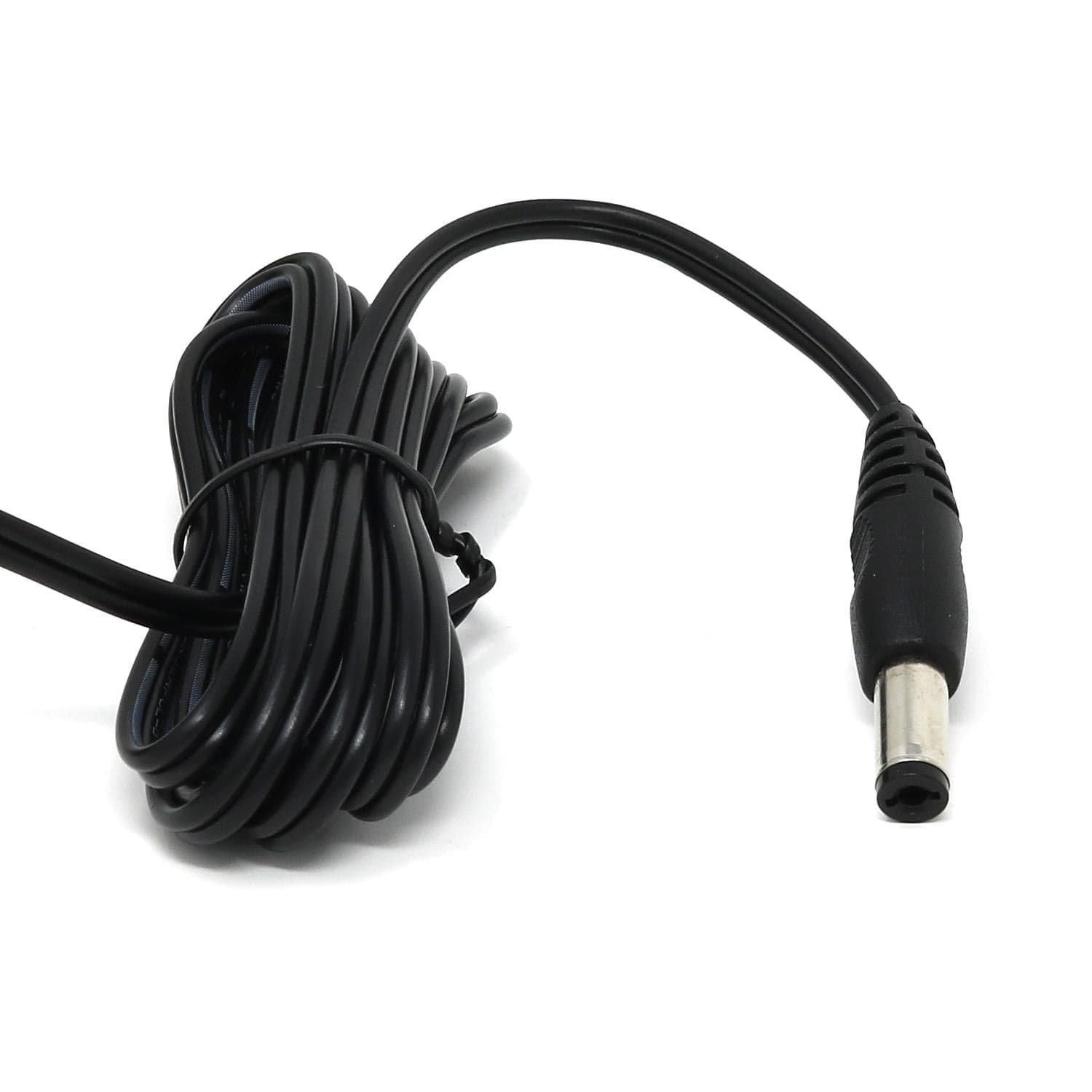

• 5.5 x 2.1 x 11 mm centre-positive barrel plug
• Cable length: 1.5m
• 100 to 240V AC input
• 47 to 63 Hz input frequency
• Protection: short-circuit and over-current protection

• Output regulation: ±5%
• Ripple and noise: 300 mVp-p max
• Operating temperature: 0°C to +40°C
• Insulation class: Class II / double insulated
• Energy efficiency: Level VI

Resources

• Datasheet
• Product number: GlobTek WR95E2000CCP-F(R6B)
