If you are going to build a robotics project, then you need to check out this guy, the Black Gladiator!

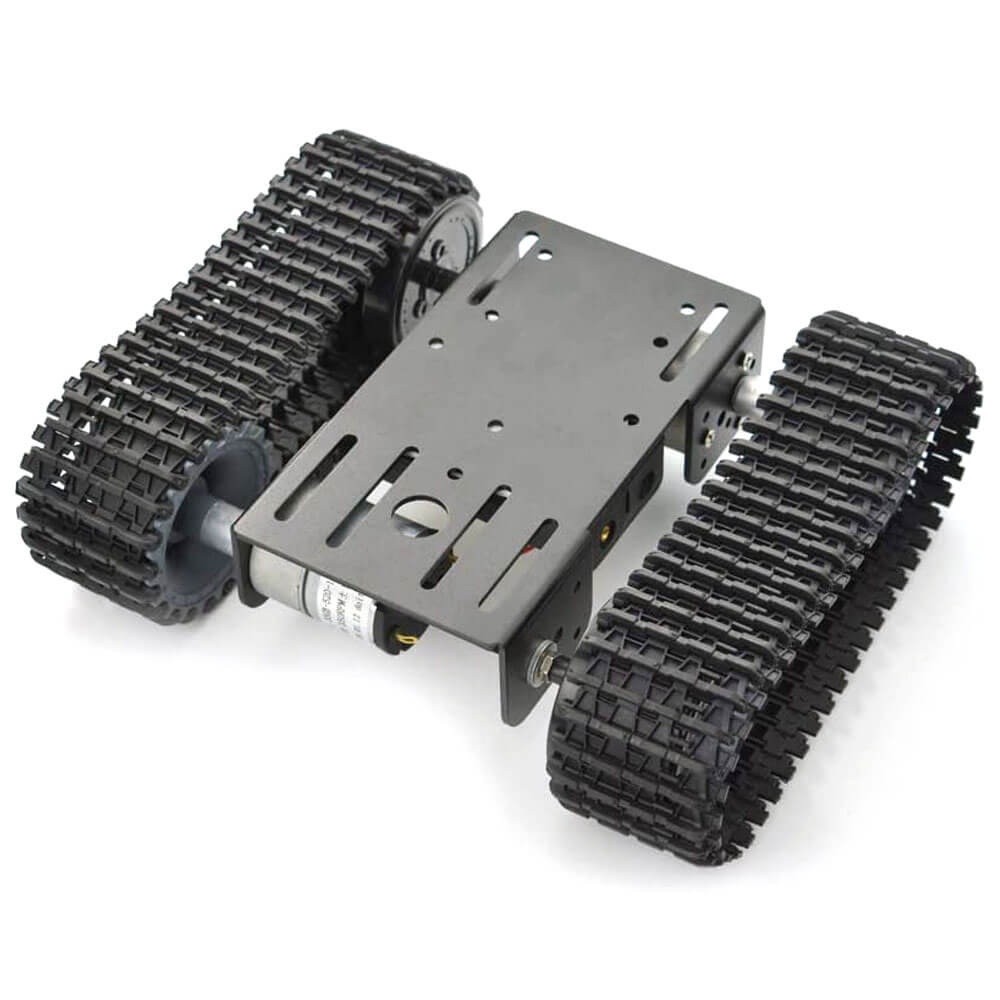

It's an agile tracked robot chassis, low noise and easy to control, which could be a good partner for any robot project. This tracked chassis employs a high-strength aluminium alloy base with a delicate appearance, higher stability and longer durability.

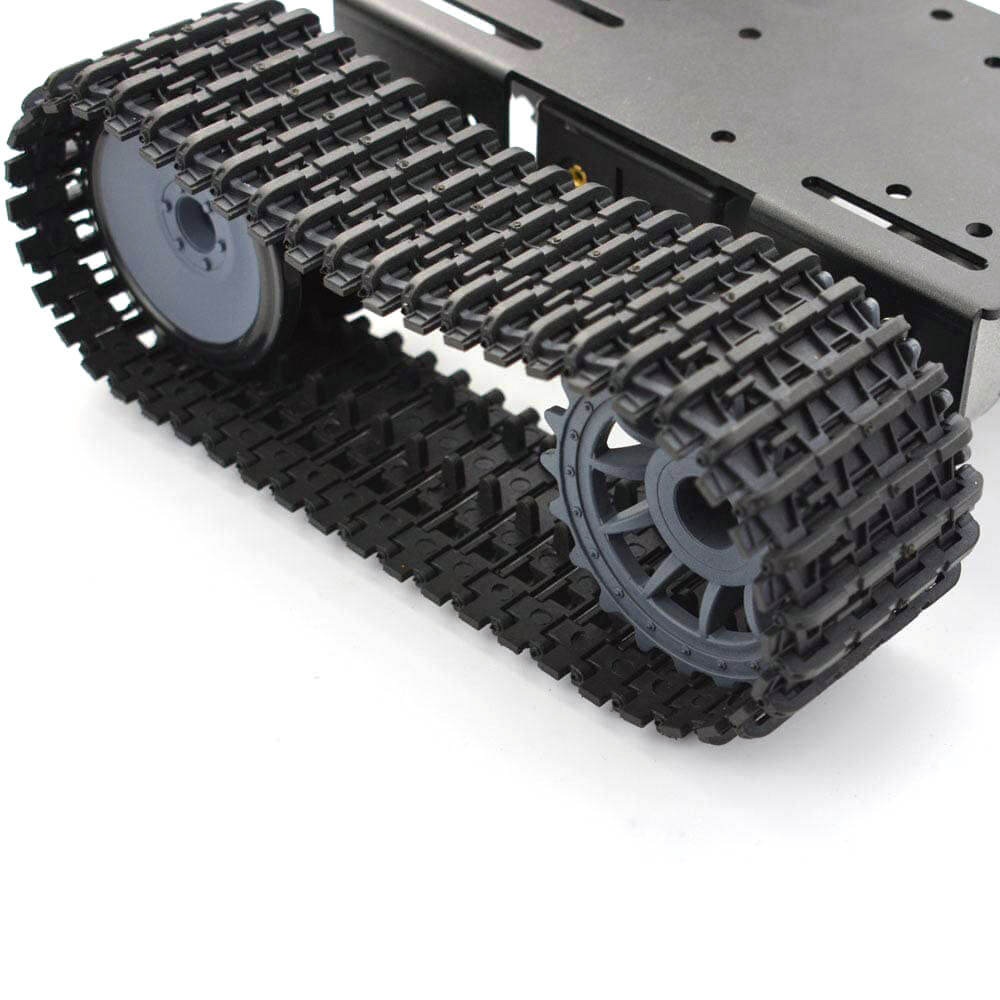

The track is made of quality plastic with an excellent damping effect and good surface grip. What’s more, it comes with two quality motors to provide high power and speed, which enables your DIY robot car to widely suit all kinds of road surfaces.

To explore more possibilities, you can use this tracked chassis with Arduino microcontrollers or add other electronic components on the base such as IR sensor, IR sensor, camera, LED, display, Wi-Fi module, etc. For Arduino fans and smart robot car lovers, this is a good choice for you!

Note: the included battery holder accepts 18650 batteries (batteries not included). Robot required the tracked chassis is unassembled - assembly required! Please see the DFRobot product page for instructions.

Specification

Assembled Dimensions: 19.3*16.3*6cm (L*W*H)
Net Weight: 0.47kg
Base Material: aluminium alloy 2mm
Surface Treatment: sandblasting oxidation
Track: engineering plastic
Wheel: plastic

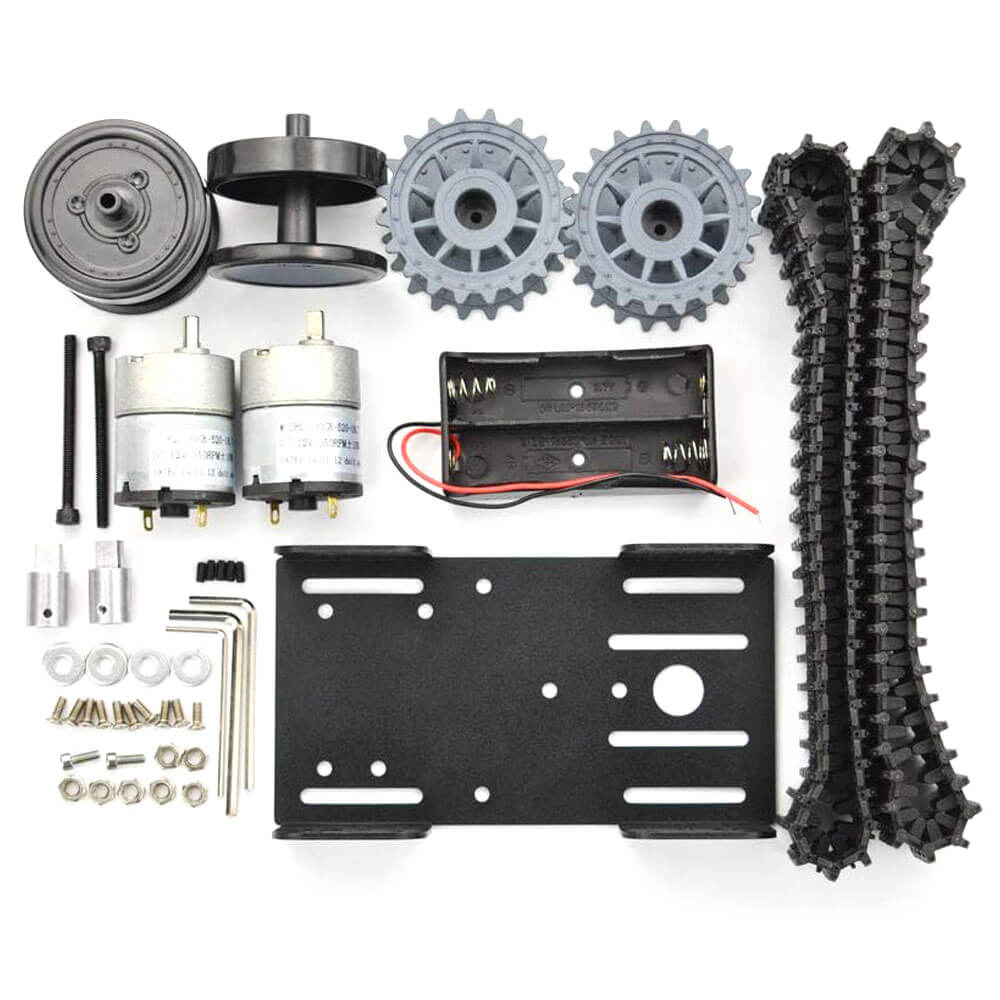

Package Includes:
Base: 1
- Motor: 2
- Track: 2
- Bearing Wheel: 2
- Drive Wheel: 2
- Screw Accessory: 1 set
- Hex Wrench
- Battery Holder: 1

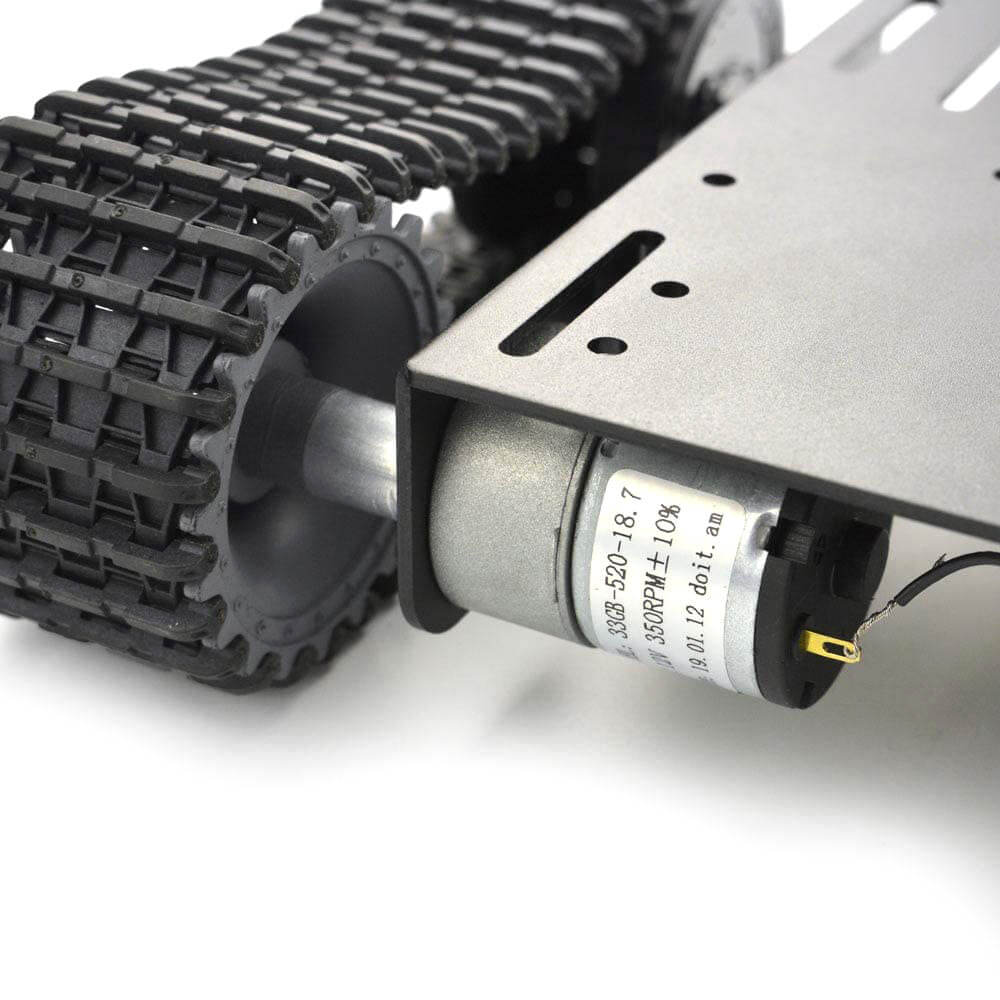

Motor parameter
- Voltage Range: 6V-12V
- No-load Speed: 170-350RPM
- Nominal Voltage: DC 12V
- No-load Current: 100mA
- Weight: 100g
