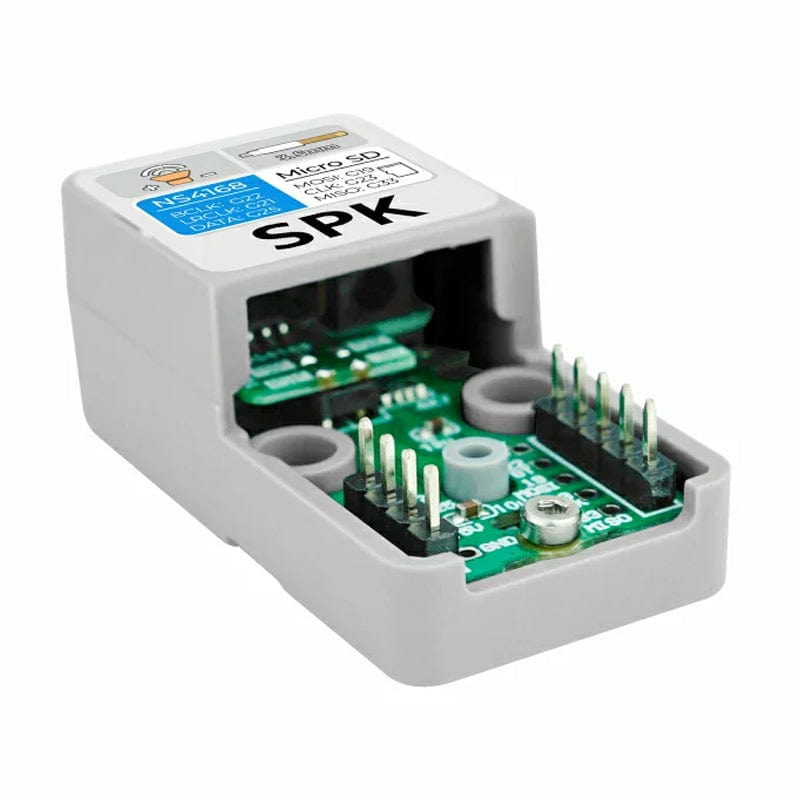

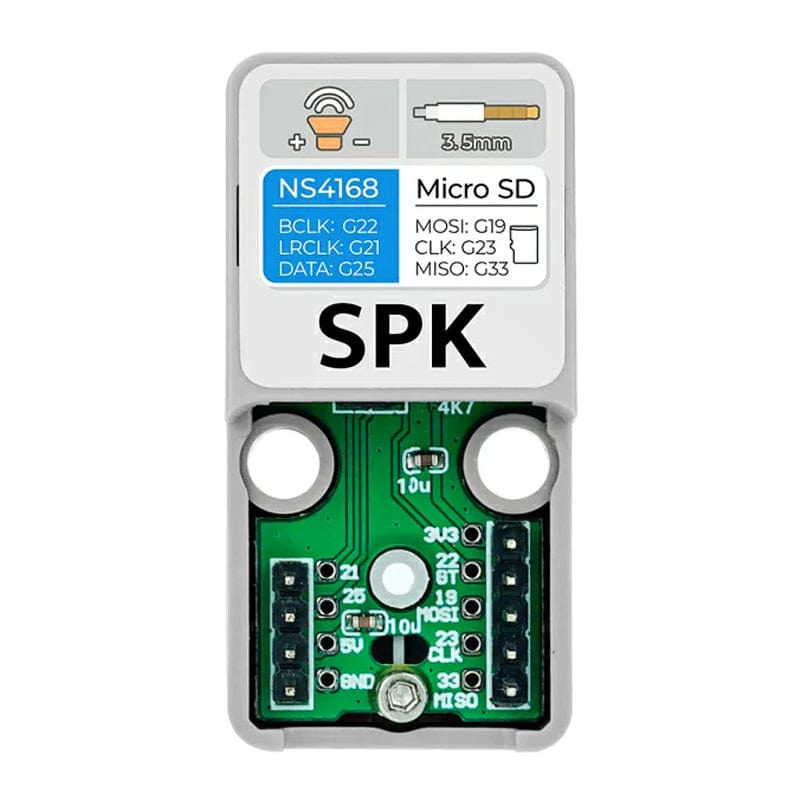

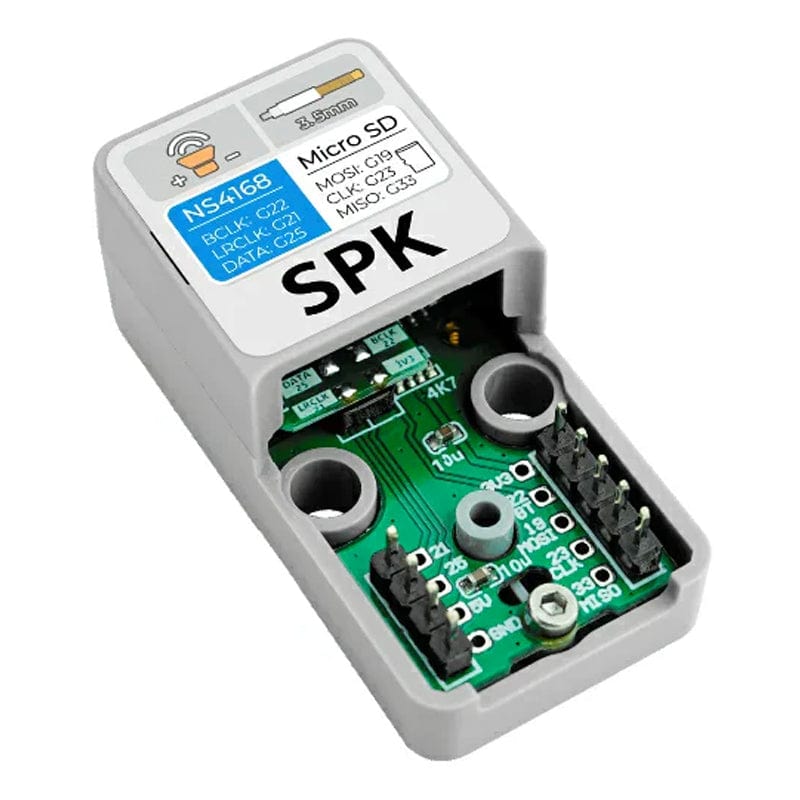

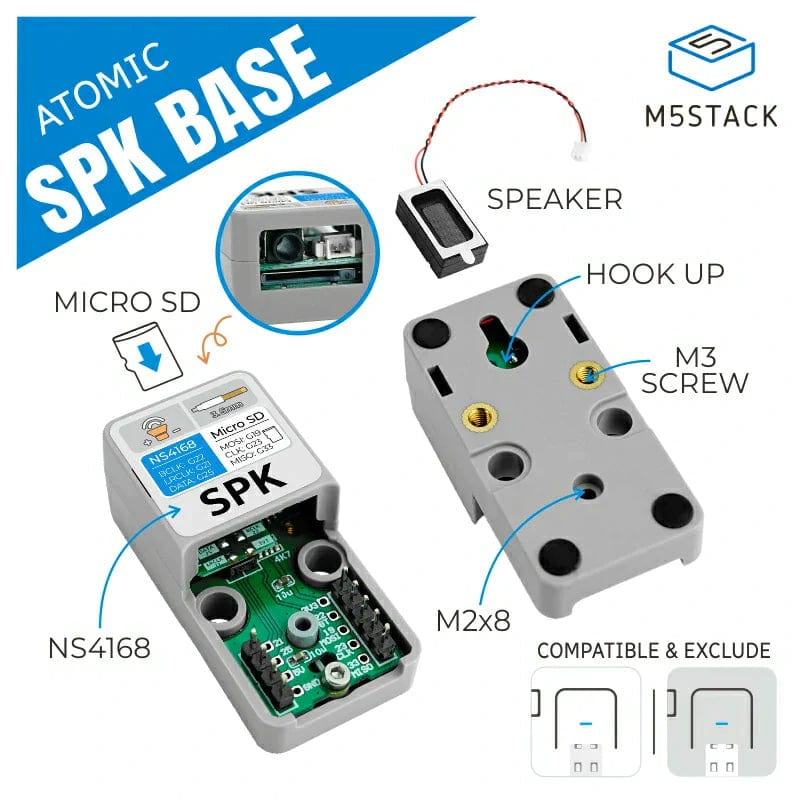

The Atomic SPK Base is an audio player specifically designed to work with Atom Lite and AtomS3 Lite. It has the NS4168 power amplifier chip which features a built-in I2S digital audio interface. This setup supports automatic sampling rate detection and adaptive functionality to minimise audio signal distortion, providing high-quality playback.

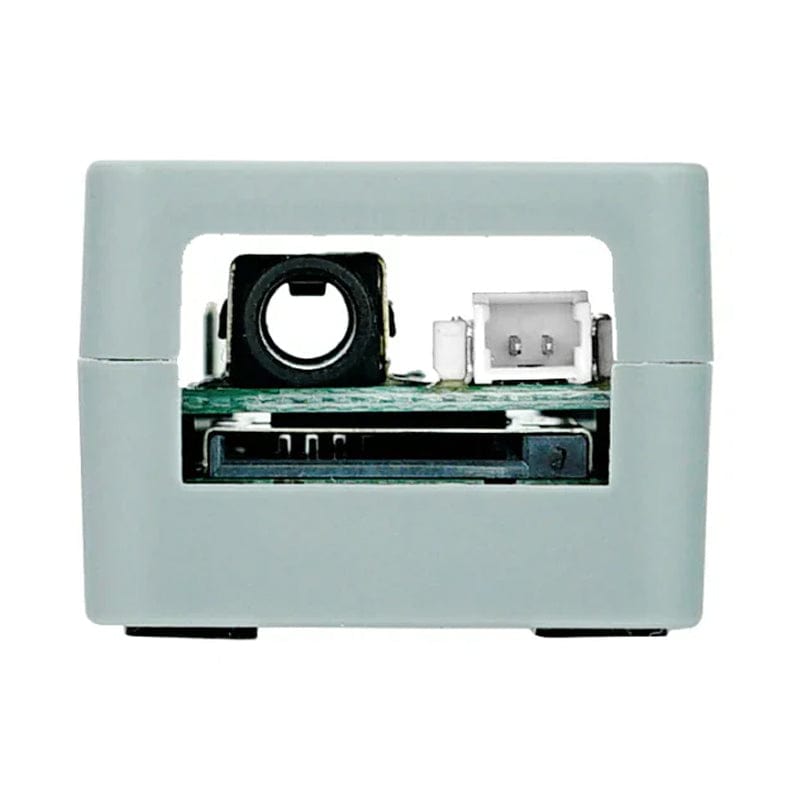

Additionally, the device includes a Micro SD Card slot for easy storage and retrieval of audio files. It is equipped with a 3.5mm headphone jack and an external speaker interface, providing listening options through either headphones or external speakers.
Note: The Atomic SPK Base may experience IO conflicts when used with the ATOM Matrix due to compatibility issues with the built-in hardware of the latter. Therefore, the base is recommended solely for use with ATOM LITE and ATOMS3 LITE models.
Features
Power amplifier chip NS4168
I2S serial digital audio input interface
Support a wide range of sampling rates: 8kHz~96kHz
Automatic sampling rate detection, adaptive function
MicroSD card slot
Headphone jack
Speaker interface
It applies to ATOM series hosts such as ATOM LITE, ATOMS3 LITE
