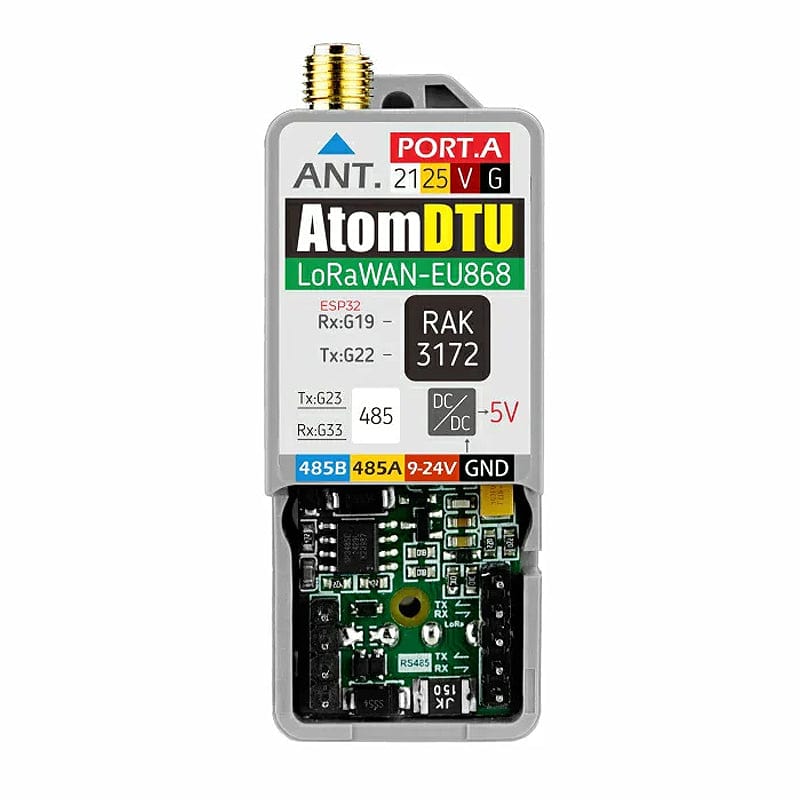

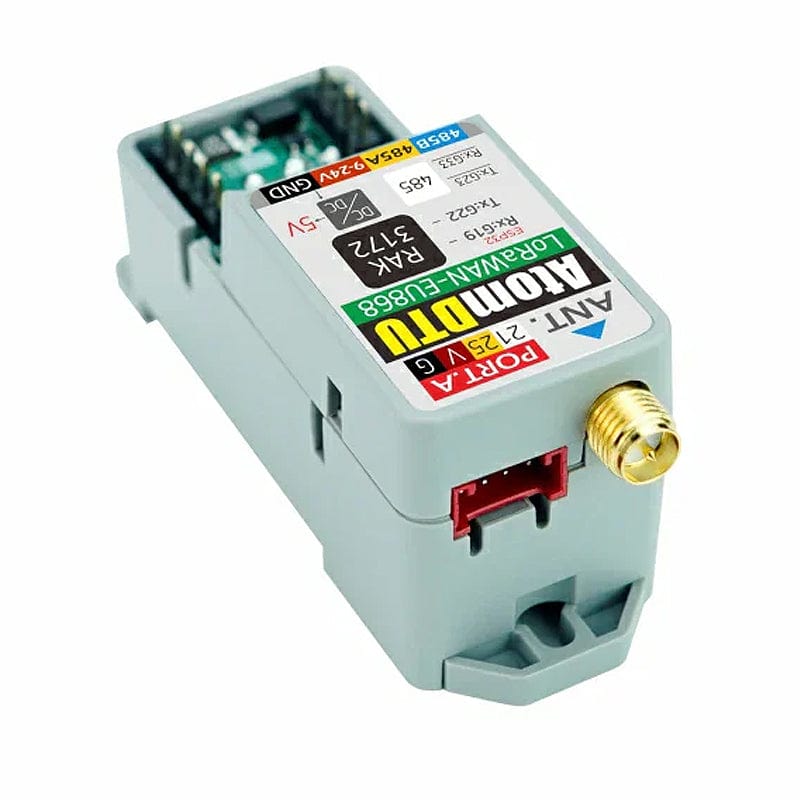

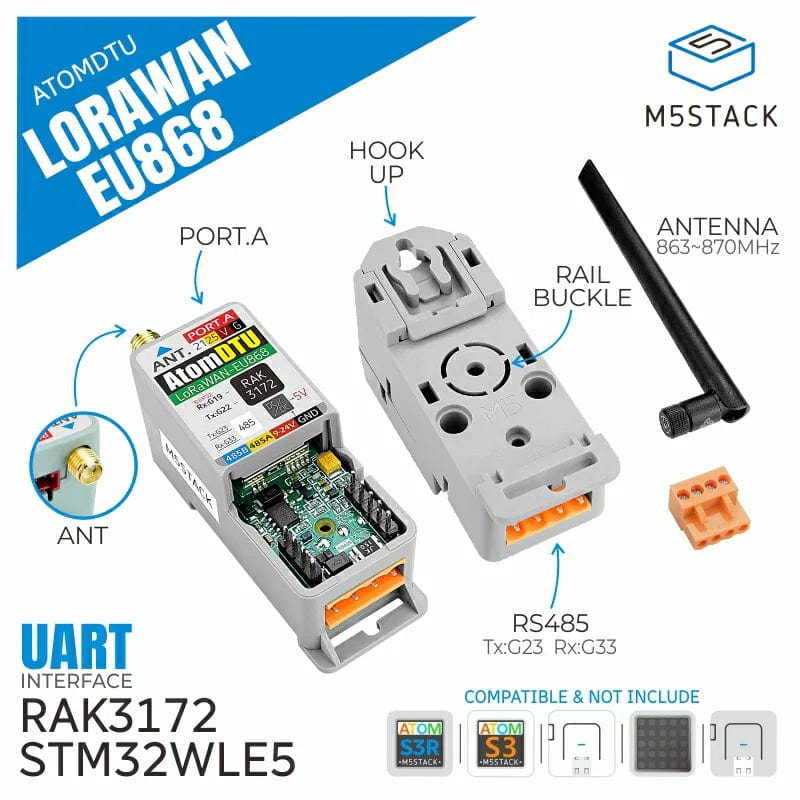

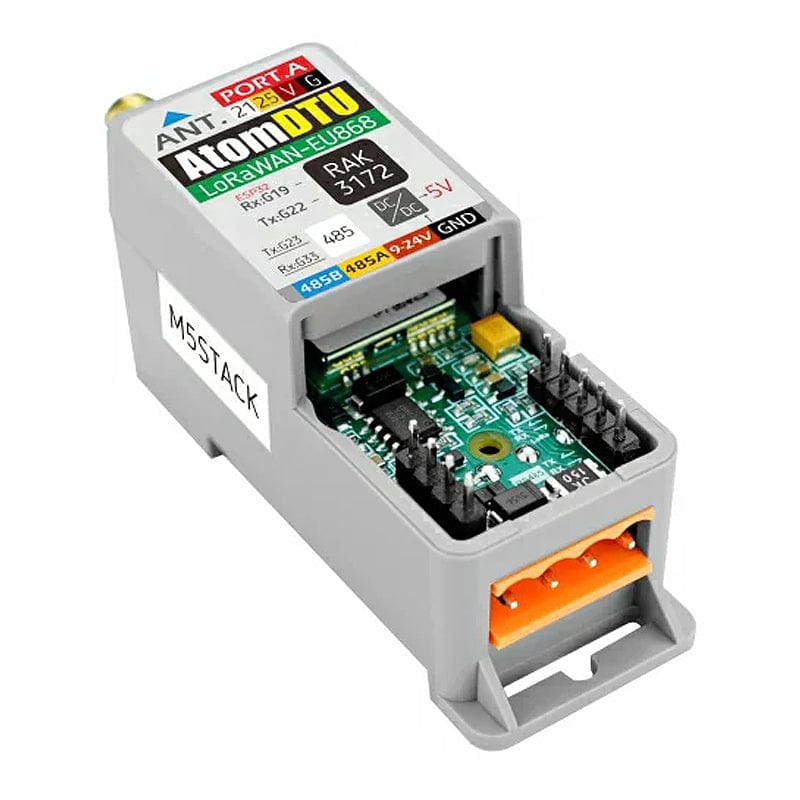

The M5Stack Atom DTU LoRaWAN-EU868 is a LoRaWAN programmable data transmission unit (DTU) designed for the 868MHz frequency band, suitable for Europe and other regions using the EU868 band, designed for M5Stack ATOM development boards.
This module employs the STM32WLE5 solution, supporting long‑range communication with low power consumption and high sensitivity.
The module features a built‑in LoRaWAN protocol stack, supporting Class A, Class B and Class C operation modes for easy connection to various LoRaWAN server platforms such as TTN, ChirpStack, Actility and Tencent Cloud. It also supports LoRa® point‑to‑point (P2P) communication mode, uses a UART communication interface (controlled via the AT command set) for flexible configuration, and integrates an RS-485 communication interface to provide reliable wired connectivity for industrial field devices.
The product uses a high‑performance rubber‑duck antenna, with an optimised design to deliver more stable signal coverage and longer communication range, suitable for a variety of complex environments. In LoRaWAN mode, the module can act as a node to connect to a gateway for data collection and management; in P2P mode, it can achieve direct device‑to‑device communication without a gateway.

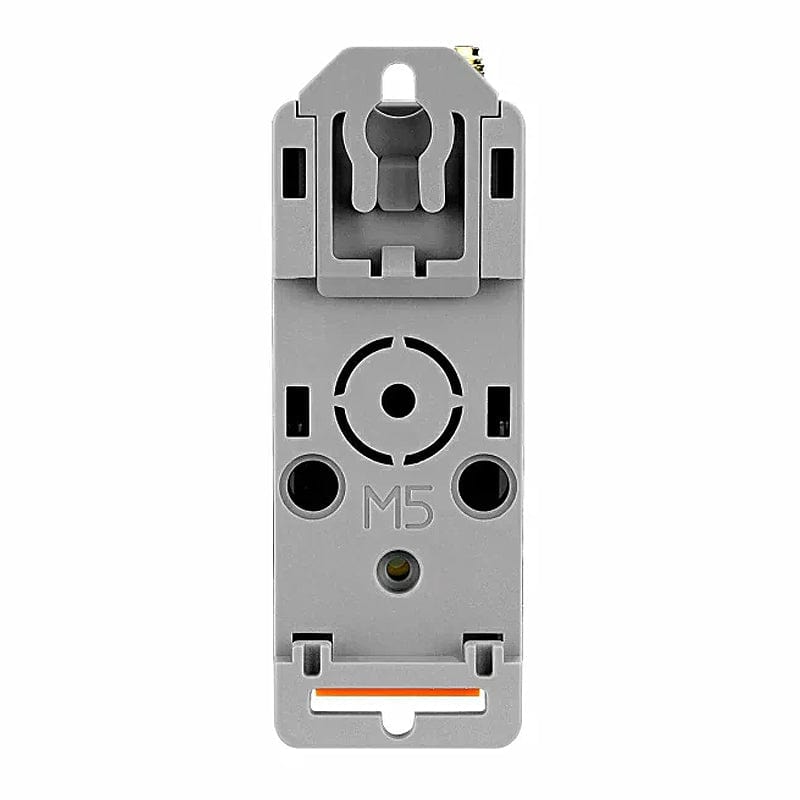

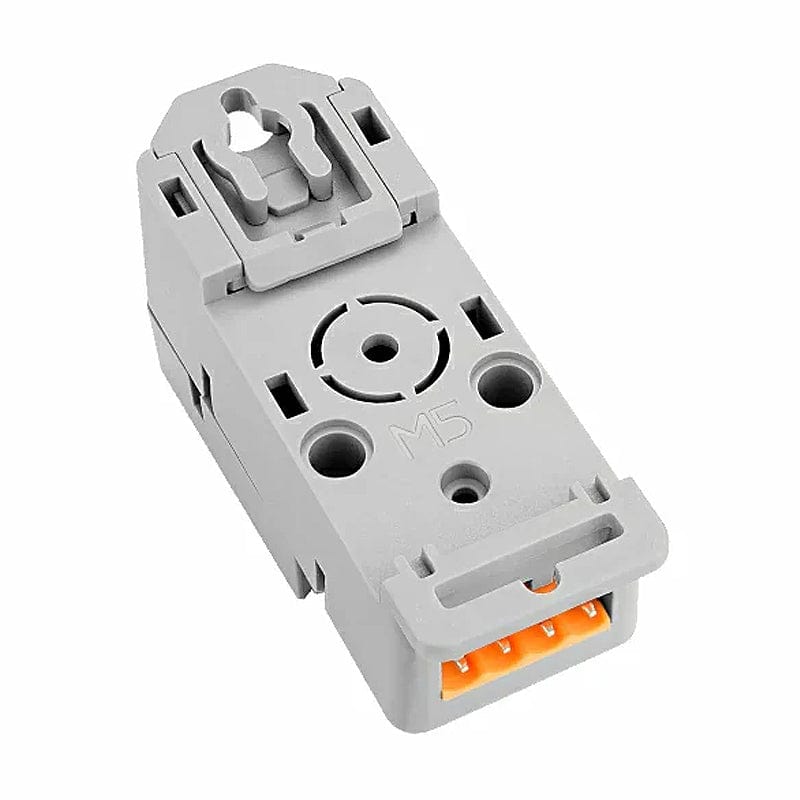

Structurally, the module features a standard 35mm DIN rail slot at its base, allowing direct installation on industrial rails for quick deployment and maintenance in cabinets or distribution boxes.
Features
Complies with LoRaWAN® 1.0.3 protocol
Supports 868 – 870 MHz band
Supports LoRa® P2P (point-to-point) communication
LoRaWAN activation modes: OTAA, ABP
Serial communication (AT commands)
RS485 communication
High-sensitivity stick antenna
Low power consumption
Building block-compatible mounting holes
DIN rail mounting design
Specifications
LoRa Solution
STM32WLE5 @ 256 KB Flash, 64 KB RAM
Supported Band
EU868 (868 – 870 MHz)
Protocol Support
LoRaWAN® 1.0.3 (Class A, Class B, Class C)
Receive Sensitivity
–137 dBm
LoRaWAN Activation Modes
Over-The-Air Activation (OTAA) Activation By Personalisation (ABP)
RS485
SP3485EN
Communication Modes
LoRaWAN and LoRa® P2P (point-to-point)
Interface
UART serial @ default baud rate 115200, supports AT commands

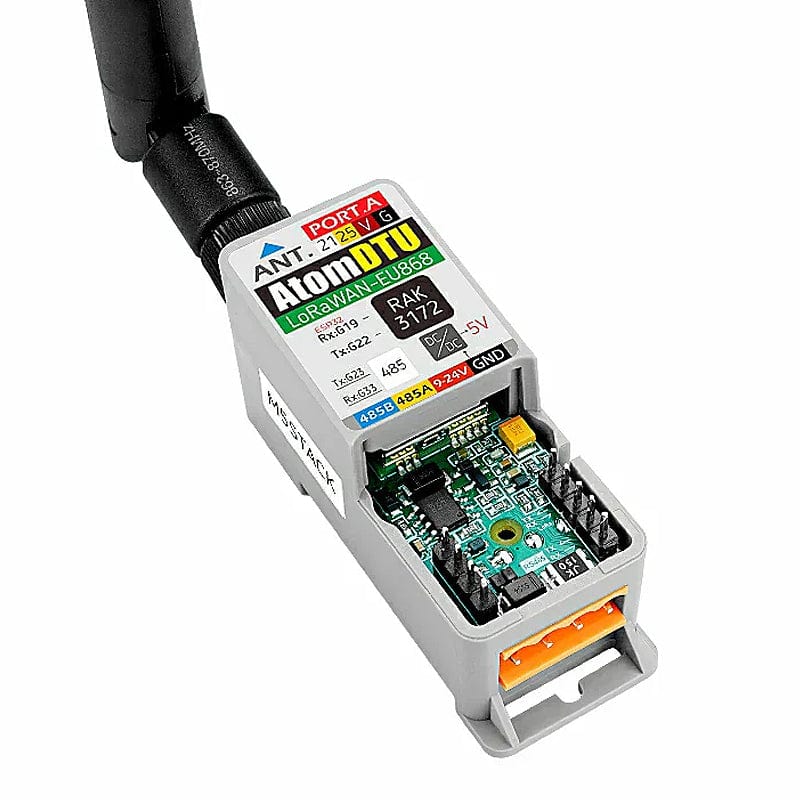

Antenna
High-performance stick antenna 50 Ω impedance @ 0.5dBi Total length 195mm, SMA male
Standby Power Consumption (RS-485 interface power)
