M5Stack Atom GW1NR - HDMI Display Base

Name: M5Stack Atom GW1NR - HDMI Display Base
Brand: M5Stack
SKU: A115
Price: 19.00 GBP
Availability: OutOfStock

M5StackSKU: A115

£19

incl. VAT

excl. VAT

Coming Soon

Awesome Extras

ATOMS3 Dev Kit w/ 0.85-inch Screen - The Pi Hut

M5Stack ATOMS3 Dev Kit with 0.85" Display

£15.40 incl. VAT excl. VAT

ATOM Matrix ESP32 Development Kit - The Pi Hut

M5Stack M5Stack ATOM Matrix ESP32 Development Kit

£15 incl. VAT excl. VAT

HDMI Cable for Raspberry Pi 3 - The Pi Hut

The Pi Hut HDMI Cable

From £3 incl. VAT excl. VAT

ATOM Lite ESP32 Development Kit - The Pi Hut

M5Stack M5Stack ATOM Lite ESP32 Development Kit

£9 incl. VAT excl. VAT

M5Stack Atom PSRAM - LCD Display Driver Kit - The Pi Hut

M5Stack M5Stack Atom PSRAM - LCD Display Driver Kit

£35 incl. VAT excl. VAT

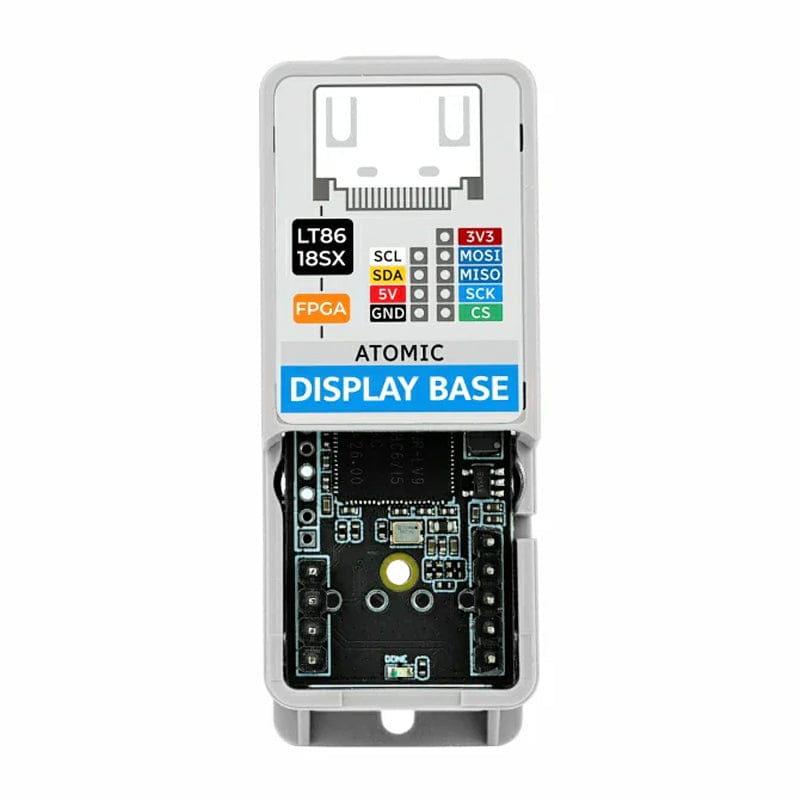

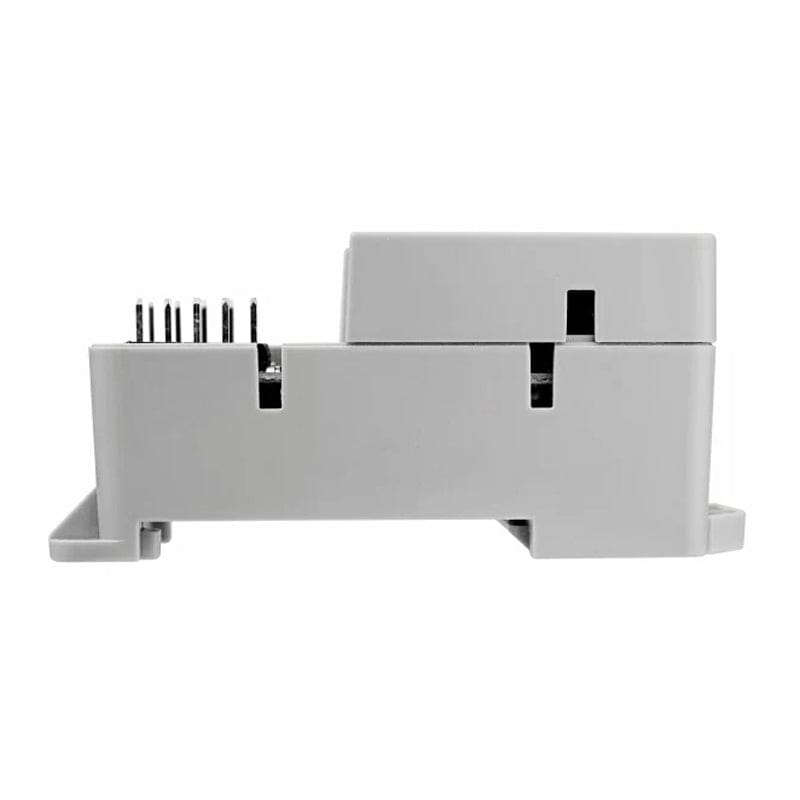

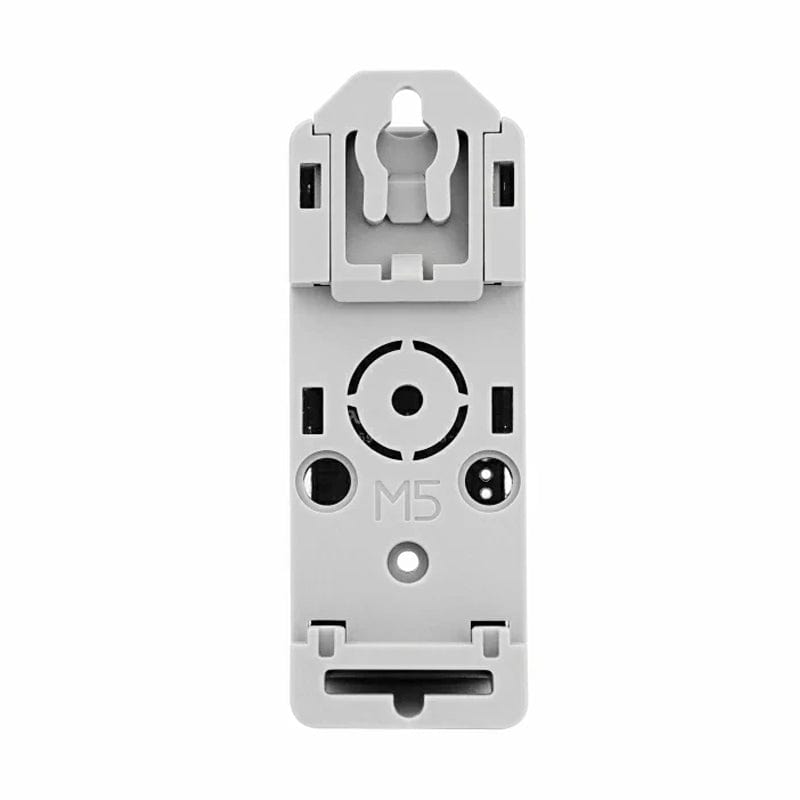

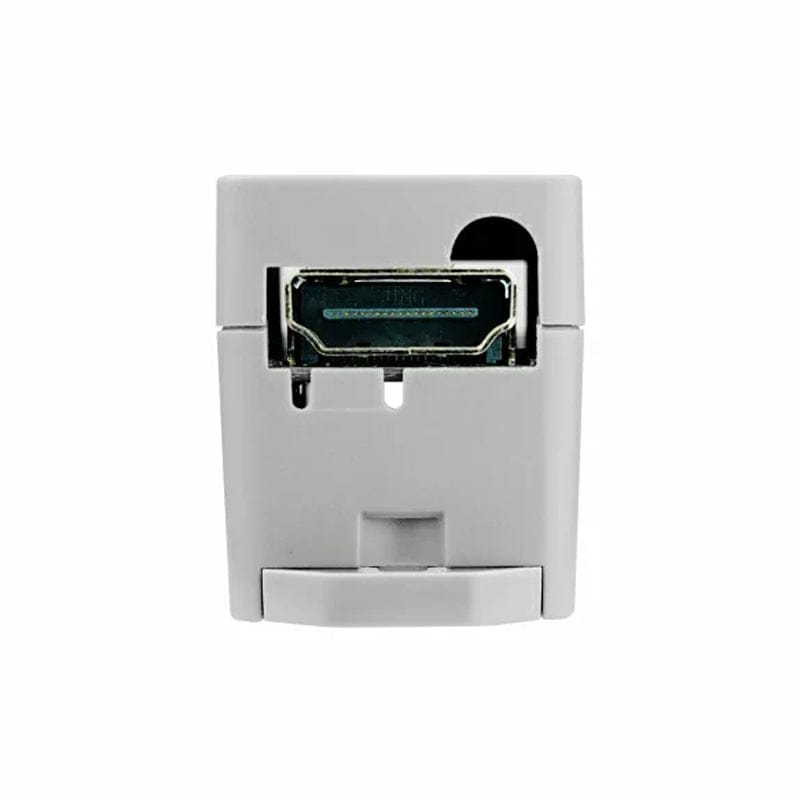

The Atomic Display Base is an HDMI display driver unit that gives high-definition visuals with support for up to 720P (1280 x 720) output. Using FPGA technology, it emulates traditional SPI TFT-LCD data output, providing compatibility with a wide range of HDMI signal outputs through a dedicated RGB-to-HDMI chip. It pairs easily with ATOM series hosts, which in turn provides flexible memory and functionality configurations.

Note: The Atomic Display Base requires a display with adaptive resolution scaling. Some displays without adaptive resolution support may experience display issues.

Features

Uses FPGA (Gowin GW1NR-9C)
Built-in LT8618SX RGB-to-HDMI chip (supports 24-bit colour depth)
SPI interface (FPGA) + I2C interface (LT8618SX)
Maximum 720P (1280 x 720) image output
Various output modes with optimized frame rates of up to 12 - 16 FPS
Development platforms: Arduino, ESP32-IDF (UIFlow not yet supported)

Specifications

FPGA	Gowin GW1NR-9C
LT8618SX	RGB-to-HDMI chip supports 24-bit colour depth
Max Output Size	720P (1280 x 720)
Output Frame Rate	1280 x 720 60Hz
Product Size	64 x 24 x 29mm
Package Size	136 x 92 x 30mm
Product Weight	15.2g
Package Weight	17.3g
