ATOM PoE Kit with W5500 (HY601742E)

Price:
Sale price £39.40
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

M5StackM5Stack ATOM Matrix ESP32 Development Kit
Sale price £15 incl. VAT excl. VAT
M5StackM5Stack ATOM Lite ESP32 Development Kit
Sale price £9 incl. VAT excl. VAT

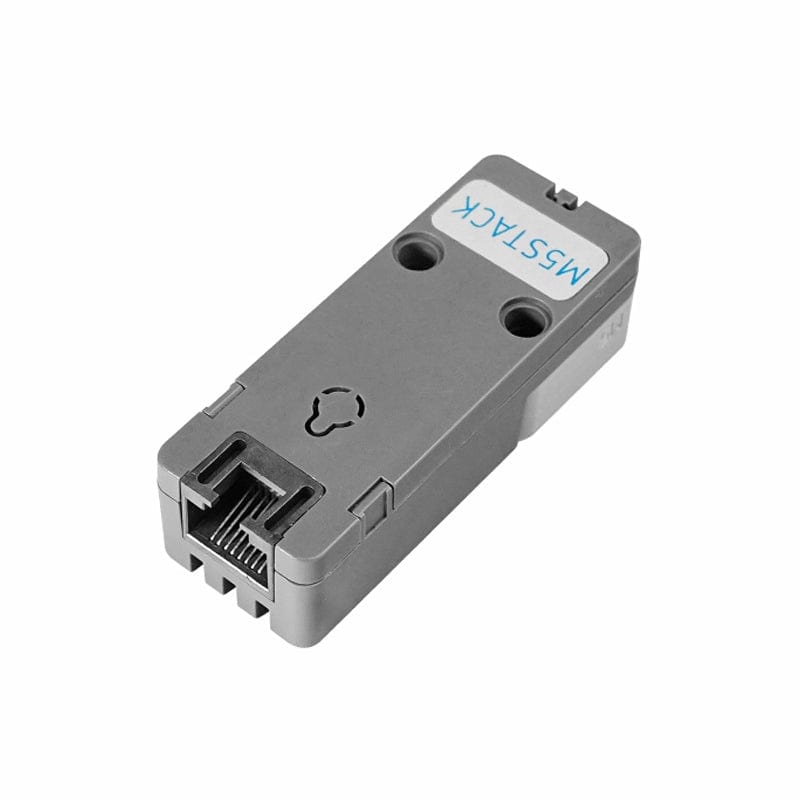

The ATOM PoE is an Ethernet accessory for the M5 Atom series, which supports PoE (Active Ethernet) technology. The built-in PoE module can directly supply power to the device through a PoE hub/switch without a separate power supply, effectively reducing the cost of your setup. It has a built-in W5500 Ethernet controller, integrated TCP/IP protocol stack, with 8 independent hardware sockets, 10/100M ethernet data link layer (MAC) and physical layer (PHY) to provide a more convenient internet connection solution for your embedded systems.

Features

  • Supports PoE IEEE802.3 AF
  • Wired Ethernet Access
  • 8 independent hardware sockets
  • Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Integrated 10BaseT / 100Base-T Ethernet PHY

Specifications

Resources Parameter
Ethernet Chip W5500
Supported Protocols TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
PoE Power Supply Idle pin power supply (10M/100M Ethernet), J4&J5 (VC-), J7&J8 (VC+)
PoE Spec IEEE802.3 AF
Net Weight 22g
Gross Weight 44g
Product Dimension 24 x 48 x 18mm
Packaging Dimension 54 x 54 x 20mm

Resources

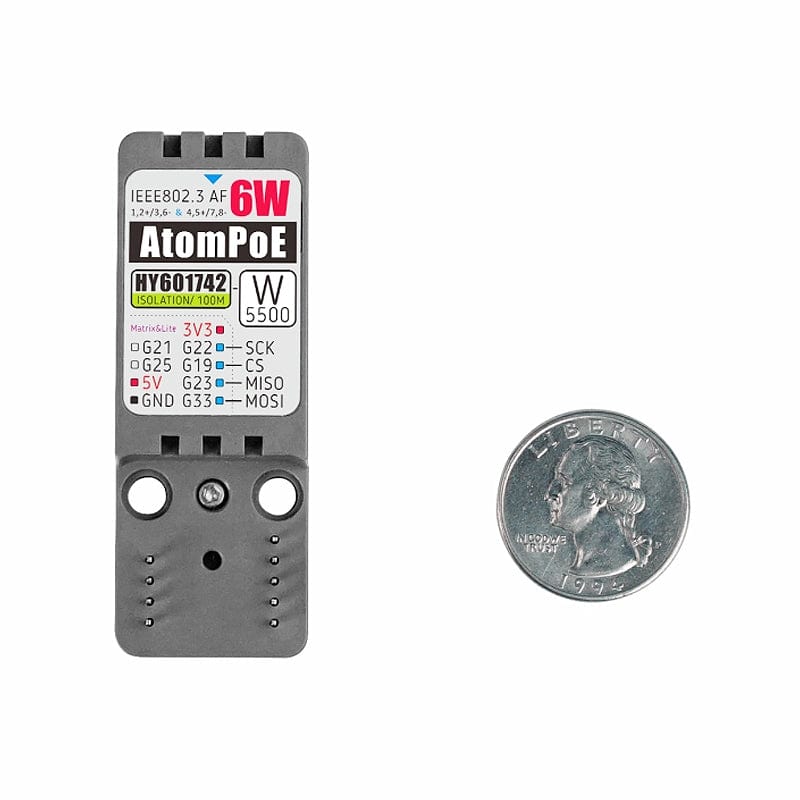

Pinout

ATOM GPIO22 GPIO19 GPIO23 GPIO33
ATOM PoE CLK CS MISO MOSI

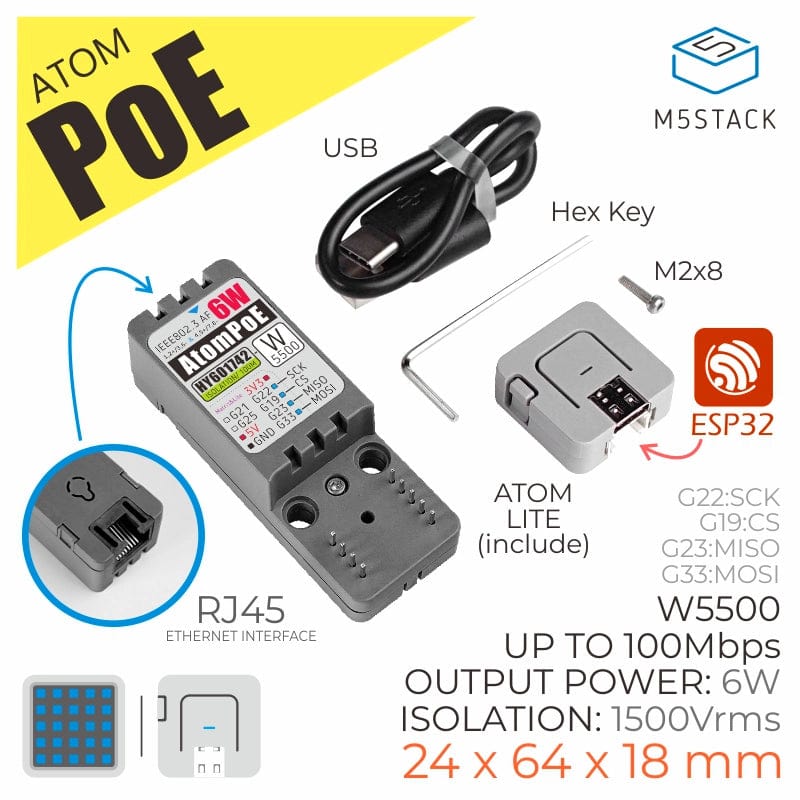

Package Contents

  • 1x ATOM PoE
  • 1x ATOM LITE
  • 1x TYPE-C USB Cable (20cm)
