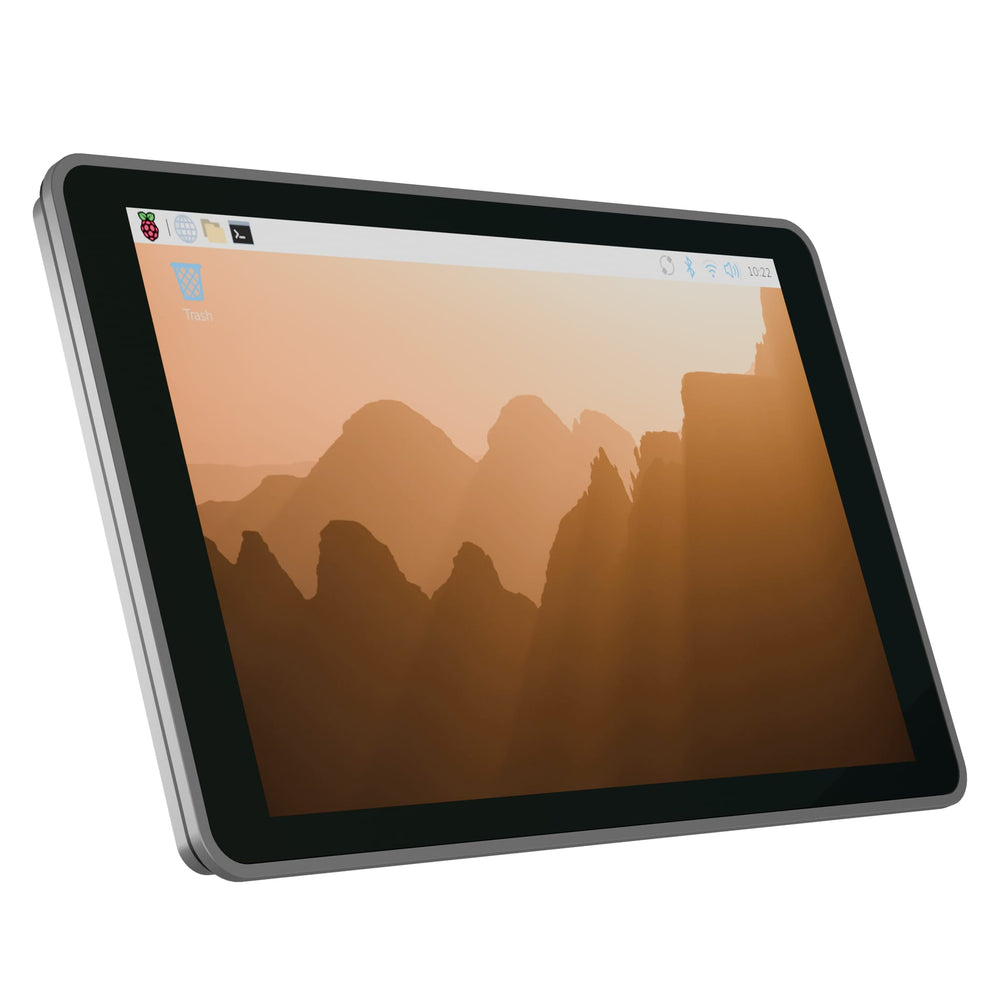

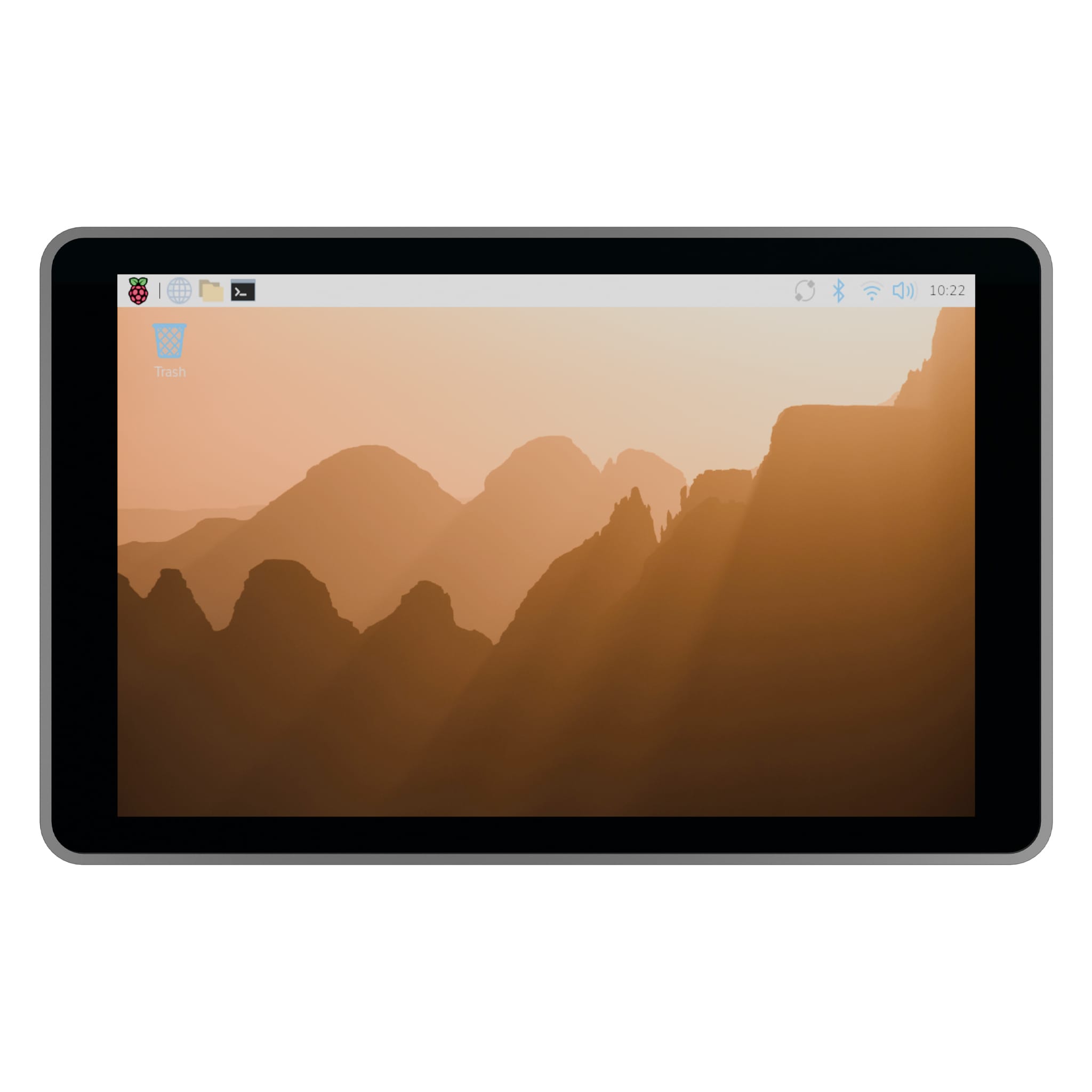

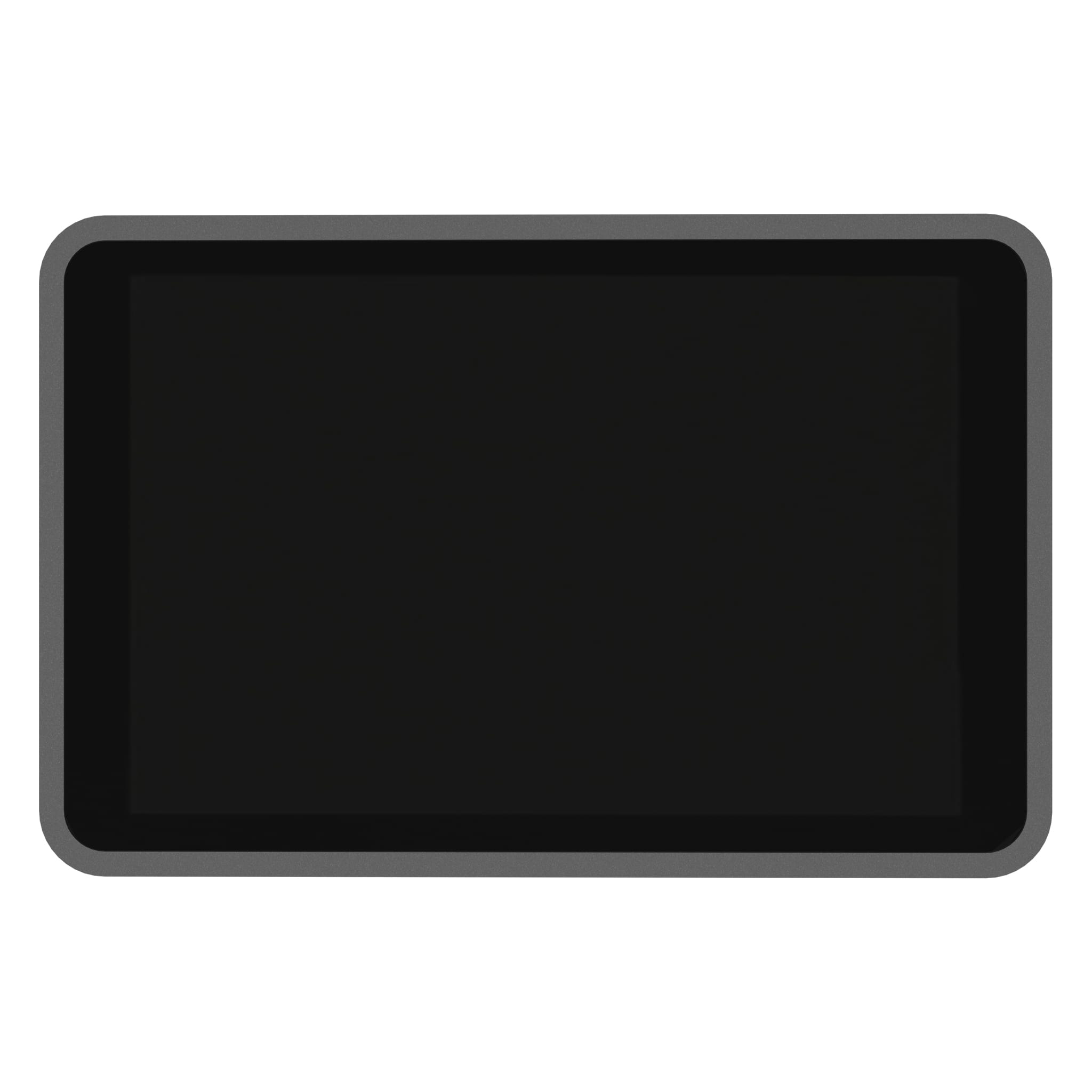

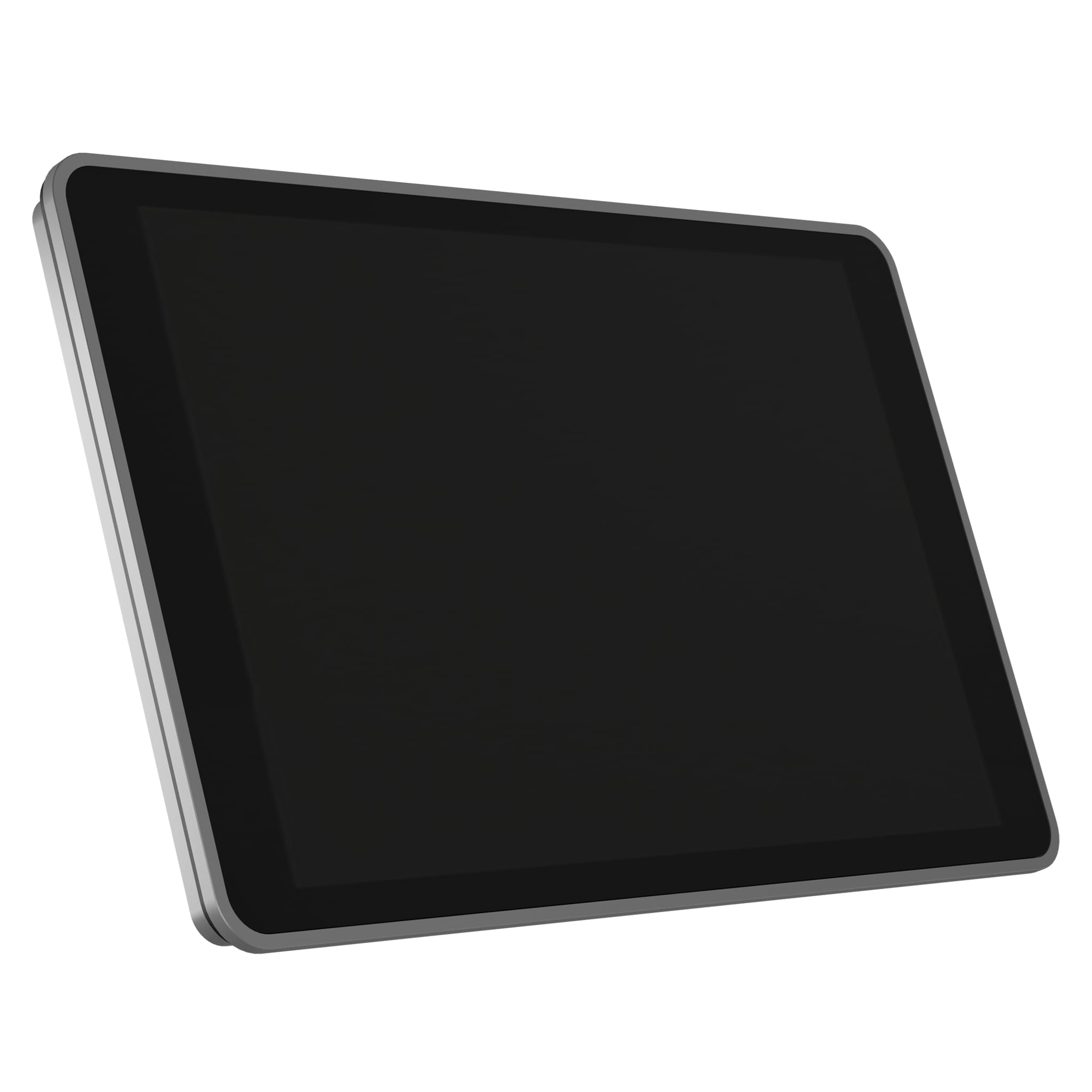

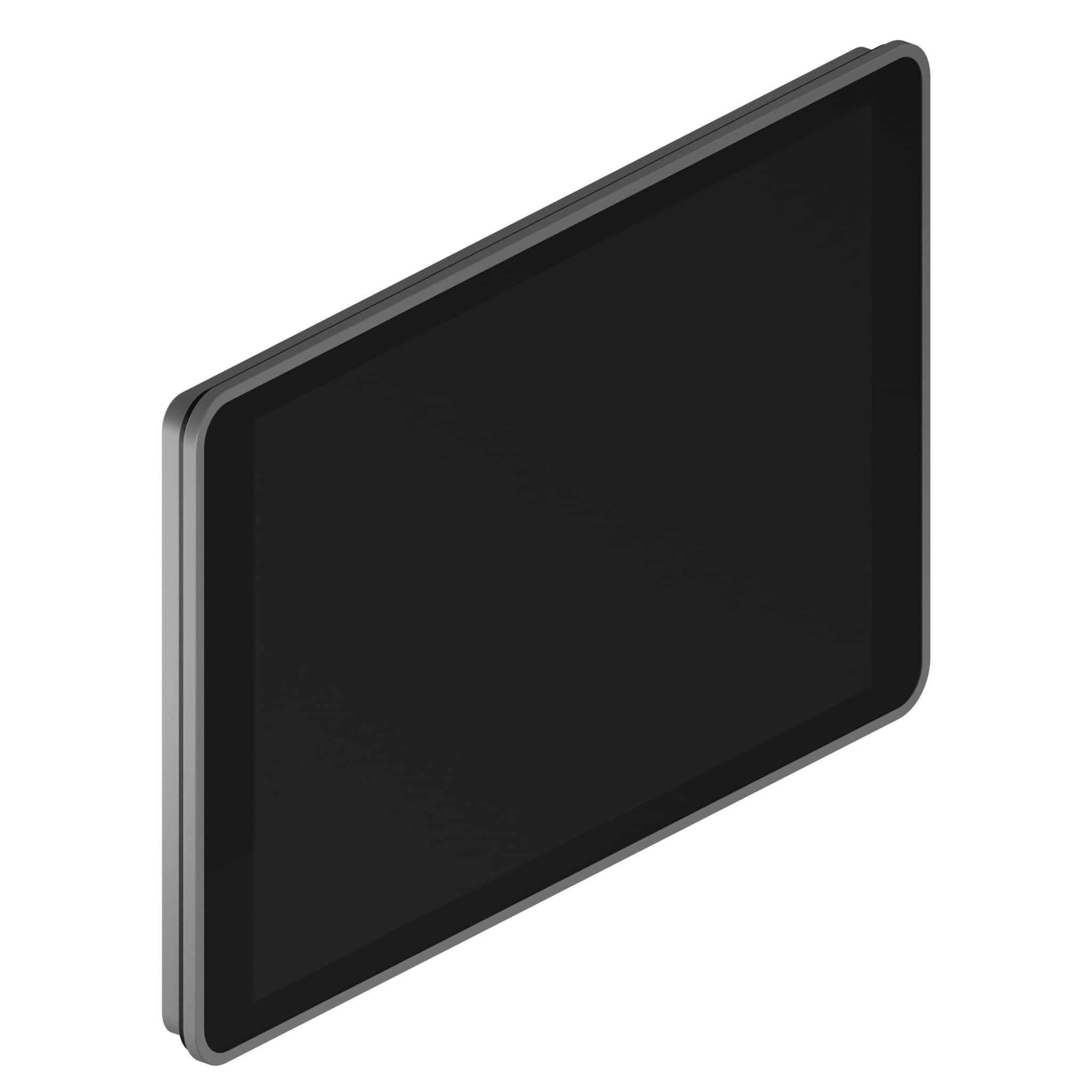

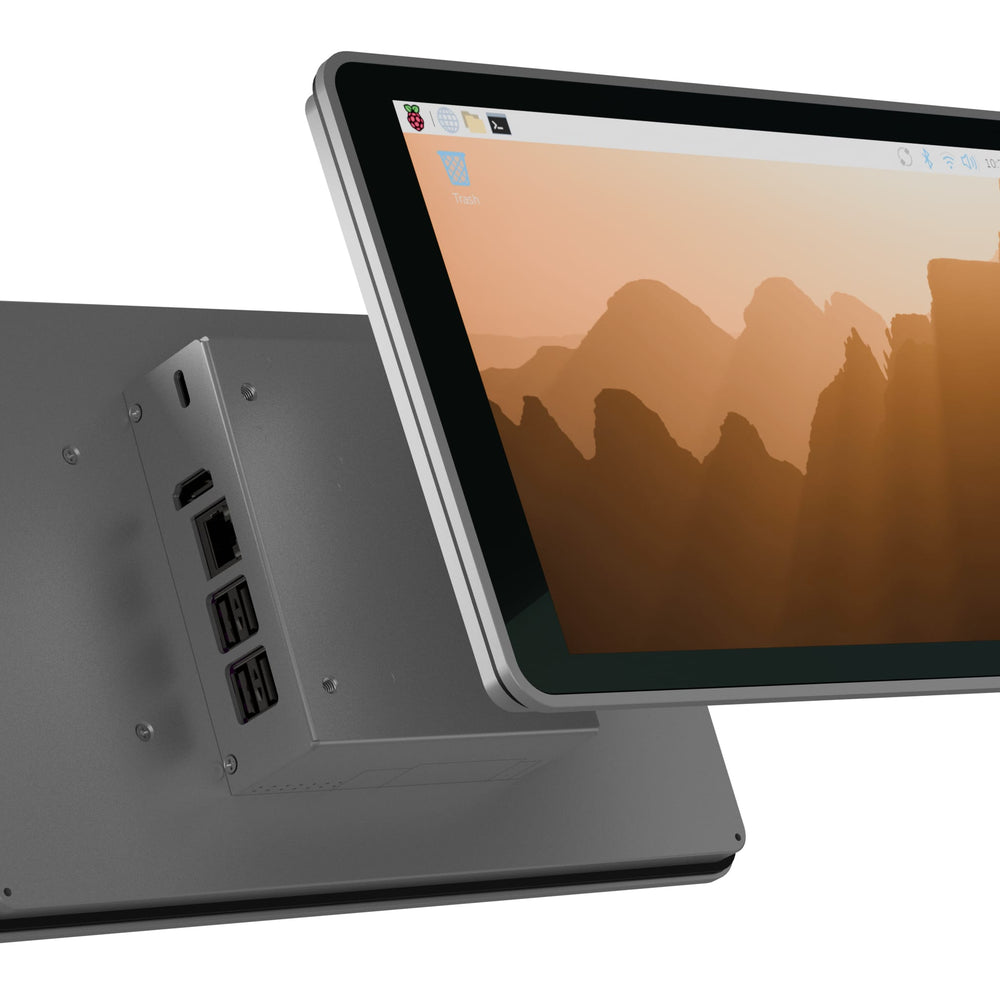

The ArgonIndustria HMI 10CS is an industrial-spec 10" 10-point touch display and solid aluminium enclosure combo for your Raspberry Pi 5, ideal for HMI (Human Machine Interface) deployments and other VESA/panel mounted Raspberry Pi display projects.
Designed for panel and VESA mounting with its lipped profile and soft foam gasket, the Argon HMI 10CS combines an 10" 1280x800 10-point capacitive touch DSI display with a solid aluminium enclosure designed to accomodate a Raspberry Pi 5, providing excellent passive cooling options, HAT compatibility, re-routed port access and cable punch-outs.
The thick aluminium body is efficient in transferring heat away from the internal hardware, however you also have the option to fit the included custom 'passive CPU cooling column' to turn the case into a passive heatsink, transferring heat away from the Pi 5 CPU to the body of the case via an included thermal pad. Please note that using the passive CPU cooling column removes the ability to fit HATs. If you do need to use HATs, just remove the passive CPU cooling column and consider heatsinks or active coolers if required.

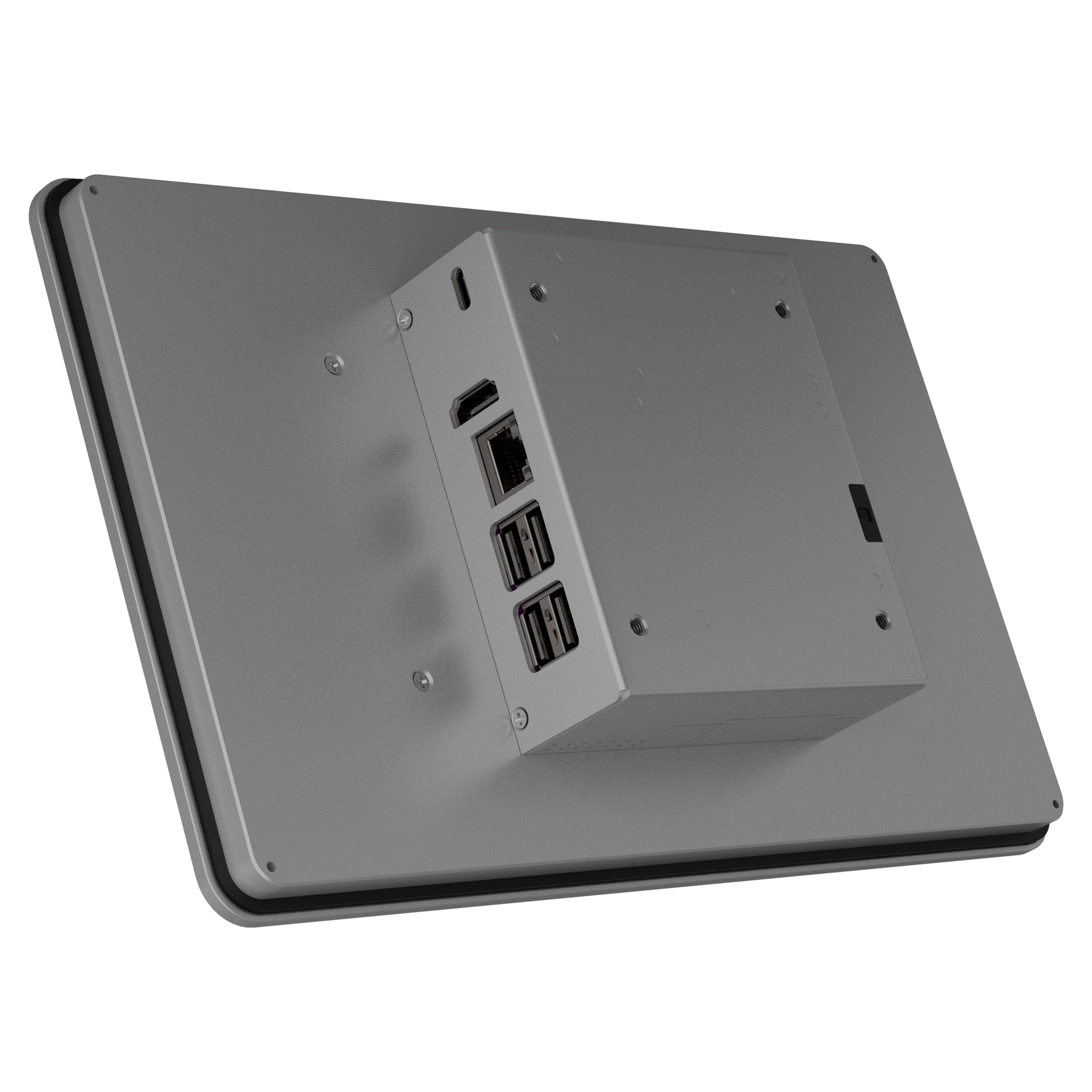

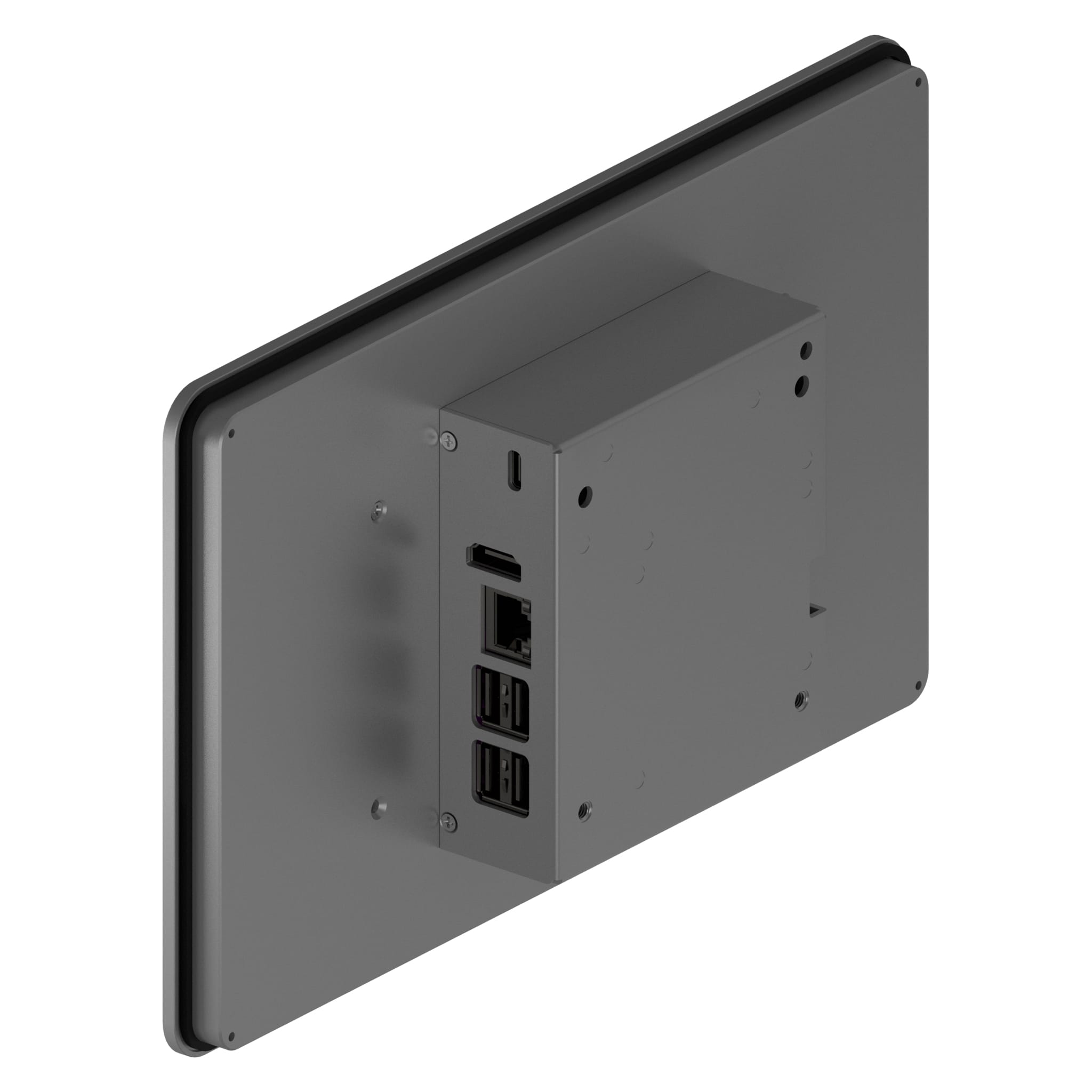

The included internal IO PCBre-routes HDMI and USB-C power inputs along the same edge as the USB and Ethernet ports - along the side of the enclosure - including converting from micro-HDMI to full-size HDMI for a more robust connection.
A range of optional internal M.2 accessory boards will soon be available, allowing you to attach M.2 devices via the PCIe interface, to the side of the board (above the IO PCB).
Raspberry Pi not included.
Features
10" touch display and solid aluminium enclosure combo
Compatible with Raspberry Pi 5
Panel and VESA mounting
10" 1280x800 optically bonded DSI display
10-point capacitive touch
Solid aluminium enclosure
Passive cooling
HAT compatibility
Re-routed port access via internal PCB, with full-size HDMI
