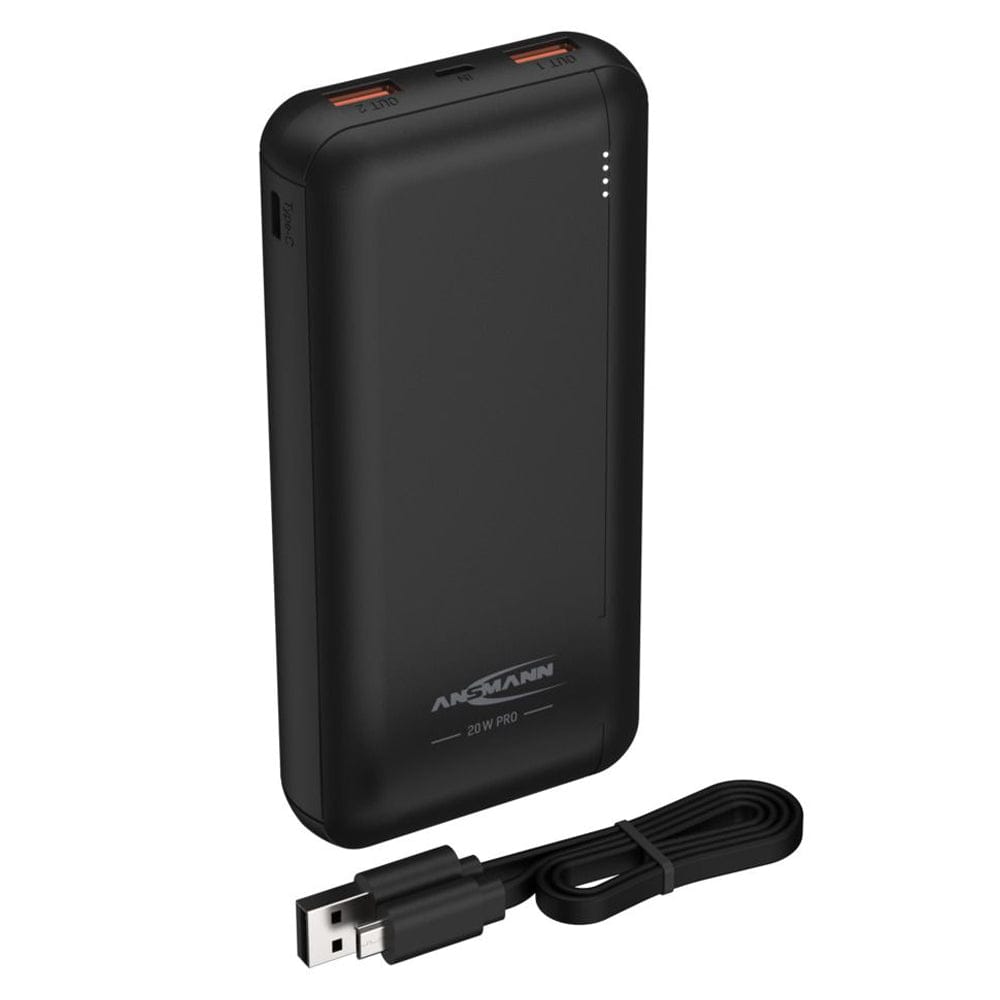

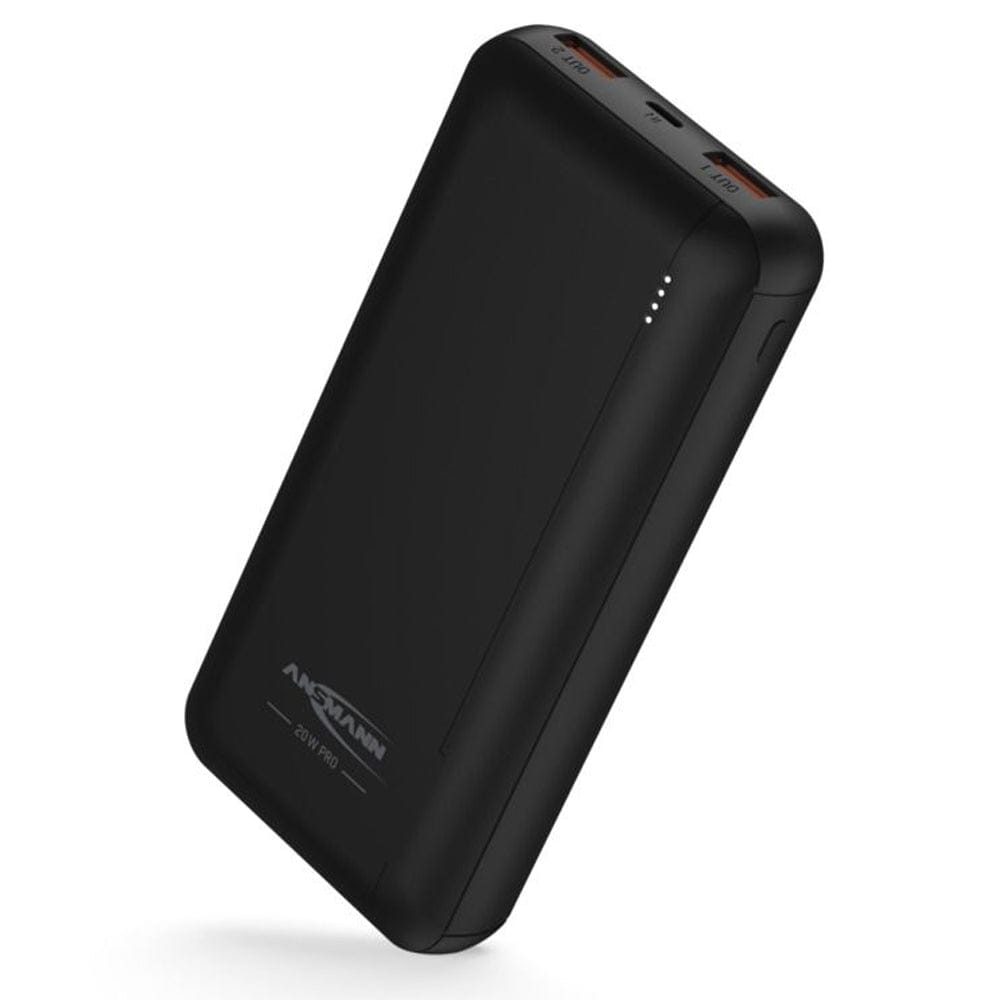

This is ANSMANN'sPB320PD 20,000mAh 20W PD Power Bank, capable of powering USB devices up to 20W via Power Delivery (PD) or Quick Charge 3.0.

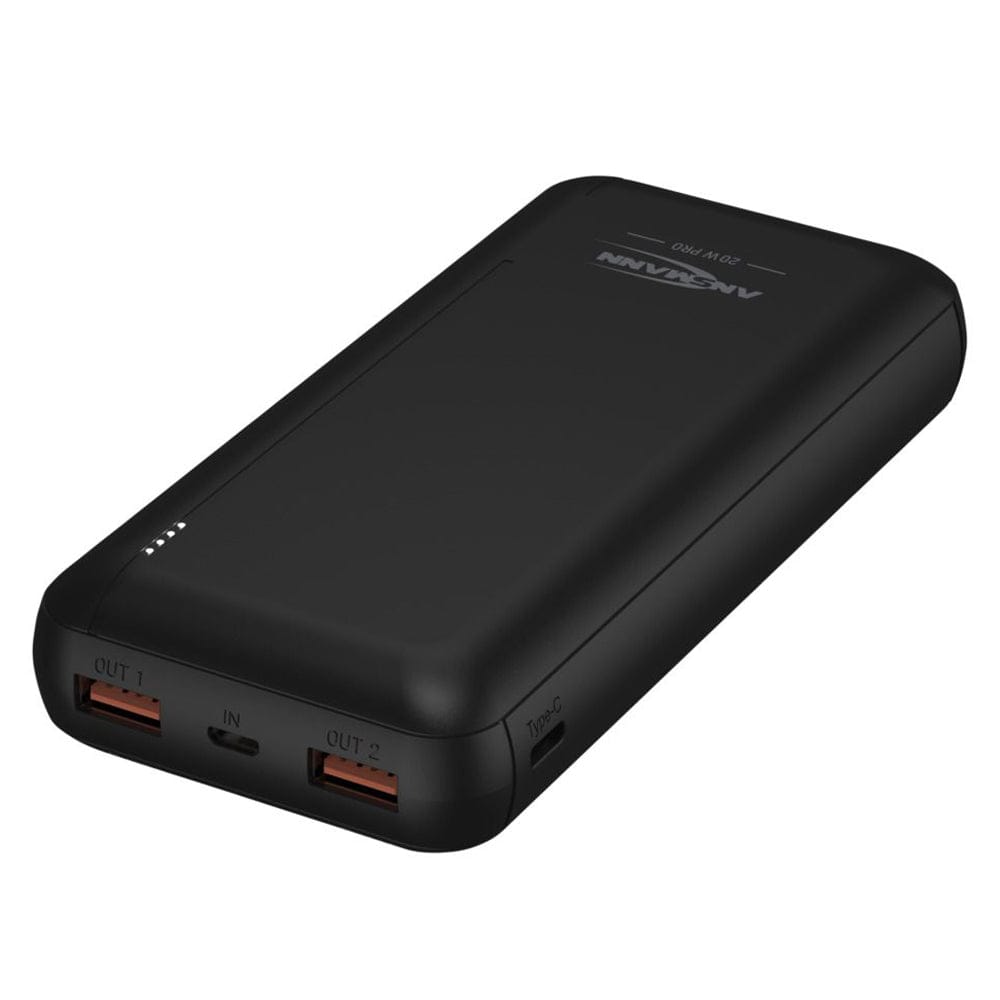

The power bank features two USB-A outputs (QC) and a side USB-C output (PD), providing lots of options depending on the cables you have to hand, or the charging speed you need.
It featurs a large 20,000 capacity and maximum output current of 3A (at 5V), and thanks to PD technology, is able to power 5V, 9V and 12V devices(consider aPower Bank Keepaliveif your project runs on a very low current draw, to stop your power bank turning off automatically).
The power bank comes with a short Micro-USB cable for recharging, or use a USB-C cable with the USB-C input instead. We also stock a slimmer 10,000mAh version!
Charging Currents
Mode
Voltage
Max. current
Max. power
USB-A
5,0 V
3,0 A
15,0 W
USB-A
9,0 V
2,0 A
18,0 W
USB-A
12,0 V
1,5 A
18,0 W
USB-C
5,0 V
3,0 A
15,0 W
USB-C
9,0 V
2,2 A
20,0 W
USB-C
12,0 V
1,7 A
20,0 W
USB-A + USB-C
5,0 V
3,0 A
15,0 W
Multi Safe Technology
With ANSMANN you play it safe. The integrated over-charging protection ensures that the Power bank stops the charge process automatically once charging has been successfully completed.
The deep discharge protection switches the Power bank off as soon as the voltage of the Power bank drops below a defined value when charging the connected device, thus preventing damage to both the rechargeable battery and the product. The short-circuit protection completes the safety functions and ensures maximum safety along with the automatic shut-off.
LED capacity indicator
The charge status indication can be activated with the push of a button enabling the current capacity to be reliably displayed in 25% steps via four integrated LEDs.
Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL.Why?
Features
Massive Capacity: 20,000 mAh (74 Wh) for multiple full charges.
Fast Charging: Supports USB Power Delivery (PD) and Quick Charge 3.0 (up to 20W)
Triple Output: 2× USB-A and 1× USB-C ports to charge up to three devices simultaneously
Flexible Recharge: Fast input via USB-C or Micro-USB
Multi-Safe Protection: Integrated safeguards against over-charging, short-circuits, and deep discharge
