ANSMANN 45W USB-PD Power Supply

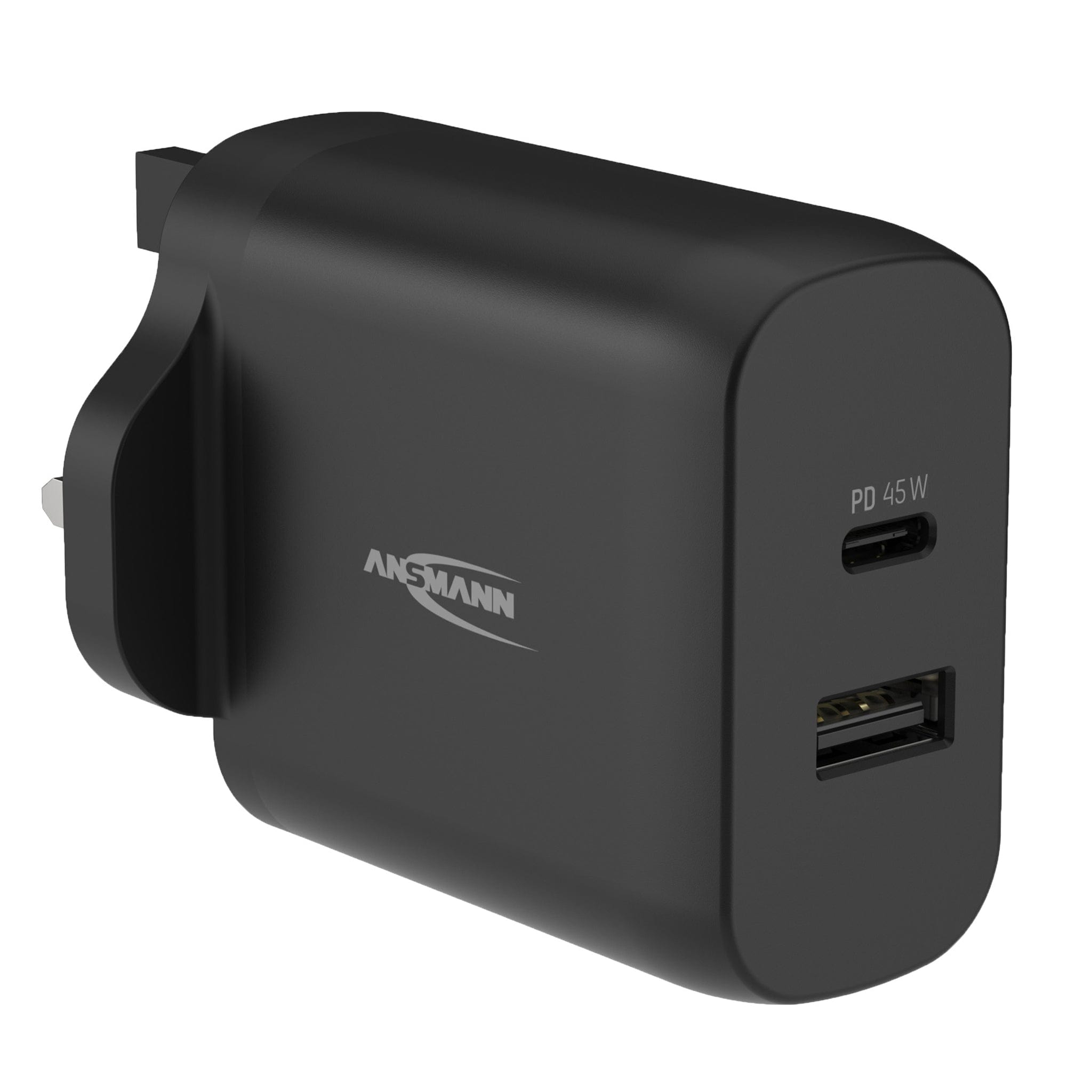

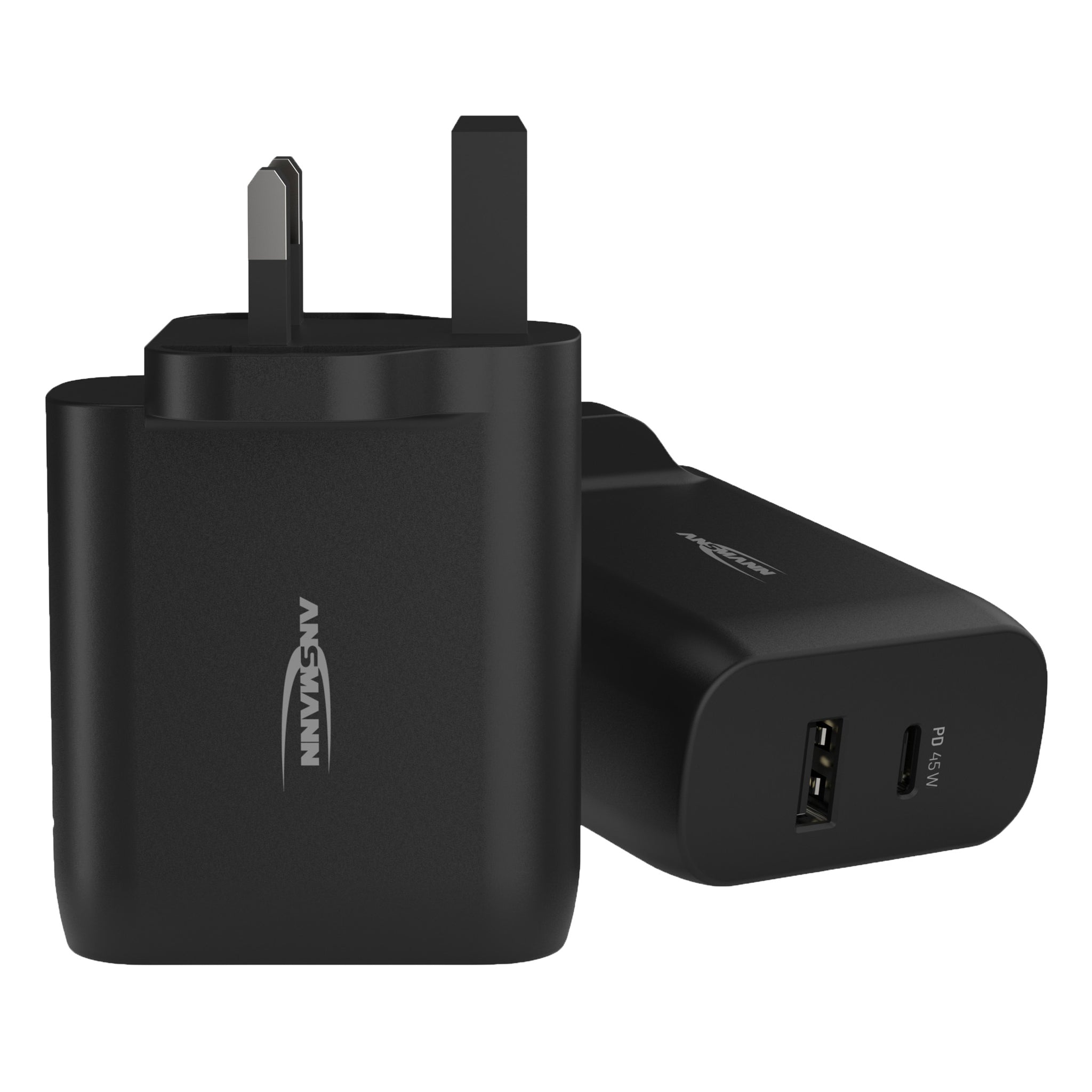

The ANSMANN HC245PD is an intelligent 45W USB-PD charger for phones, laptops, tablets and other USB devices, including a USB-C port alongside a USB-A port. The charger supports Power Delivery (PD) and Quick Charge (QC) protocols, and the built-in Multisafe technology optimises and safeguards the user along with the connected devices.

The charger offers several power voltage modes from 5V to 20V, thanks to the 45W PD (Power Delivery) feature, which is available from the USB-C output only. The PD feature is compatible with PD3.0, PPS, QC3.0, QC2.0, AFC, FCP, DCP (USB-BC 1.2) and Apple-2.4A.

The USB-A port will always output 12W (5V 2.4A) regardless of the use of the USB-C port.

We don't recommend using this for a Raspberry Pi, as we always recommend Official Raspberry Pi power supplies for that usage (however, for Raspberry Pi 4 and earlier, this will likely work just fine). Also, despite offering 45W PD, this charger does not have the funky 5V 5A PD mode that the Pi 5 requires.

Power Output

**Both the USB-C and USB-A ports can be used at the same time, however, this will restrict the USB-C PD output to 30W. The USB-A output is always 12W.

Specifications

• Input plug: UK plug
• Input voltage: 100 V - 240 V ± 10 % AC
• Input current: Max. 1.5 A
• Input AC frequency: 60 Hz / 50 Hz
• Output voltage: 5.0 V - 20.0 V ± 5 % DC regulated
• Max. output current: 3.0 A + 2.4 A
• Max. output power: 45.0 W
• Average active efficiency (230 V): 85.9 %
• Efficiency at low load (10 %; 230 V): 85.1 %
• No-load power consumption (230 V): 0.04 W
• Device type: External AC power supply with multiple output voltages generated simultaneously
• Output connection:
  • 1× USB standard Type-A port
  • 1× USB Type-C port
• Output protection:
  • Short circuit protection
  • Over temperature protection
  • Over voltage protection (36 V)
  • Over current protection (for more details see the datasheet)
• Ambient temperature at operation: -20 °C … 25 °C
• Storage temperature: -25 °C … 75 °C
• Net weight: 110 g ± 5 g
• Housing dimensions: 86.5 × 55.9 × 48.8 mm ± 1 mm
• Housing material: Plastic (PC)
• Output voltage ripple: ≤ 250 mVp-p.
• Protection class: II
• Approvals: CE
• Included accessories: Operating instructions
• Package: White folding box
• Product number: ANSMANN 1001-0171
• EAN: 4013674210084

Resources

• Datasheet
• CE Declaration
• Guarantee: 3 years

Package Contents

• 1x ANSMANN 45W PD USB Power Supply
• 1x Operating instructions

USB cables not included
